5-Bedroom Transitional House Plan with Media Room and Bonus Room - 6413 Sq Ft

Heated S.F.
6,413
Beds
5
Baths
5.5 - 7.5
Stories
2
Cars
4

Floor Plan

Plan 510255WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510255WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

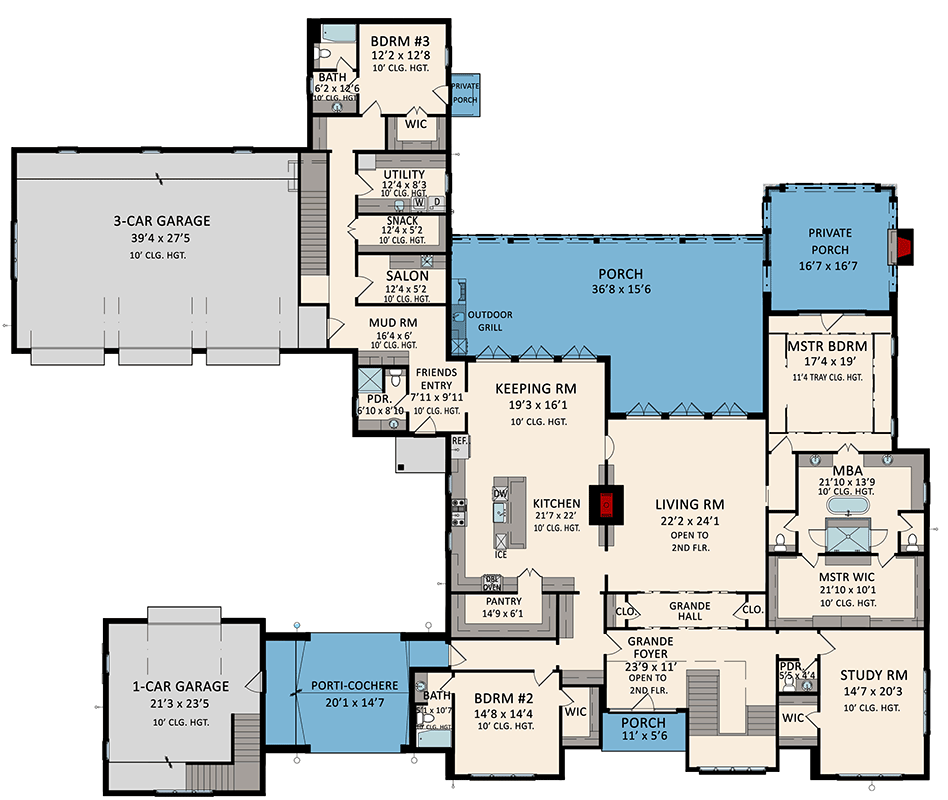

Plan 510255WDY: 5-Bedroom Transitional House Plan with Media Room and Bonus Room - 6413 Sq Ft - Floor Plan - Main Level - Transitional

2nd Floor

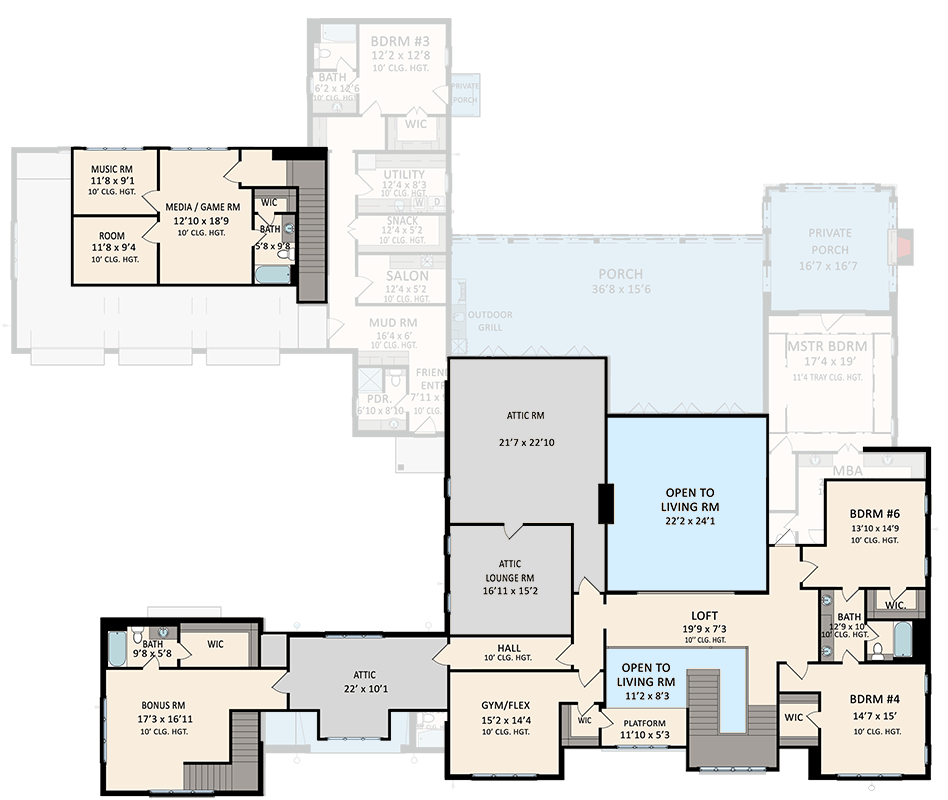

Plan 510255WDY: 5-Bedroom Transitional House Plan with Media Room and Bonus Room - 6413 Sq Ft - Floor Plan - 2nd Floor - Transitional

Plan Details

  • This transitional house plan offers you 6,413 square feet of heated living space with 5 beds, 7.5 baths and a 2,018 square foot 4-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

6,413 sq. ft.

1st Floor

4,735 sq. ft.

2nd Floor

1,525 sq. ft.

Bonus

2,357 sq. ft.

Porch, Combined

1,334 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5, 6, or 7

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

128' 3"

Depth

108' 8"

Max Ridge Height

40' 4"

Garage

Type

Attached

Area

2018 sq. ft.

Count

4 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Game/Rec Room

Home Office

In-Law Suite

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Multiple Stairs

Optionally Finished Bonus Room

Outdoor Kitchen

Porte Cochere

Two Story Great Room

Plan Collections

Home Office

Luxury

Square Footage Breakdown

Total Heated Area

6,413 sq. ft.

1st Floor

4,735 sq. ft.

2nd Floor

1,525 sq. ft.

Bonus

2,357 sq. ft.

Porch, Combined

1,334 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5, 6, or 7

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

128' 3"

Depth

108' 8"

Max Ridge Height

40' 4"

Garage

Type

Attached

Area

2018 sq. ft.

Count

4 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Game/Rec Room

Home Office

In-Law Suite

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Multiple Stairs

Optionally Finished Bonus Room

Outdoor Kitchen

Porte Cochere

Two Story Great Room

Plan Collections

Home Office

Luxury
