Plan 93003EL

Exclusive

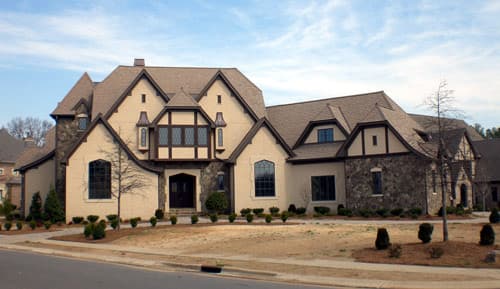

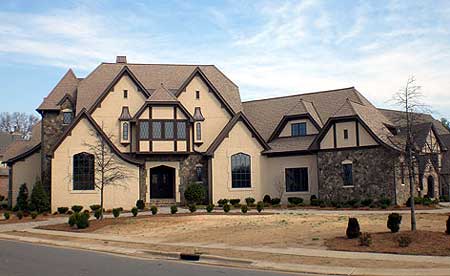

5 Bedroom Tudor Style Home Plan

Heated S.F.
6,275
Beds
4 - 5
Baths
5
Stories
2
Cars
3

Floor Plan

Plan 93003EL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 93003EL

M-F 9am-5pm EST |

1-203-761-8500

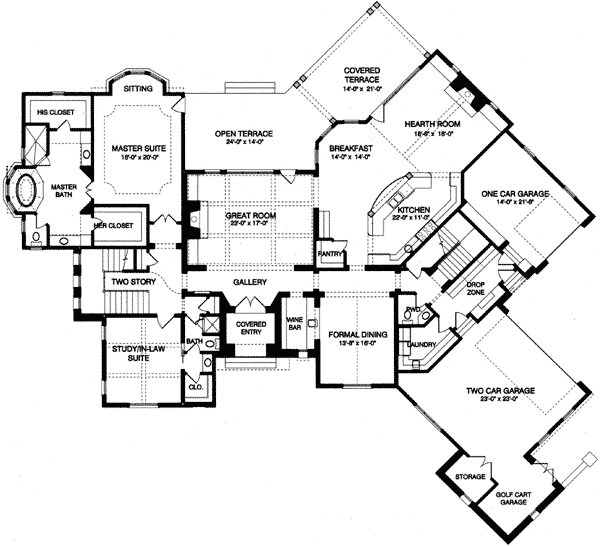

Main Level

Plan 93003EL: 5 Bedroom Tudor Style Home Plan - Floor Plan - Main Level - European, Tudor

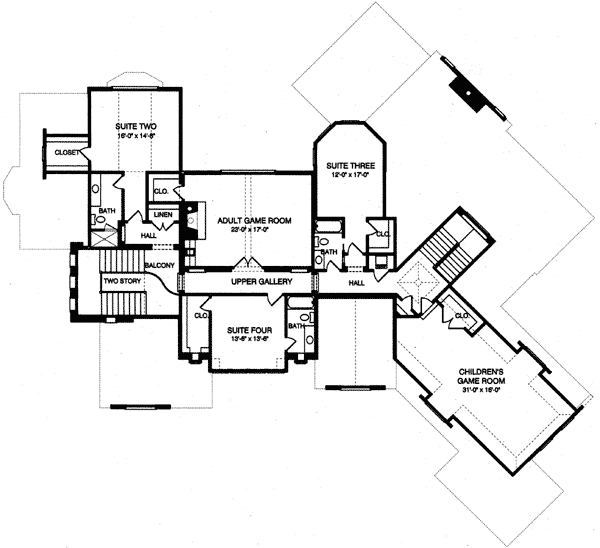

2nd Floor

Plan 93003EL: 5 Bedroom Tudor Style Home Plan - Floor Plan - 2nd Floor - European, Tudor

Plan Details

  • The downstairs master suite features a sitting area, spacious his and her’s walk-in closets, and a dramatic master bath with a beautiful tub area and walk-in shower.
  • There’s also a flexible area that could be used for either a study or the perfect mother-in-law suite.
  • Mealtime is no trouble at all, as the attractive gourmet kitchen includes a walk-in pantry and oversize breakfast area, plus nearby formal dining space.
  • Your family and guests will especially enjoy the covered and open terraces.
  • Upstairs, you’ll find three suites, plus an adult game room/movie room, and a children’s playroom.
  • There is an abundance of parking space for vehicles of all sizes, thanks to one garage that has 2-car dimensions, another that’s made for a single car, and a third that is just right for your golf cart and lawn equipment.
  • Need more space? An optional basement is also available.

What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Bird's Eye Roof Plan

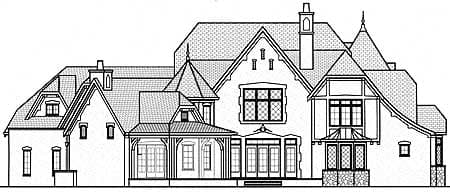

  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

6,275 sq. ft.

1st Floor

3,746 sq. ft.

2nd Floor

2,529 sq. ft.

Porch, Combined

362 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

106' 2"

Depth

98' 2"

Max Ridge Height

38' 10"

Garage

Type

Attached

Area

830 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

European

Tudor

Special Features

Formal Dining

Game/Rec Room

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Multiple Stairs

Playroom

Walk-in Pantry

Plan Collections

Exclusive

Luxury

Photo Gallery
