5-Car Garage with 3-Bed Apartment in a Split Bedroom Layout Above

Plan 61208UT

  • 3,709

    Heated s.f.

  • 1

    Beds

  • 3

    Baths

  • 2

    Stories

  • 5-8

    Cars

  • This garage plan has parking for 5 cars on the main level with a bath located in the middle.
  • Stairs along the back take you to the apartment delivering a huge open space flanked with bedrooms on either side.
  • A large laundry room is located above the center bay as is a storage room.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

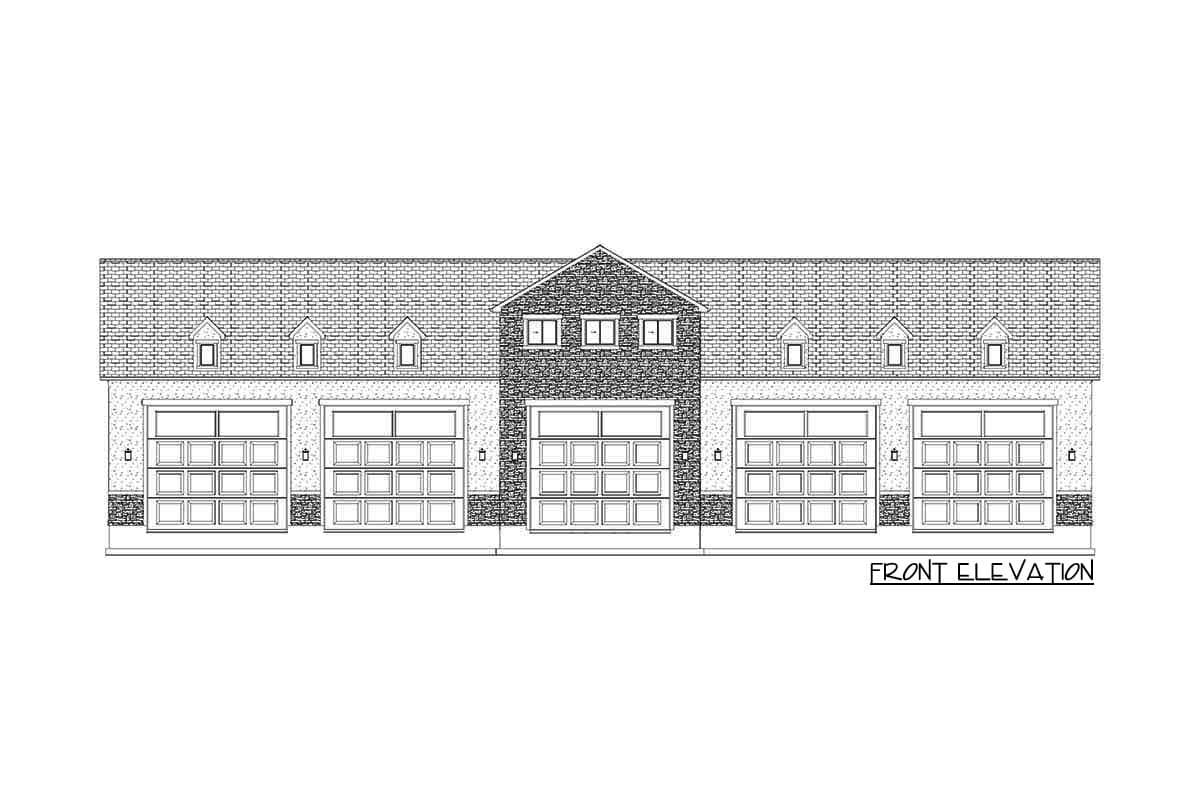

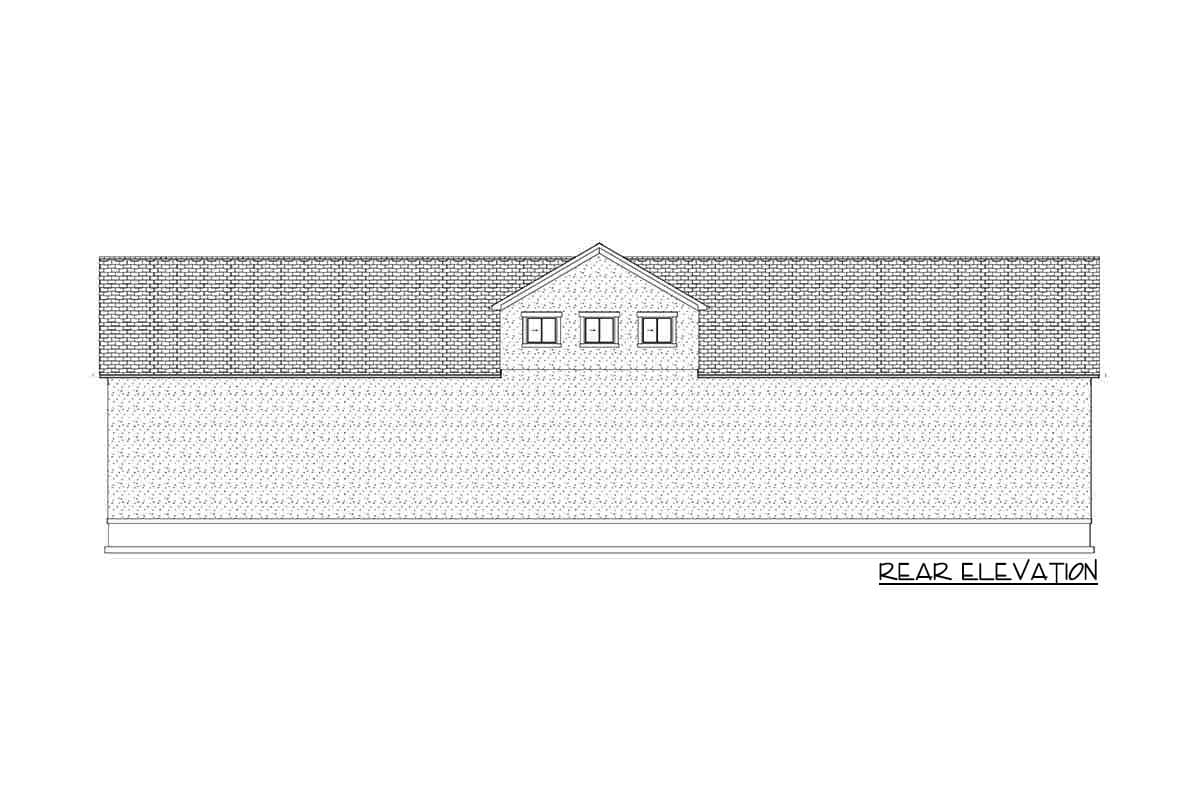

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

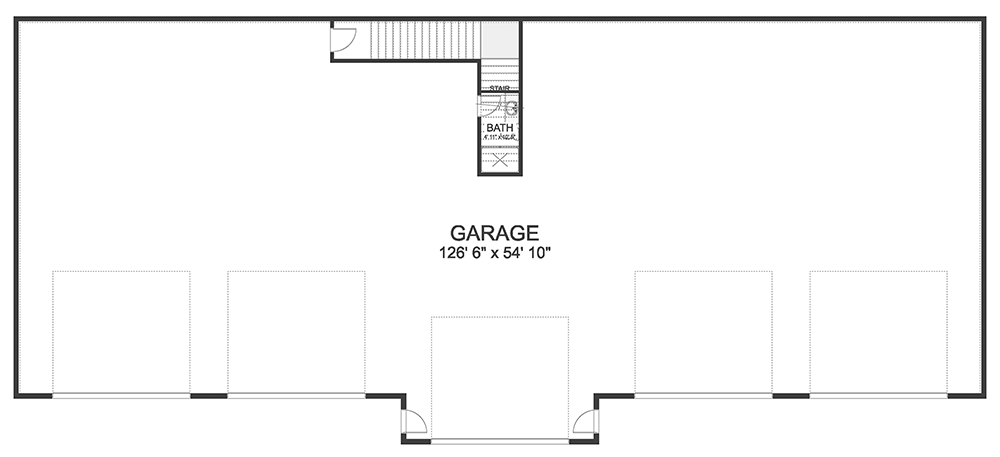

5-Car Garage with 3-Bed Apartment in a Split Bedroom Layout Above - 61208UT floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

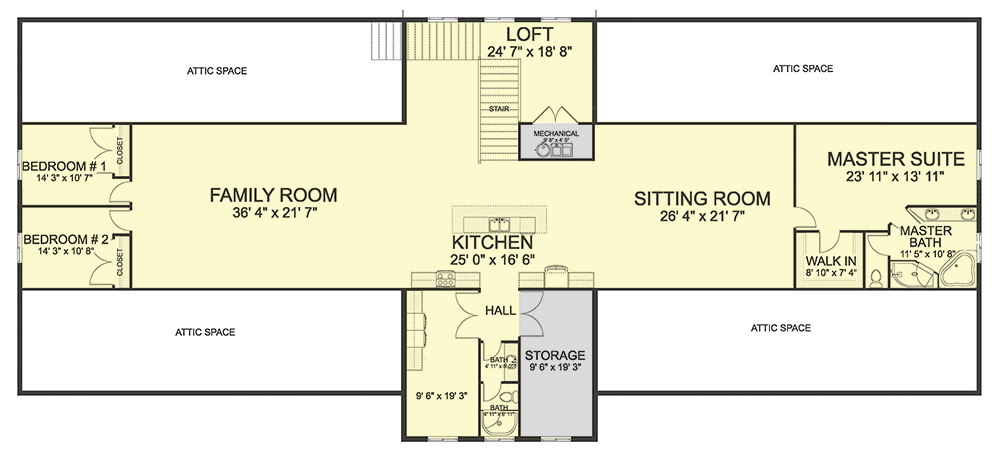

5-Car Garage with 3-Bed Apartment in a Split Bedroom Layout Above - 61208UT floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,709 sq. ft.
  • 2nd Floor: 3,709 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 127' 6"
  • Depth: 56' 0"
  • Max ridge height: 36' 5"

Garage

  • Type: Detached
  • Area: 6531 sq. ft.
  • Count: 5, 6, 7, or 8 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 18' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

5-Car Garage with 3-Bed Apartment in a Split Bedroom Layout Above

  • 3,709

    Heated s.f.

  • 1

    Beds

  • 3

    Baths

  • 2

    Floors

  • 5 - 8

    Car garage

Buy This Plan
  • PDF - Single-Build $700
  • PDF - Unlimited Build $825
  • 5 Sets + PDF $1,025
  • CAD + PDF - Single-Build $1,150
  • CAD Unlimited + PDF $1,275
  • View all purchase option online
