50-Foot-Wide 1720 Square Foot House Plan with 2-Sided Fireplace
Heated S.F.
1,720
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Including the 20' wide and 18' deep covered patio on the right, this 3 bed, 2 bath house plan is just 50' wide, making it suitable for narrower lots.
  • Step in off the front porch and discover an open floor plan with vaulted ceiling with a 2-sided fireplace the only feature separating the living room in front - with sliding door access to the patio - from the dining room and island kitchen.
  • Bedrooms line the left side of the home and laundry is located off the mudroom which serves as a transition zone from the 2-car alley-access garage (850 square feet).
What's Included

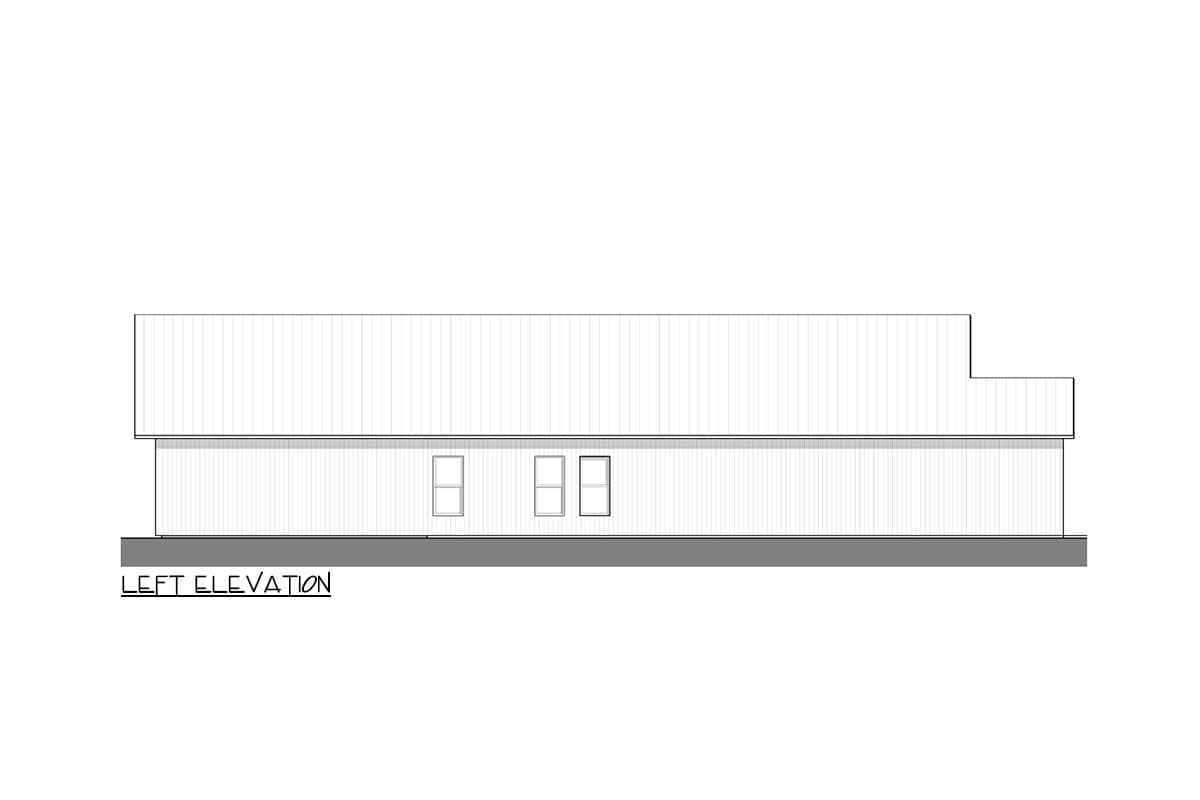

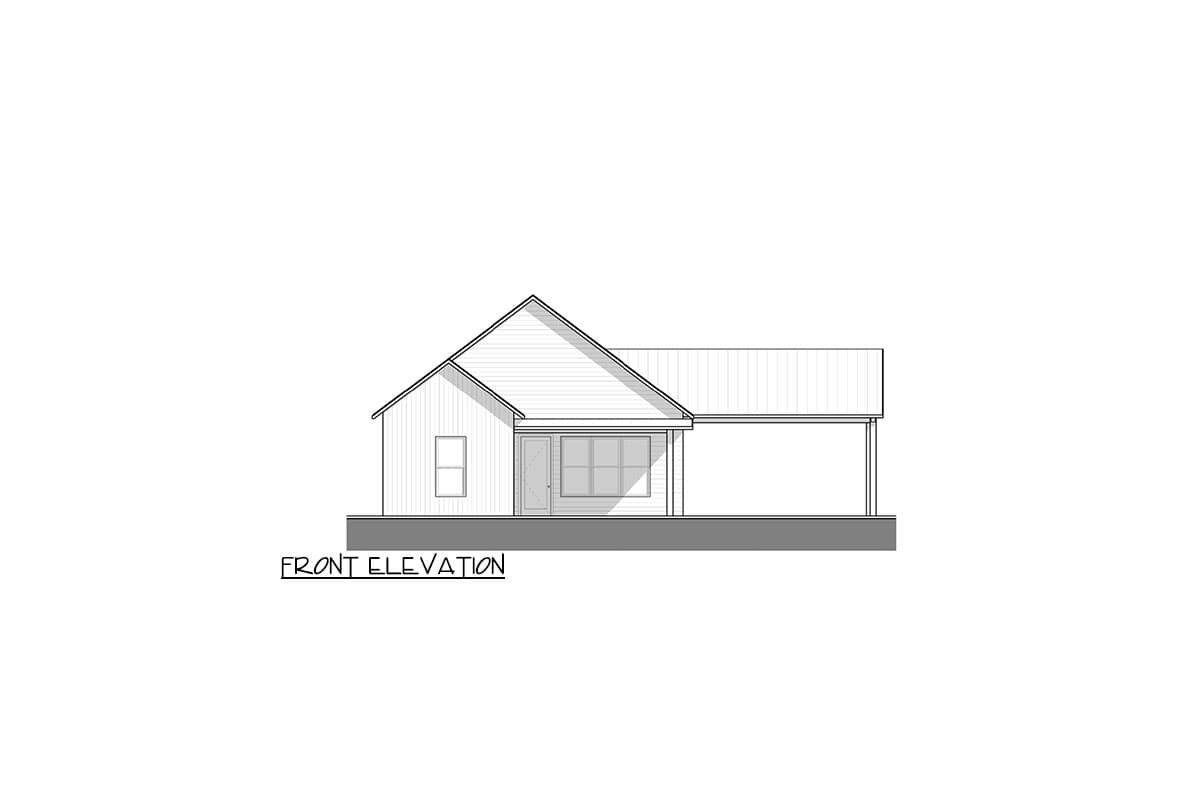

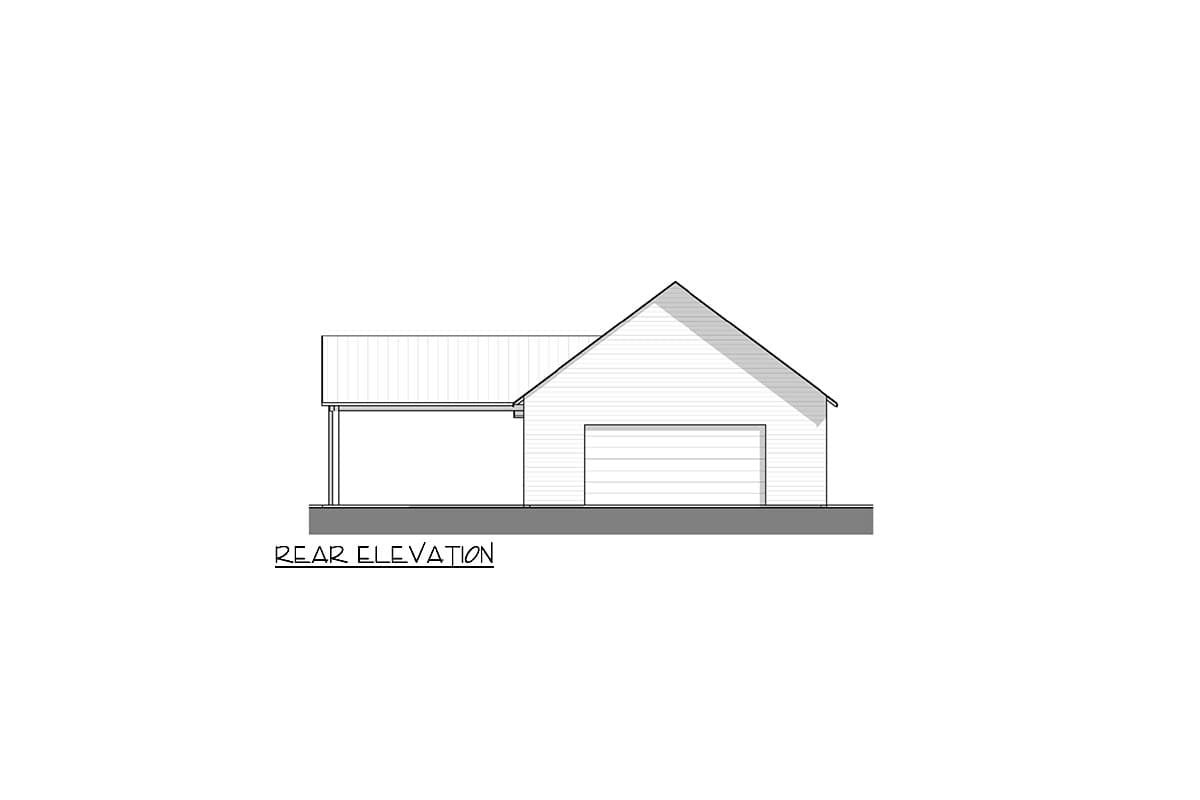

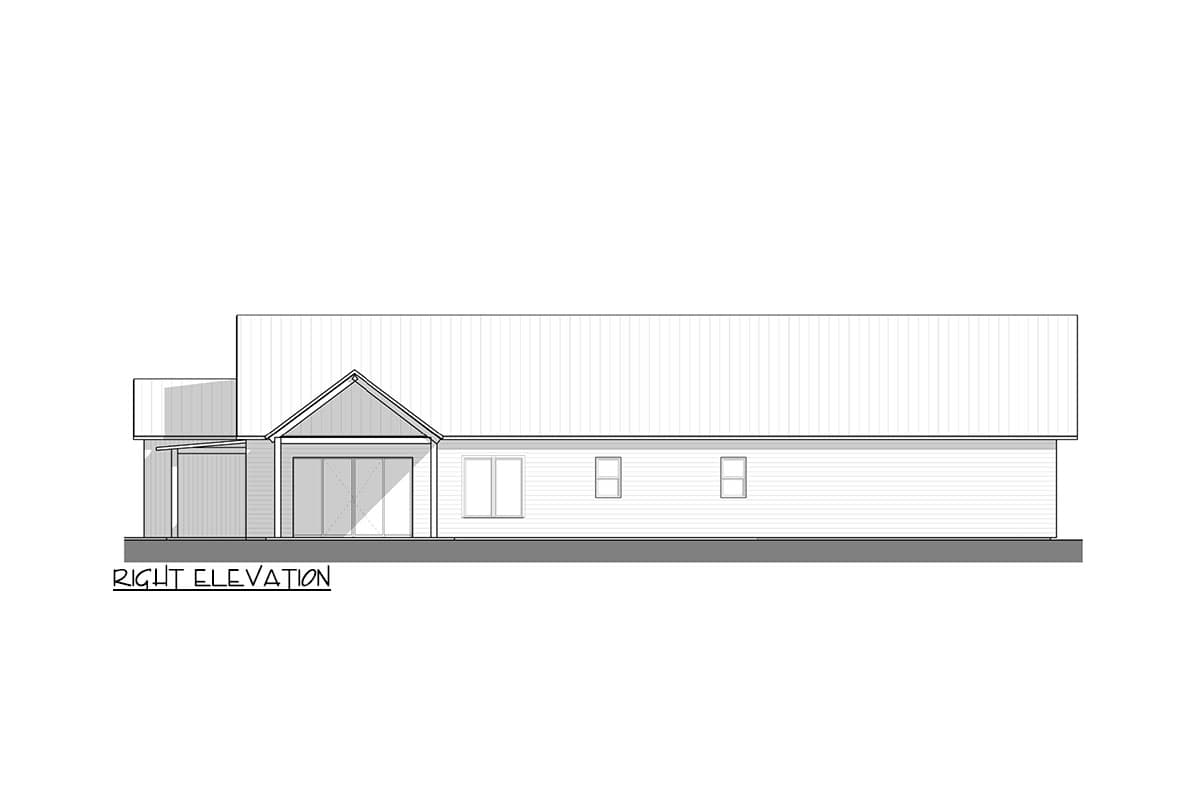

  • Exterior Elevations: Shows the front, rear and sides of the home
  • Floor Plans: Fully dimensioned floor plans
  • Schematic Lighting & Power Plan
  • Foundation Layout & Plumbing Plan
  • Roof Plan & sections
  • Window & door schedule
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

50-Foot-Wide 1720 Square Foot House Plan with 2-Sided Fireplace

  • 1,720

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

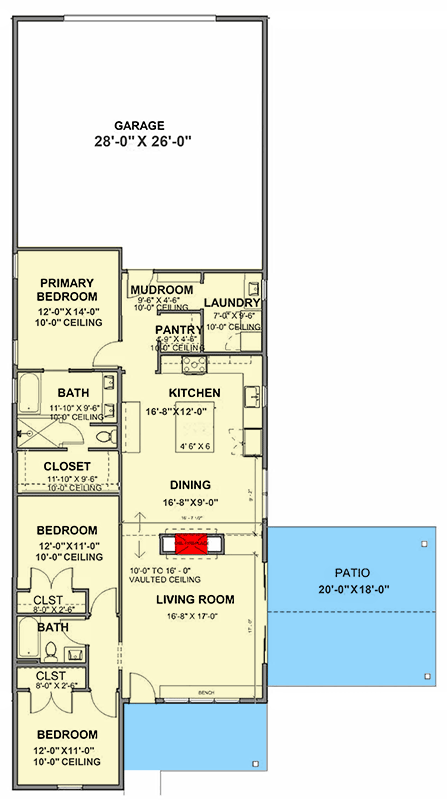

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,720 sq. ft.
  • 1st Floor: 1,720 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 91' 0"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 850 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" VAULTED 16' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick Or Truss
