Plan 55220BR
523 Square Foot Southern-style Cottage with Murphy Bed and Large Rear Porch
Heated S.F.
523
Beds
1
Baths
1
Stories
1
What's Included
Plan Details

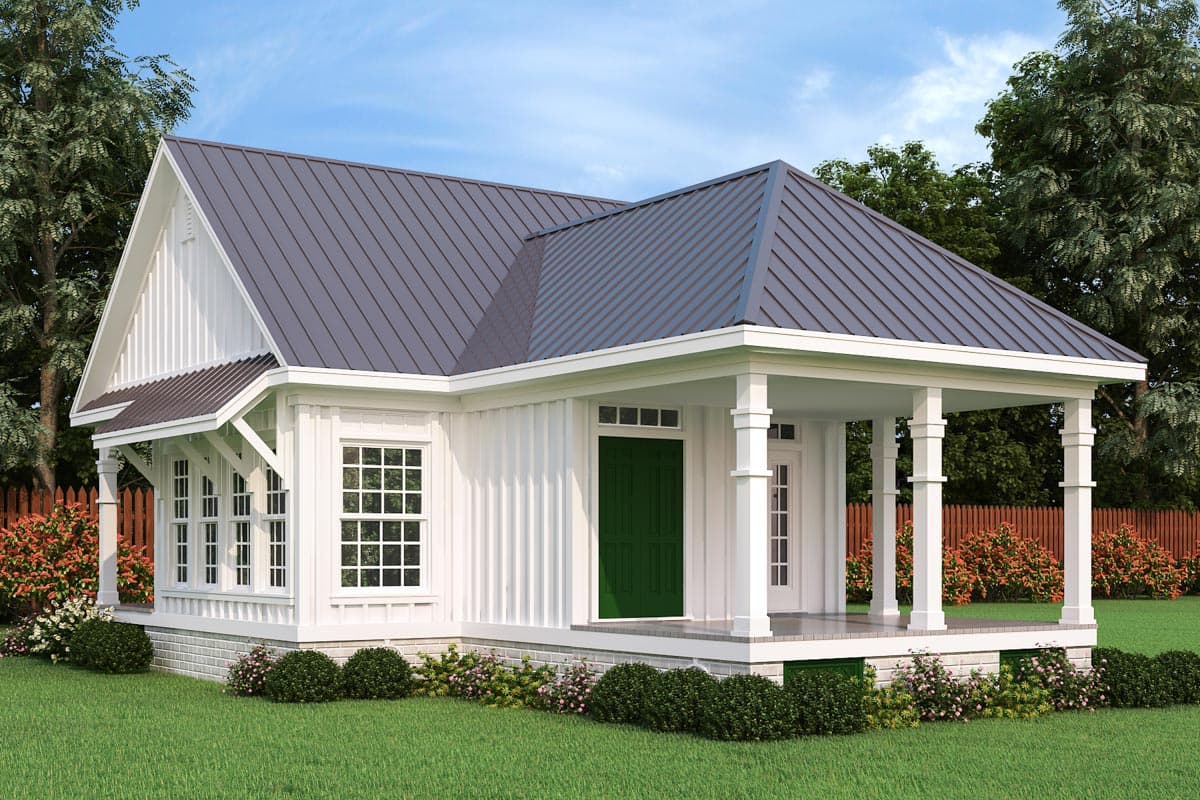

  • This 523 square foot home plan is a compact and designed as a guest house, ADU or pool house. It is totally livable as a single family home or as a rental property. Resembling a period-style home from the 1800’s, this home feels much larger than its size due to the open design.

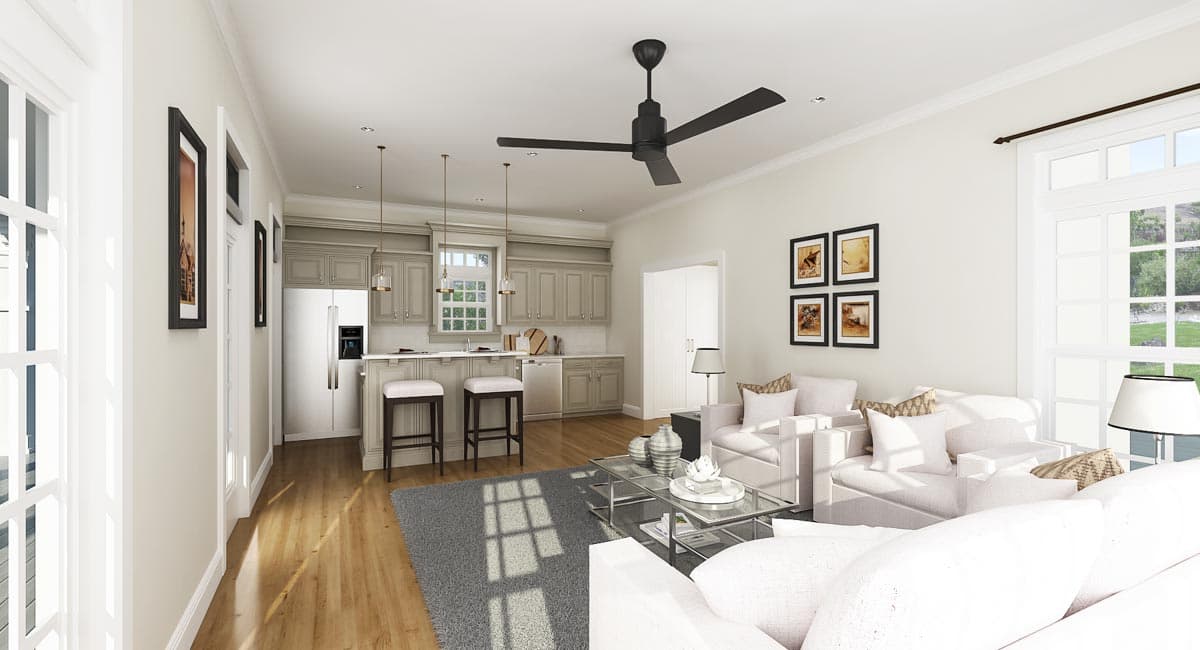

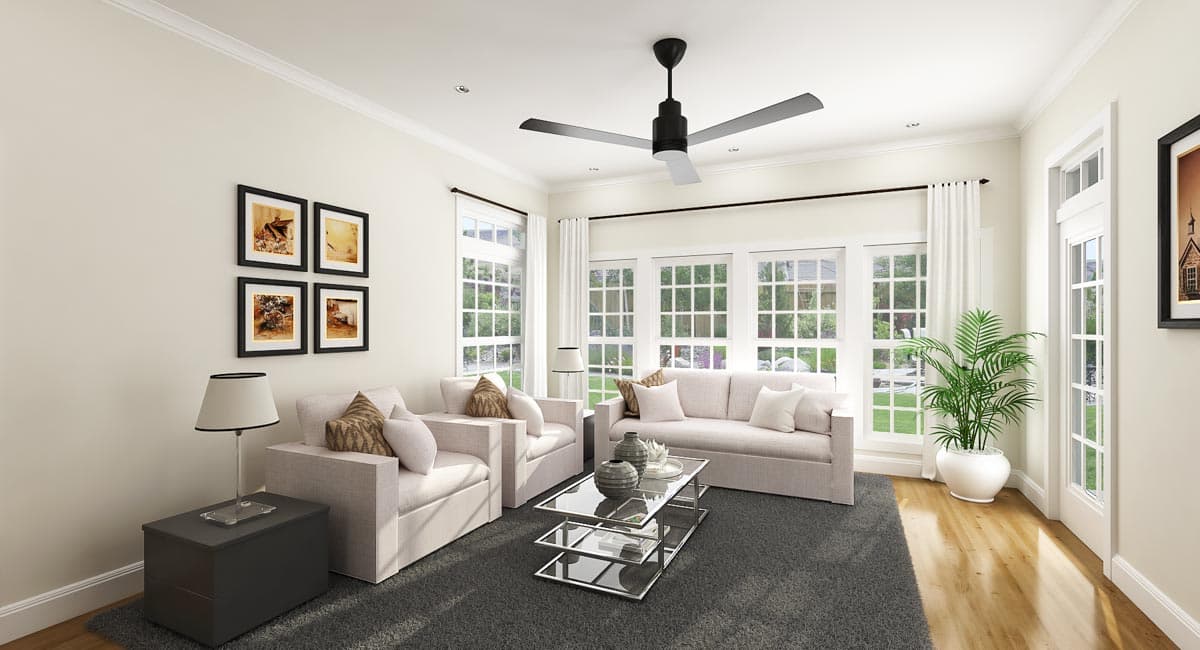

  • The floor plan is designed to accommodate a full size living suite and a dining service for 4.  One wall of the living space has been designed to accommodate a Murphy bed with wardrobe so that everything one needs is contained in this open and elegant space. A full size bath is tucked around the corner for privacy and has space for a stacked washer and dryer.
  • When it comes to outdoor living, this cottage gives you a rocking chair-sized front porch and a rear porch that gives you room for outdoor living.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

523 Square Foot Southern-style Cottage with Murphy Bed and Large Rear Porch

  • 523

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

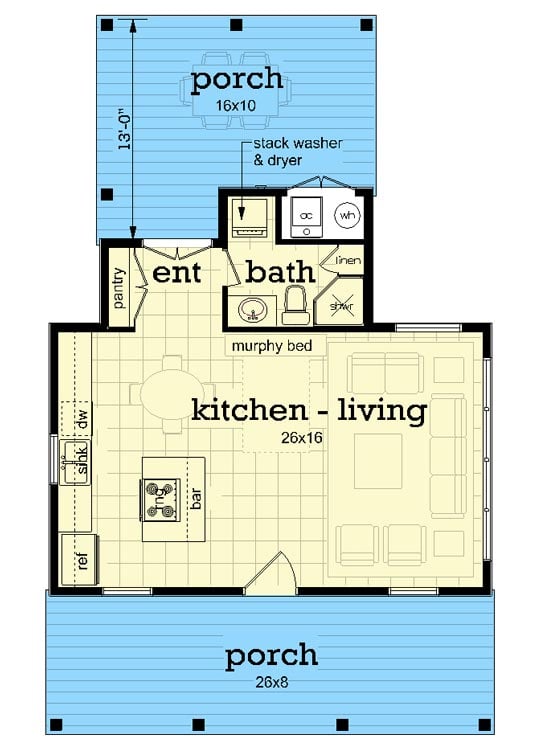

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 523 sq. ft.
  • 1st Floor: 523 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 42' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
