Plan 86385HH
5300 Square Foot Country Craftsman Plan with Optional Second Level Apartment
Heated S.F.
5,303
Beds
3-6
Baths
4.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

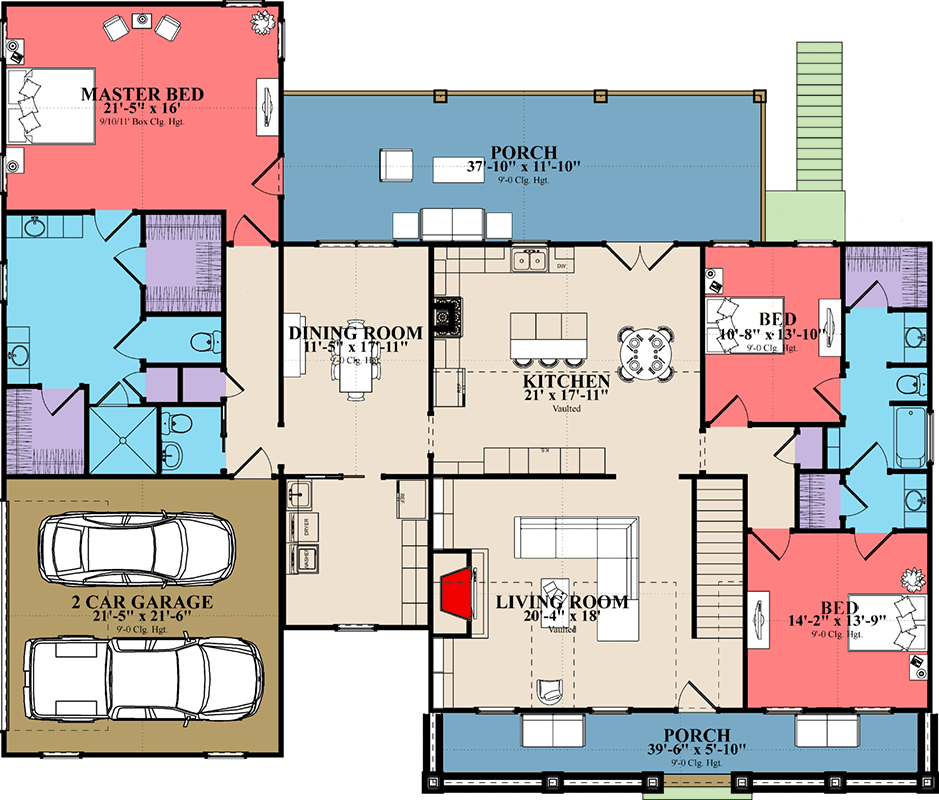

5300 Square Foot Country Craftsman Plan with Optional Second Level Apartment - 86385HH floor plan - Main Level
Optional Lower Level
Reverse Floor Plan

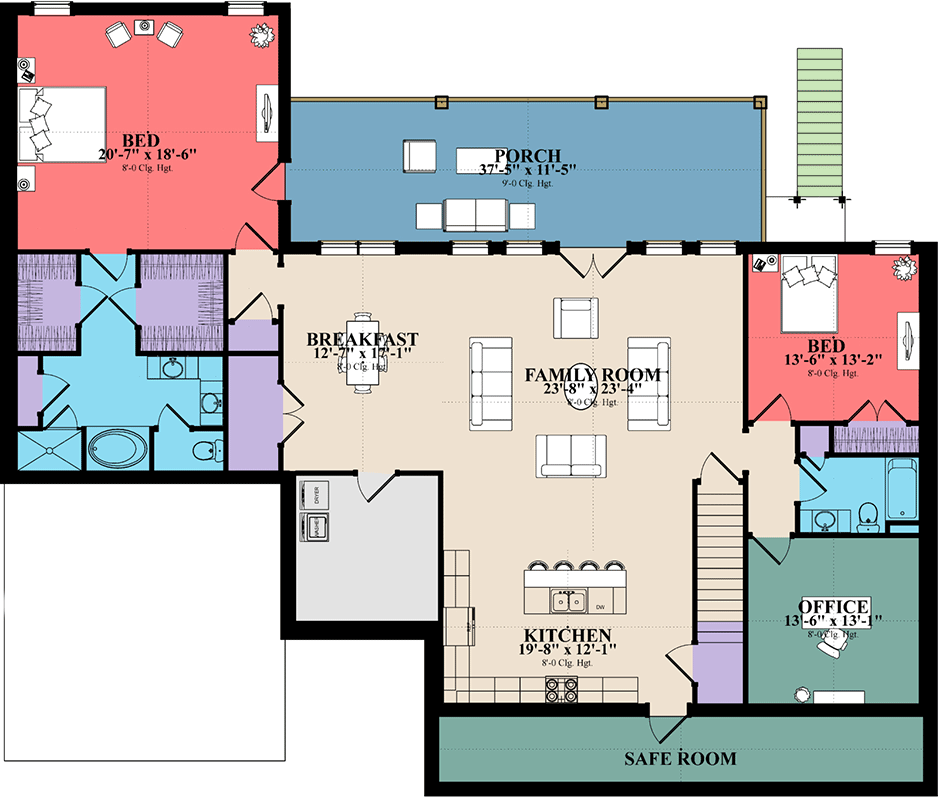

5300 Square Foot Country Craftsman Plan with Optional Second Level Apartment - 86385HH floor plan - Optional Lower Level
Plan Details
  • Six tapered columns support the charming front porch on the exterior of this Country Craftsman home plan that gives you 5,303 square feet of living space, along with an optional second level apartment.
  • A fireplace framed by builtins anchors the living room, while the adjacent kitchen features a prep island with a breakfast bar and access to the 11'10"-deep porch.
  • Two bedrooms on the main level share a Jack-and-Jill bathroom, and the master bedroom boasts a large ensuite with two walk-in closets.
  • Utilize the lower level as additional square footage or an income property. The layout mimics the main level with a central living area surrounded by two bedrooms and a home office.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5300 Square Foot Country Craftsman Plan with Optional Second Level Apartment

  • 5,303

    Heated s.f.

  • 3-6

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 5,303 sq. ft.
  • Lower Level: 2,667 sq. ft.
  • 1st Floor: 2,636 sq. ft.

Dimensions

  • Width: 73' 10"
  • Depth: 62' 5"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 478 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
