Plan 350000GH

5600 Square Foot Mountain Craftsman with Angled 2-Car Garage and Upstairs Rec Room

Name: Plan 350000GH: 5600 Square Foot Mountain Craftsman with Angled 2-Car Garage and Upstairs Rec Room
Brand: Architectural Designs
SKU: 350000GH
Price: 2635.0 USD
Availability: InStock

Heated S.F.

5,684

Beds

Baths

Stories

Cars

Floor Plan

Main Level

2nd Floor

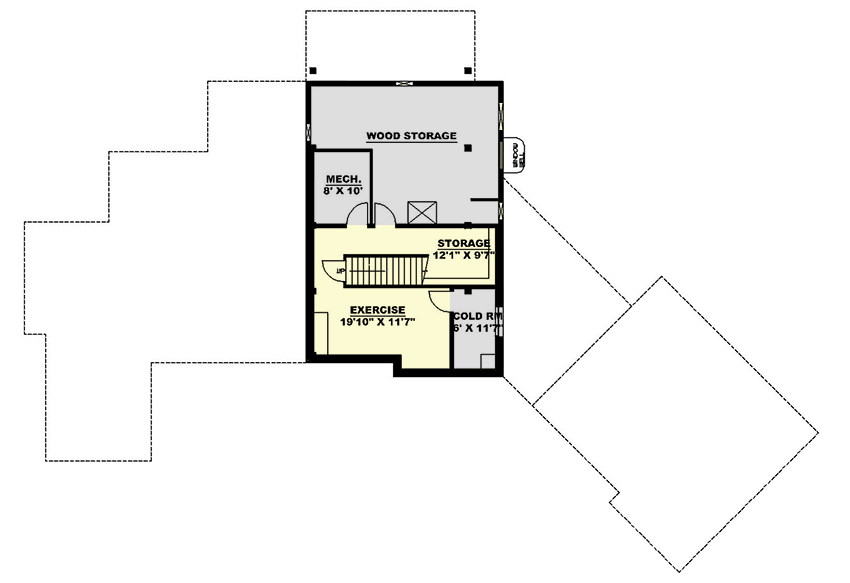

Basement

Plan Details

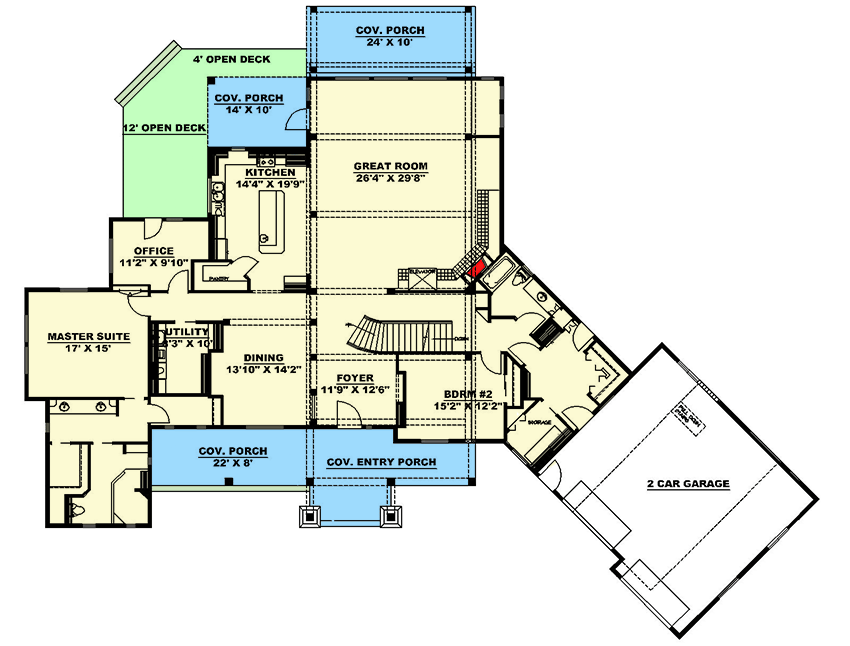

Timbers, log siding, board and batten and shingles combine to give this 5,684 square foot mountain Craftsman house plan rustic curb appeal. A 2-car 837 square foot comes off the front of the house at an angle and accesses the home through a large mudroom.
From the foyer, you catch a glimpse of the great room and the windows beyond. The great room is open to the kitchen and has a fireplace and an elevator and access to the covered porch.
The master suite has a large bathroom set off pocket doors and additional pocket doors concealing the walk-in closet and the shower and toilet. A second bedroom is located across the home.
A home office has direct access to the back deck.

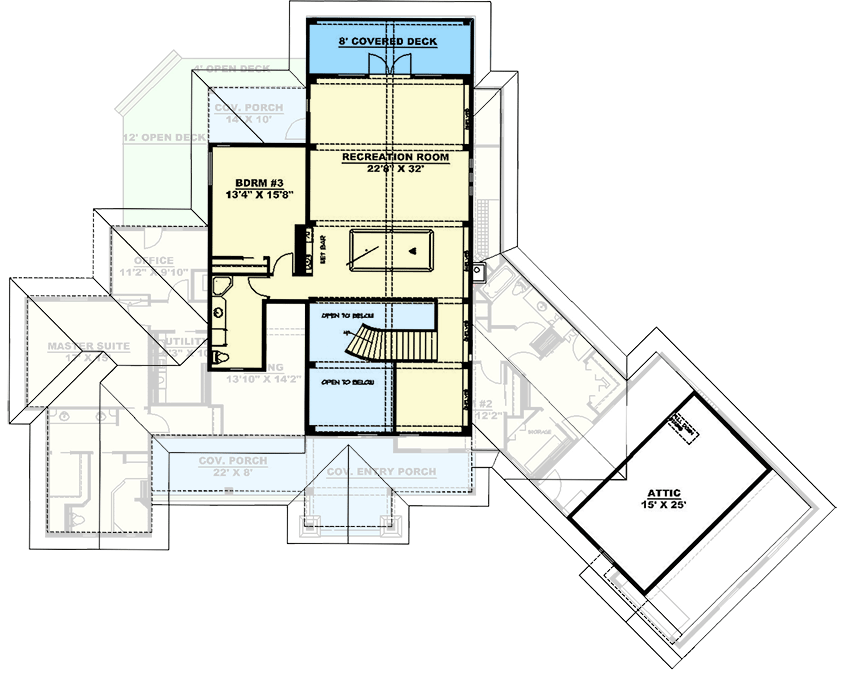

Upstairs, a pair of French doors off the rec room accesses an 8'-deep covered deck. A third bedroom is located upstairs.

What's Included

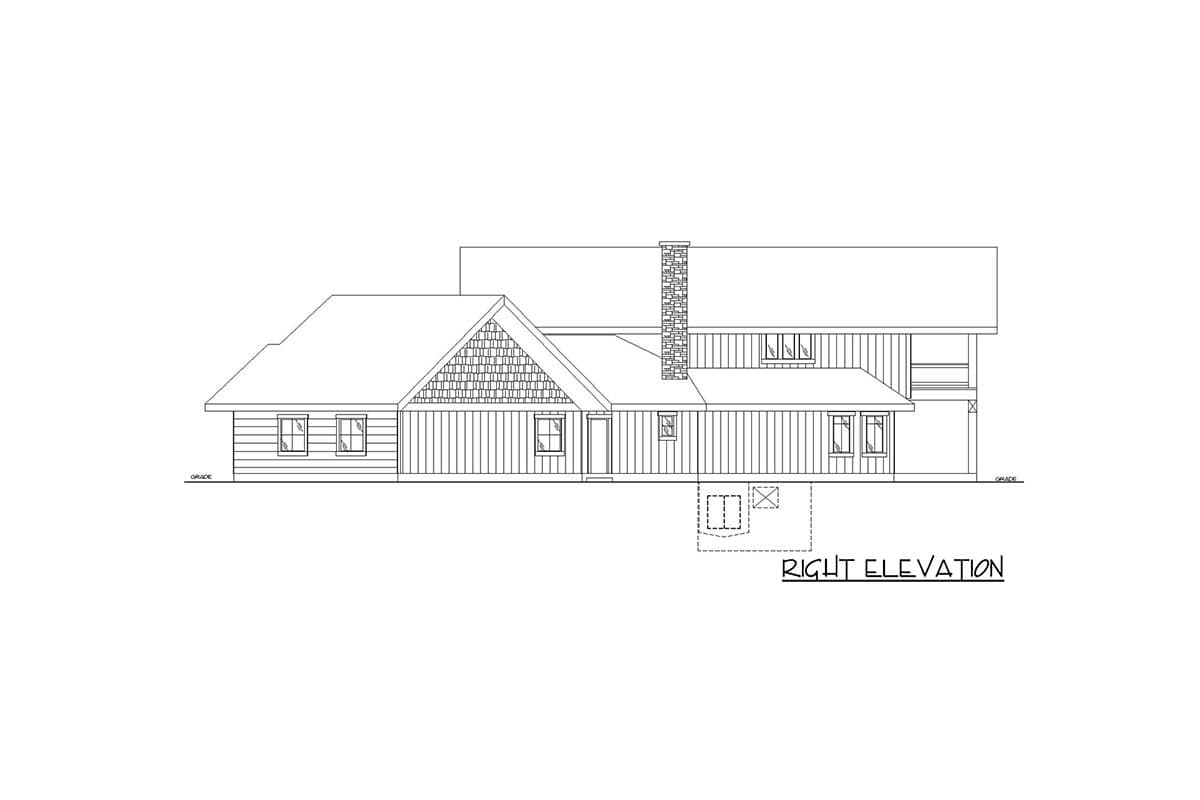

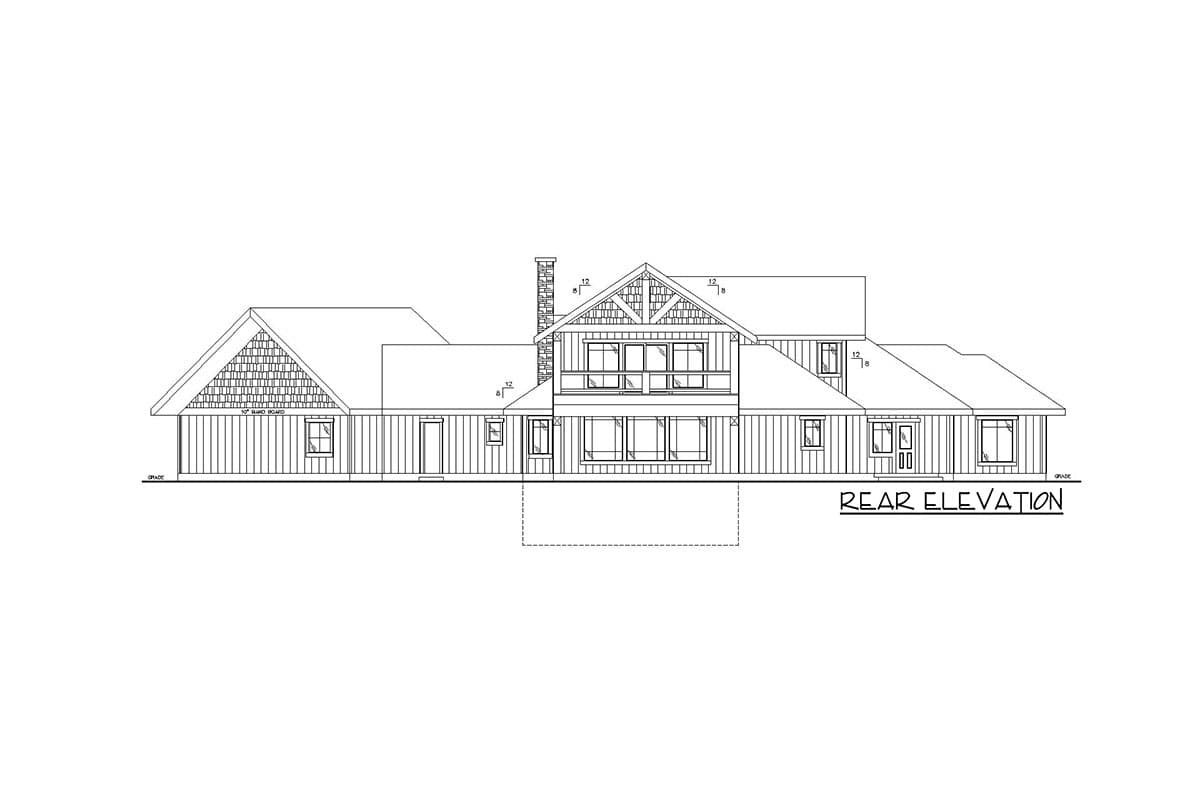

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
