Plan 9526RW

5723 Square Foot Mountain Craftsman with Lower Level Entertainment Zone

Heated S.F.
5,723
Beds
5
Baths
4.5
Stories
1
Cars
3

Floor Plan

Plan 9526RW

Main Level
Main Level
Lower Level
Lower Level

Plan 9526RW

M-F 9am-5pm EST |

1-203-761-8500

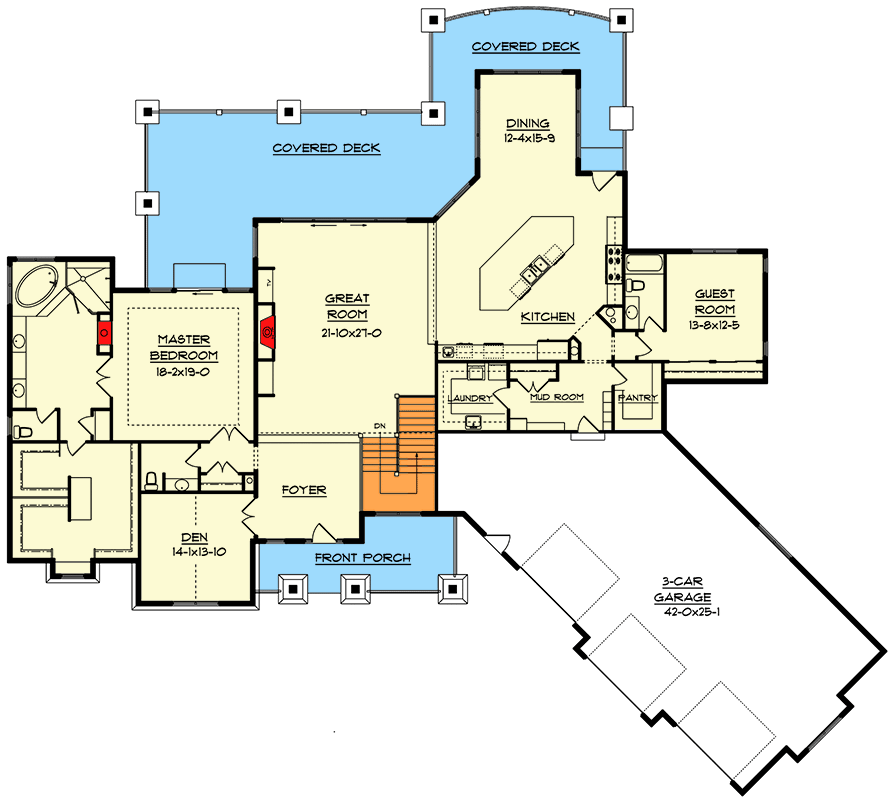

Main Level

Plan 9526RW: 5723 Square Foot Mountain Craftsman with Lower Level Entertainment Zone - Floor Plan - Main Level - Craftsman, Mountain, Rustic

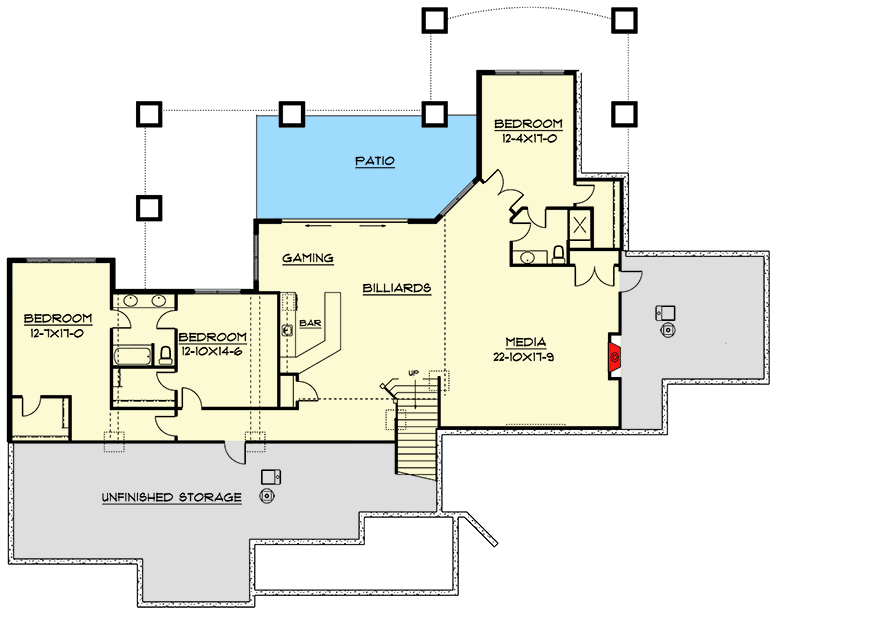

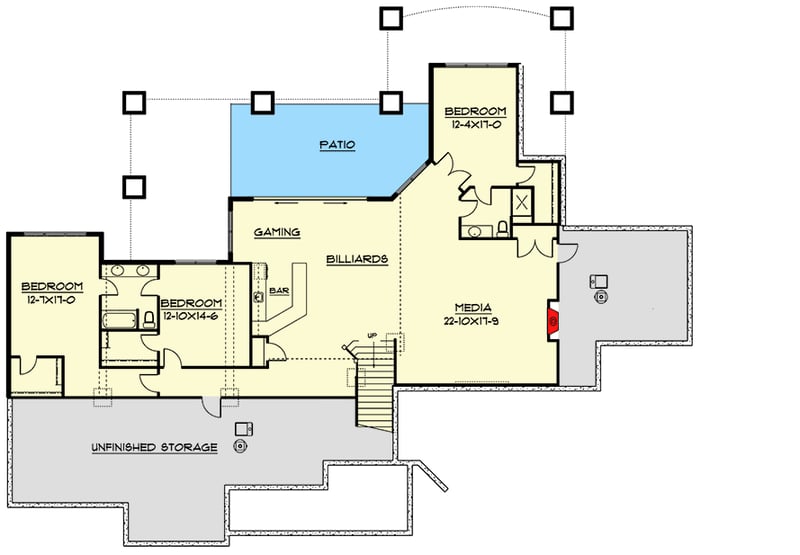

Lower Level

Plan 9526RW: 5723 Square Foot Mountain Craftsman with Lower Level Entertainment Zone - Floor Plan - Lower Level - Craftsman, Mountain, Rustic

Plan Details

  • This is a house to bring all your friends and family to. The lower level will provide the perfect entertainment zone with a gaming area, media and billiards section complete with a large wet bar!
  • Sliding glass doors on this level open to a covered patio and three bedrooms with two baths will accommodate any overnight guests.
  • The main floor has a large foyer with views straight back through the great room to the covered deck in the rear.
  • A vaulted den lies to the left of the foyer near the first floor master suite.
  • Tray ceilings and a huge walk-in closet and bath will be appreciated by the homeowners.
  • A massive island in the gourmet kitchen gives plenty of counter space to an already large kitchen.
  • Another guest suite can be found on this level for those who would rather skip the stairs.
  • Related Plan: Get more room with house plan 9522RW (6,732 sq. ft.).

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,723 sq. ft.

Lower Level

2,226 sq. ft.

1st Floor

3,497 sq. ft.

Deck

1,997 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

112' 8"

Depth

100' 6"

Max Ridge Height

23' 11"

Garage

Type

Attached

Area

1411 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Rustic

Special Features

Angled Garage

Bedrooms - Split

Den

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Walk-in Pantry

Wet Bar

Plan Collections

Luxury

Premium Collection

Square Footage Breakdown

Total Heated Area

5,723 sq. ft.

Lower Level

2,226 sq. ft.

1st Floor

3,497 sq. ft.

Deck

1,997 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

112' 8"

Depth

100' 6"

Max Ridge Height

23' 11"

Garage

Type

Attached

Area

1411 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Rustic

Special Features

Angled Garage

Bedrooms - Split

Den

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Walk-in Pantry

Wet Bar

Plan Collections

Luxury

Premium Collection
