Plan 623114DJ

672 Square Foot 2-car Barn-like Detached Garage Plan

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
2

Floor Plan

Plan 623114DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623114DJ

M-F 9am-5pm EST |

1-203-761-8500

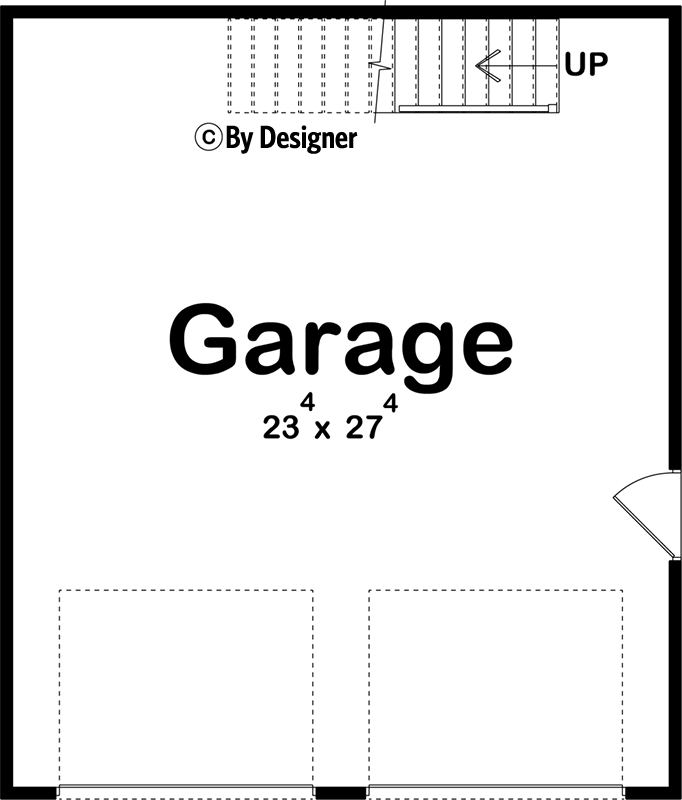

Main Level

Plan 623114DJ: 672 Square Foot 2-car Barn-like Detached Garage Plan - Floor Plan - Main Level - Barndominium, Country, Traditional

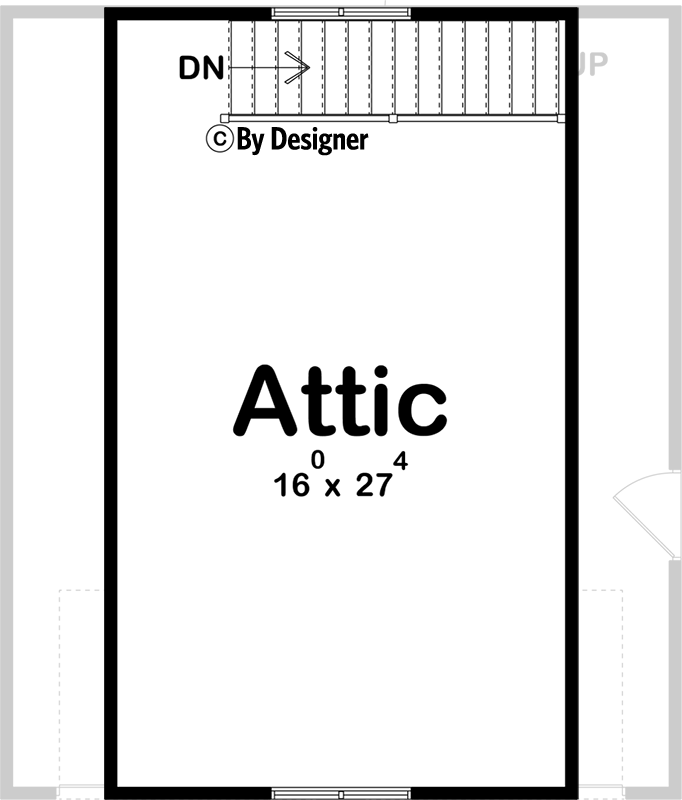

2nd Floor

Plan 623114DJ: 672 Square Foot 2-car Barn-like Detached Garage Plan - Floor Plan - 2nd Floor - Barndominium, Country, Traditional

Plan Details

  • This is a barn-style garage plan built on a slab foundation and gives you ample room for 2 cars. Alternatively, it could be used as a stand-alone workshop.
  • A person door is located on the side for easy access.
  • Stairs along the back take you to 461 square feet of attic storage space with the ceiling height reaching 8 feet throughout most of the space.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Attic

461 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

28' 0"

Max Ridge Height

19' 3"

Garage

Type

Detached

Area

672 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

20 on 12

Secondary Pitch

5 on 12

Architectural Style

Barndominium

Country

Traditional

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Attic

461 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

28' 0"

Max Ridge Height

19' 3"

Garage

Type

Detached

Area

672 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

20 on 12

Secondary Pitch

5 on 12

Architectural Style

Barndominium

Country

Traditional

Special Features

Workshop
