Plan 11571KN

7-Bed Mountain Lodge with Finished Lower Level

Heated S.F.
6,032
Beds
7
Baths
5
Stories
2
Cars
2

Floor Plan

Plan 11571KN

Main Level
Main Level
Second Level
Second Level
Lower Level
Lower Level

Plan 11571KN

M-F 9am-5pm EST |

1-203-761-8500

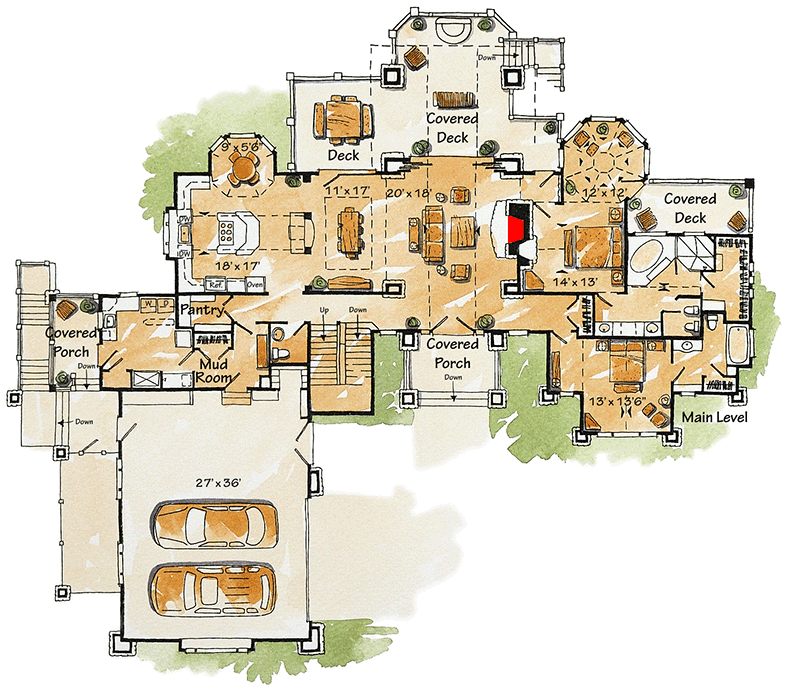

Main Level

Plan 11571KN: 7-Bed Mountain Lodge with Finished Lower Level - Floor Plan - Main Level - Craftsman, Mountain, Northwest, Rustic, Vacation

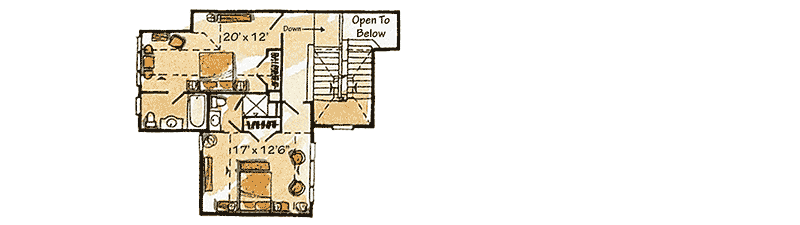

Second Level

Plan 11571KN: 7-Bed Mountain Lodge with Finished Lower Level - Floor Plan - Second Level - Craftsman, Mountain, Northwest, Rustic, Vacation

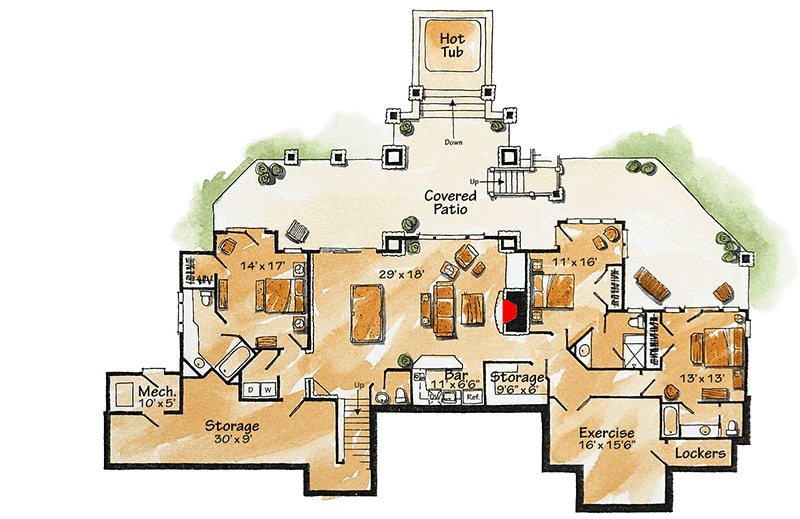

Lower Level

Plan 11571KN: 7-Bed Mountain Lodge with Finished Lower Level - Floor Plan - Lower Level - Craftsman, Mountain, Northwest, Rustic, Vacation

Plan Details

  • This 6,032 square foot Home & Garden > House Plans > Craftsman house plan gives you 7 Beds 5 Baths and a 1054 square foot 2 Cars garage
  • Architectural Designs primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Floor plans at ¼" scale
  • All exterior elevations at ¼" scale
  • Roof plan at ¼" scale
  • Building sections at ¼" scale
  • Completed foundation plan at ¼" scale
  • Completed floor/roof framing plan at ¼" scale
  • Building height profiles at ¼" scale
  • Door and window schedules
  • General construction notes and building schedules
  • Exterior finish schedule
  • Architectural details
  • Construction details for cabinets, interior built-ins and stairs
  • Designations for all floor, wall and ceiling surfaces
  • Details and specifications for all ceiling treatments
  • All square footage calculations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

6,032 sq. ft.

Lower Level

2,427 sq. ft.

1st Floor

2,860 sq. ft.

2nd Floor

745 sq. ft.

Basement Unfinished

425 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

5

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 0"

Depth

96' 0"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

1054 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman

Mountain

Northwest

Rustic

Vacation

Special Features

In-Law Suite

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Plan Collections

Luxury

Sloping Lot

Square Footage Breakdown

Total Heated Area

6,032 sq. ft.

Lower Level

2,427 sq. ft.

1st Floor

2,860 sq. ft.

2nd Floor

745 sq. ft.

Basement Unfinished

425 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

5

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 0"

Depth

96' 0"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

1054 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman

Mountain

Northwest

Rustic

Vacation

Special Features

In-Law Suite

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Plan Collections

Luxury

Sloping Lot
