728 Square Foot Contemporary Cabin with Vaulted Living Room and Kitchen

Heated S.F.
728
Beds
1
Baths
1
Stories
1

Floor Plan

Plan 420090WNT

Main Level
Main Level
Main Level - Basement Stairs Location
Main Level - Basement Stairs Location
Unfinished Basement
Unfinished Basement

Plan 420090WNT

M-F 9am-5pm EST |

1-203-761-8500

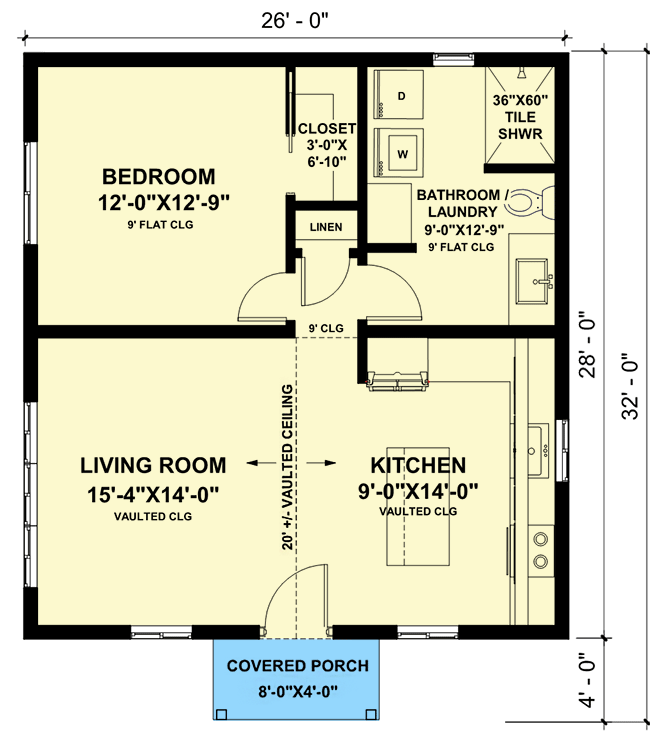

Main Level

Plan 420090WNT: 728 Square Foot Contemporary Cabin with Vaulted Living Room and Kitchen - Floor Plan - Main Level - Cabin, Cottage, Country, New American, Vacation

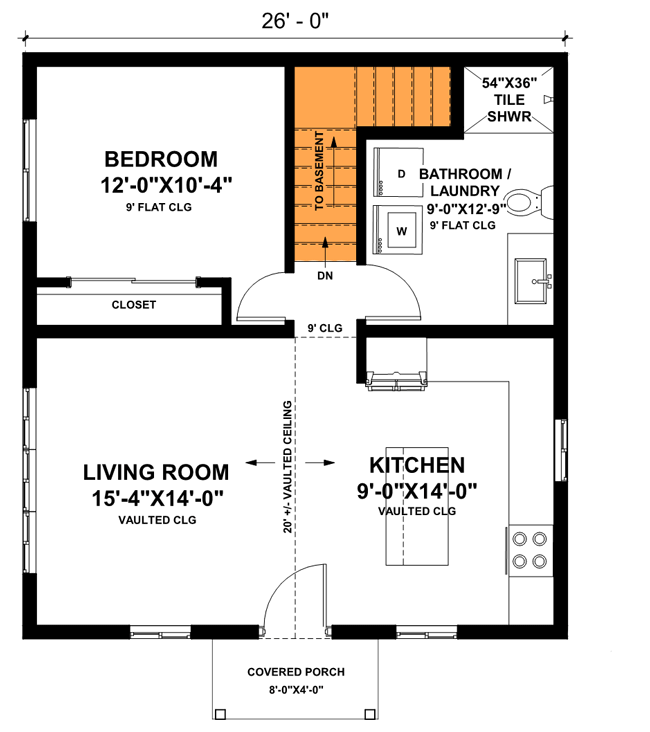

Main Level - Basement Stairs Location

Plan 420090WNT: 728 Square Foot Contemporary Cabin with Vaulted Living Room and Kitchen - Floor Plan - Main Level - Basement Stairs Location - Cabin, Cottage, Country, New American, Vacation

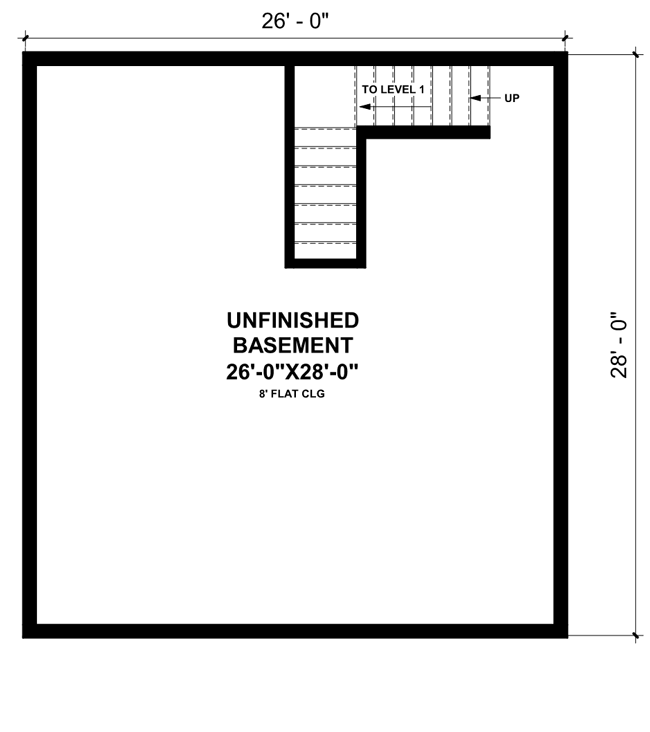

Unfinished Basement

Plan 420090WNT: 728 Square Foot Contemporary Cabin with Vaulted Living Room and Kitchen - Floor Plan - Unfinished Basement - Cabin, Cottage, Country, New American, Vacation

Plan Details

  • This 26' wide and 28' deep contemporary cabin gives you 728 square feet of heated living with 1 bedroom and 1 bath.
  • The front part of the home is vaulted with ceilings going from 9' to 20' and delivering a shared living room and kitchen space open left to right.
  • A pocket door in the bedroom opens to a roomy closet while the bathroom has a side-by-side washer and dryer, a great convenience in a home this size.

What's Included

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

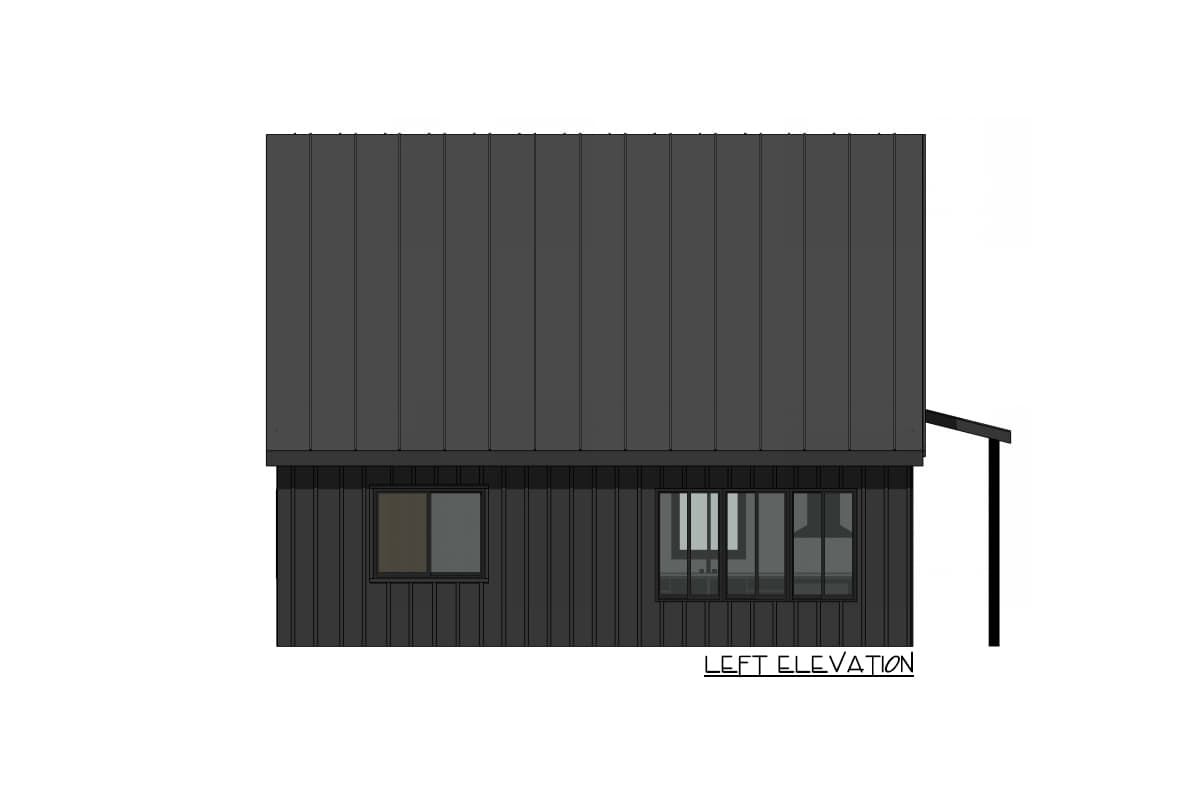

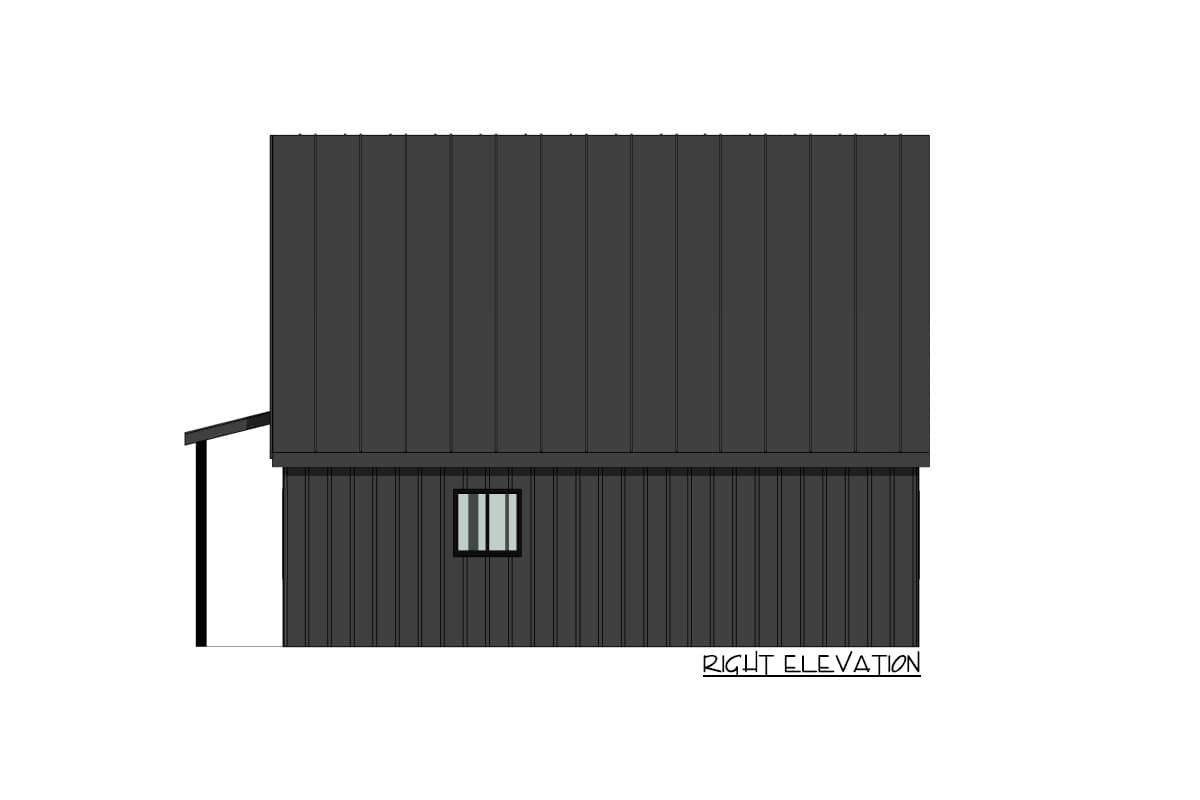

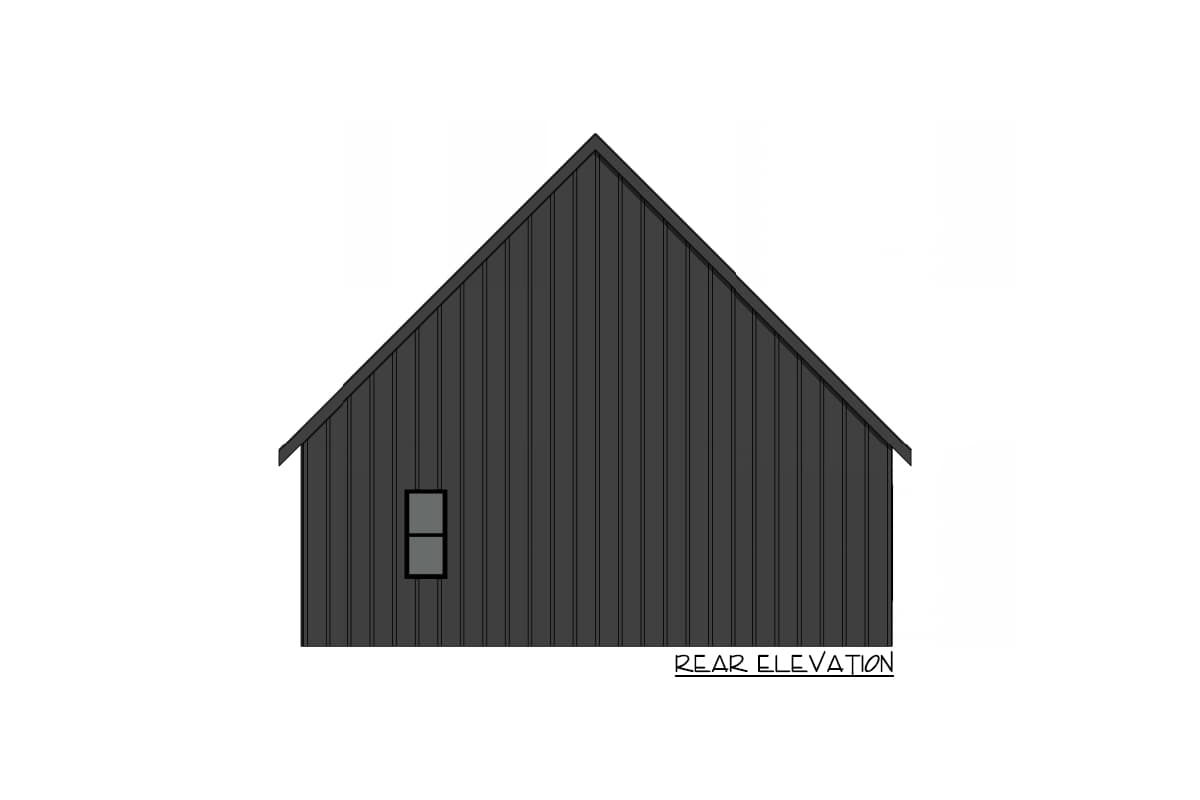

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

728 sq. ft.

1st Floor

728 sq. ft.

Porch, Front

32 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

28' 0"

Max Ridge Height

22' 9"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

9' 0''

Kitchen

Vaulted

9' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

New American

Vacation

Special Features

Master Suite - 1st Floor

Two Story Great Room
