736 Square Foot ADU with Upstairs Fireplace

Heated S.F.
736
Beds
0
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 430820SNG

Main Level
Main Level
2nd Floor
2nd Floor

Plan 430820SNG

M-F 9am-5pm EST |

1-203-761-8500

Main Level

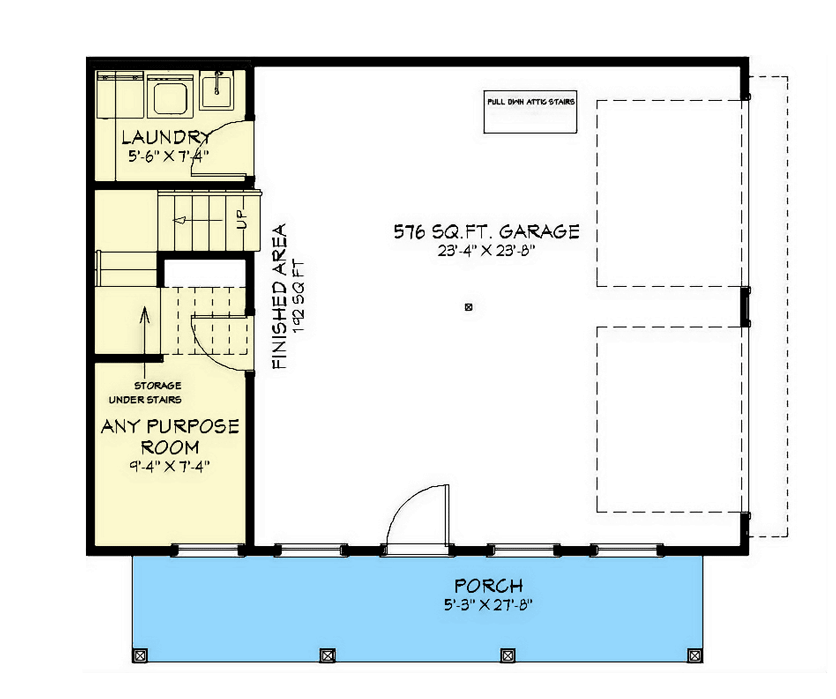

Plan 430820SNG: 736 Square Foot ADU with Upstairs Fireplace - Floor Plan - Main Level - Carriage, Cottage, Country

2nd Floor

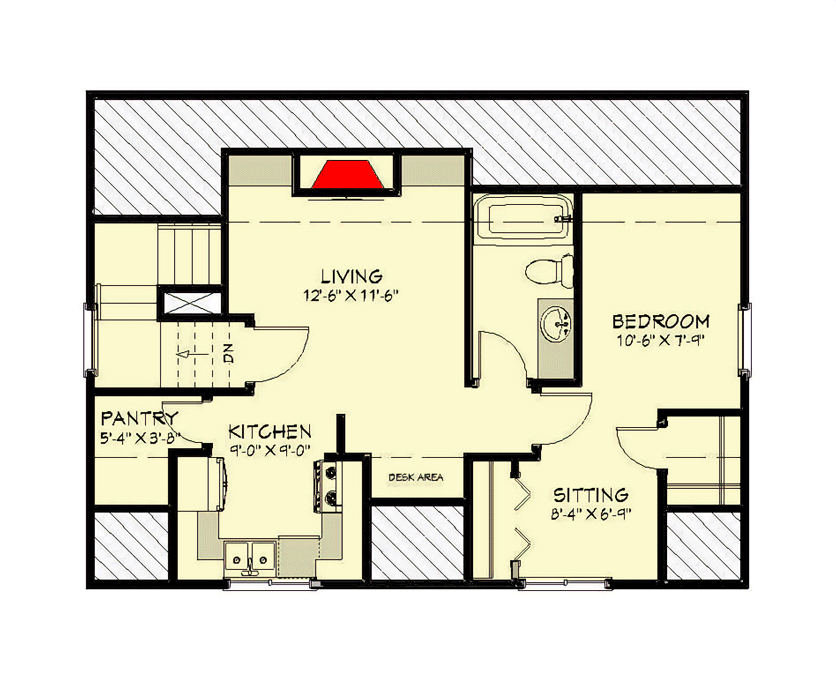

Plan 430820SNG: 736 Square Foot ADU with Upstairs Fireplace - Floor Plan - 2nd Floor - Carriage, Cottage, Country

Plan Details

  • This 726 square foot country cottage can be used as a garage apartment or as an ADU. It has a 5'3"-deep front porch, a 2-car side entry garage (576 square feet), laundry and an all-purpose room on the main floor.
  • At the top of the stairs, you are greeted by a living room with fireplace that is open to the kitchen with walk-in pantry.
  • There's a small nook with a built-in desk to help you keep things organized.
  • The bedroom has a roomy corner closet and a separate-but-connected sitting room.

What's Included

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

736 sq. ft.

1st Floor

192 sq. ft.

2nd Floor

544 sq. ft.

Apartment

544 sq. ft.

Porch, Front

150 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

29' 4"

Max Ridge Height

25' 0"

Garage

Area

576 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Carriage

Cottage

Country

Special Features

Breakfast Nook

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

736 sq. ft.

1st Floor

192 sq. ft.

2nd Floor

544 sq. ft.

Apartment

544 sq. ft.

Porch, Front

150 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

29' 4"

Max Ridge Height

25' 0"

Garage

Area

576 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Carriage

Cottage

Country

Special Features

Breakfast Nook

Plan Collections

ADU

Exclusive
