776 Square Foot Rustic

Plan 420031WNT

  • 776

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This 2-bed cottage gives you 776 square feet of heated living space and can be used as an ADU, a vacation home or as a full-time home.
  • A gable extends off the front creating a front porch with room for a couple of chairs.
  • Bedrooms line the left side and are separated by a shared bathroom.
  • The right side of the home is open front to back and gives you a living room with windows on the right flowing into the kitchen.
  • A side-by-side washer and dryer are tucked away behind sliding doors.
  • Related Plans: Get an alternate version with house plans 420022WNT and 420025WNT.

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

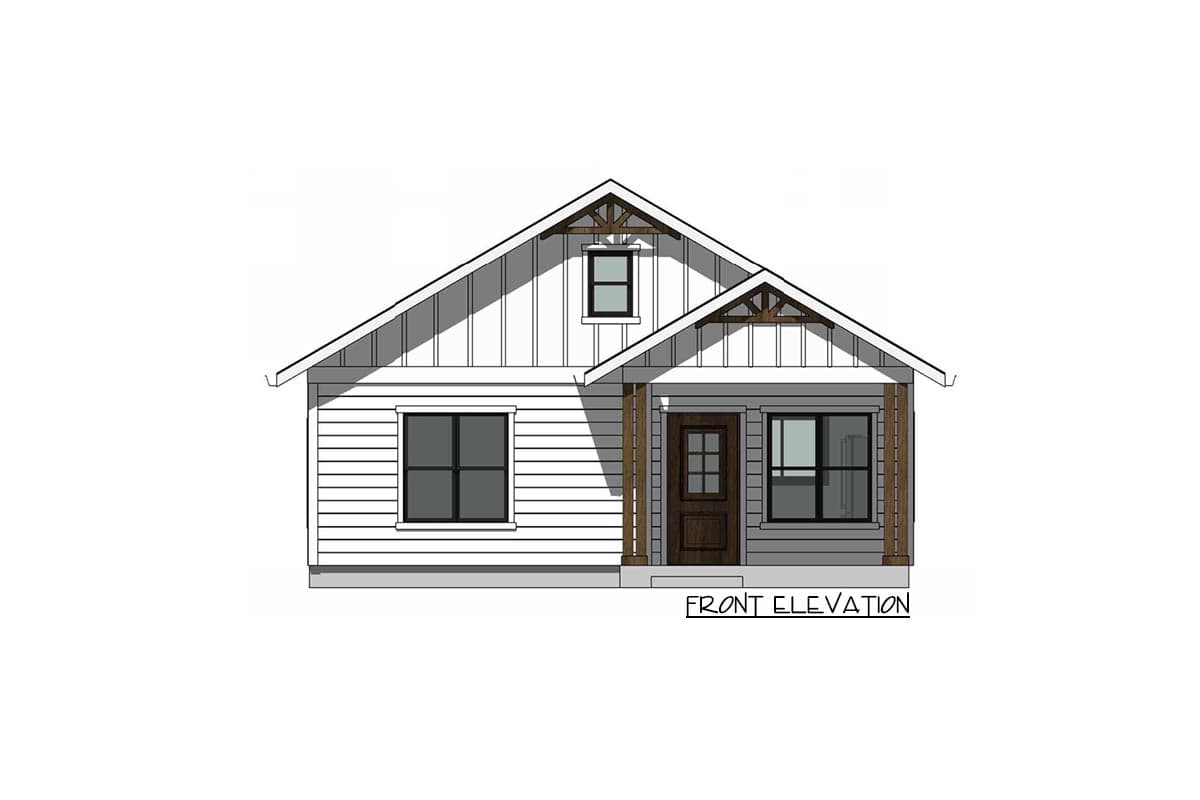

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
This plan set does NOT include;
  • Architectural or Engineering Stamp
  • Site Plan (Available as an upgrade option)
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations)Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations)Typically provided by your Plumbing subcontractor
  • Energy Calculations (Property specific energy efficiency calculations)Typically provided by local Energy Consultant

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

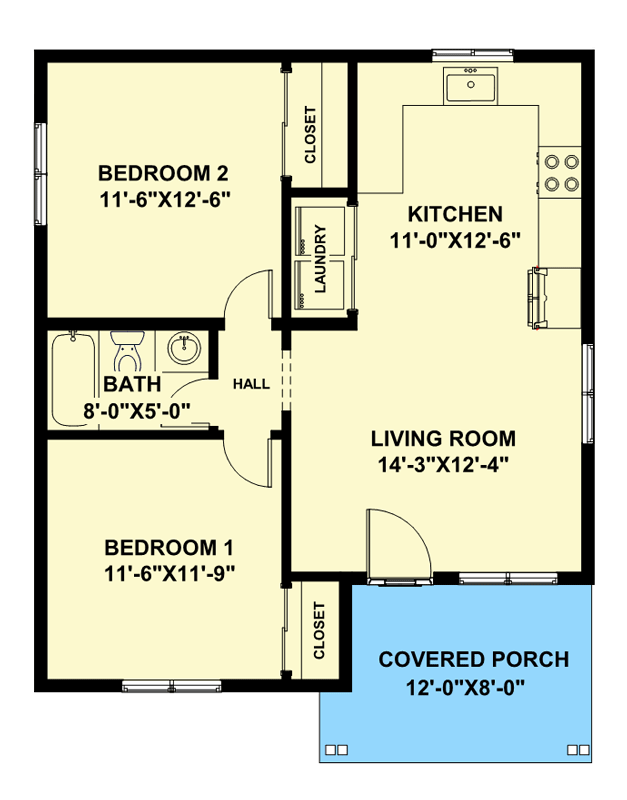

776 Square Foot Rustic - 420031WNT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 776 sq. ft.
  • 1st Floor: 776 sq. ft.
  • Porch, Combined: 108 sq. ft.
  • Porch, Front: 108 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Monolithic Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 34' 6"
  • Max ridge height: 17' 4"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

776 Square Foot Rustic

  • 776

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $795
  • 5 Sets $945
  • PDF - Unlimited Build $995
  • CAD - Single-Build $995
  • 5 Sets + PDF $1,145
  • CAD - Unlimited Build $1,695
  • View all purchase option online

About This Plan

  • This 2-bed cottage gives you 776 square feet of heated living space and can be used as an ADU, a vacation home or as a full-time home.
  • A gable extends off the front creating a front porch with room for a couple of chairs.
  • Bedrooms line the left side and are separated by a shared bathroom.
  • The right side of the home is open front to back and gives you a living room with windows on the right flowing into the kitchen.
  • A side-by-side washer and dryer are tucked away behind sliding doors.
  • Related Plans: Get an alternate version with house plans 420022WNT and 420025WNT.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 776 sq. ft.
  • 1st Floor: 776 sq. ft.
  • Porch, Combined: 108 sq. ft.
  • Porch, Front: 108 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Monolithic Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 34' 6"
  • Max ridge height: 17' 4"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick And Truss
Plan 420031WNT
View this and more for this plan by visiting www.architechtecturaldesigns.com/420031WNT
|
