Plan 680218VR
781 Square Foot RV-Friendly Garage with 458 Square Foot Loft Above
Heated S.F.
577
Stories
2
Cars
2
What's Included
Plan Details
  • This detached garage plan is RV-friendly with a front-facing RV bay (12' by 12' overhead door) and a side-load bay (12' by 8' overhead door) as well.
  • A man door opens to an entry with built-in seat and stairs that take you to a 458 square foot loft.
  • A series of five windows let in light to to the loft which has a  ceiling that goes from 7'8" to 12'.
  • Related Plans: Add a dormer with 680271VR and get an alternate version with modern garage plan 680038VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

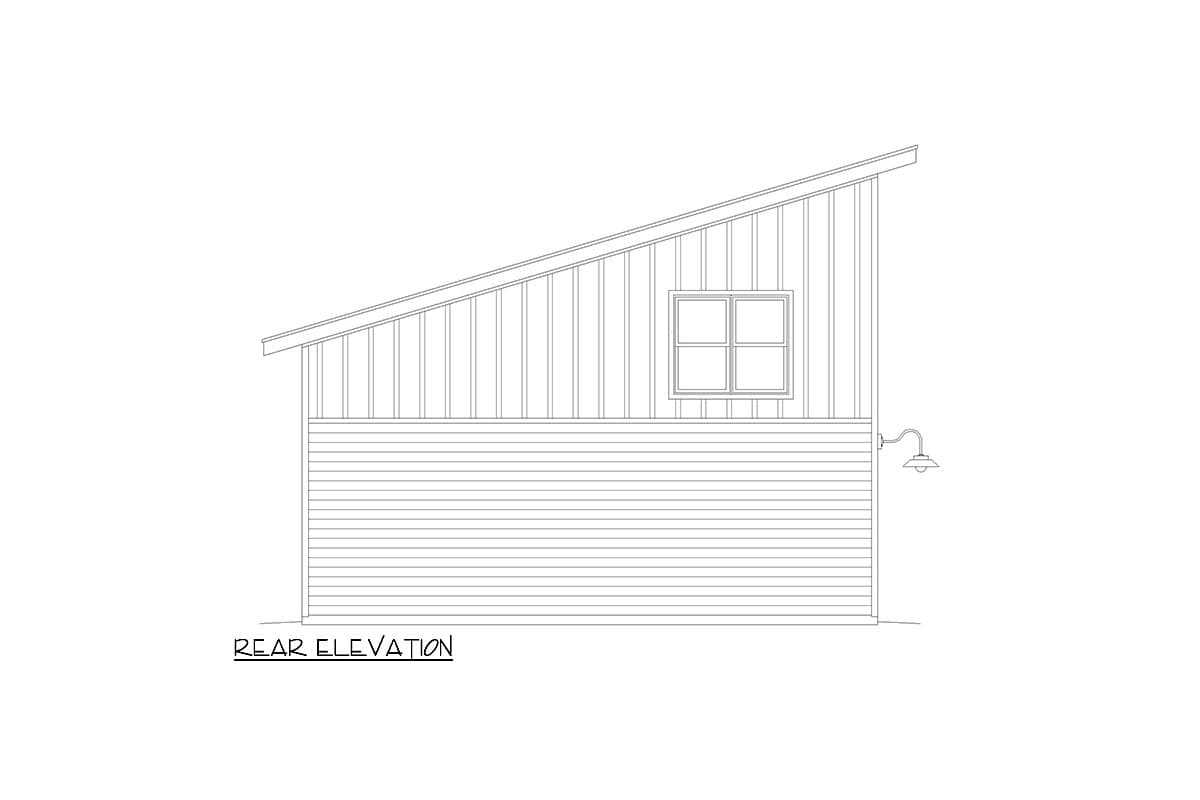

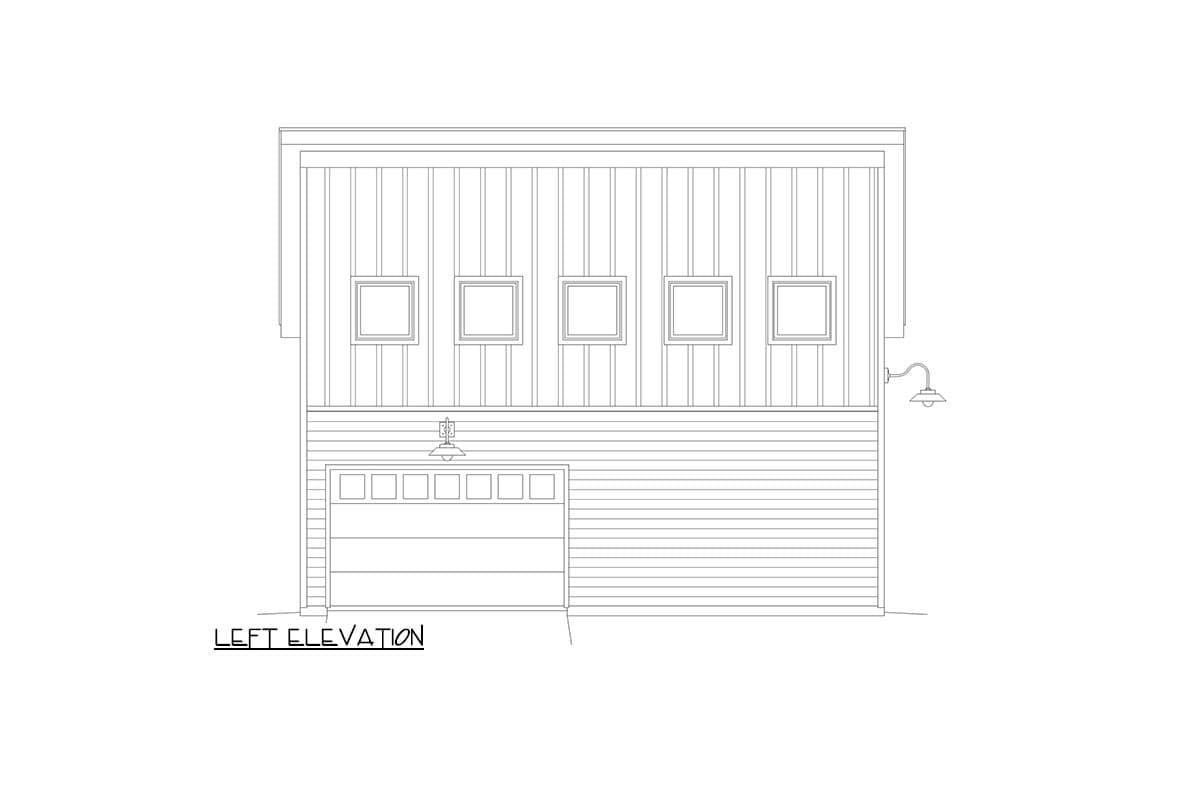

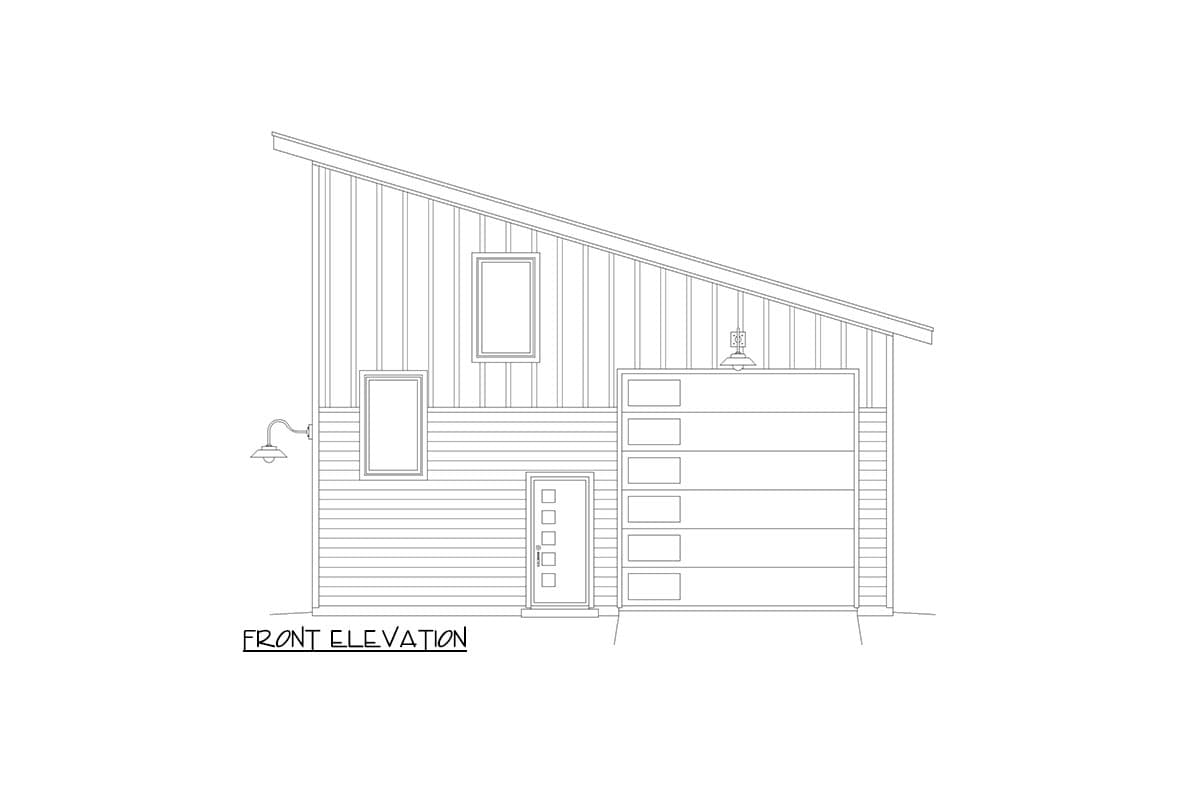

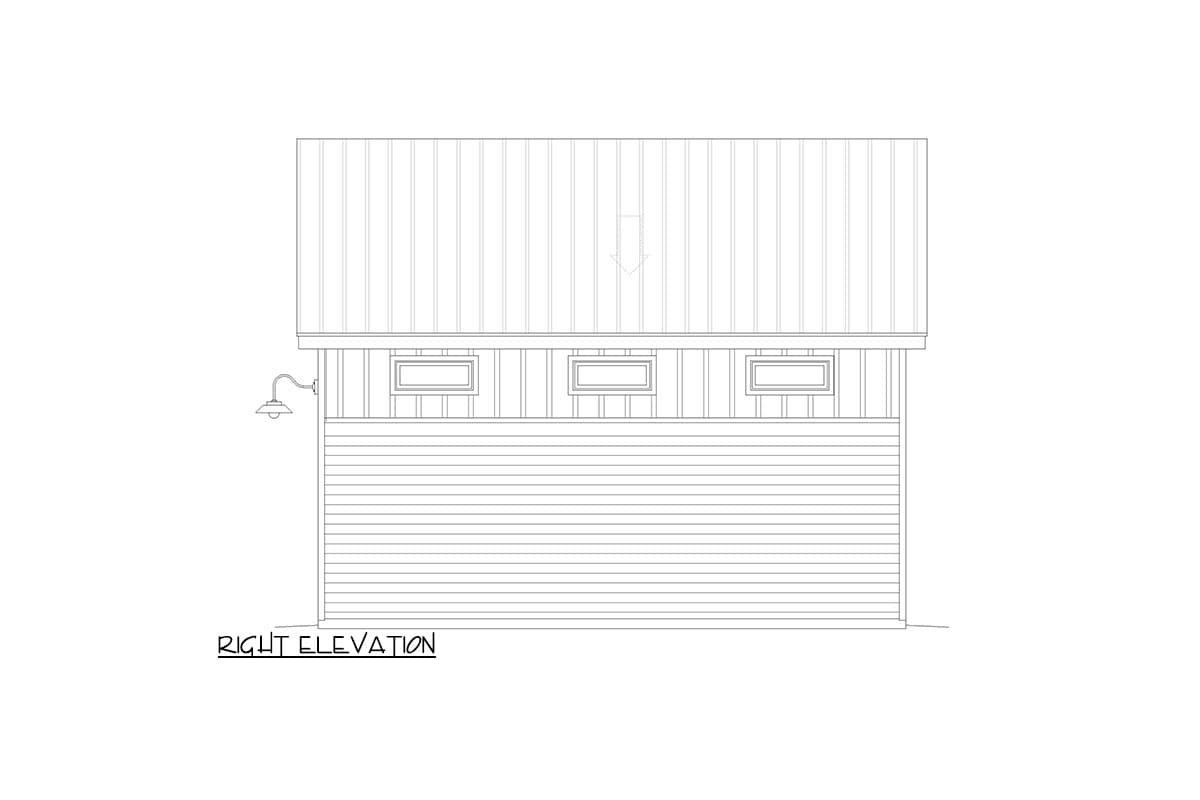

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

781 Square Foot RV-Friendly Garage with 458 Square Foot Loft Above

  • 577

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

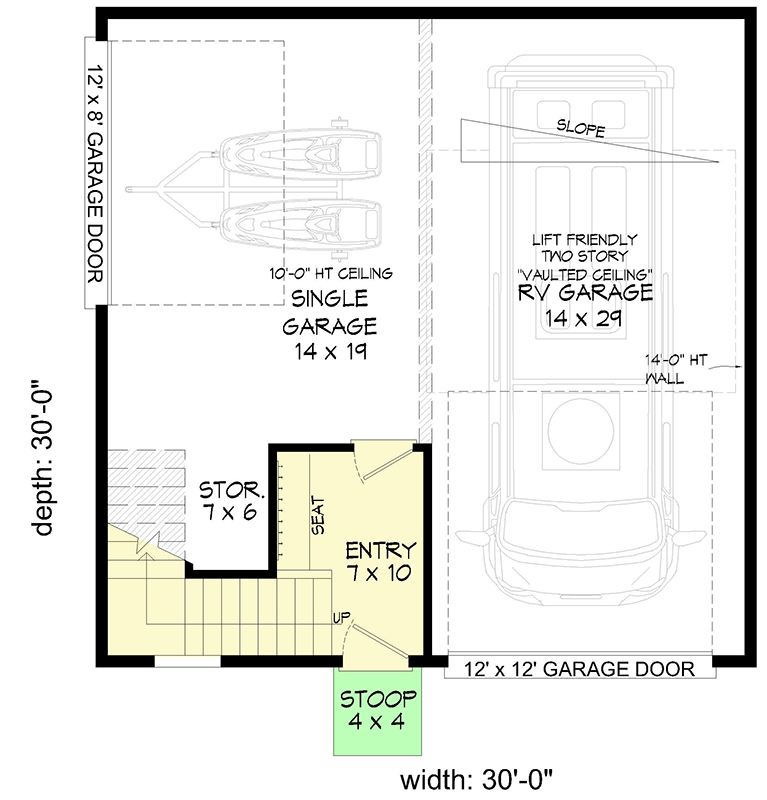

  • Main Level

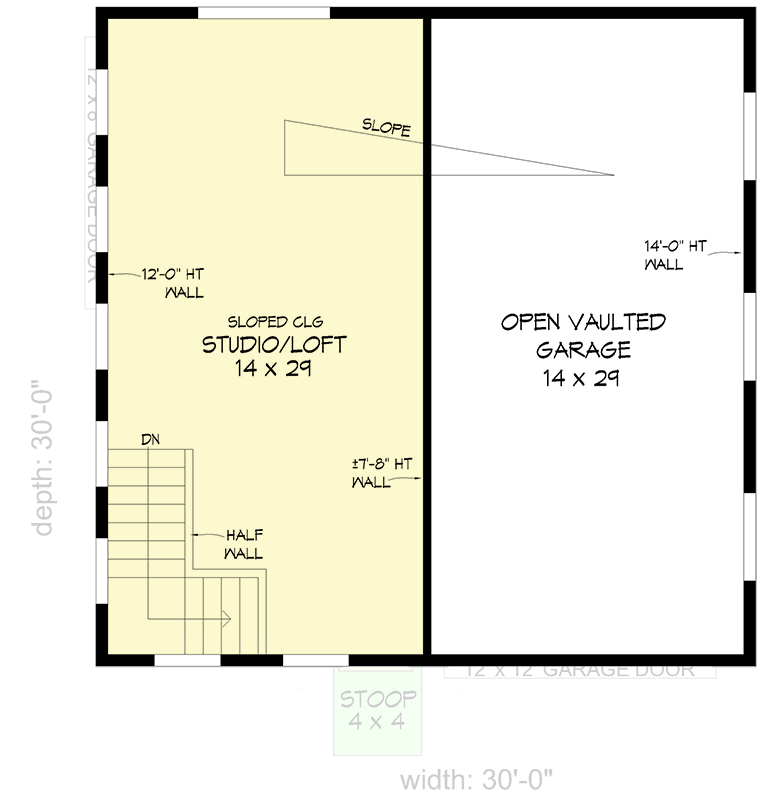

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 577 sq. ft.
  • 1st Floor: 119 sq. ft.
  • 2nd Floor: 458 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 30' 0"
  • Max ridge height: 24' 8"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: Detached
  • Area: 781 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 12' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick
