Plan 420123WNT

Main Level
Main Level

Plan 420123WNT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

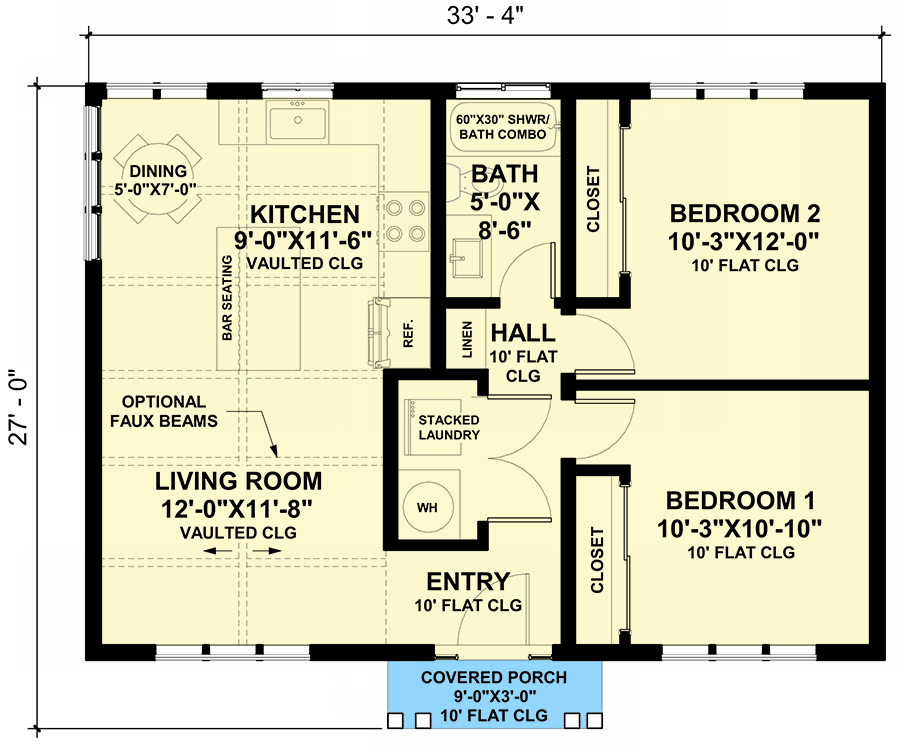

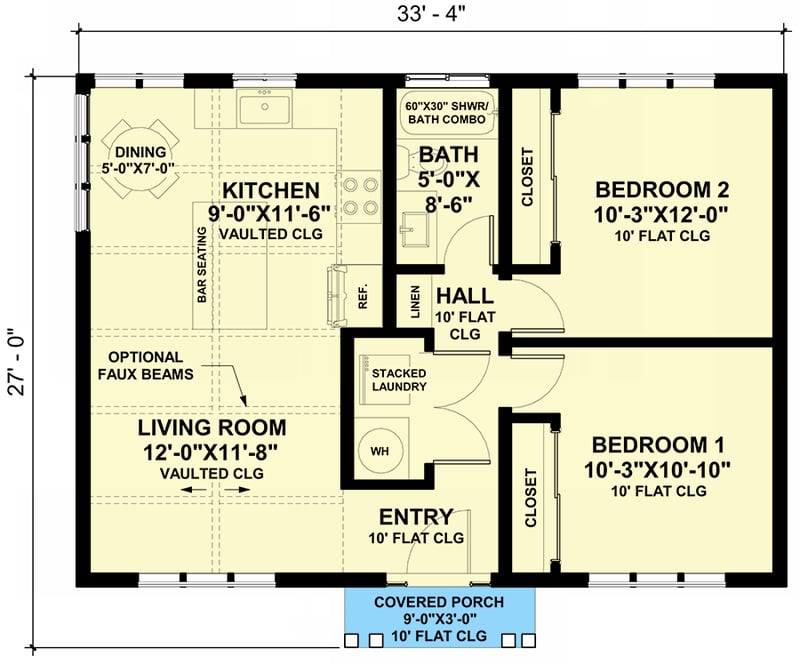

Plan 420123WNT: 800 Square Foot Modern Cottage House Plan - Architectural Designs - Floor Plan - Main Level - Cottage, Country, New American, Traditional

Plan Details

  • This 2 bed, 1 bath modern cottage house plan gives you 800 square feet of heated living with an attractive exterior with large windows, board and batten in the gable peaks and a covered entry porch.
  • The left side of the home is open concept with the living room in front and the kitchen in back both set under a vaulted and (optionally) beamed ceiling.
  • Bedrooms line the right side of the home and share a bath. Laundry is conveniently located in a utility closet.
  • This house plan can be used as a year-'round residence, a rental property or built as an accessory dwelling unit (ADU).

What's Included

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

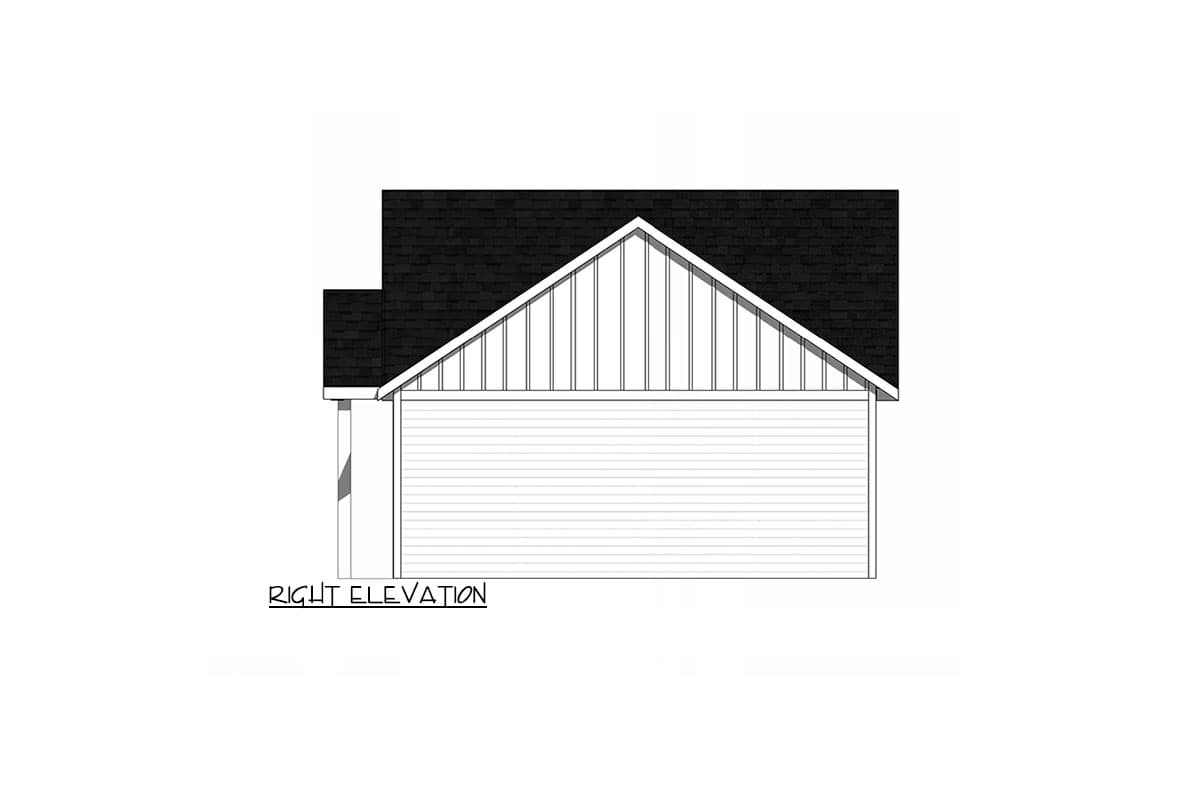

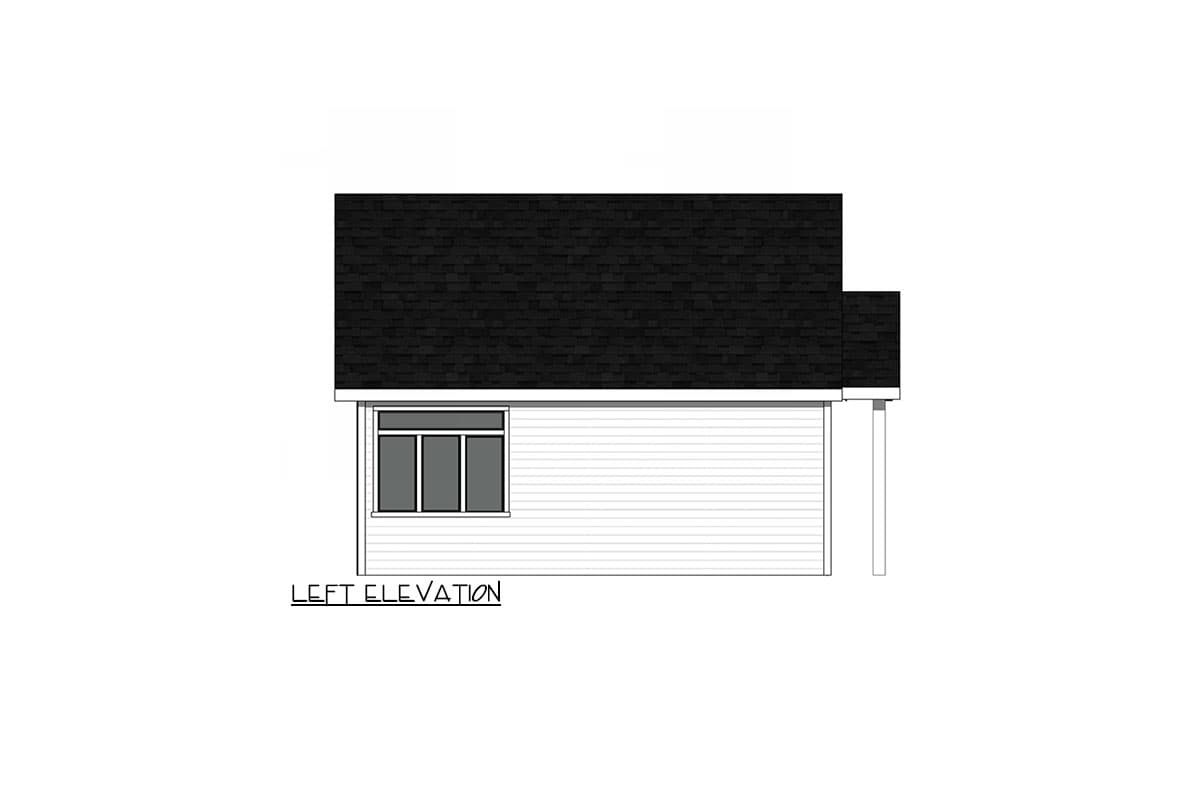

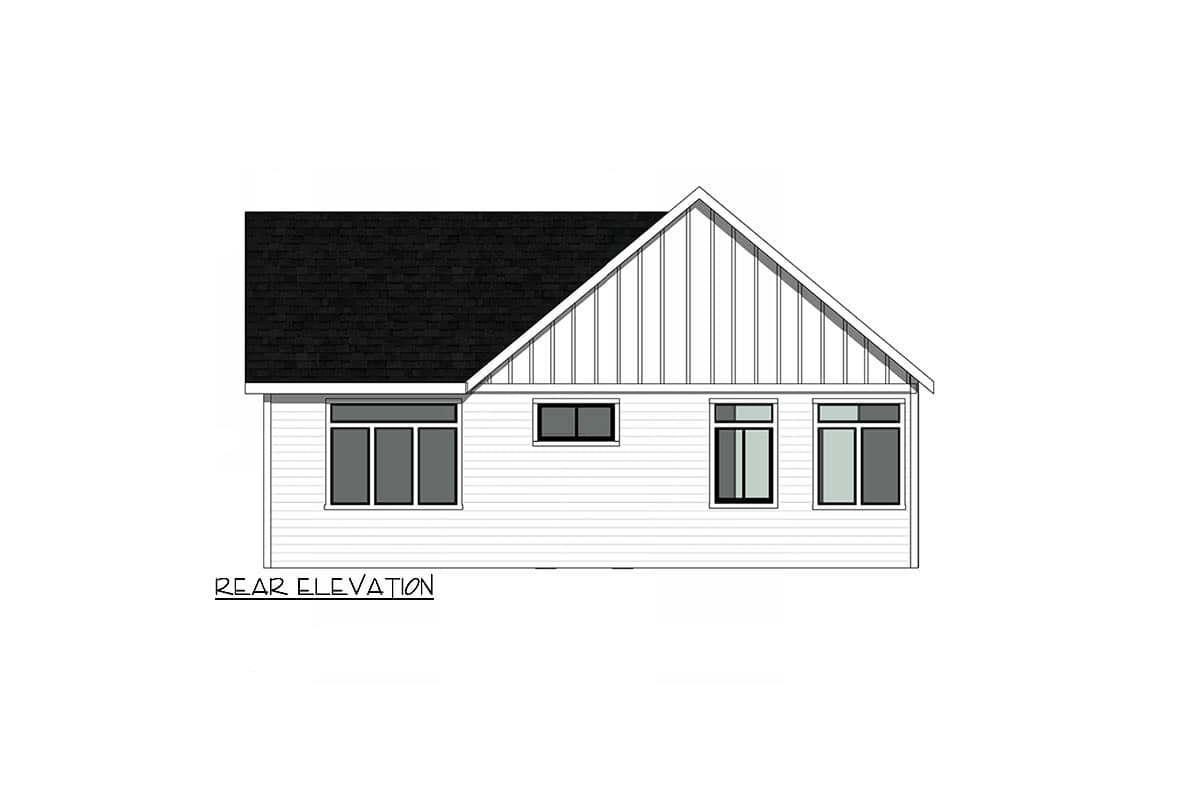

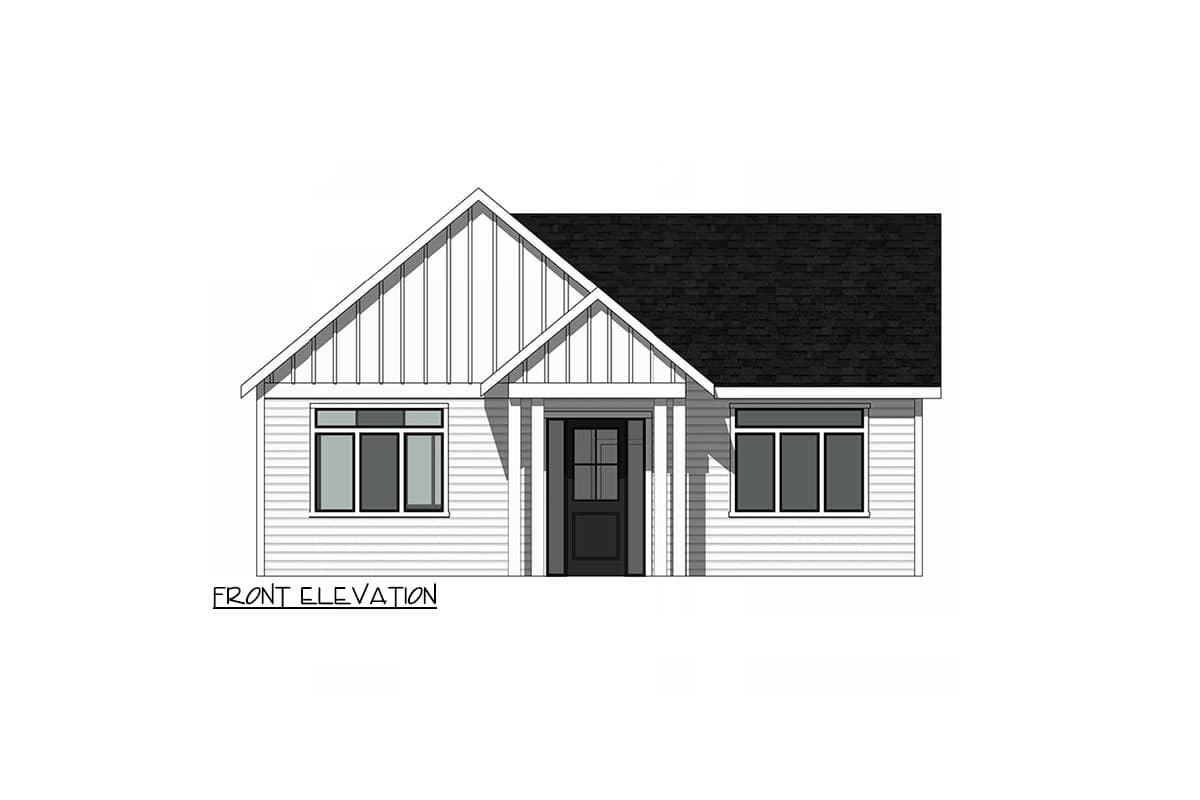

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

800 sq. ft.

1st Floor

800 sq. ft.

Porch, Front

27 sq. ft.

Porch, Combined

27 sq. ft.

Covered Patio

27 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 4"

Depth

27' 0"

Max Ridge Height

19' 8"

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Vaulted

12' 6''

Kitchen

Vaulted

12' 6''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

New American

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

800 sq. ft.

1st Floor

800 sq. ft.

Porch, Front

27 sq. ft.

Porch, Combined

27 sq. ft.

Covered Patio

27 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 4"

Depth

27' 0"

Max Ridge Height

19' 8"

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Vaulted

12' 6''

Kitchen

Vaulted

12' 6''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

New American

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive
