Plan 86320HH

Impeccable New American House Plan Perfect for Waterfront Property - 3062 Sq Ft

Heated S.F.
3,062
Beds
5
Baths
4
Stories
1
Cars
2

Floor Plan

Plan 86320HH

Main Level
Main Level
Lower Level
Lower Level

Plan 86320HH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

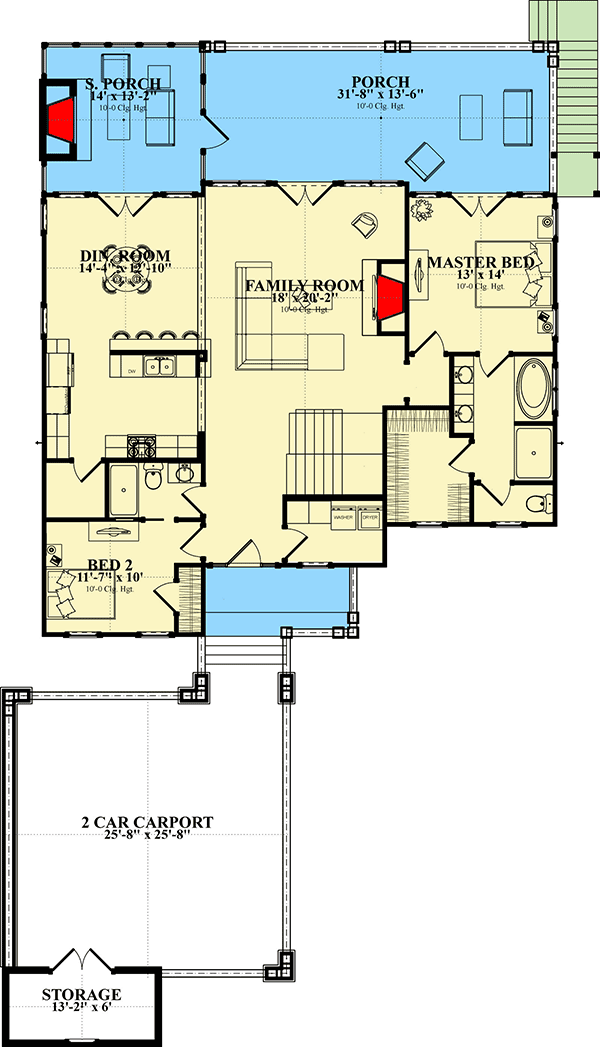

Plan 86320HH: Impeccable New American House Plan Perfect for Waterfront Property - 3062 Sq Ft - Floor Plan - Main Level - Craftsman, New American, Traditional, Vacation

Lower Level

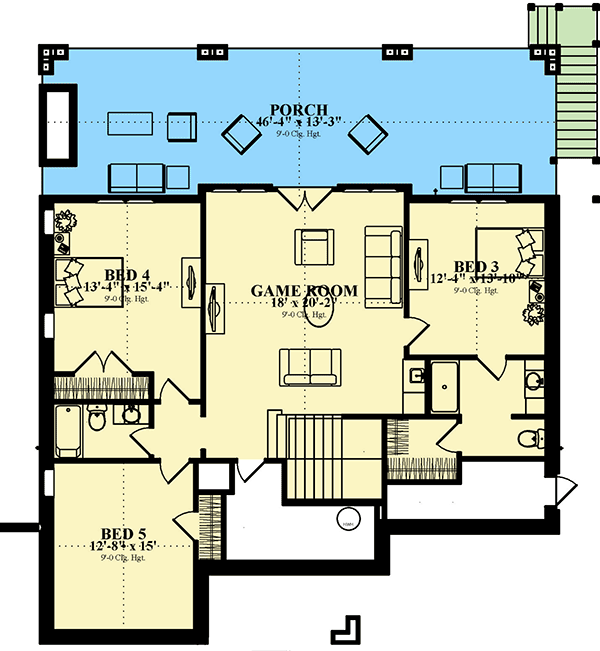

Plan 86320HH: Impeccable New American House Plan Perfect for Waterfront Property - 3062 Sq Ft - Floor Plan - Lower Level - Craftsman, New American, Traditional, Vacation

Plan Details

  • This impeccable, New American house plan features multiple, rearward facing outdoor areas, a carport for two vehicles, and a wood plank ceiling throughout the home.
  • An open-concept floor plan and large windows allow each room to fill with natural light. One set of french doors leads to a screened porch with a fireplace, while a second set in the family room opens to a covered porch.
  • The eat-in kitchen offers additional seating at the island, and a large walk-in pantry provides ample storage space.
  • The master bedroom includes french doors to the back porch, as well as a bathroom with an expansive walk-in closet, two sinks, a standalone tub, and a toilet room. A second bedroom on the main level sits towards the front of the home, with access to a full bathroom.
  • Downstairs, discover two additional bedrooms that share a full bathroom, and a fifth bedroom with its own bathroom and walk-in closet. A large game room in the center opens to a massive covered patio.
  • Related Plan: Remove the carport with house plan 86328HH.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,062 sq. ft.

Lower Level

1,448 sq. ft.

1st Floor

1,614 sq. ft.

Porch, Combined

1,287 sq. ft.

Beds/Baths

Bedrooms

5
