Plan 5790HA
A Special Home For Views
Heated S.F.
2,194
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details

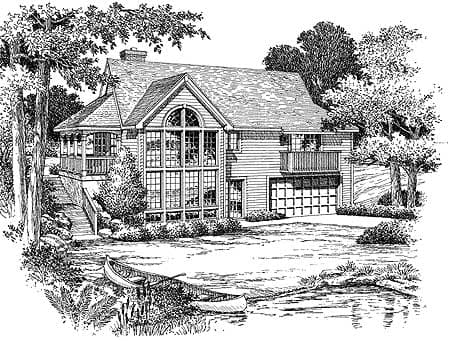

  • A combination of brick and siding accent the front of this family home plan suitable for a sloping lot. A delightful wraparound porch is anchored by a full masonry fireplace.
  • The vaulted great room includes a large bay window, fireplace, dining balcony and atrium window wall.
  • His and hers walk-in closets, large luxury bath and sliding doors to the exterior balcony are a few fantastic features of the master bedroom. Two other bedrooms share a bath.
  • The atrium opens to the the optional living area on the lower level where there is also a drive-under garage.
What's Included

  • Front Cover Sheet

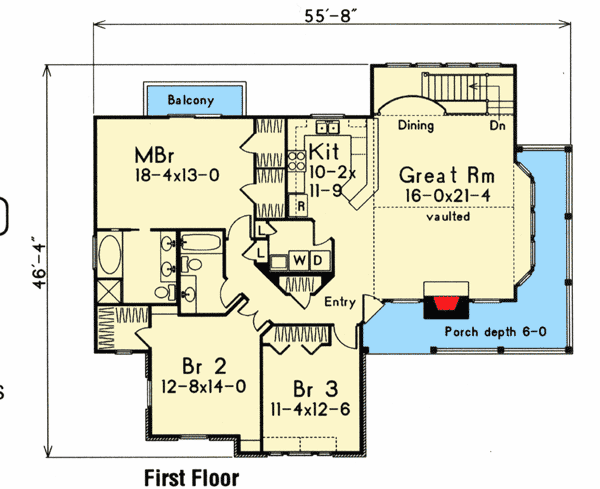

  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

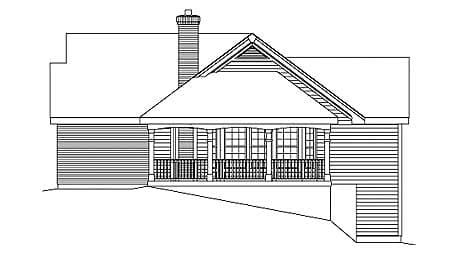

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

A Special Home For Views

  • 2,194

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Basement

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,194 sq. ft.
  • Lower Level: 509 sq. ft.
  • 1st Floor: 1,685 sq. ft.

Dimensions

  • Width: 55' 8"
  • Depth: 46' 4"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Drive Under
  • Area: 595 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
