A Touch of Tudor

Plan 9373EL

  • 4,334

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Stone and stucco give this home a Tudor style exterior. Multiple peak roof lines and decorative wood framing make this design reminiscent of homes in the English countryside.
  • Once inside the foyer, the gallery hall directs you to the great room with fireplace. Two columns define the entrance to the great room and create a formal space for the kitchen on the left and for the dining room on the right.
  • A main level master suite with master bath, spa tub and his and her walk-in closets is privately located in the right wing of this house.
  • This home plan has two garages, a single car and a two car, each with easy access to a mud room.
  • The upper level has three additional bedrooms, two baths, a recreation room and media room.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
A Touch of Tudor - 9373EL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

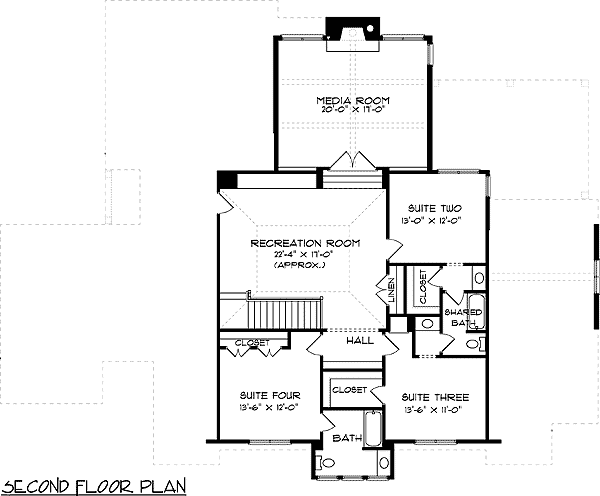

A Touch of Tudor - 9373EL floor plan - 2nd Floor

A Touch of Tudor

  • 4,334

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,334 sq. ft.
  • 1st Floor: 2,642 sq. ft.
  • 2nd Floor: 1,692 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 62' 2"
  • Max ridge height: 36' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 890 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
