Plan 3036D A Variety of Spaces

2,666 3 2.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

A Variety of Spaces

Plan 3036D

  • 2,666

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This country-style house plan effectively provides a variety of formal and informal spaces, making family and friends feel very much at home.
  • Just off the entry, the formal dining room is set off by columns and a tray ceiling. Straight ahead is the living room, which overlooks the partly covered deck with its large spa tub.
  • The kitchen is filled with desirable amenities: a walk-in pantry, a central island for food preparation, an exceptionally large serving and eating counter. The adjacent morning room flows into the windowed family room. In the adjacent media room, set up your own private home theater.
  • Bedrooms two and three each enjoy private entry to a compartmented bath. On the other side of the house, the private master suite is replete with luxury. The bedroom contains a tray ceiling, a sunny bay window and a five-fixture bathroom with two walk-in closets.
  • Completing this liveable design is a front-facing study with a vaulted ceiling.
  • Related Plans: For a photo of a related design, see house plan 31134D and 31150D. Gain a guest bedroom in place of the media room with house plan 31057D. Gain a family room with 3178D and 3077D.
  • Also see these alternate four bedroom versions: 3059D, 3079D and 31004D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

The plan set includes:
  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

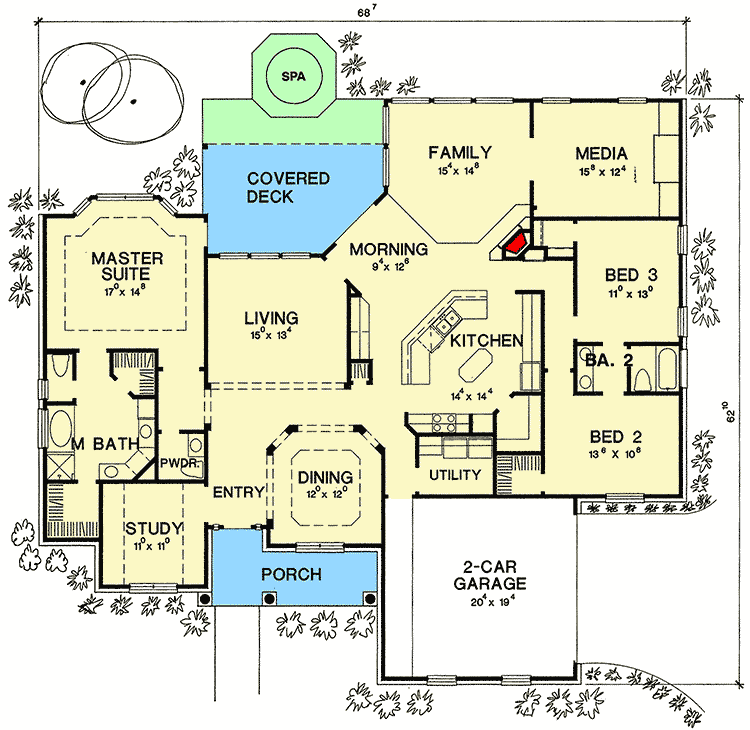

A Variety of Spaces - 3036D floor plan - Main Level

Optional

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
A Variety of Spaces - 3036D floor plan - Optional

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,666 sq. ft.
  • 1st Floor: 2,666 sq. ft.
  • Deck: 432 sq. ft.
  • Porch, Front: 205 sq. ft.
  • Basement Unfinished: 2,666 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 69' 7"
  • Depth: 62' 10"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 411 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

A Variety of Spaces

  • 2,666

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,445
  • CAD - Single-Build $2,445
  • View all purchase option online

About This Plan

  • This country-style house plan effectively provides a variety of formal and informal spaces, making family and friends feel very much at home.
  • Just off the entry, the formal dining room is set off by columns and a tray ceiling. Straight ahead is the living room, which overlooks the partly covered deck with its large spa tub.
  • The kitchen is filled with desirable amenities: a walk-in pantry, a central island for food preparation, an exceptionally large serving and eating counter. The adjacent morning room flows into the windowed family room. In the adjacent media room, set up your own private home theater.
  • Bedrooms two and three each enjoy private entry to a compartmented bath. On the other side of the house, the private master suite is replete with luxury. The bedroom contains a tray ceiling, a sunny bay window and a five-fixture bathroom with two walk-in closets.
  • Completing this liveable design is a front-facing study with a vaulted ceiling.
  • Related Plans: For a photo of a related design, see house plan 31134D and 31150D. Gain a guest bedroom in place of the media room with house plan 31057D. Gain a family room with 3178D and 3077D.
  • Also see these alternate four bedroom versions: 3059D, 3079D and 31004D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

Floor Plans

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,666 sq. ft.
  • 1st Floor: 2,666 sq. ft.
  • Deck: 432 sq. ft.
  • Porch, Front: 205 sq. ft.
  • Basement Unfinished: 2,666 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 69' 7"
  • Depth: 62' 10"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 411 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 3036D
View this and more for this plan by visiting www.architechtecturaldesigns.com/3036D
|
Need Help? 800-854-7852
|
Plan 3036D
