A Very Special Master Suite

Plan 17728LV

  • 8,573

    Heated s.f.

  • 6

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • The imposing French Country facade of this estate home plan makes a grand impression.
  • The luxurious master suite boasts its own exercise room with sauna, sitting room with fireplace and a unique, walled garden that also opens to the study.
  • Coffered ceilings top the kitchen that is open to both the family room and the breakfast nook so you can keep an eye on things.
  • An elaborate curved staircase leads to a second floor that is filled with amenities such as a media room, recreation room and a quiet study.
  • The nanny's suite has its own living room and kitchenette so it could also be converted to an in-law suite.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

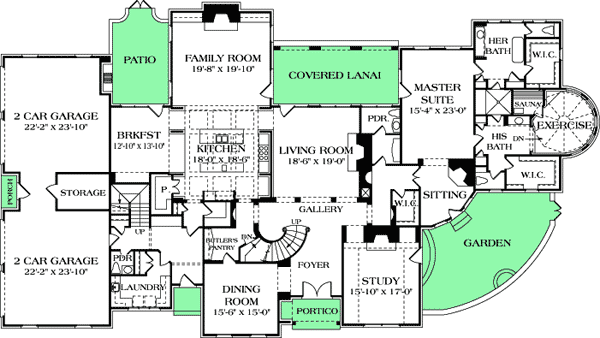

A Very Special Master Suite - 17728LV floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

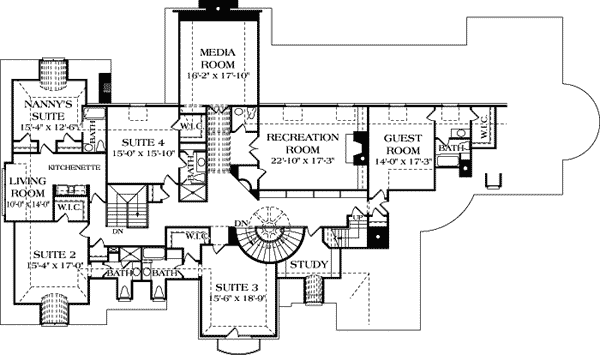

A Very Special Master Suite - 17728LV floor plan - 2nd Floor

A Very Special Master Suite

  • 8,573

    Heated s.f.

  • 6

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 8,573 sq. ft.
  • 1st Floor: 4,565 sq. ft.
  • 2nd Floor: 4,008 sq. ft.

Dimensions

  • Width: 128' 4"
  • Depth: 71' 2"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1268 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
