Accessory Work-from-home or Hobby Space with Bath and Shower

Plan 720051DA

  • 576

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Stories

  • This accessory structure plan features a large studio for enjoying hobbies. Alternatively, it gives you a great work-from-home office.
  • Double doors on the front porch open up to an ample recreation area.
  • The half bath with a shower is great for use after a hard day's work.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

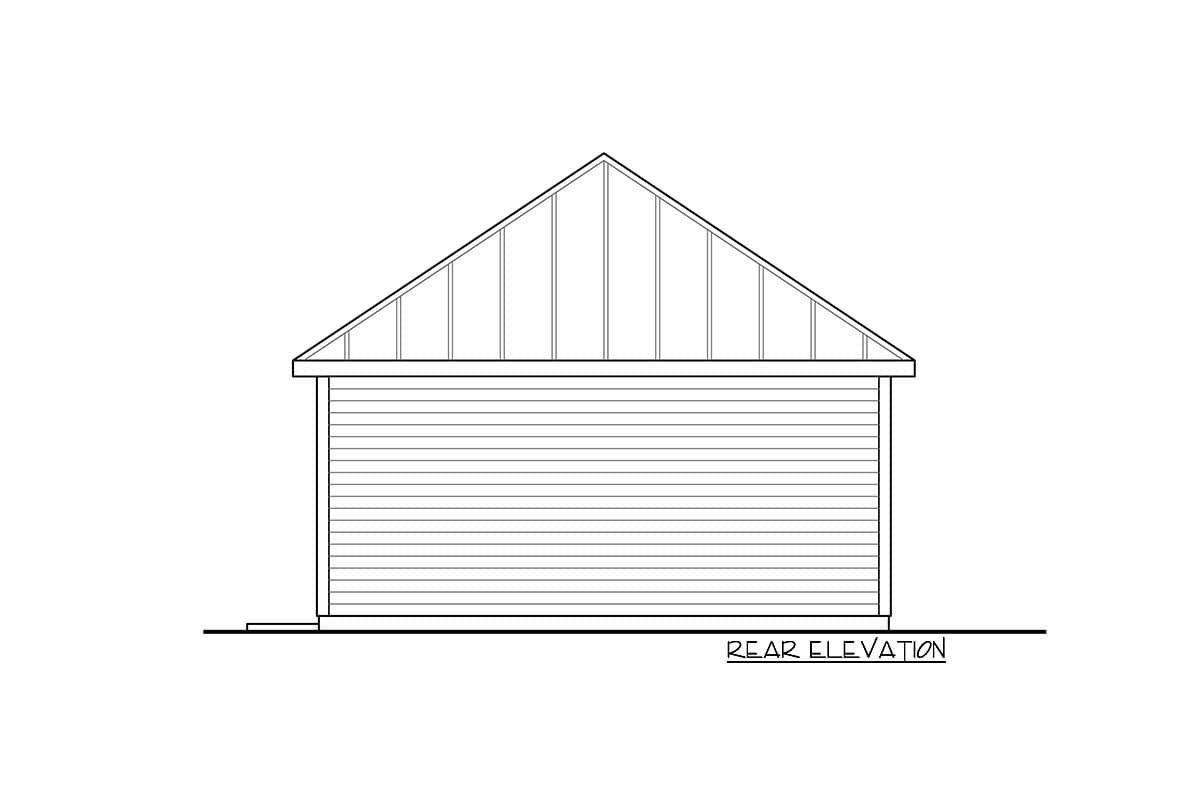

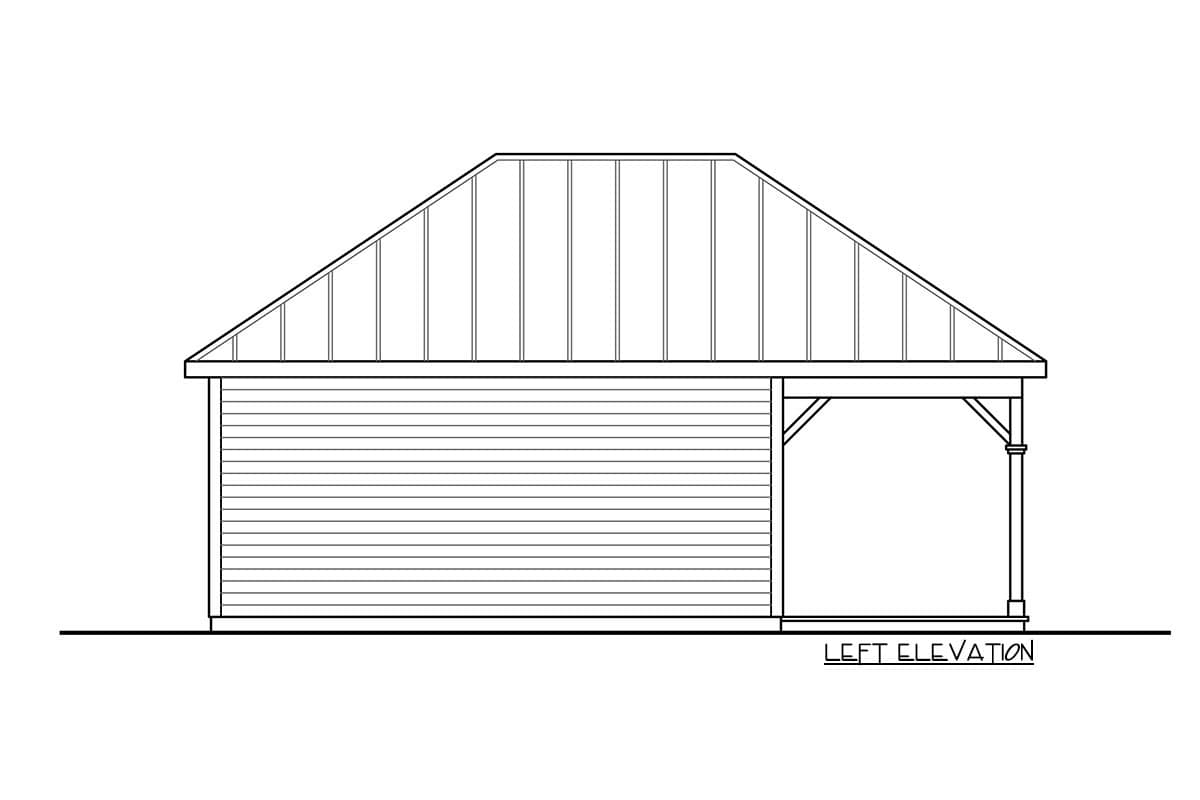

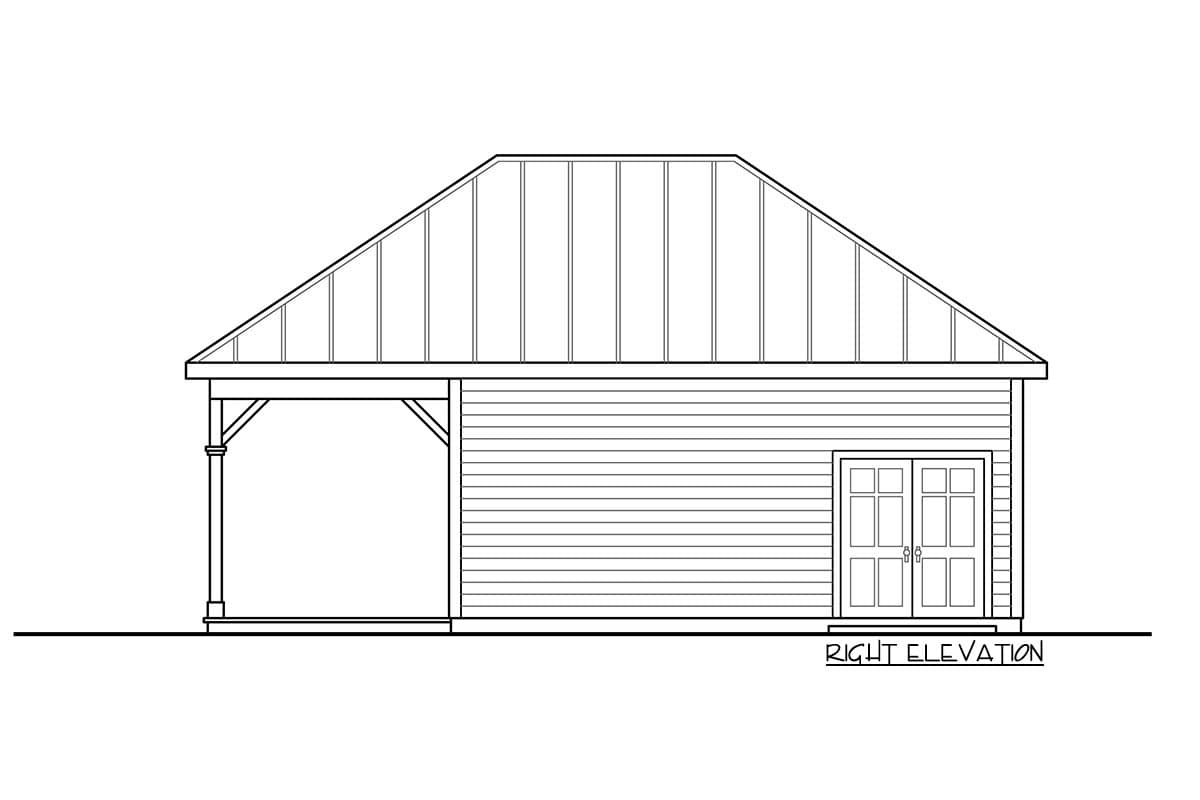

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

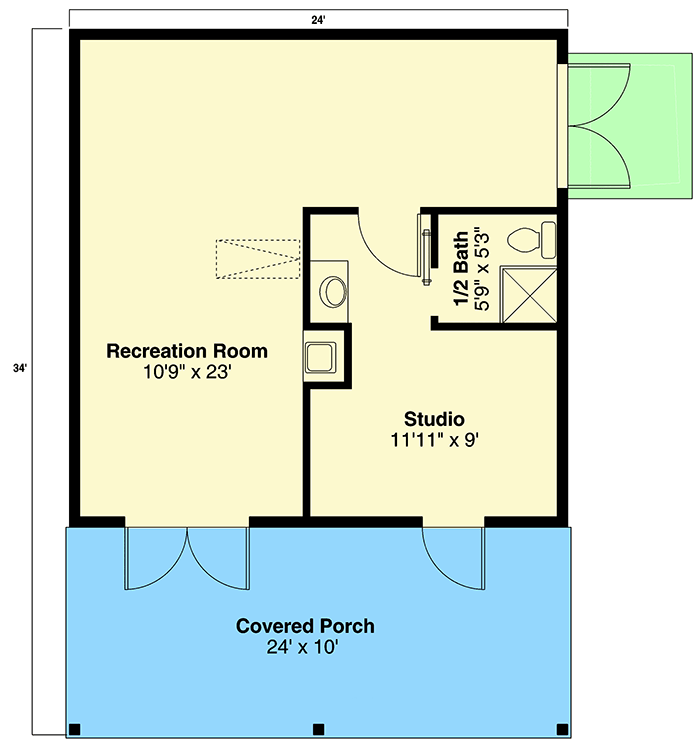

Accessory Work-from-home or Hobby Space with Bath and Shower - 720051DA floor plan - Main Level

Plan details

Architectural Style

Plan Collections

Accessory Work-from-home or Hobby Space with Bath and Shower

  • 576

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Floors

Buy This Plan
  • PDF Light $215
  • 5 Sets + PDF Light $270
  • PDF - Single-Build $435
  • CAD - Single-Build $480
  • CAD - Unlimited Build $545
  • View all purchase option online

About This Plan

  • This accessory structure plan features a large studio for enjoying hobbies. Alternatively, it gives you a great work-from-home office.
  • Double doors on the front porch open up to an ample recreation area.
  • The half bath with a shower is great for use after a hard day's work.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 576 sq. ft.
  • 1st Floor: 576 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 37' 0"
  • Max ridge height: 20' 1"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
