Plan 400019FTY
EXCLUSIVE
ADA Accessible 5-Bed Barndominium Style House Plan with RV Garage Bay
Heated S.F.
3,265
Beds
5
Baths
3.5
Stories
1
Cars
2
What's Included
Plan Details
  • This 5-bed barndominium-style house plan gives you 3,265 square feet of heated living area and has a 1,173 square foot garage with an RV bay and a separate 2-car bay. The entire home is ADA accessible with 36" doors.
  • Two sets of sliding doors open to the vaulted great room which is open to the island kitchen, walk-in pantry and a sink set below a window looking out back.
  • The private master suite is located all alone on the left side of the home and has two vanities, a two person shower and a large walk-in closet. Four guest bedrooms are clustered together on the right with bathrooms shared between each pair in front and back.
  • A large laundry room serves as a transition area from the garage to the home.
What's Included
  • Building elevations

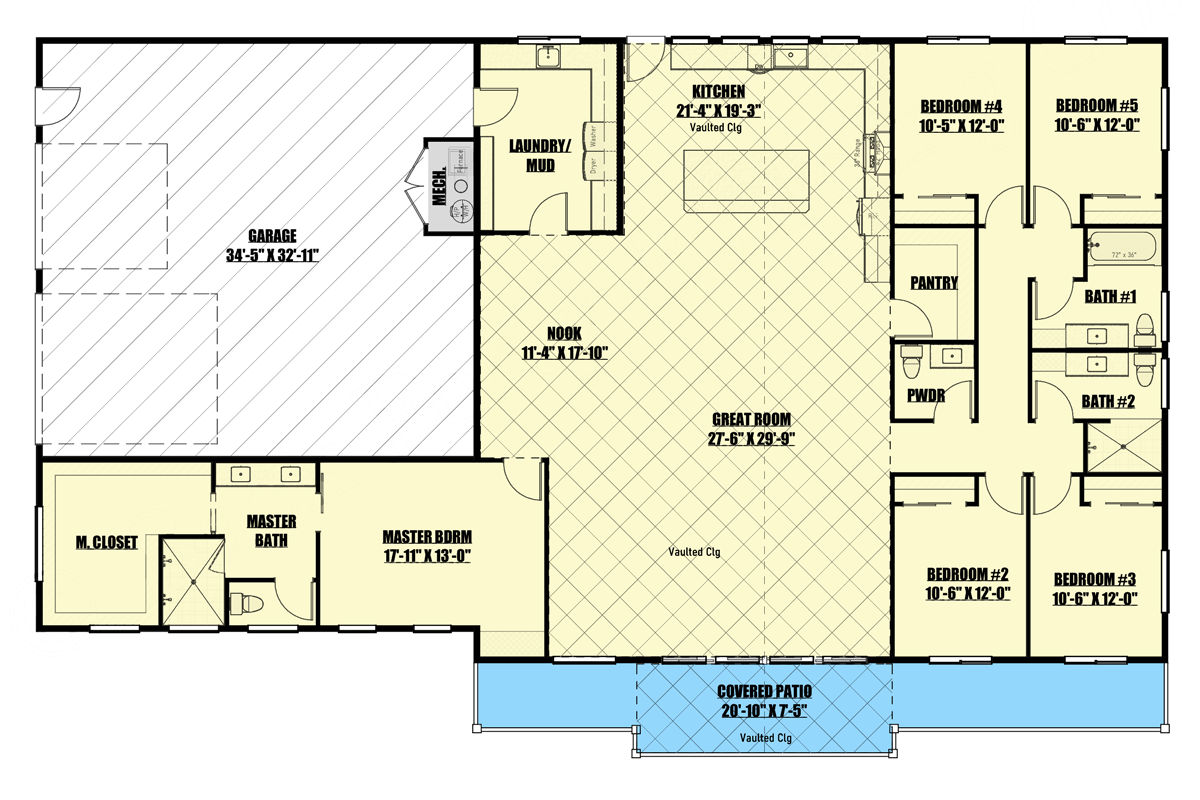

  • Detailed floorplan
  • Window and Door schedules
  • Roof plan
  • Electrical Plan
  • Standard and typical details
  • General notes and specifications
  • Prelim-structural foundation slab plan with engineer notes
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
