Plan 52344WM

ADU Cottage with Tidy Open Space - 292 Sq Ft

Heated S.F.
292
Beds
1
Baths
1
Stories
1

Floor Plan

Plan 52344WM

Main Level
Main Level

Plan 52344WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

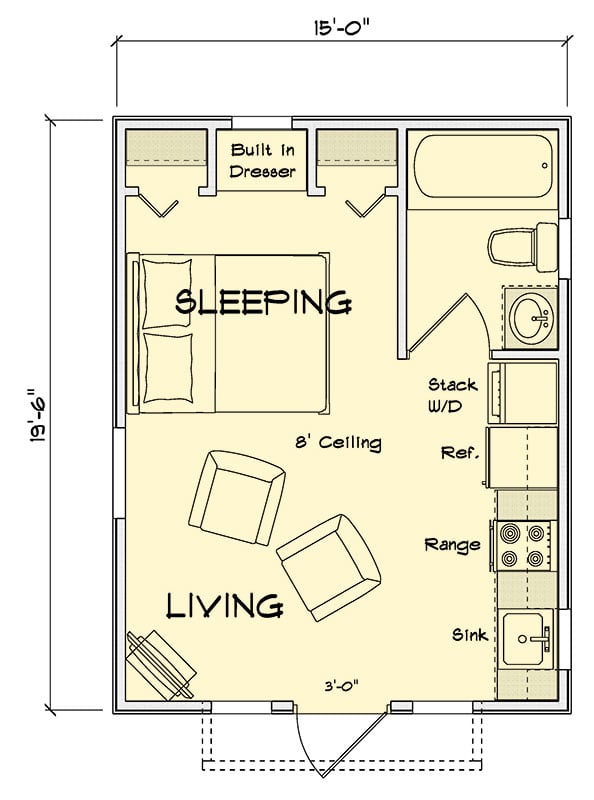

Plan 52344WM: ADU Cottage with Tidy Open Space - 292 Sq Ft - Floor Plan - Main Level - Cabin, Cottage, Traditional

Plan Details

  • This ADU cottage has a tidy open space that gives you 292 square feet of heated living space.
  • You have everything you need: a sleeping space, a bathroom, a living area and a kitchenette.
  • NOTE: The basement foundation version features exterior access stairs.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

292 sq. ft.

1st Floor

292 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

15' 0"

Depth

19' 6"

Max Ridge Height

12' 2"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Cabin

Cottage

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

292 sq. ft.

1st Floor

292 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

15' 0"

Depth

19' 6"

Max Ridge Height

12' 2"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Cabin

Cottage

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
