Plan 420128WNT
EXCLUSIVE
ADU with Flex Room and Vaulted Open Space - 649 Sq Ft
Heated S.F.
649
Beds
1-2
Baths
1
Stories
1
What's Included
Plan Details
  • This 649 square foot ADU (Accessory Dwelling Unit) gives you a dedicated bedroom with a flex room that can be used as a second bedroom or an office or whatever you need. This cute house plan can be built as a rental unit as well as for a permanent home.

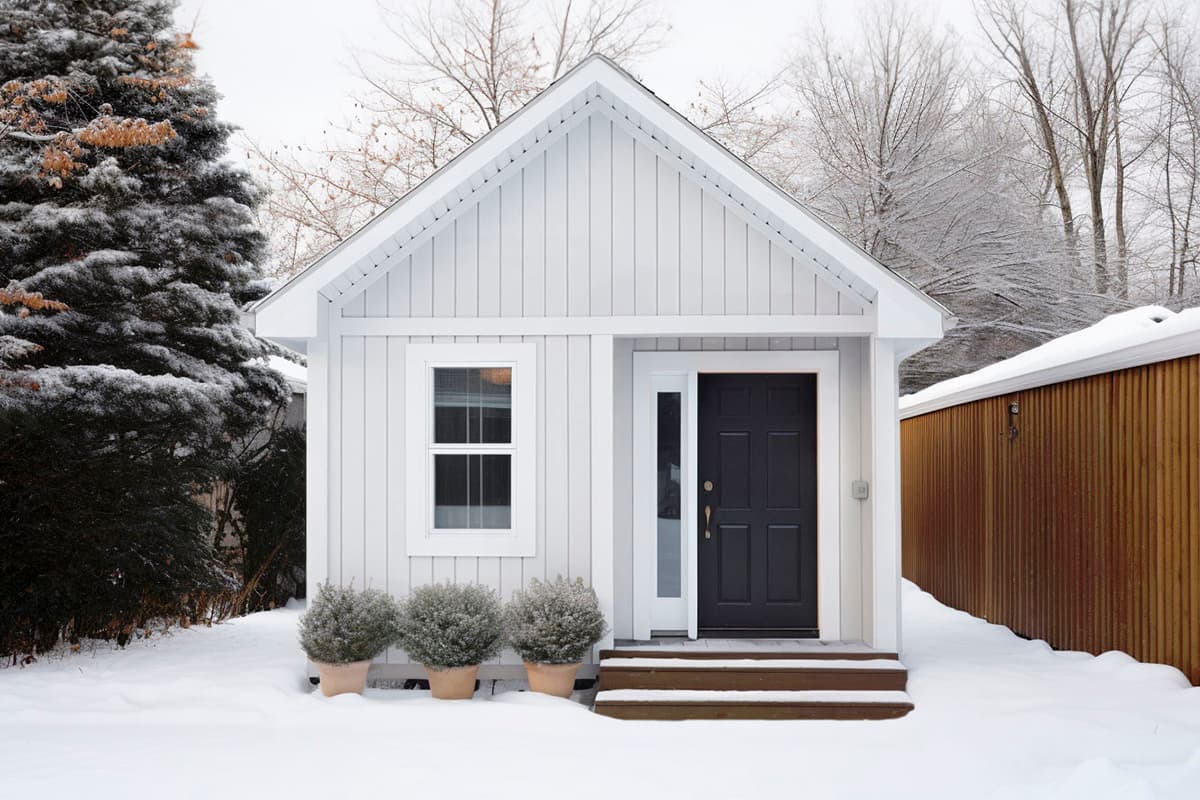

  • A covered porch provides shelter at the front door which opens to a vaulted space with the kitchen lining the left side and the living room the rest of the space.
  • Laundry is tucked into an alcove as you head towards the bedroom and bathroom.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Mechanicals Plan - Suggested HVAC equipment placement
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

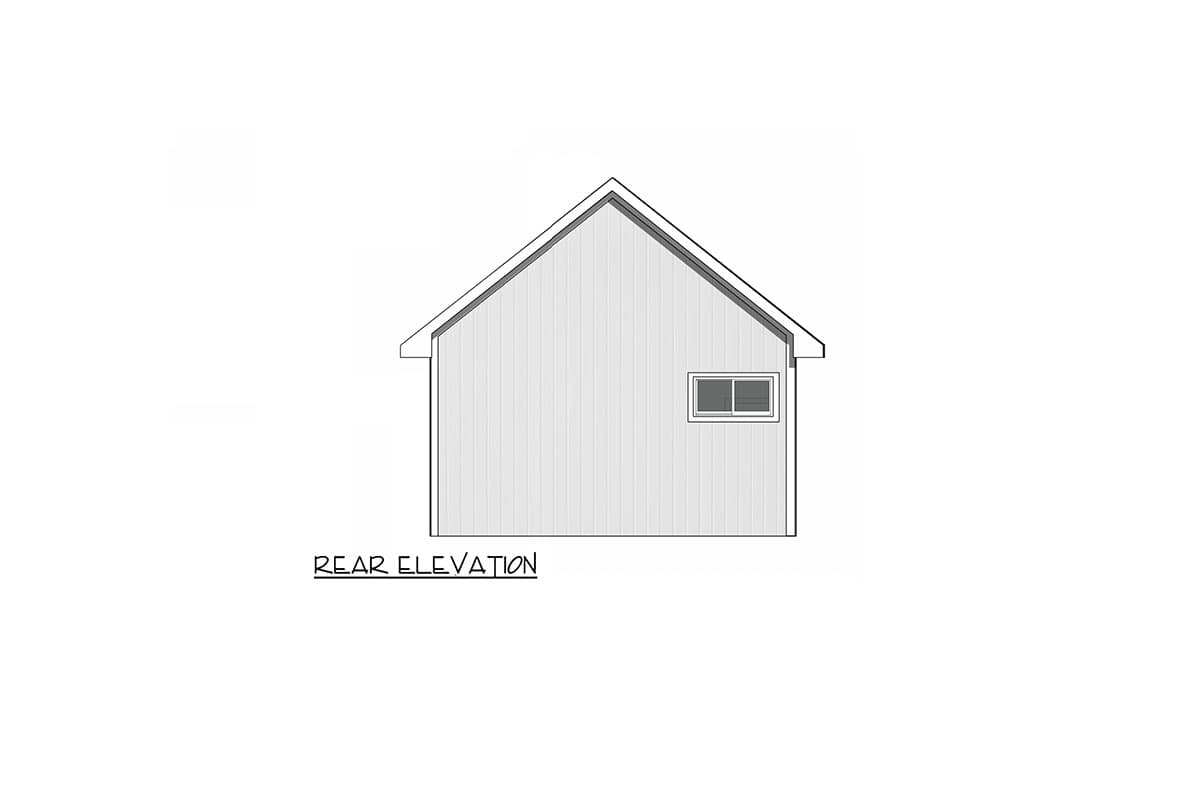

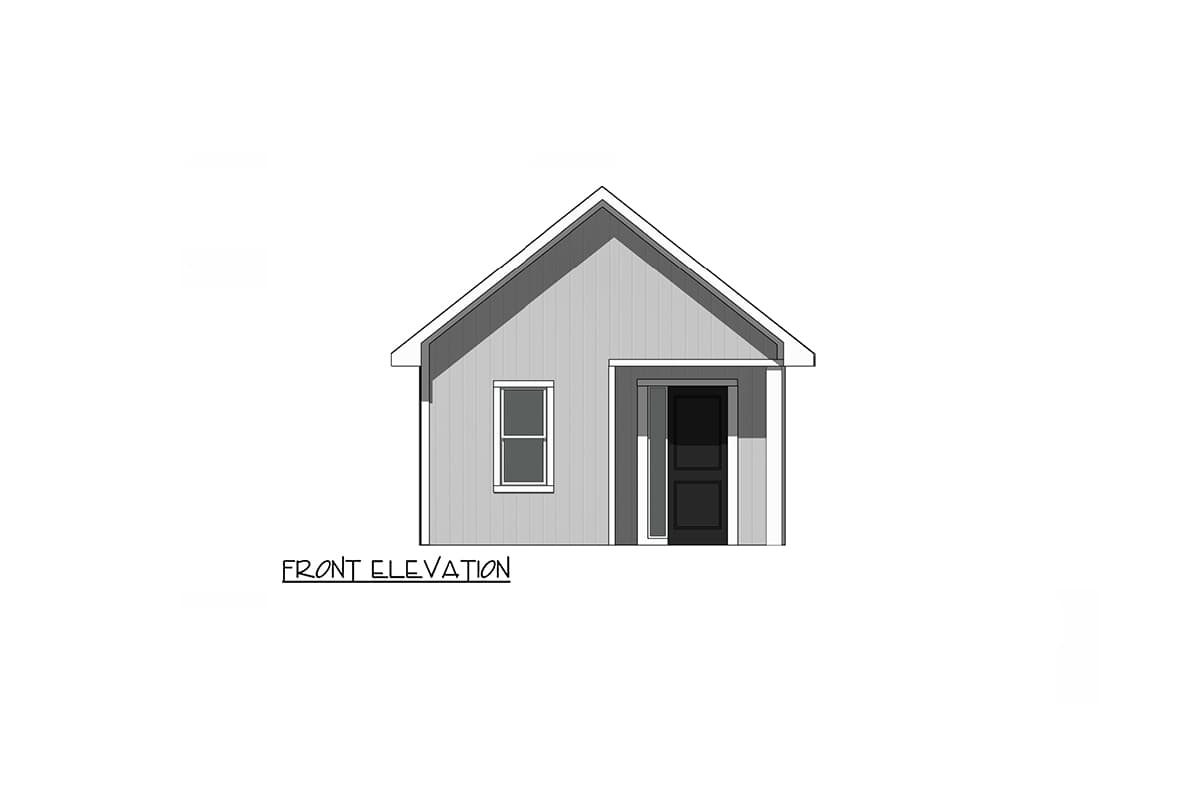

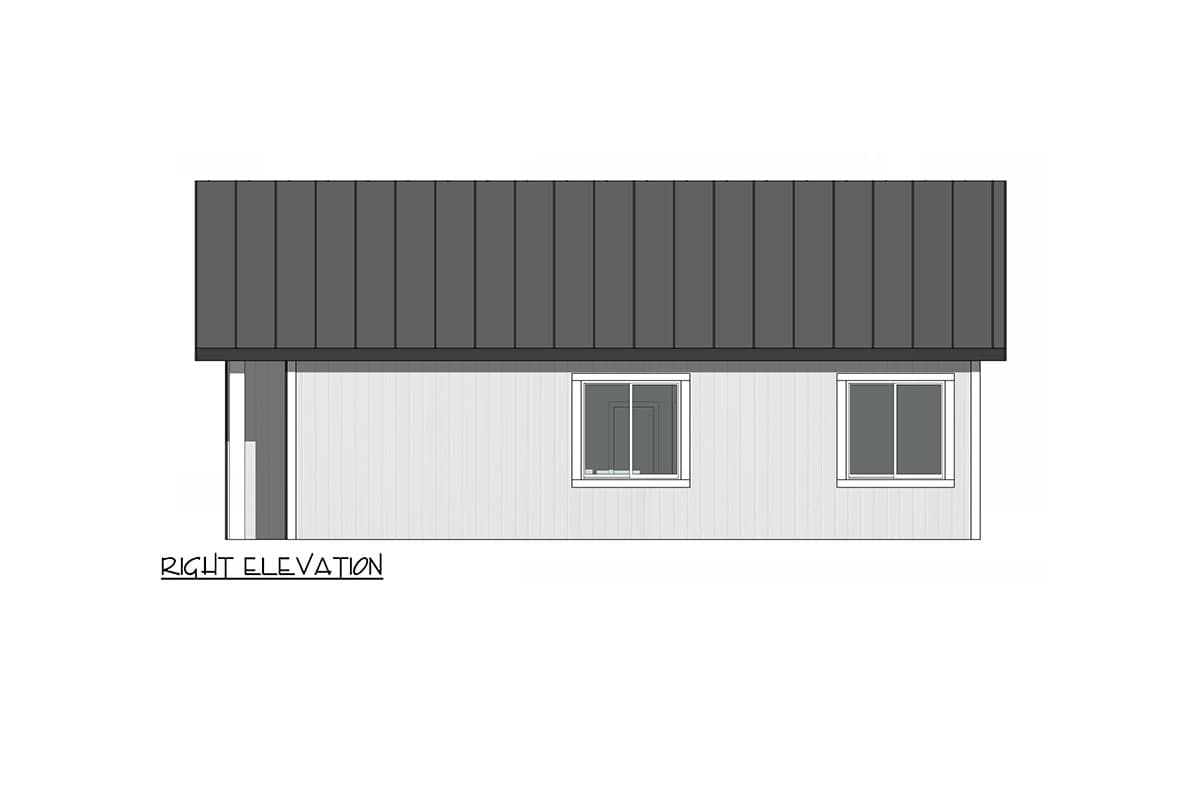

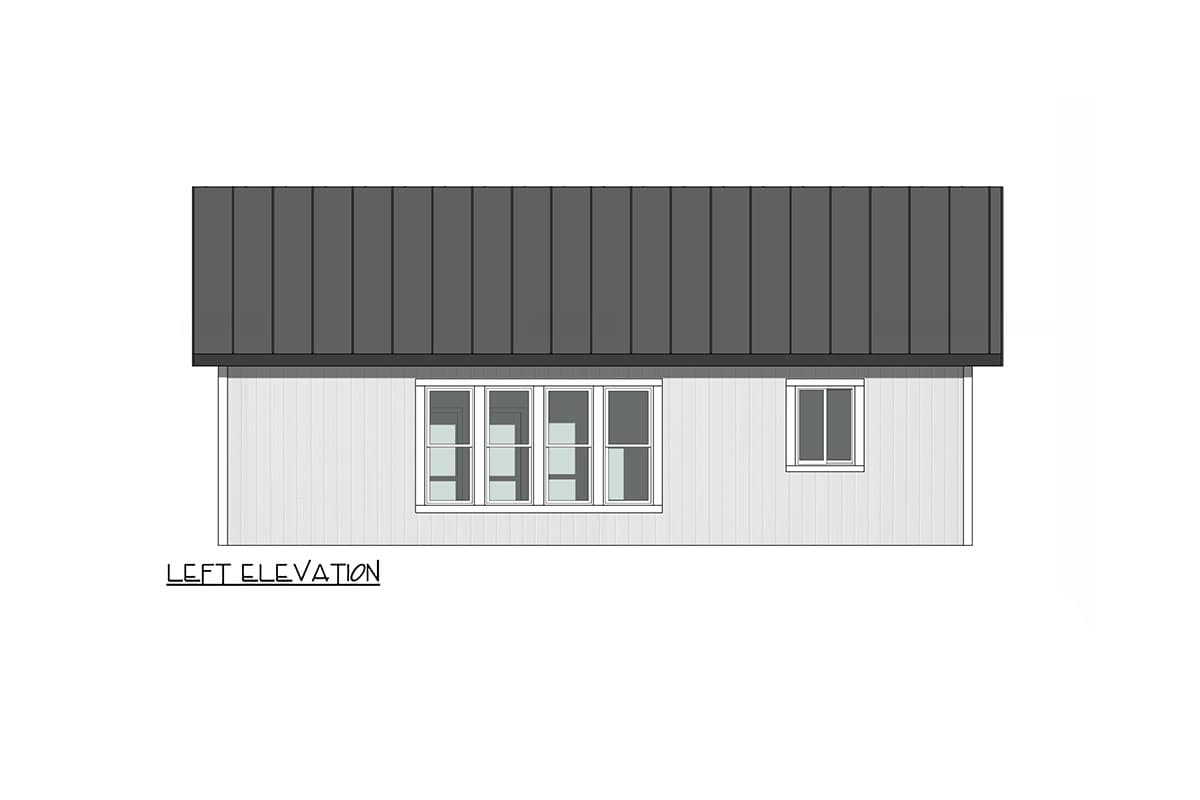

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details and notes - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

ADU with Flex Room and Vaulted Open Space - 649 Sq Ft

  • 649

    Heated s.f.

  • 1-2

    Beds

  • 1

    Baths

  • 1

    Floors

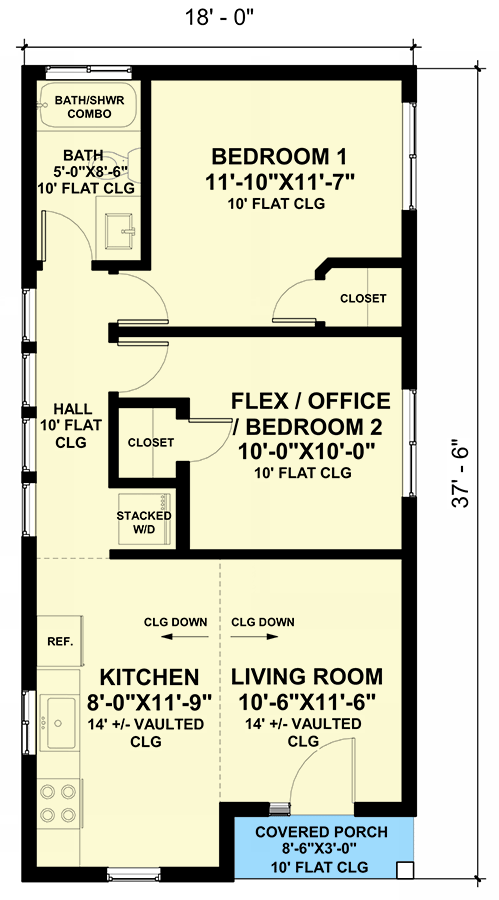

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 649 sq. ft.
  • 1st Floor: 649 sq. ft.

Dimensions

  • Width: 18' 0"
  • Depth: 37' 6"
  • Max ridge height: 18' 2"

Beds/Baths

  • Bedrooms: 1 or 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9.5 on 12
  • Framing Type: Stick Or Truss
