Plan 55159BR

Affordable Energy Efficient 4 Bed Home Plan

Heated S.F.
1,235
Beds
4
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 55159BR

Main Level
Main Level

Plan 55159BR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

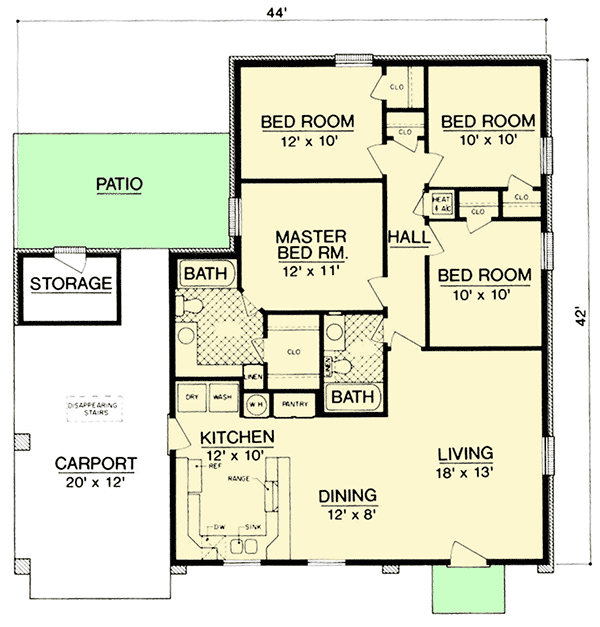

Plan 55159BR: Affordable Energy Efficient 4 Bed Home Plan - Floor Plan - Main Level - Southern

Plan Details

  • Rarely can you find a home plan this compact with 4 generously-sized bedrooms. This is just that, inexpensive to build and energy efficient with 2x6 exterior walls. It is designed with numerous features that reduce the heating and cooling cost by 50% yet it cost no more to build than a conventional home.
  • The living spaces are open and airy creating the look of a much larger home.
  • The kitchen is fully appointed and it has a large built-in pantry.
  • The master bath is large and has a walk-in closet and a built-in linen closet.
  • The carport is roomy and has storage plus pull-down stairs giving you access to more storage above. It has direct access to the patio in back.
  • The roof is stick framed with a 7:12 pitch.

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,235 sq. ft.

1st Floor

1,235 sq. ft.

Carport

274 sq. ft.

Storage

51 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

42' 0"

Max Ridge Height

16' 0"

Garage

Type

Carport

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,235 sq. ft.

1st Floor

1,235 sq. ft.

Carport

274 sq. ft.

Storage

51 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

42' 0"

Max Ridge Height

16' 0"

Garage

Type

Carport

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
