Plan 62346DJ Affordable Traditional-style House Plan Under 1,200 Square Feet

1,192 2-4 2 - 3 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Affordable Traditional-style House Plan Under 1,200 Square Feet

Plan 62346DJ

  • 1,192

    Heated s.f.

  • 2-4

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

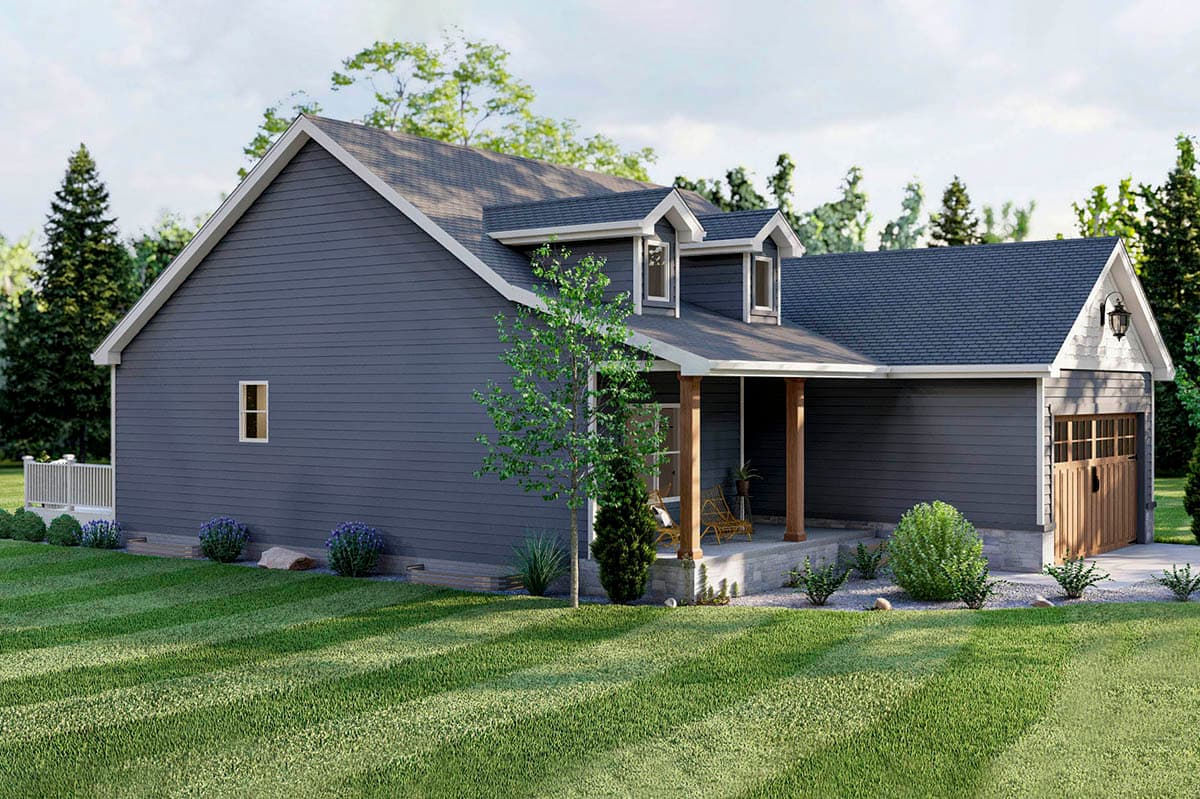

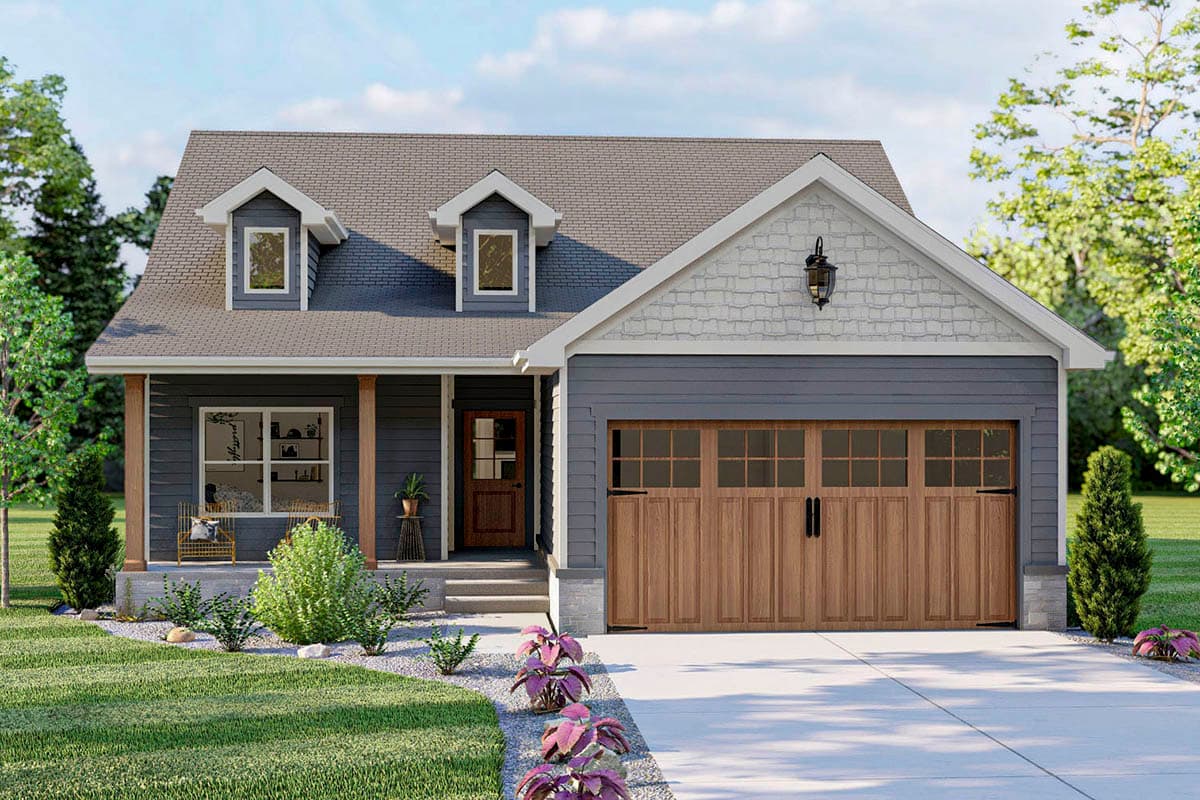

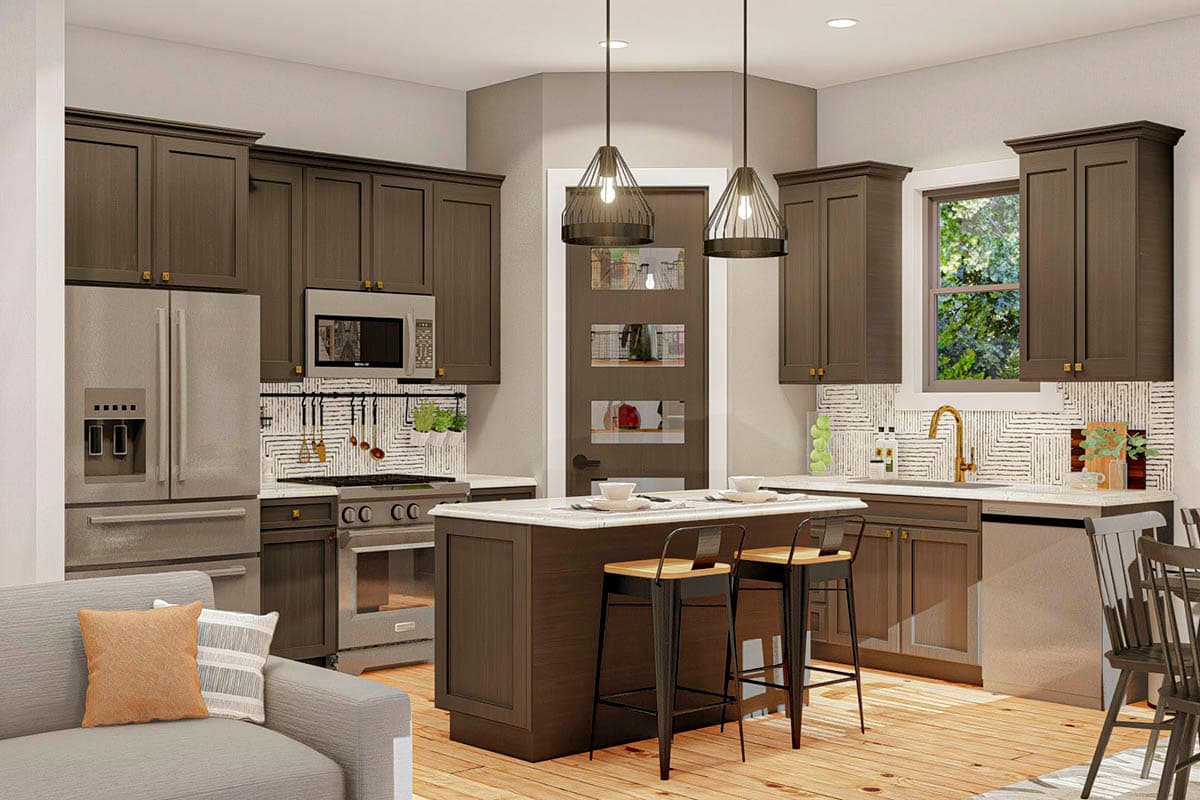

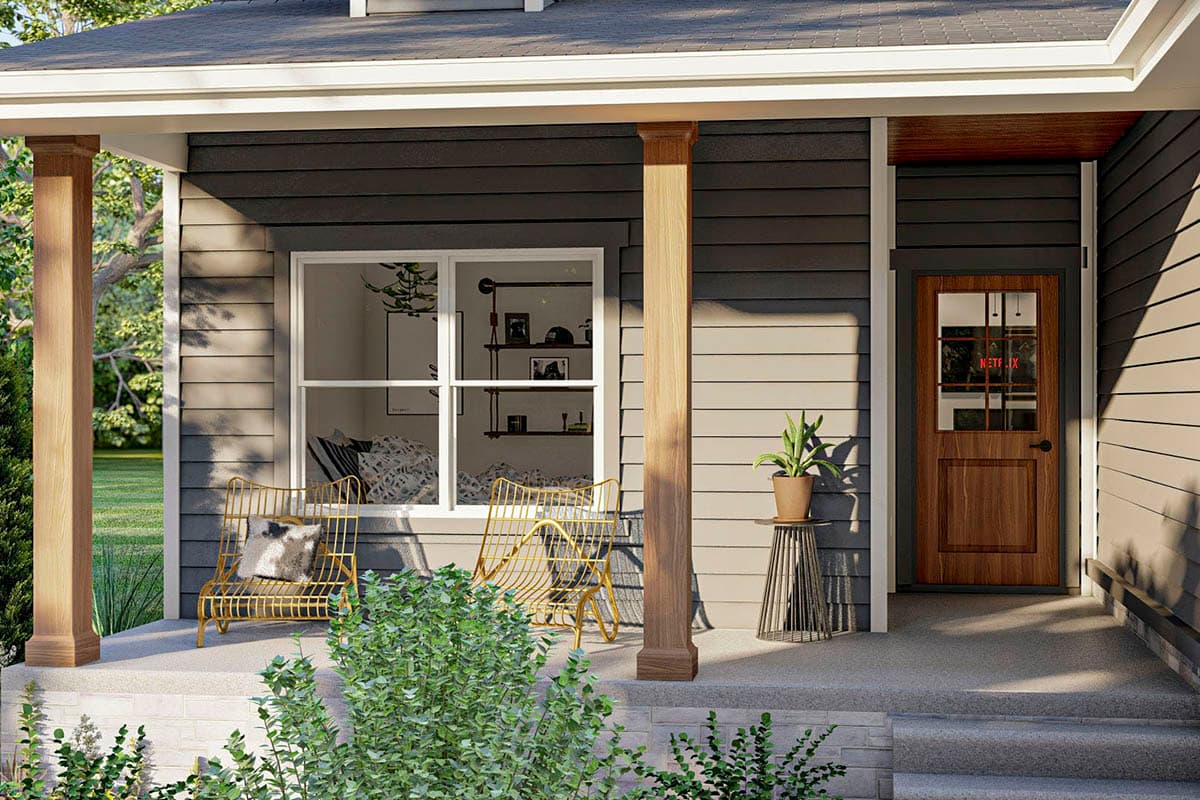

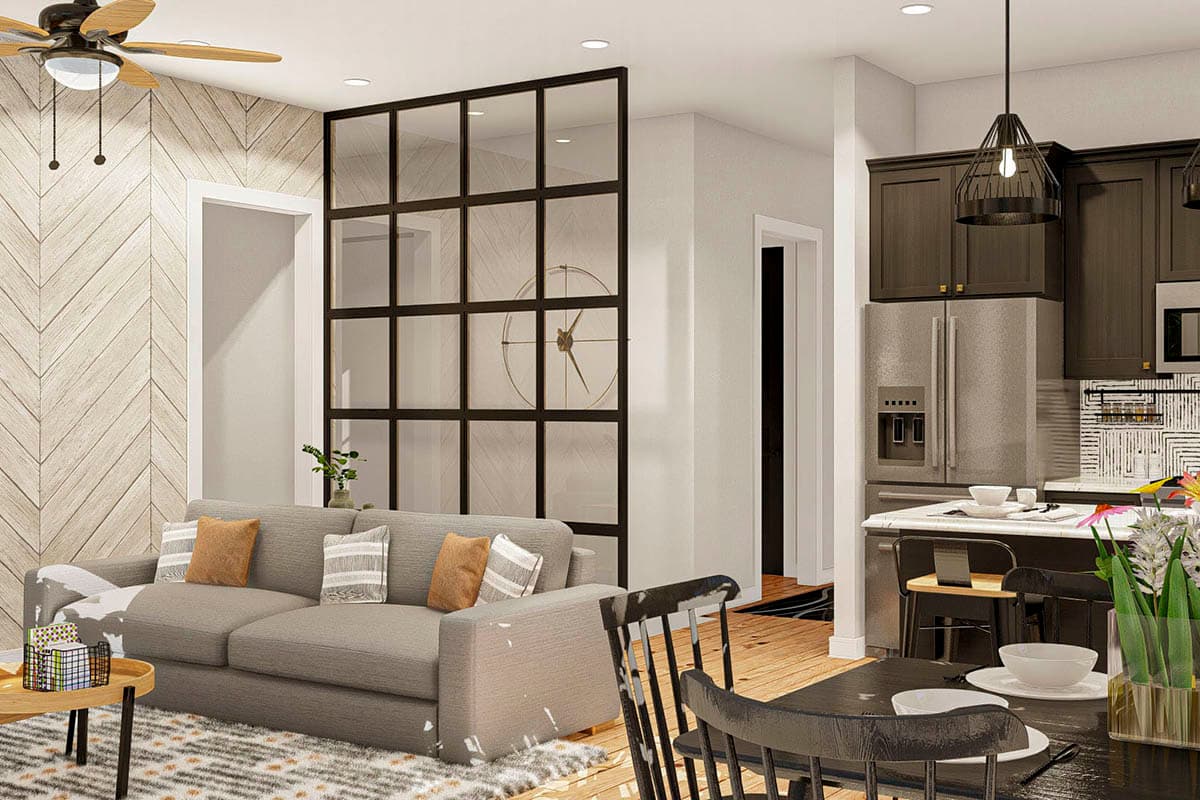

  • This affordable traditional-style house plan comes in at just under 1,200 square fee and features amenities typically found in larger homes. The exterior of the home is highlighted by a pair of dormers that sit over a front covered porch. Inside, the kitchen, dining room, and family room are arranged in an open layout. The kitchen includes an island with a snack bar and a walk-in pantry.
  • The master bedroom can be found on the right side of the home and includes his/her vanities and a walk-in closet. A guest bedroom can be found in the front of the house.
  • Choose to build the optional finished basement - available from the Options menu - and get an additional 839 square feet of finished space including an additional family room and 2 additional bedrooms.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

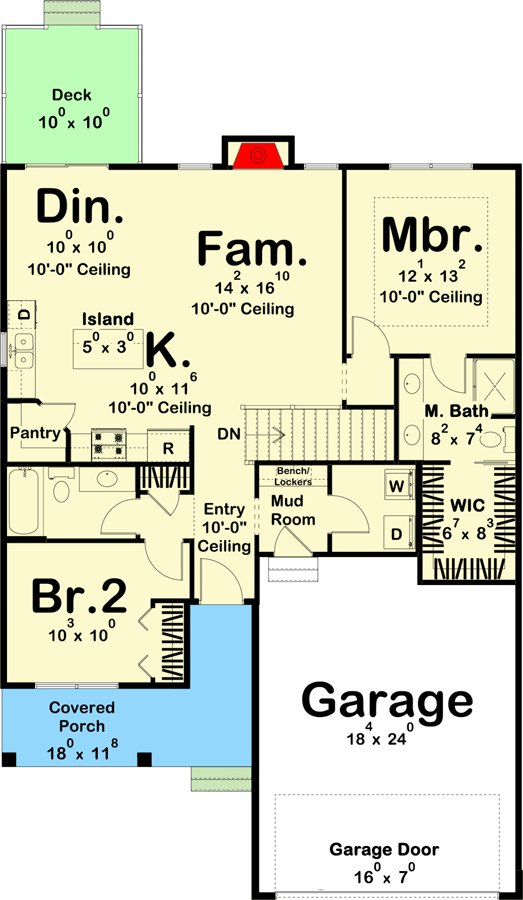

Affordable Traditional-style House Plan Under 1,200 Square Feet - 62346DJ floor plan - Main Level

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Affordable Traditional-style House Plan Under 1,200 Square Feet - 62346DJ floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,192 sq. ft.
  • 1st Floor: 1,192 sq. ft.
  • Deck: 100 sq. ft.
  • Porch, Combined: 130 sq. ft.
  • Porch, Front: 130 sq. ft.
  • Optional Lower Level: 839 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 55' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 446 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12

Architectural Style

Special features

Affordable Traditional-style House Plan Under 1,200 Square Feet

  • 1,192

    Heated s.f.

  • 2-4

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,600
  • CAD + PDF - Single-Build $1,600
  • CAD Unlimited + PDF $2,100
  • View all purchase option online

About This Plan

  • This affordable traditional-style house plan comes in at just under 1,200 square fee and features amenities typically found in larger homes. The exterior of the home is highlighted by a pair of dormers that sit over a front covered porch. Inside, the kitchen, dining room, and family room are arranged in an open layout. The kitchen includes an island with a snack bar and a walk-in pantry.
  • The master bedroom can be found on the right side of the home and includes his/her vanities and a walk-in closet. A guest bedroom can be found in the front of the house.
  • Choose to build the optional finished basement - available from the Options menu - and get an additional 839 square feet of finished space including an additional family room and 2 additional bedrooms.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,192 sq. ft.
  • 1st Floor: 1,192 sq. ft.
  • Deck: 100 sq. ft.
  • Porch, Combined: 130 sq. ft.
  • Porch, Front: 130 sq. ft.
  • Optional Lower Level: 839 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 55' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 446 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
