Plan 51723HZ

All Brick Traditional House Plan

Heated S.F.
1,826
Beds
3
Baths
2
Stories
1
Cars
2

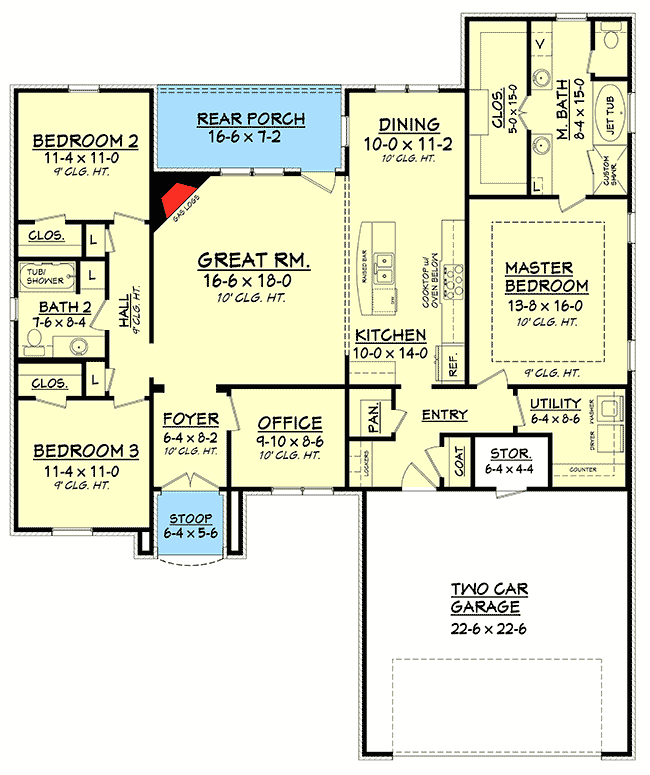

Floor Plan

Plan 51723HZ

Main Level
Main Level

Plan 51723HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51723HZ: All Brick Traditional House Plan - Floor Plan - Main Level - Southern, Traditional

Plan Details

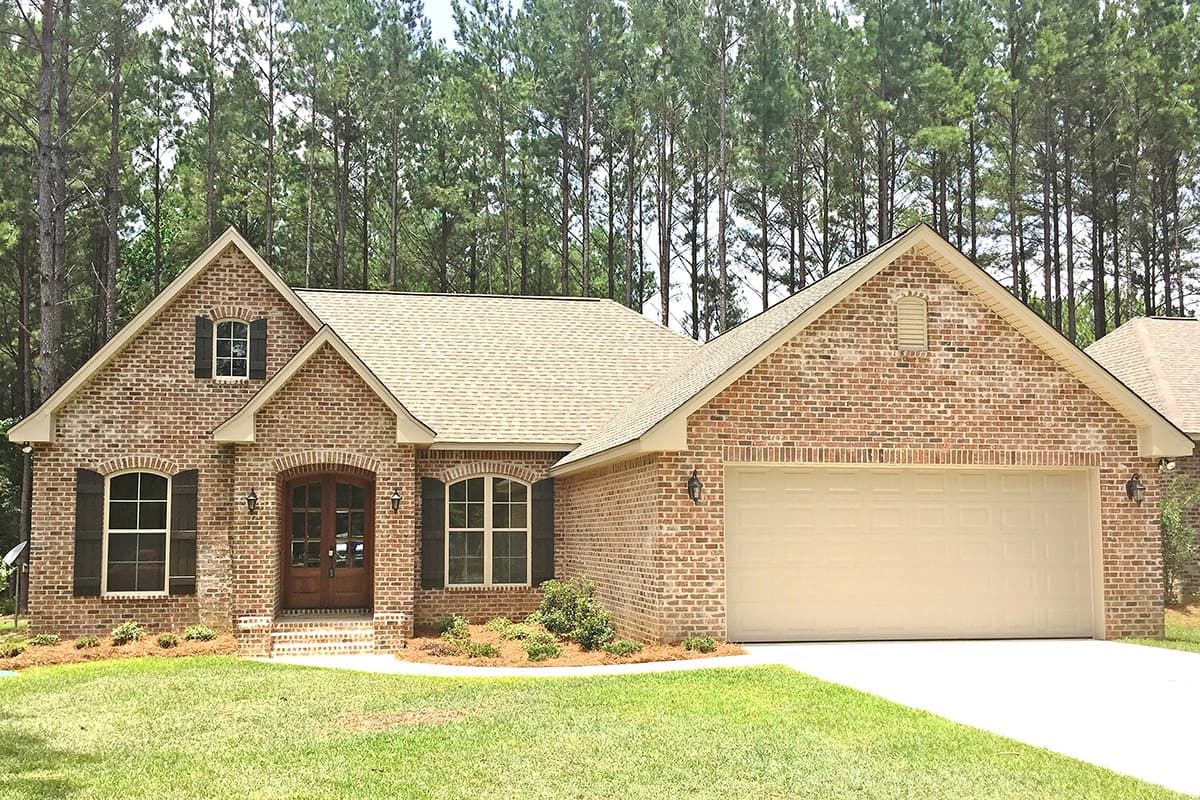

  • This well-designed 3 bedroom house plan has all brick exterior with a covered entry to protect you from inclement weather while fumbling for your keys.

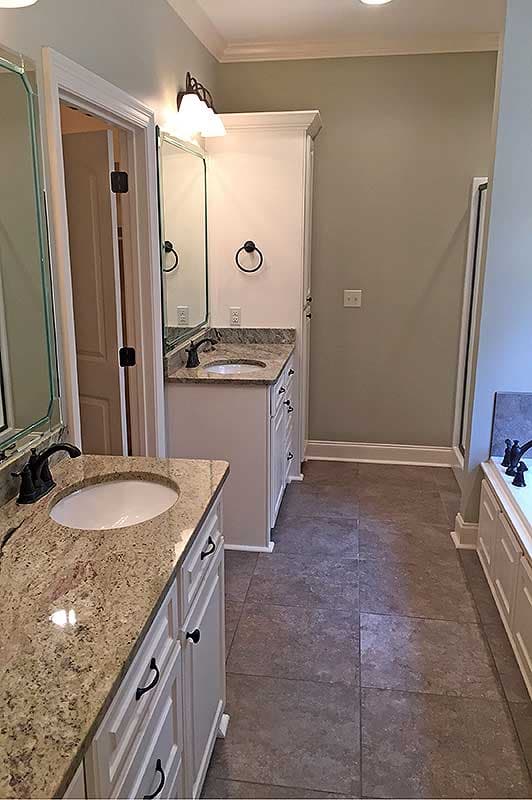

  • Inside, a split bedroom layout gives the master suite privacy. The master bedroom has a 10' tray ceiling, a large walk-in closet and dual vanities in the bath plus a tub and a shower. Across the home, the The kids share a bath.

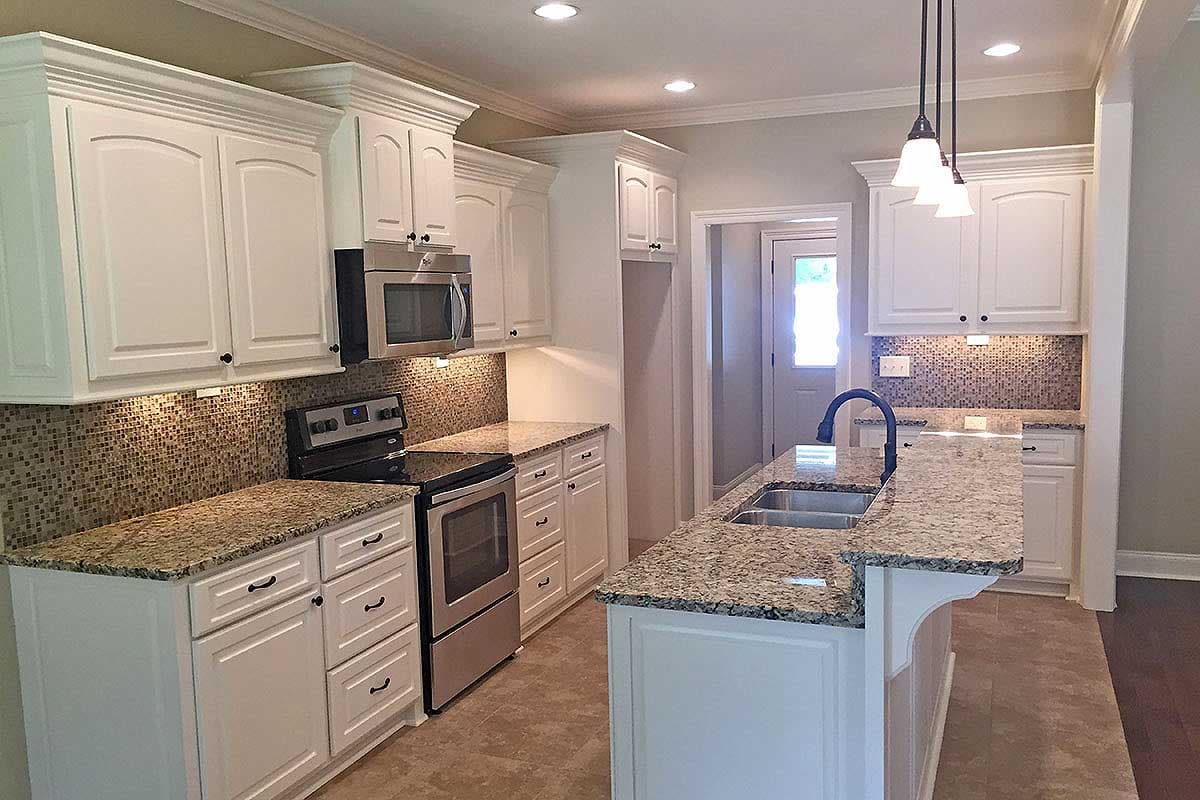

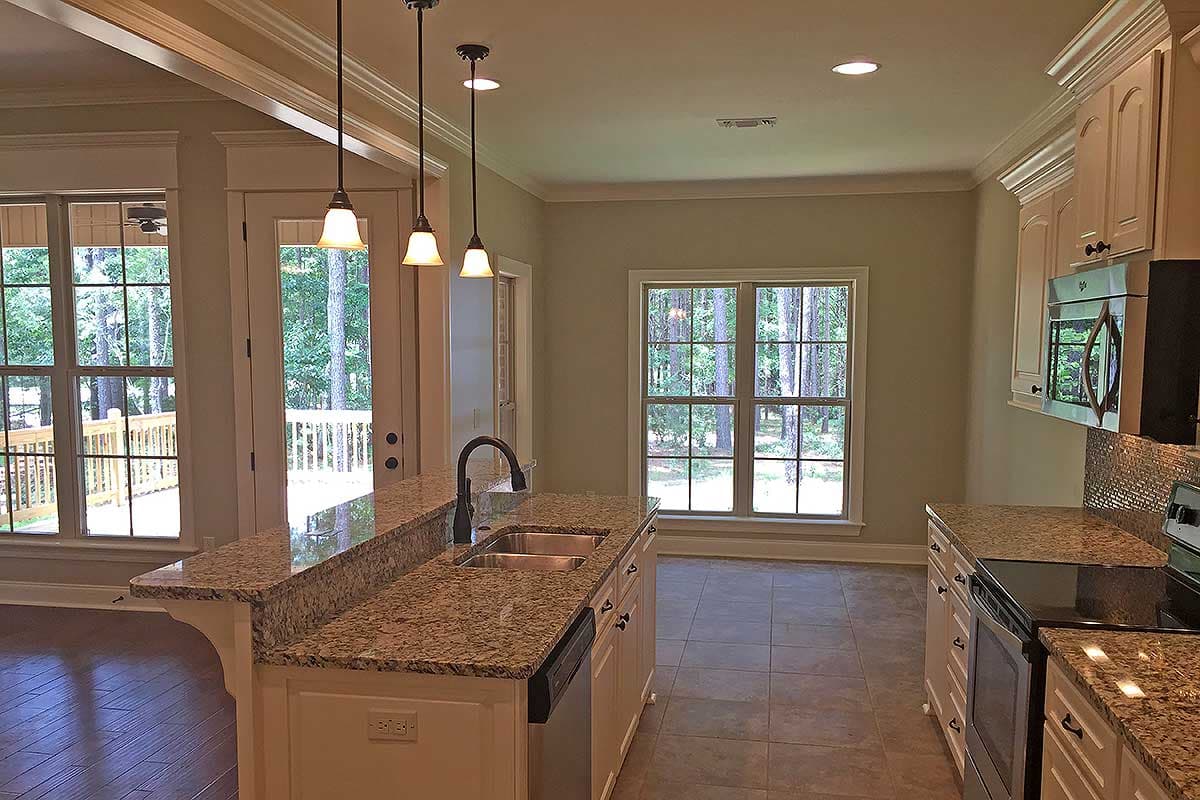

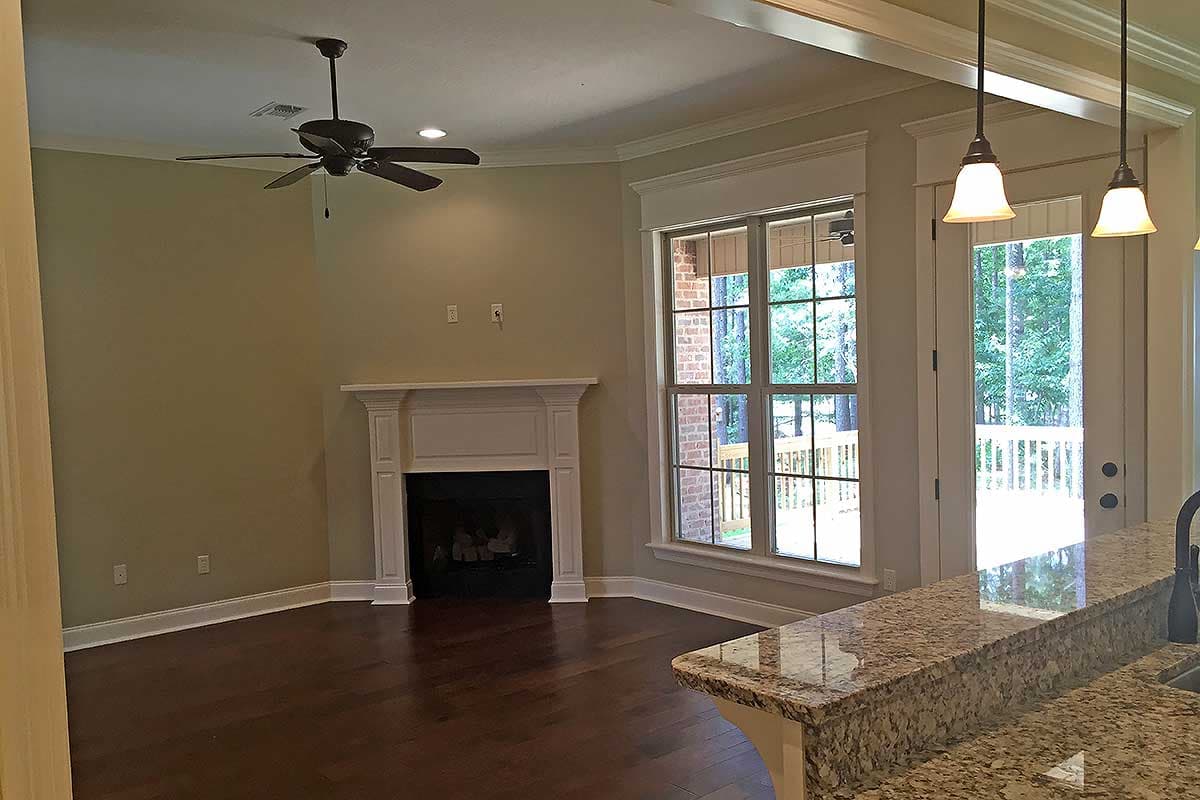

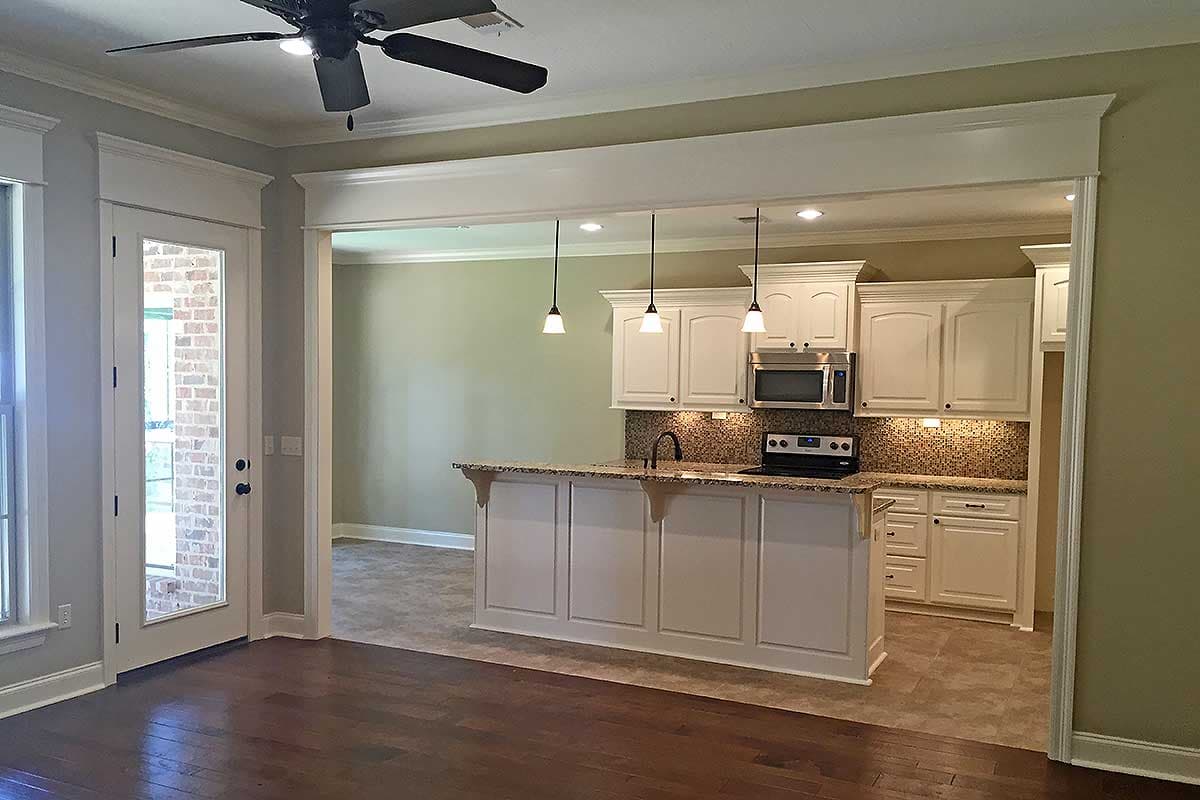

  • The great room and kitchen are open to each other helping facilitate entertaining and conversation.
  • An office off the foyer is your quiet space.
  • The family entrance off the garage has built-in lockers to help control clutter and convenient laundry and utilities tucked away as well. The pantry is also located here making unloading groceries a breeze.
  • The roof is stick framed and has a 9:12 primary pitch and a 13:12 secondary pitch.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

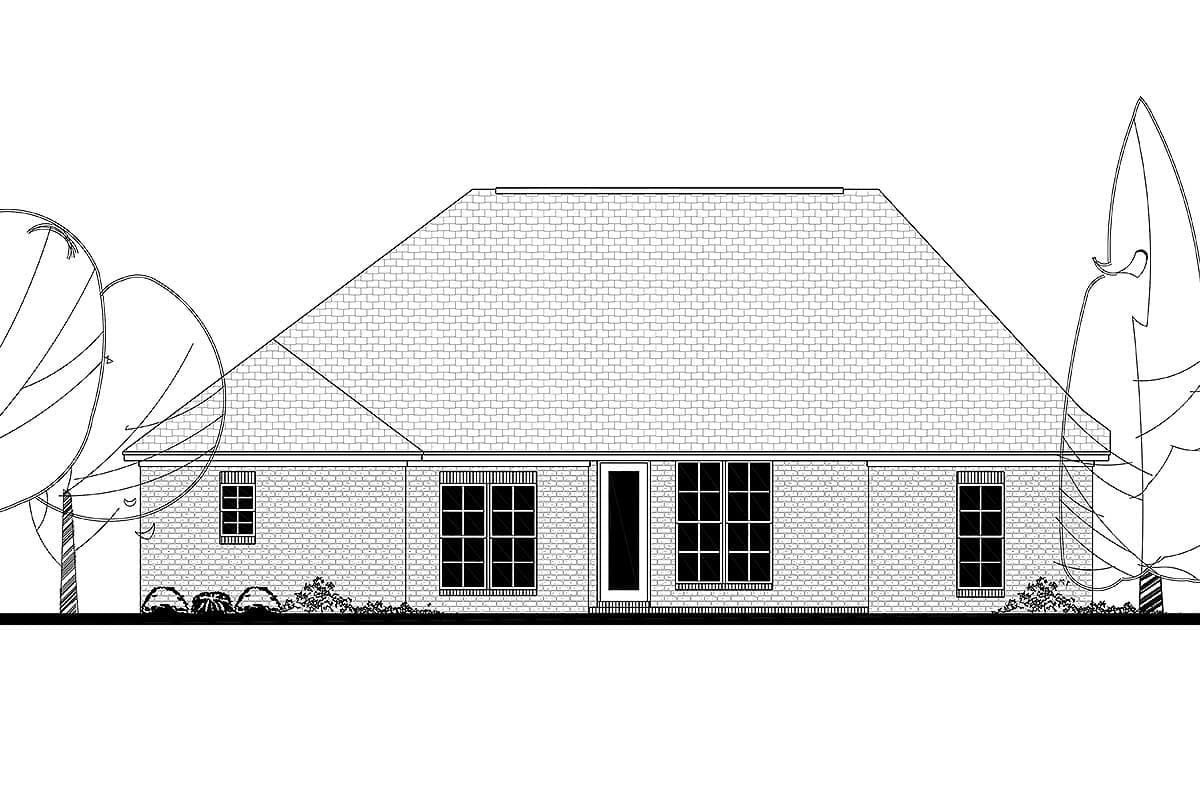

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,826 sq. ft.

1st Floor

1,826 sq. ft.

Porch, Front

45 sq. ft.

Porch, Rear

118 sq. ft.

Storage

30 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 2"

Depth

63' 8"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

529 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,826 sq. ft.

1st Floor

1,826 sq. ft.

Porch, Front

45 sq. ft.

Porch, Rear

118 sq. ft.

Storage

30 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 2"

Depth

63' 8"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

529 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Photo Gallery

USDA Approved
