Plan 57345HA
All the Basics and More
Heated S.F.
1,649
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This attractive Traditional cottage house plan has all the basics and so much more.
  • The combination of shakes and board and battan siding ups the curb appeal tremendously.
  • A beautiful covered porch wraps around the large vaulted great room that has a fireplace as its focal point.
  • Combining the eating and cooking areas is a smart space-saving move.
  • High-end amenities go to the master bedroom where you have the option of a vaulted or tray ceiling.
  • The two family bedrooms have big linear closets.
What's Included

  • Front Cover Sheet

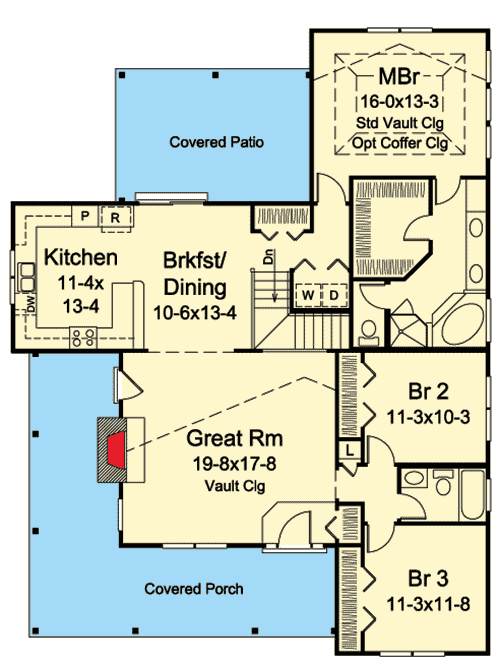

  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

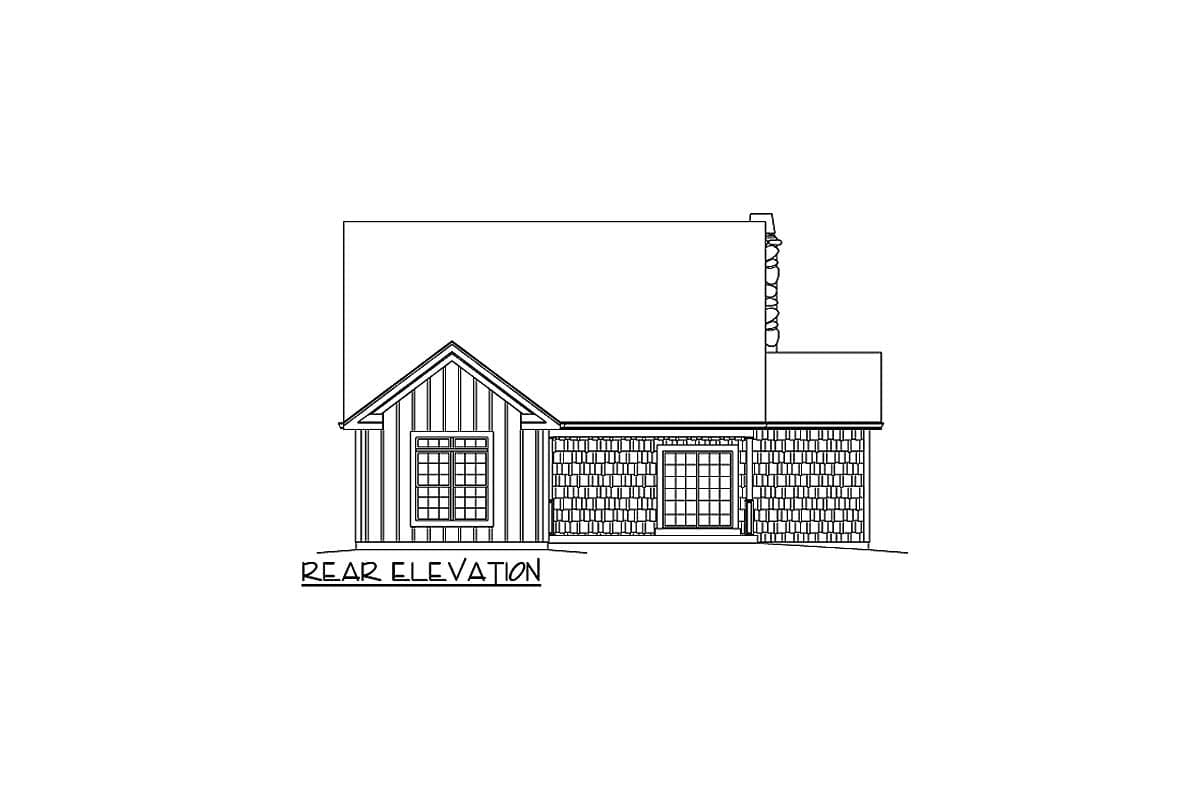

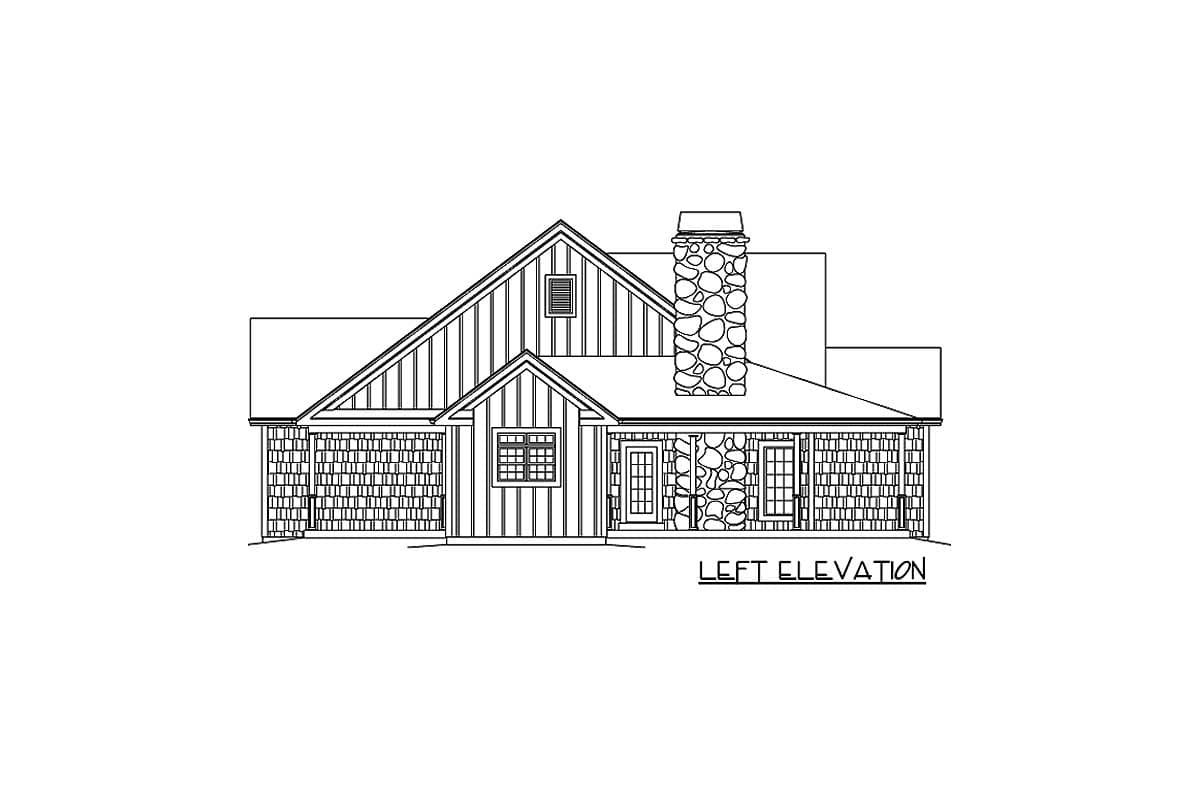

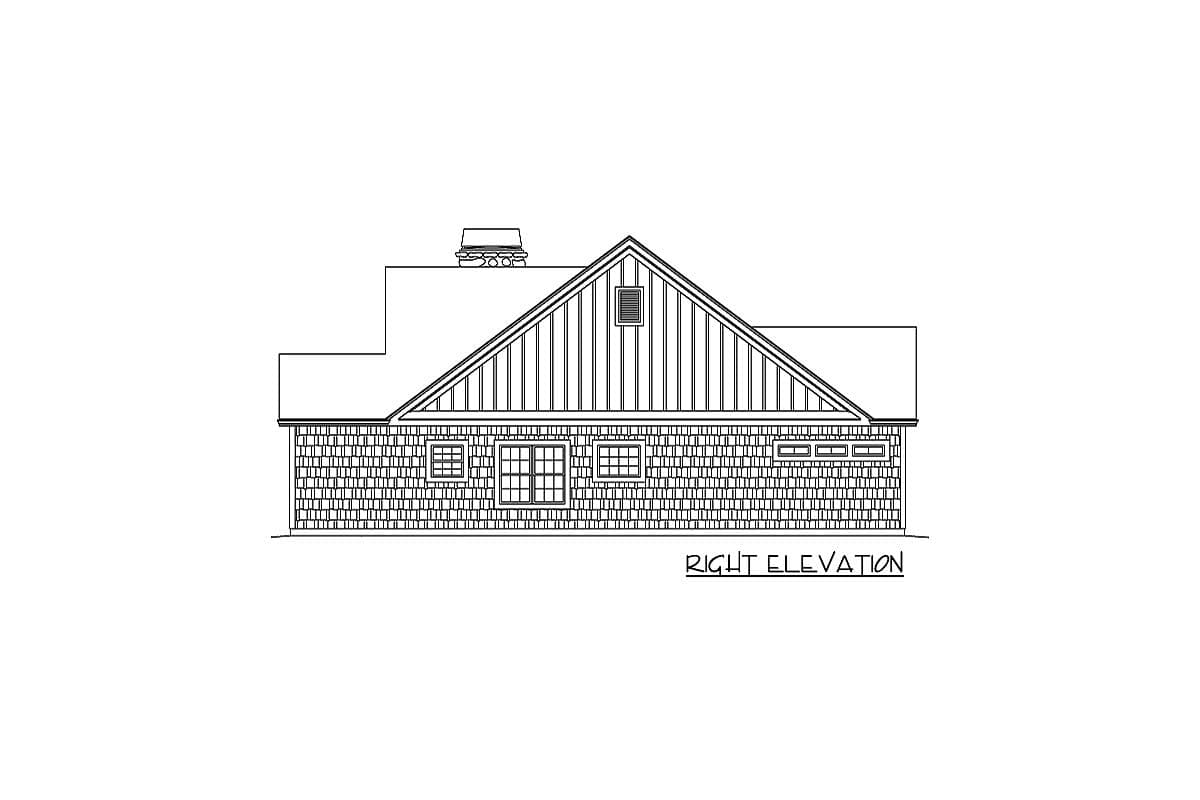

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

All the Basics and More

  • 1,649

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,649 sq. ft.
  • 1st Floor: 1,649 sq. ft.

Dimensions

  • Width: 44' 4"
  • Depth: 58' 0"
  • Max ridge height: 33' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Detached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
