Plan 16835WG

All the Charm of Tuscany

Name: Plan 16835WG: All the Charm of Tuscany
Brand: Architectural Designs
SKU: 16835WG
Price: 1295.0 USD
Availability: InStock

Heated S.F.

2,669

Beds

Baths

2.5

Stories

Cars

Floor Plan

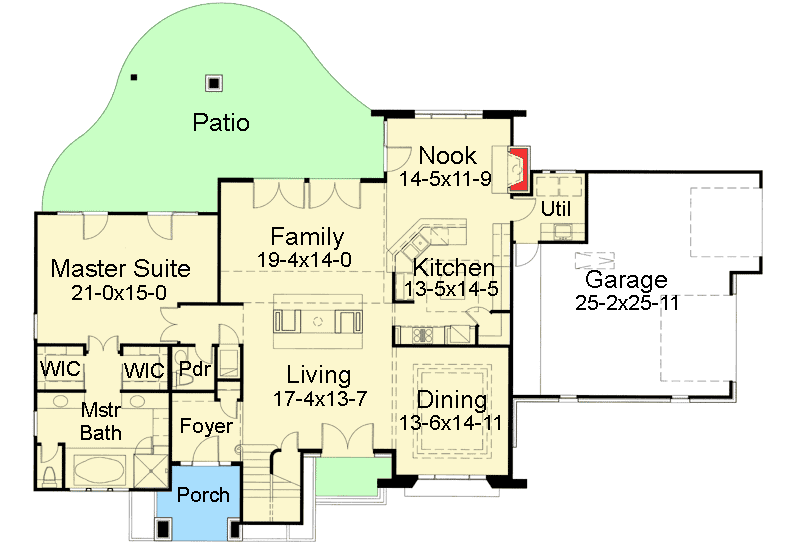

Main Level

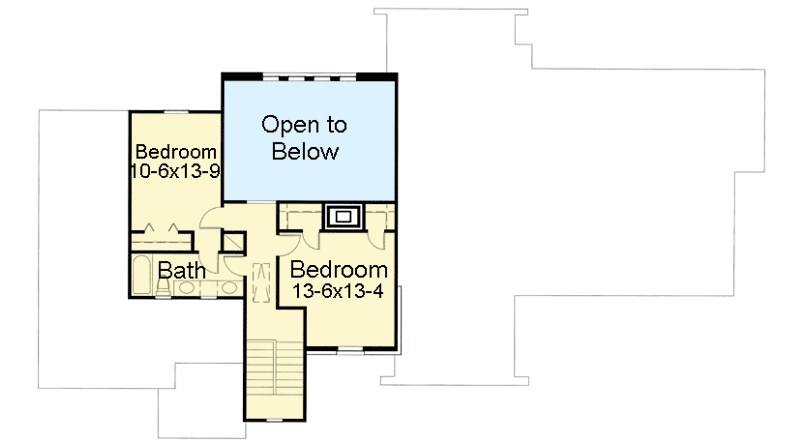

2nd Floor

Plan Details

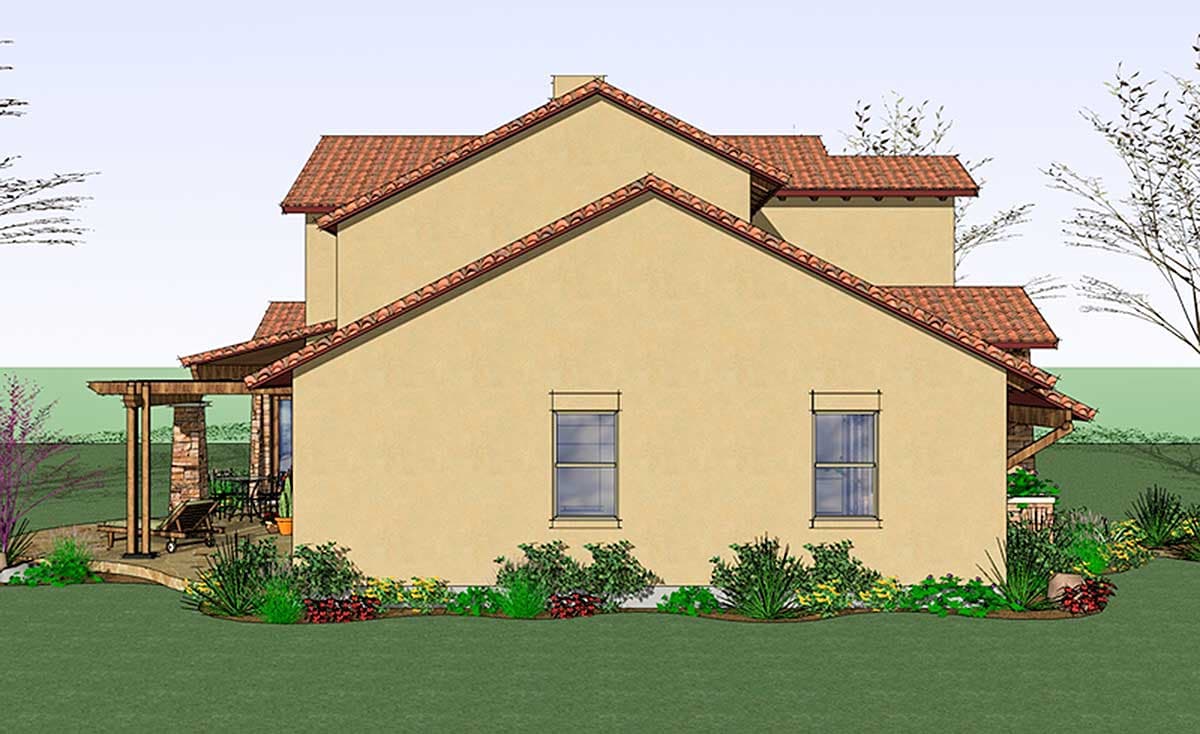

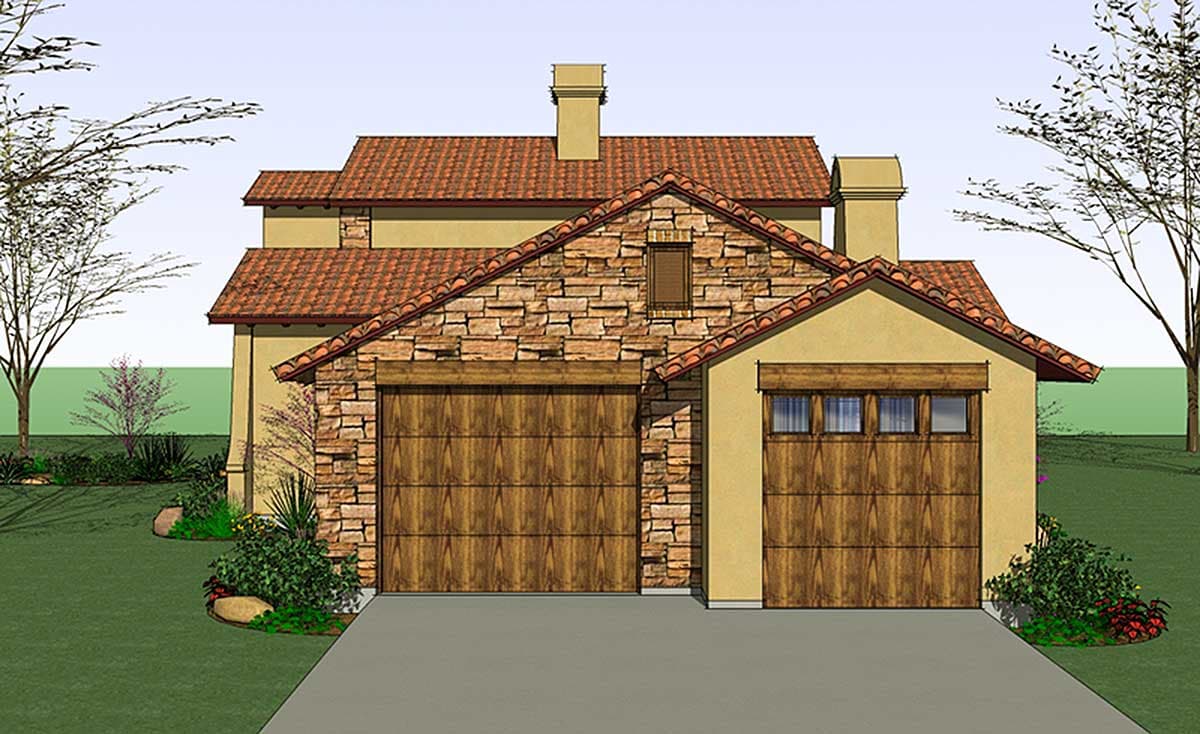

Stone, stucco and a clay tile roof add a Tuscan feel to the exterior of this charming rustic home plan.
A 2-sided fireplace is shared by both the living room and 2-story family room. The latter is open to the kitchen creating a great sense of openness.
Double doors lead to the rear patio that is partially covered and large enough for an outdoor living room.
A fireplace adds coziness to the breakfast nook.
The dining room has an attractive tray ceiling and is open to the living room.
In the master suite, two doors give access to the covered patio.
Adding to your sense of privacy, the remaining bedrooms are located on the upper floor where an overlook gives you views below.
The roof pitch is a graceful 8:12.

What's Included

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
