Plan 60571ND

Alley Access Cutie

Heated S.F.
1,534
Beds
3
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 60571ND

Main Level
Main Level

Plan 60571ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

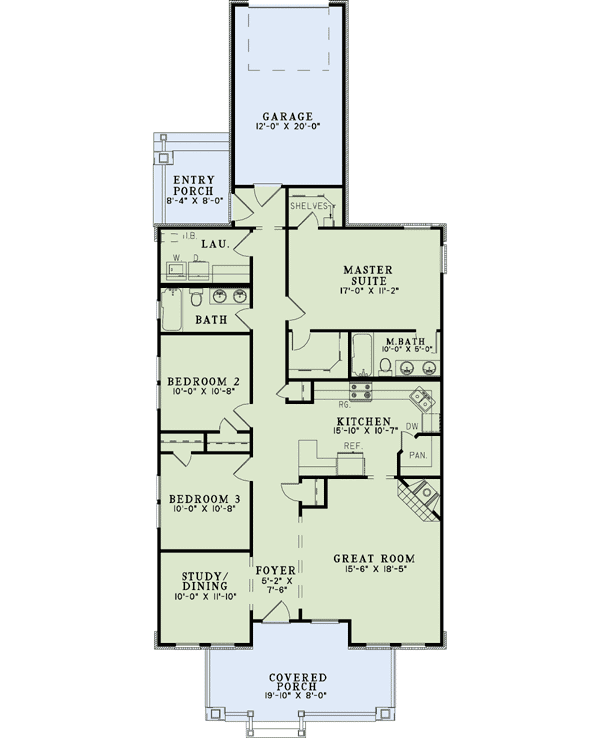

Plan 60571ND: Alley Access Cutie - Floor Plan - Main Level - Cottage, Southern

Plan Details

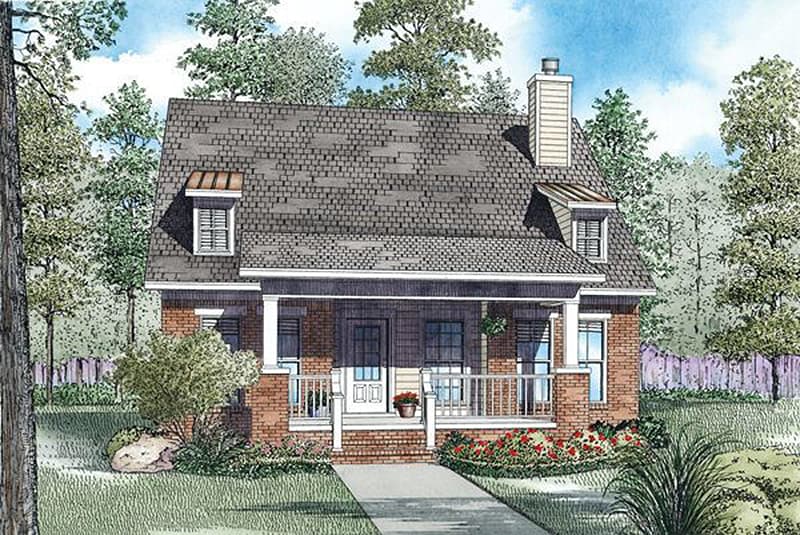

  • This Arts & Crafts house plan Here is one of our features a wide and deep front porch making it useful as an outdoor extension of the home.
  • Step inside and you have a straight shot from the foyer to the back entry.
  • A flexible room up front can serve as a study or a dining area.
  • The spectacular great room has an angled a fireplace and easy kitchen access.
  • The kitchen has a wide opening leaving plenty of space for cooking and a walk-in pantry.
  • The master suite will please with its bath and walk-in closets.
  • Finally, the garage and entry porch nuzzled in the rear of home completes this wonderful home plan great for an aley access lot.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,534 sq. ft.

1st Floor

1,534 sq. ft.

Porch, Front

205 sq. ft.

Porch, Rear

67 sq. ft.

Porch, Combined

272 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

80' 0"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

258 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,534 sq. ft.

1st Floor

1,534 sq. ft.

Porch, Front

205 sq. ft.

Porch, Rear

67 sq. ft.

Porch, Combined

272 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

80' 0"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

258 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry
