Plan 59881ND

Alternate Exterior Available

2,405 3-4 3 1 3
Pageloader

Alternate Exterior Available

Plan 59881ND

  • 2,405

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Related Plan: Prefer brick? See house plan 59805ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Plan details



Alternate Exterior Available

  • 2,405

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $610
  • 5 Sets $680
  • 8 Sets $795
  • Reproducible Set $1,225
  • PDF - single-use $1,225
  • CAD $1,885
  • View all purchase option online

About This Plan

  • Related Plan: Prefer brick? See house plan 59805ND.

Floor Plans

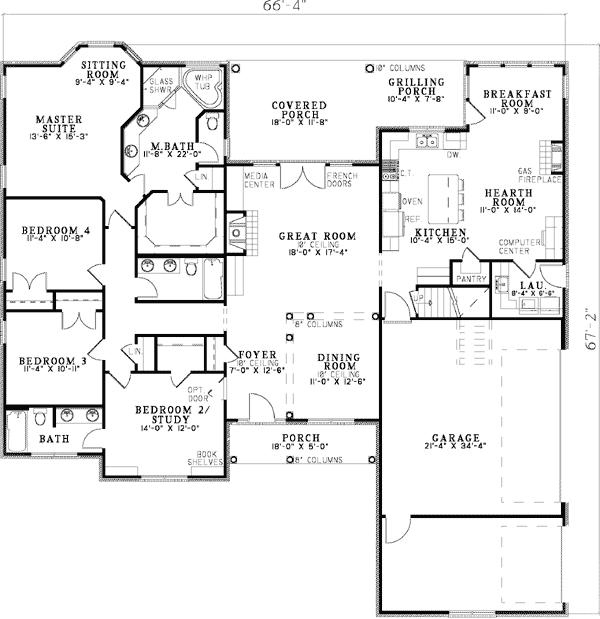

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,405 sq. ft.
  • 1st Floor: 2,405 sq. ft.
  • Bonus: 358 sq. ft.
  • Porch, Rear: 303 sq. ft.
  • Entry: 90 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 4"
  • Depth: 67' 2"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 762 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
