Plan 59917ND

Alternate Exterior Available

Heated S.F.
3,016
Beds
4
Baths
3.5+
Stories
1
Cars
2

Floor Plan

Plan 59917ND

Basement
Basement
Main Level
Main Level

Plan 59917ND

M-F 9am-5pm EST |

1-203-761-8500

Basement

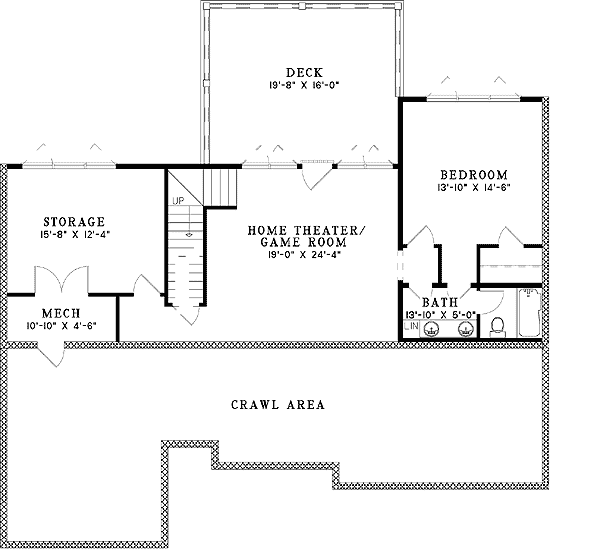

Plan 59917ND: Alternate Exterior Available - Floor Plan - Basement - Craftsman

Main Level

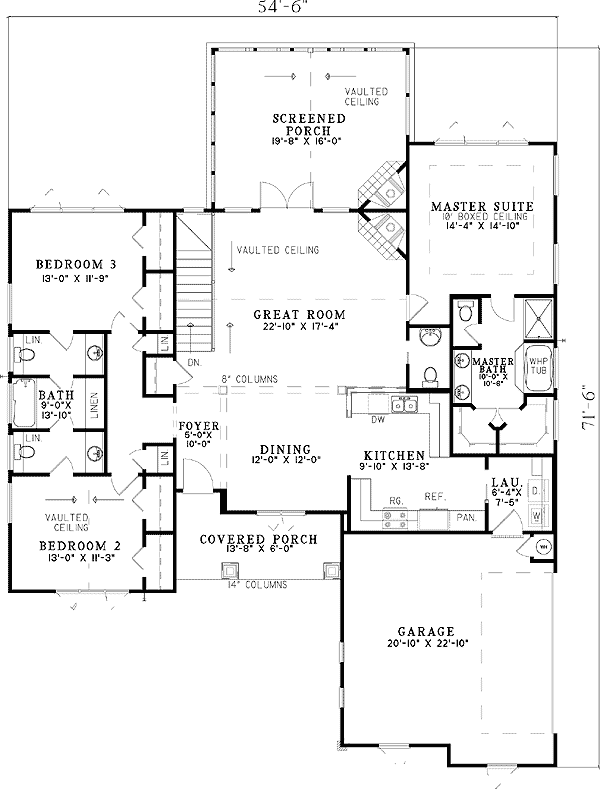

Plan 59917ND: Alternate Exterior Available - Floor Plan - Main Level - Craftsman

Plan Details

  • Related Plan: For an alternate exterior, see house plan 59918ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,016 sq. ft.

Lower Level

1,099 sq. ft.

1st Floor

1,917 sq. ft.

Porch, Front

107 sq. ft.

Porch, Rear

314 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 6"

Depth

71' 6"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

477 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Special Features

Bedrooms - Split

Jack & Jill Bath

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,016 sq. ft.

Lower Level

1,099 sq. ft.

1st Floor

1,917 sq. ft.

Porch, Front

107 sq. ft.

Porch, Rear

314 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 6"

Depth

71' 6"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

477 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Special Features

Bedrooms - Split

Jack & Jill Bath

Master Suite - 1st Floor
