Amazing Craftsman House Plan with Bonus Room Above Garage

Heated S.F.
2,823
Beds
3
Baths
2.5
Stories
1-2
Cars
2

Floor Plan

Plan 280026JWD

Main Level
Main Level
Bonus
Bonus

Plan 280026JWD

M-F 9am-5pm EST |

1-203-761-8500

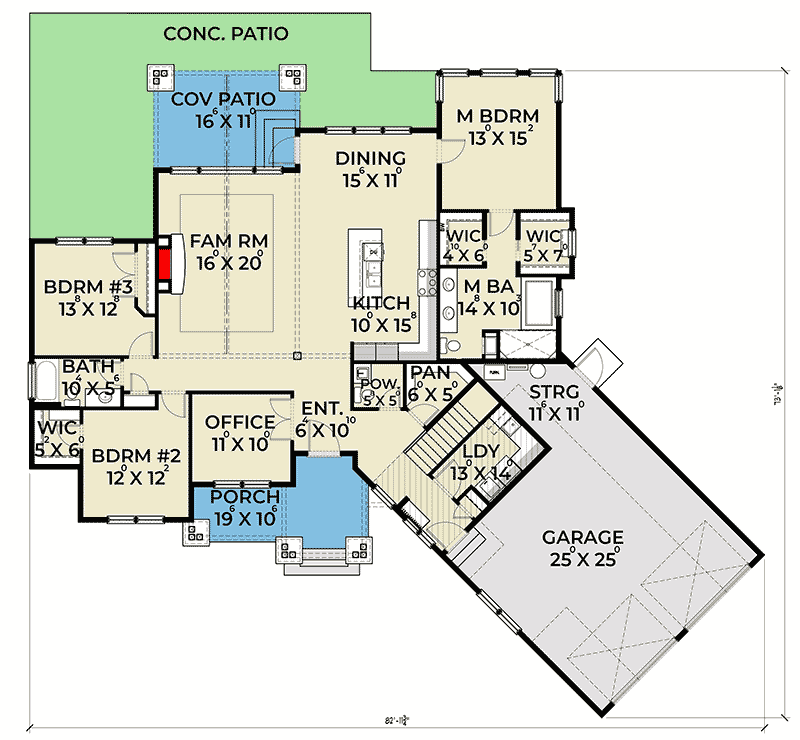

Main Level

Plan 280026JWD: Amazing Craftsman House Plan with Bonus Room Above Garage - Floor Plan - Main Level - Craftsman, Northwest

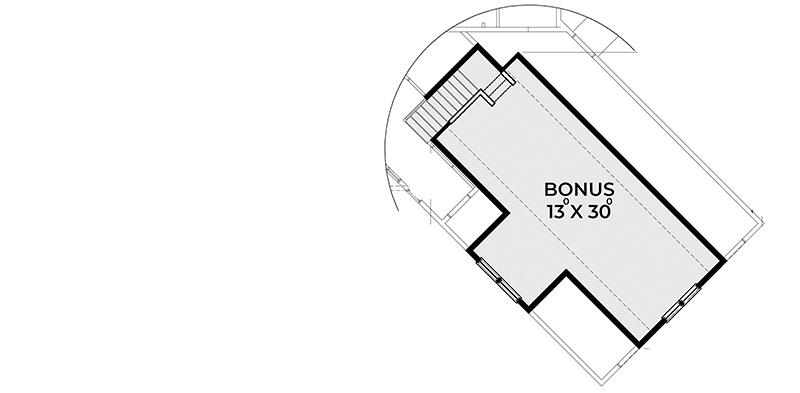

Bonus

Plan 280026JWD: Amazing Craftsman House Plan with Bonus Room Above Garage - Floor Plan - Bonus - Craftsman, Northwest

Plan Details

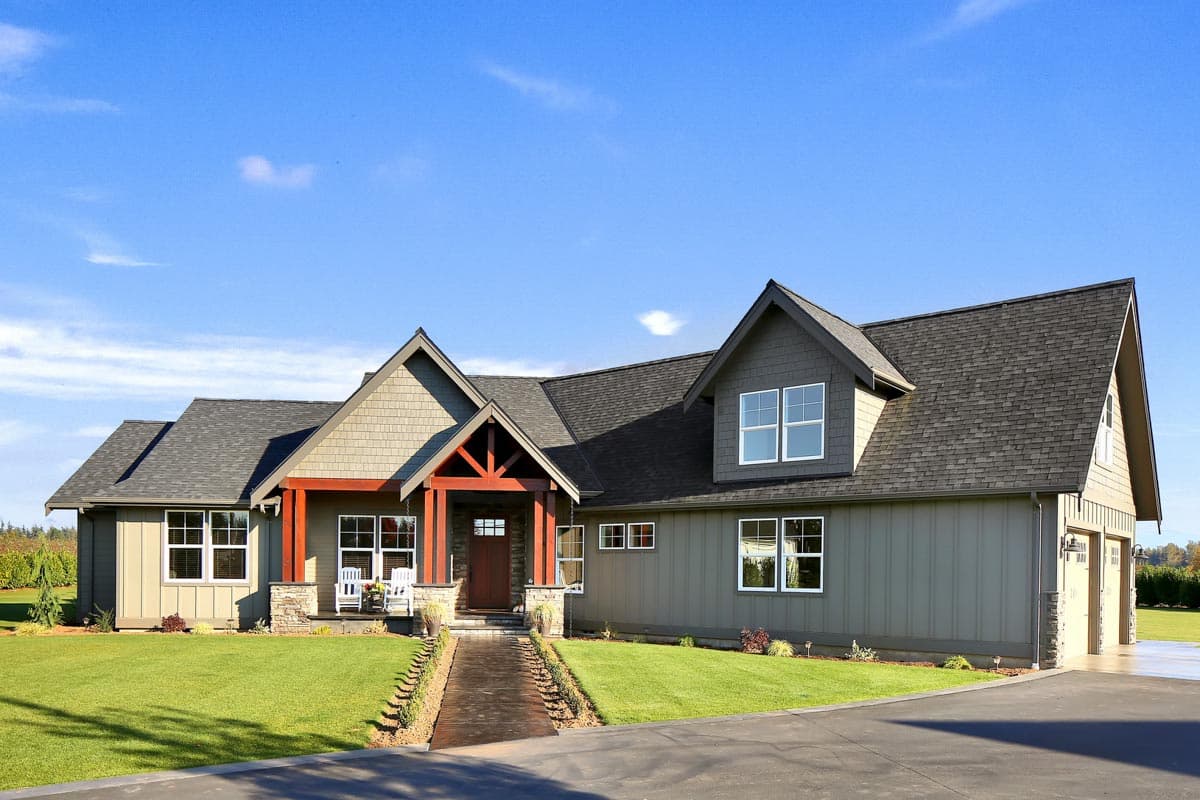

  • The angled, side-entry garage adds depth to the front elevation of this 3-bed, Northwest beauty, while exposed beams and columns inside is a nice rustic touch.

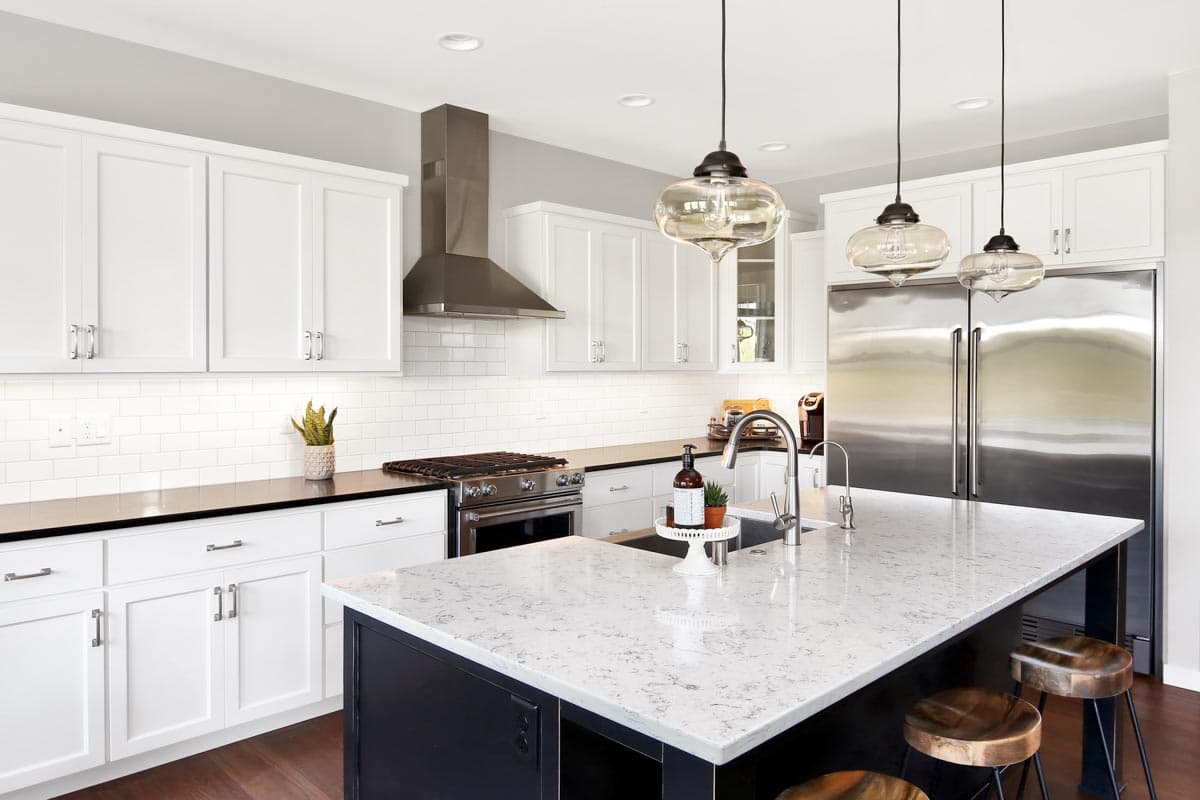

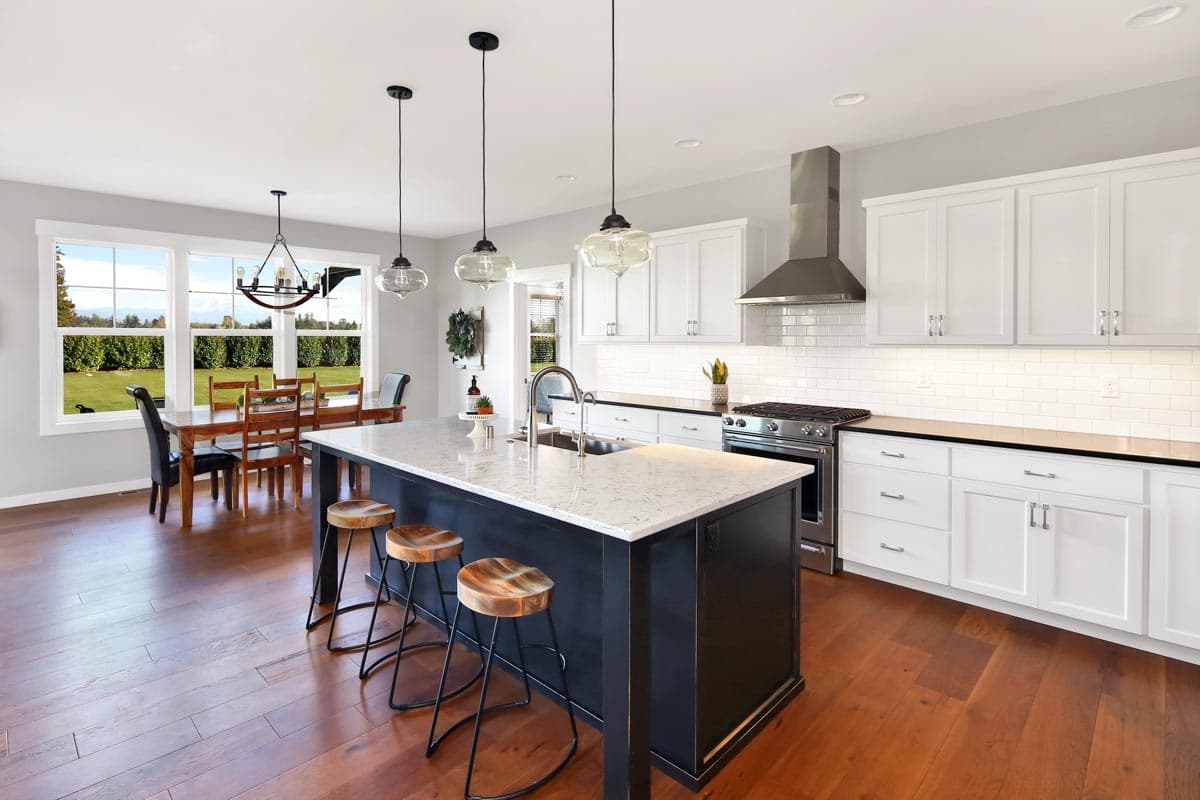

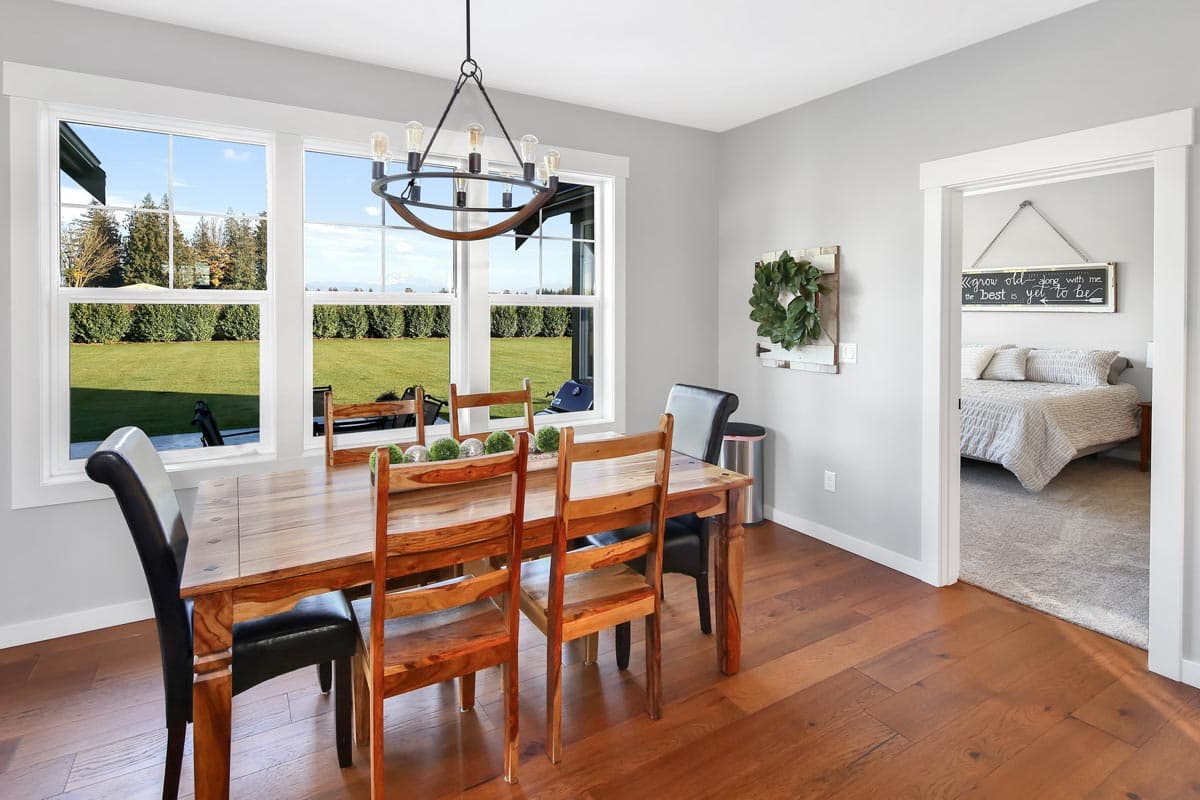

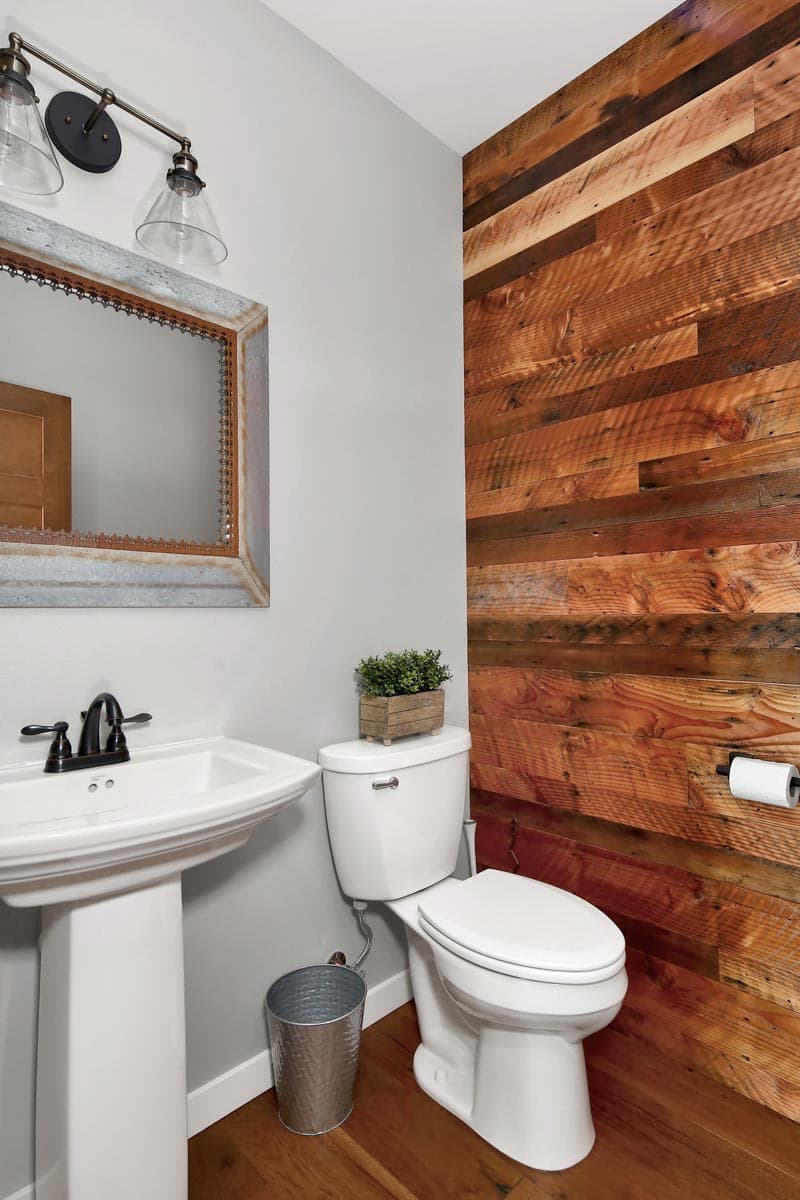

  • A quiet office is located just inside from the front entry, and a powder bath sits across the foyer. The family room, kitchen, and dining room are all open to one another making entertaining a delight. With an island in the kitchen and  a roomy walk-in pantry, the homeowner has plenty of storage space.

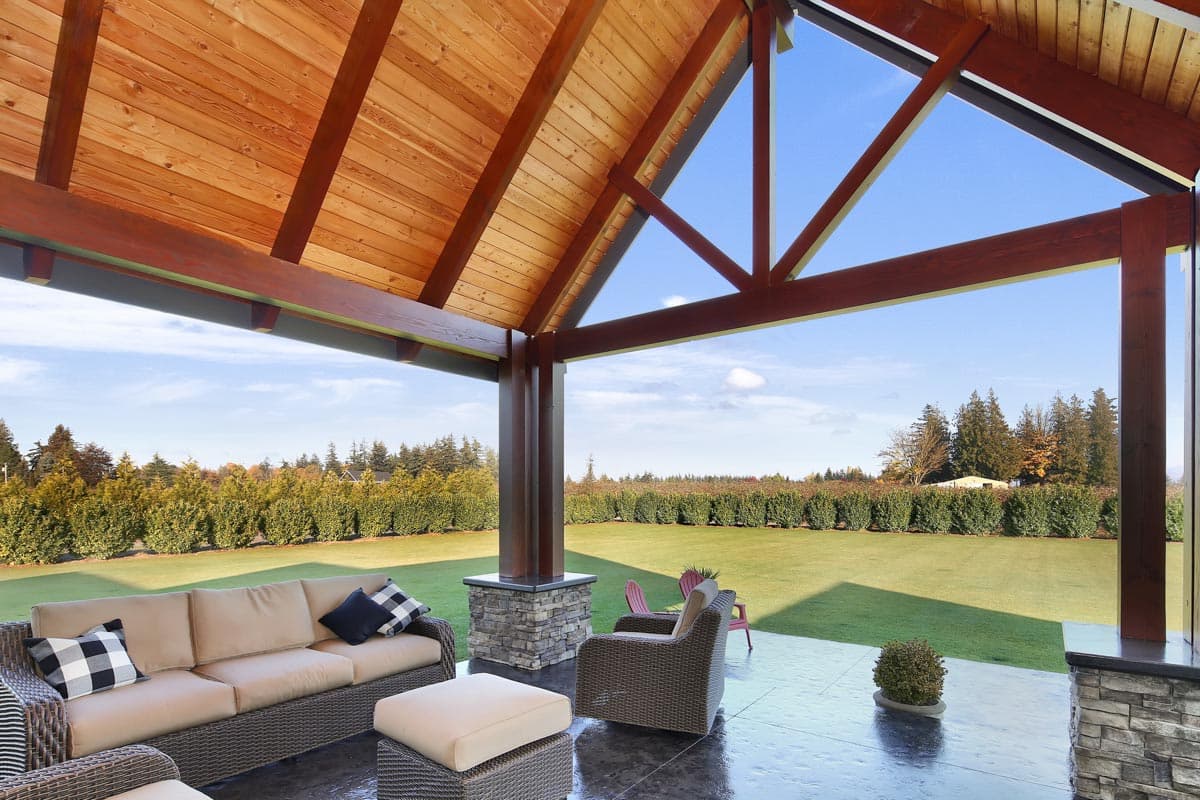

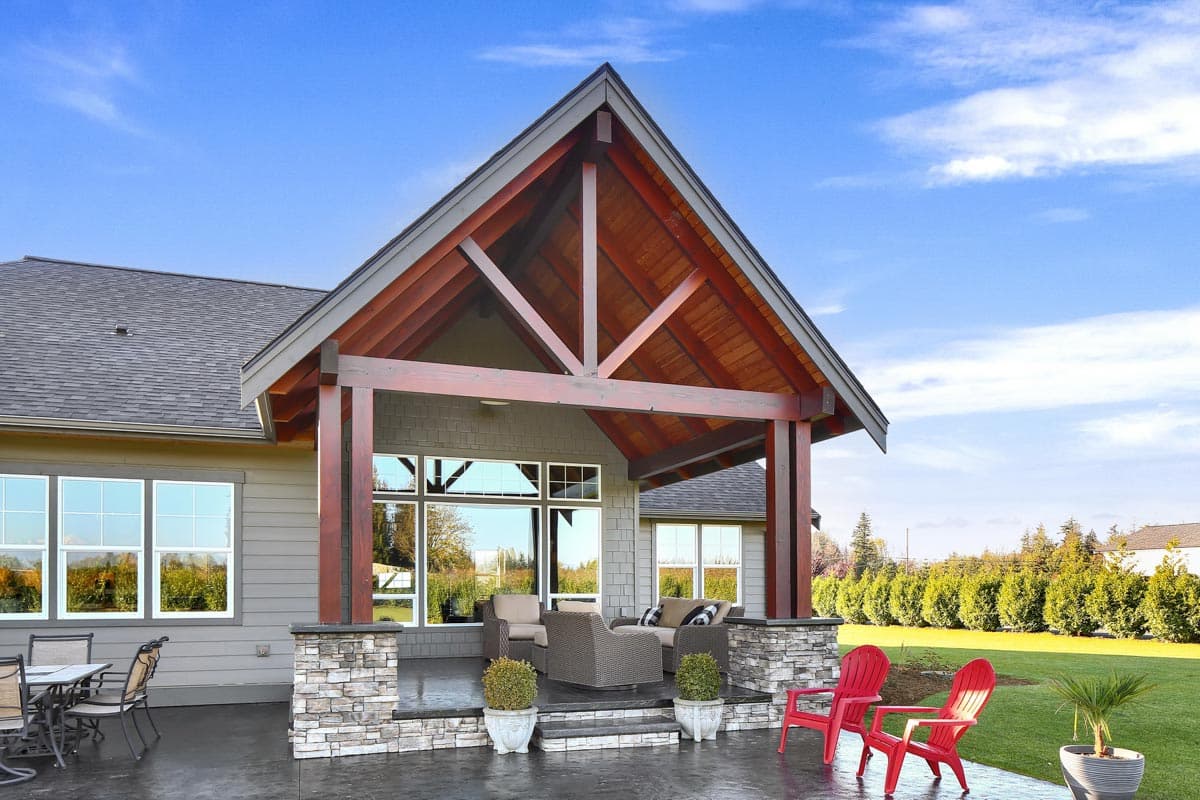

  • A covered patio extends living outdoors during the warmer seasons and is accessible from the dining room.
  • The master bedroom is quietly tucked away on one side of the home, adding privacy, and features double closets and a 5-fixture bathroom.
  • Two additional bedrooms on the other side of the house share a full bathroom.

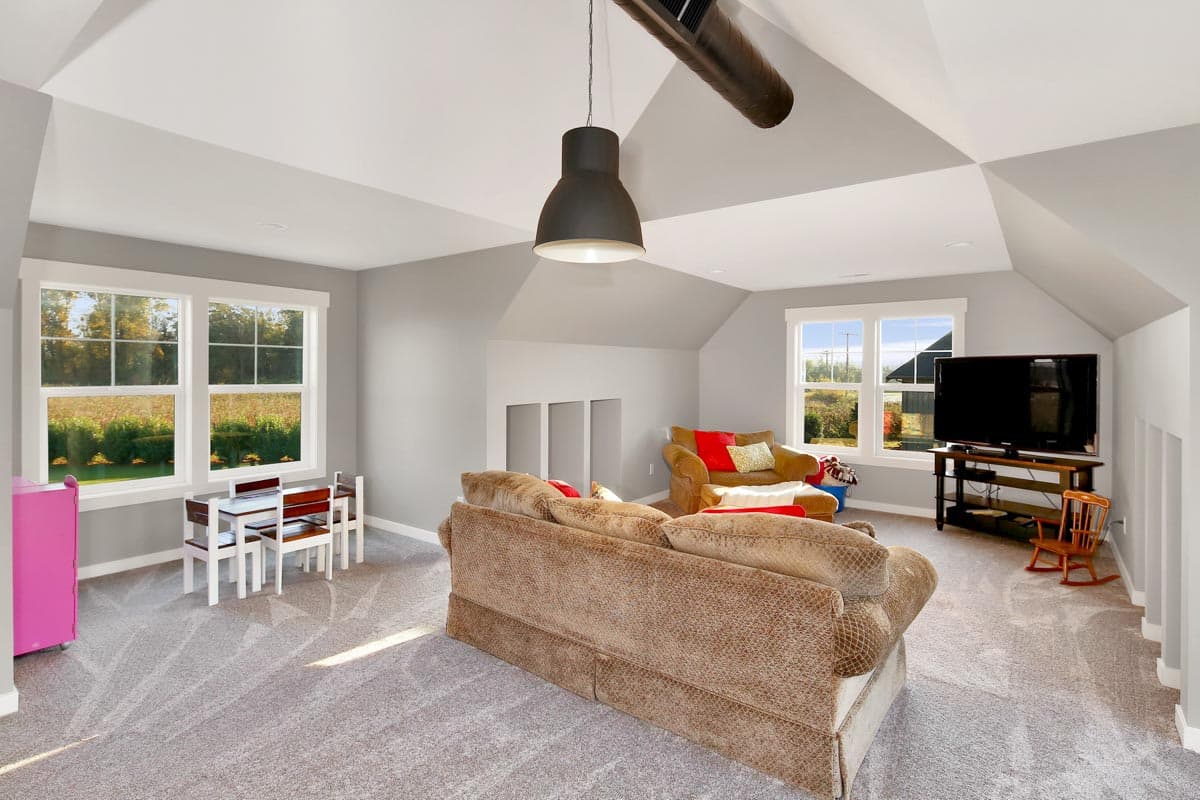

  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.

What's Included

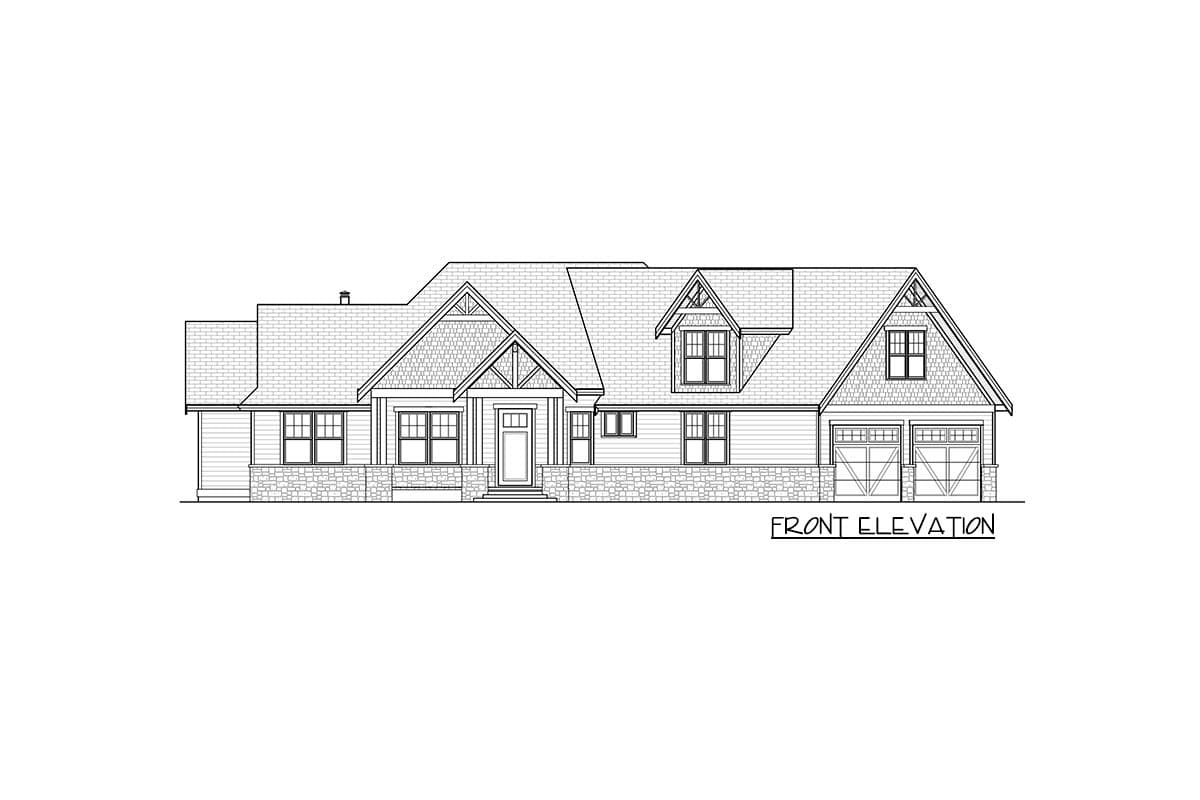

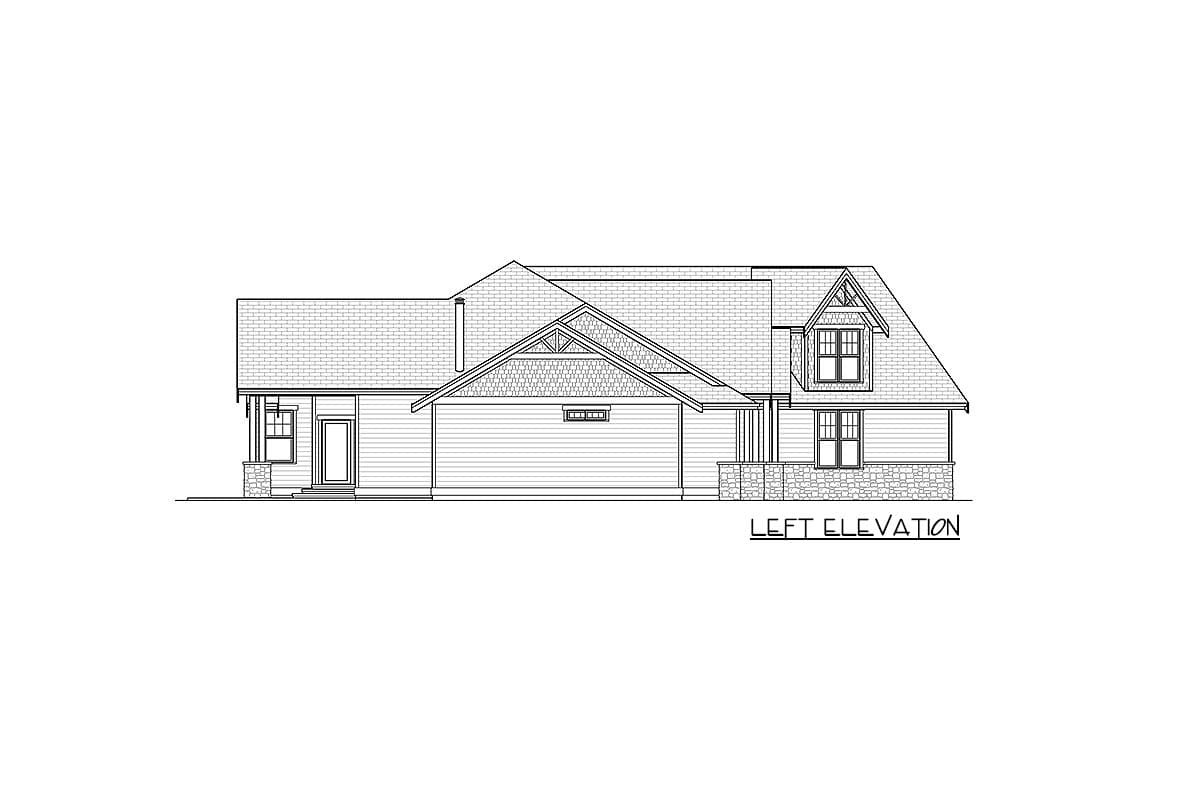

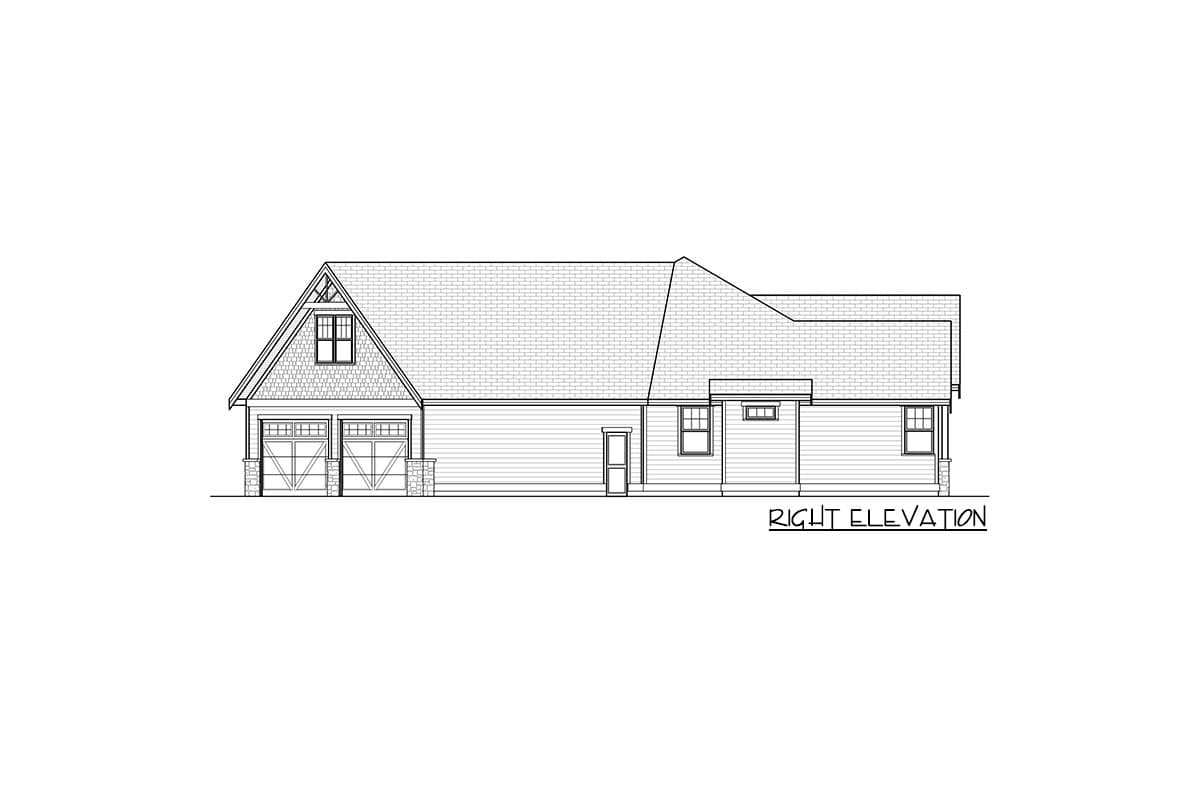

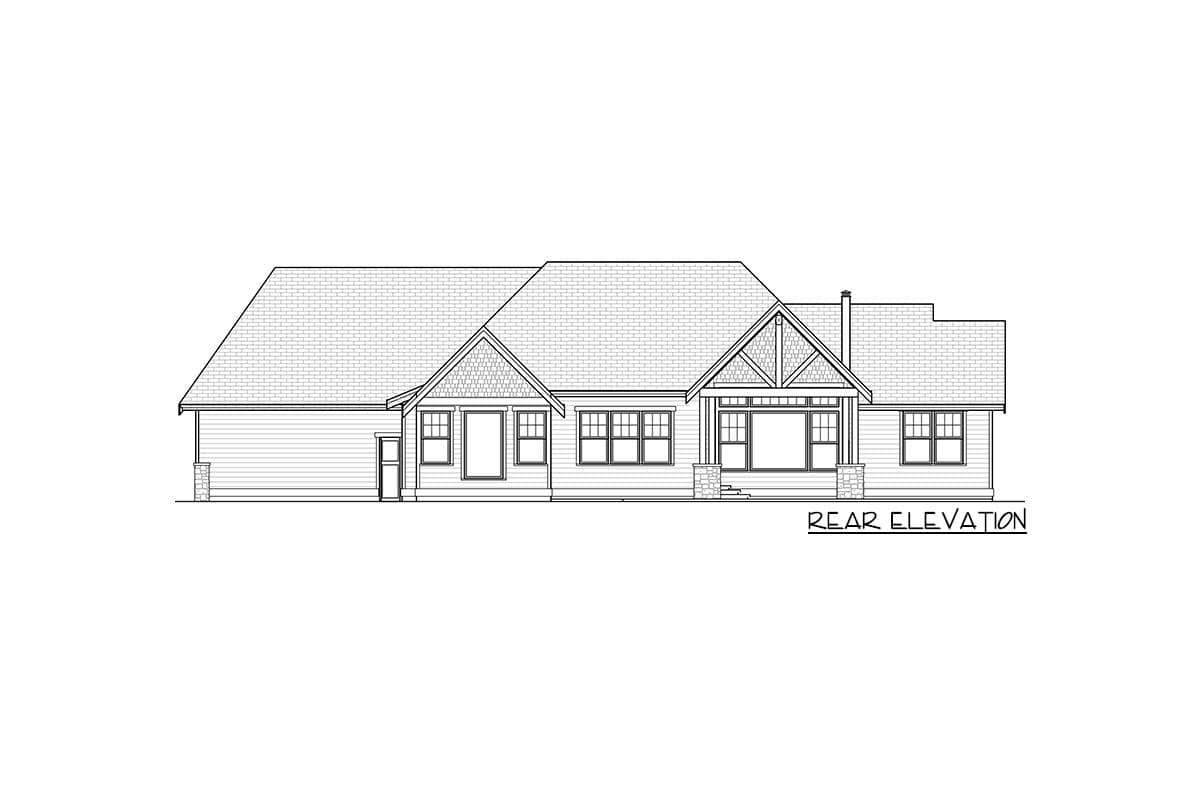

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
