Plan 55140BR
Amazingly Versatile Home Plan
Heated S.F.
2,500
Beds
3-6
Baths
3.5 - 5.5
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS

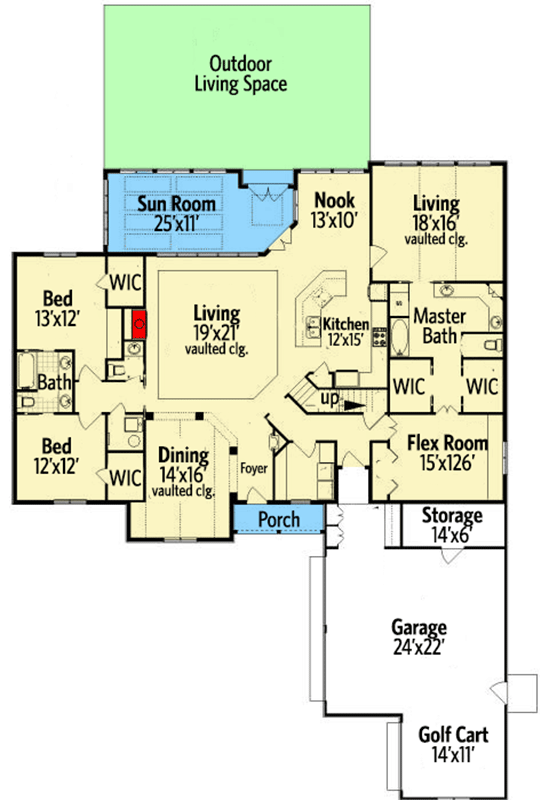

Main Level
Reverse Floor Plan
Amazingly Versatile Home Plan - 55140BR floor plan - Main Level

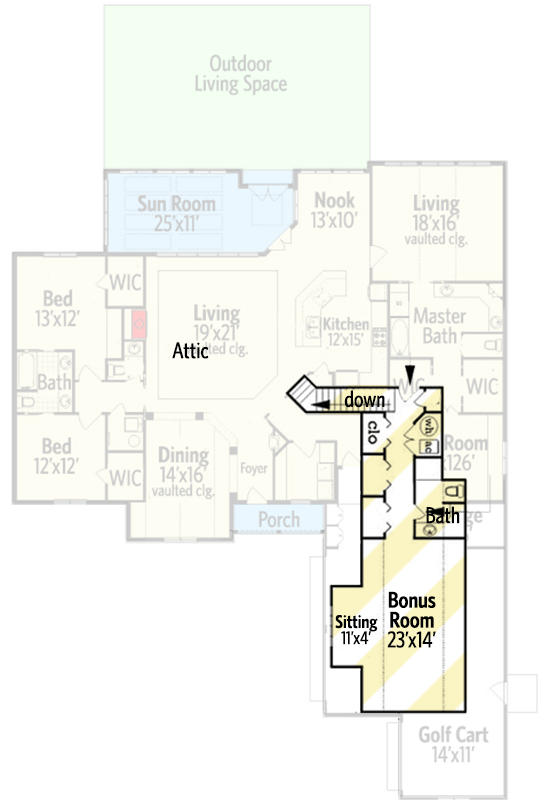

Bonus
Reverse Floor Plan
Amazingly Versatile Home Plan - 55140BR floor plan - Bonus

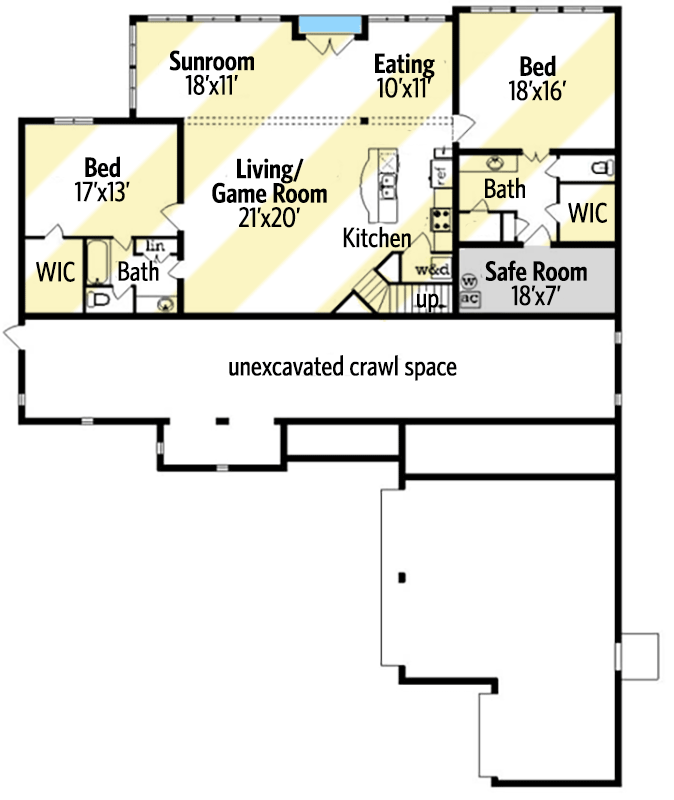

Optional Lower Level
Reverse Floor Plan
Amazingly Versatile Home Plan - 55140BR floor plan - Optional Lower Level

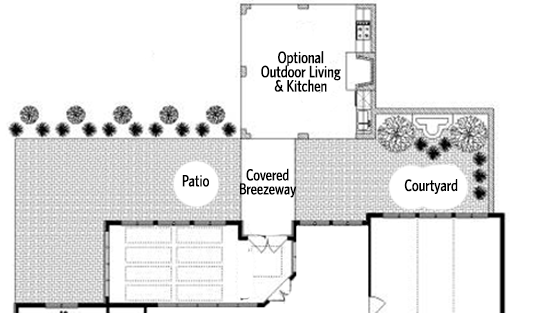

Optional Outdoor Living Space
Reverse Floor Plan
Amazingly Versatile Home Plan - 55140BR floor plan - Optional Outdoor Living Space
Plan Details
  • Beautiful detailing on the outside of this Traditional home plan comes with lots of options inside.
  • The plan is designed with a bonus future space above the garage with a private bath and convenient entry from the main level.
  • The home is designed to capture free energy from the sun with the right orientation. The sun room allows one to be warm and cozy on those cold winter days but it also serves as a passive solar collector to lower those heating bills.
  • The home is fully energy efficient featuring 2x6 exterior walls and loads of other energy features that cost very little extra.
  • The master suite features include a cathedral ceiling, a glorious master bath with twin walk-in closets and an adjoining swing room that can be used as an office, den or nursery.
  • Two other secondary bedrooms, one with a large built-in desk, have large walk-in closets and share a jack & jill bath.
  • The living room features a window wall, fireplace and 12' ceilings. The dining room has cathedral ceilings and a china hutch niche. Typical ceiling heights are 10' and 9'.
  • An optional daylight finished basement is a perfect addition for those aging parents, boomerang kids or even as a rental unit.
  • The optional basement offers a complete setup as a 2 bed room home with kitchen, sun room, dining room and a living room that is large enough to double as a game room.
  • There is even a space that can be converted to a safe room.
  • This 4 Bedroom home, when built with the optional daylight basement and the future space, can expand to offer 7 complete bed rooms.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Amazingly Versatile Home Plan

  • 2,500

    Heated s.f.

  • 3-6

    Beds

  • 3.5 - 5.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

  • Optional Lower Level

  • Optional Outdoor Living Space

Plan Details

Square Footage Breakdown

  • Total: 2,500 sq. ft.
  • 1st Floor: 2,500 sq. ft.

Dimensions

  • Width: 65' 0"
  • Depth: 84' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 806 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
