Plan 11708HZ An Open Floor with Options

1,700 3 2.5 1 2
2 Client
Albums Print
Compare
...

An Open Floor with Options

Plan 11708HZ

  • 1,700

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This home plan has a great open floor plan with everything a family needs to call this home. An added bonus - it comes in multiple sizes and exteriors.
  • Step off your front porch directly into your own foyer. Ahead, the great room with 10' ceilings, built-ins and a gas log fireplace beckons. Step outside through the French doors and enjoy your back porch.
  • The kitchen with eating bar is conveniently to the breakast nook. Nearby, your formal dining room is ready for guests.
  • The master suite has a walk-in closet and a master bath with dual sinks, jacuzzi tub and shower. Across the home, two more bedrooms share a common bath.
  • A two-car garage with storage, a utility room and powder room complete this home plan.

This designer's plans include the following details:

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

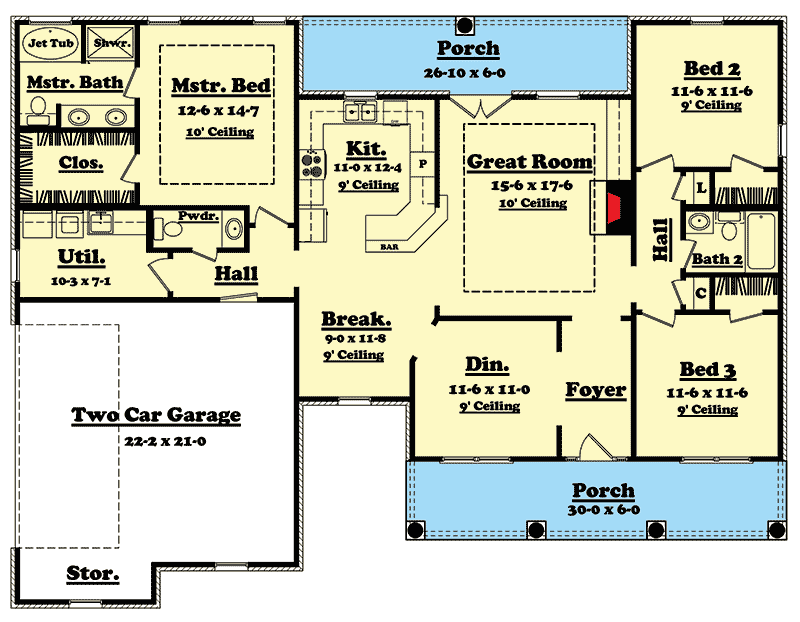

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

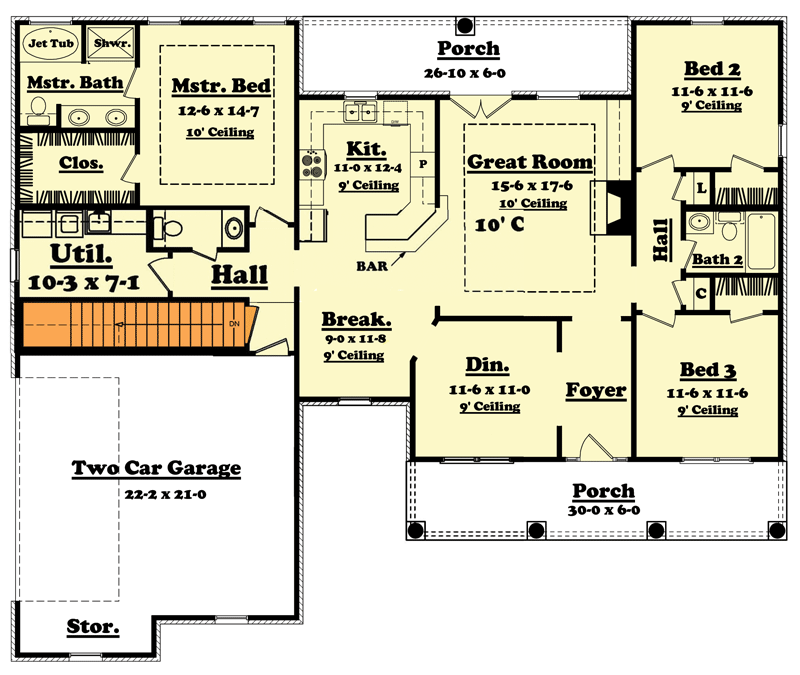

An Open Floor with Options - 11708HZ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,700 sq. ft.
  • 1st Floor: 1,700 sq. ft.
  • Storage: 34 sq. ft.
  • Porch, Rear: 161 sq. ft.
  • Porch, Front: 180 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 10"
  • Depth: 47' 0"
  • Max ridge height: 24' 3"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

An Open Floor with Options

  • 1,700

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,095
  • 5 Sets + PDF $1,345
  • PDF - Unlimited Build $1,795
  • CAD - Unlimited Build $2,095
  • View all purchase option online

About This Plan

  • This home plan has a great open floor plan with everything a family needs to call this home. An added bonus - it comes in multiple sizes and exteriors.
  • Step off your front porch directly into your own foyer. Ahead, the great room with 10' ceilings, built-ins and a gas log fireplace beckons. Step outside through the French doors and enjoy your back porch.
  • The kitchen with eating bar is conveniently to the breakast nook. Nearby, your formal dining room is ready for guests.
  • The master suite has a walk-in closet and a master bath with dual sinks, jacuzzi tub and shower. Across the home, two more bedrooms share a common bath.
  • A two-car garage with storage, a utility room and powder room complete this home plan.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,700 sq. ft.
  • 1st Floor: 1,700 sq. ft.
  • Storage: 34 sq. ft.
  • Porch, Rear: 161 sq. ft.
  • Porch, Front: 180 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 10"
  • Depth: 47' 0"
  • Max ridge height: 24' 3"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 11708HZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/11708HZ
|
Need Help? 800-854-7852
|
Plan 11708HZ
