Plan 60575ND And Room to Expand

4,037 3-5 3.5 1-2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

And Room to Expand

Plan 60575ND

  • 4,037

    Heated s.f.

  • 3-5

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • What an extraordinary view this home plan provides with its arch window panes cascading enhancing the front of the home.
  • Enjoy the large dining area and the huge great room boxed in conveniently for use as a media room.
  • An open kitchen with a peninsula bar and breakfast room adjacent to the hearth room make this perfect for family and friends to enjoy each other's company.
  • This house plan has a guest or in-law suite with full bath featuring a glass shower and whirlpool tub.
  • A kid's nook by the laundry is a great place for homework or projects. A half bath is nearby as is the spacious hearth room with fireplace.
  • A large laundry room comes complete with a sink and plenty of counter space and an optional freezer.
  • The master suite has an 11' boxed ceiling, two walk-in closets and a double vanity bathroom with a glass shower and whirlpool tub. Access to the grilling porch is a great touch.
  • Upstairs you'll find the bonus/game room and an optional bedroom.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

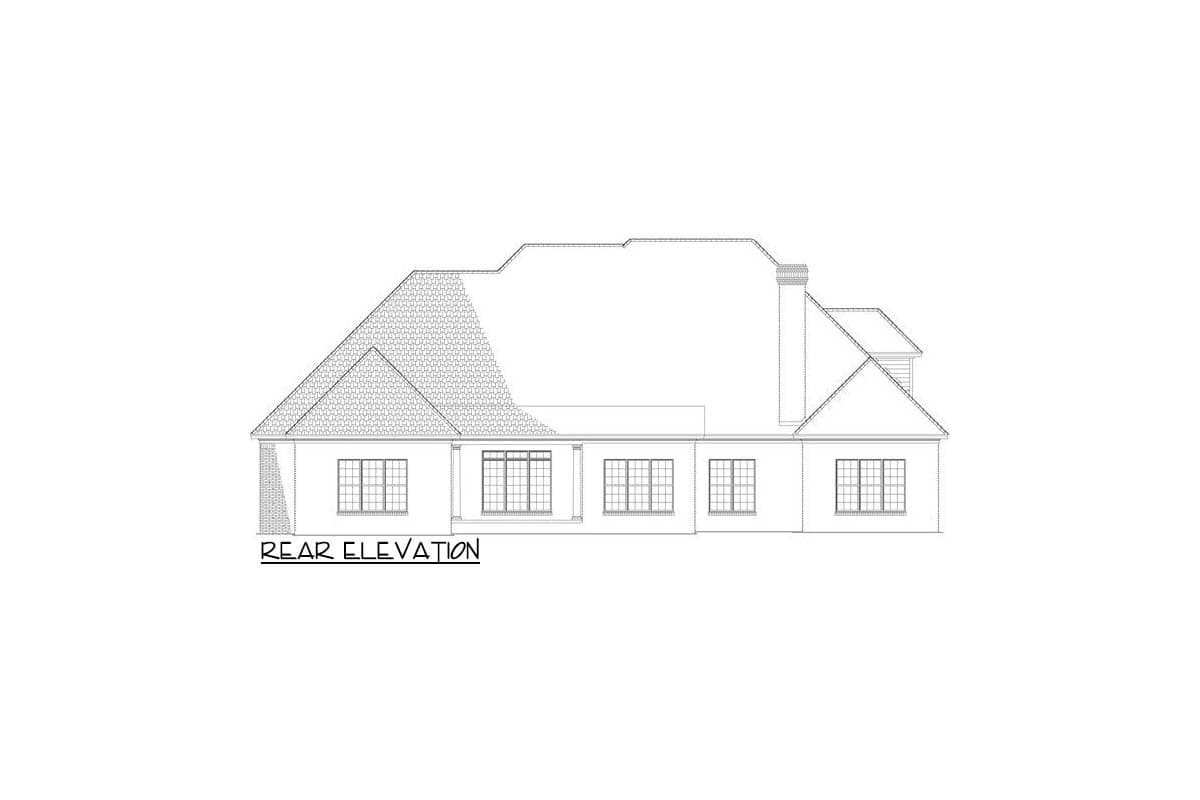

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

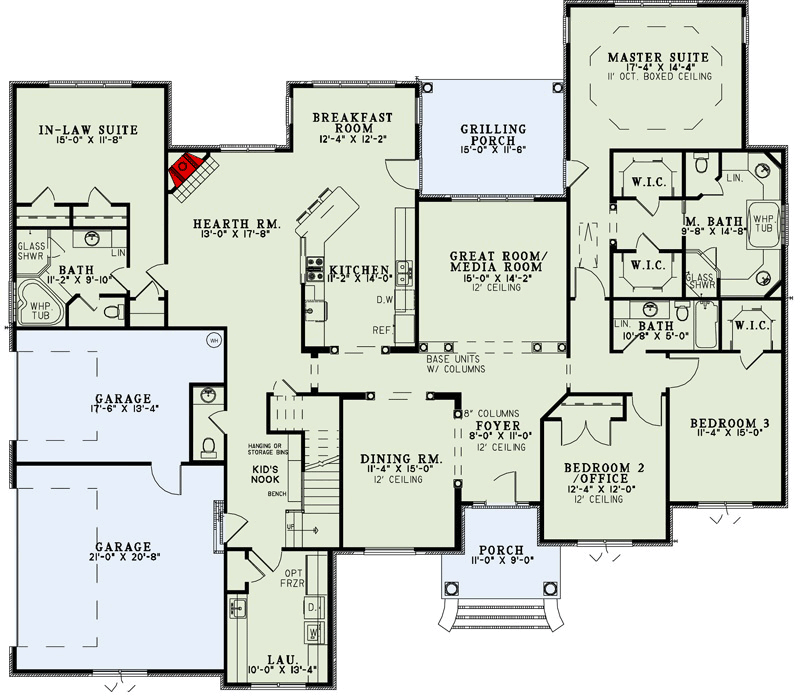

And Room to Expand - 60575ND floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

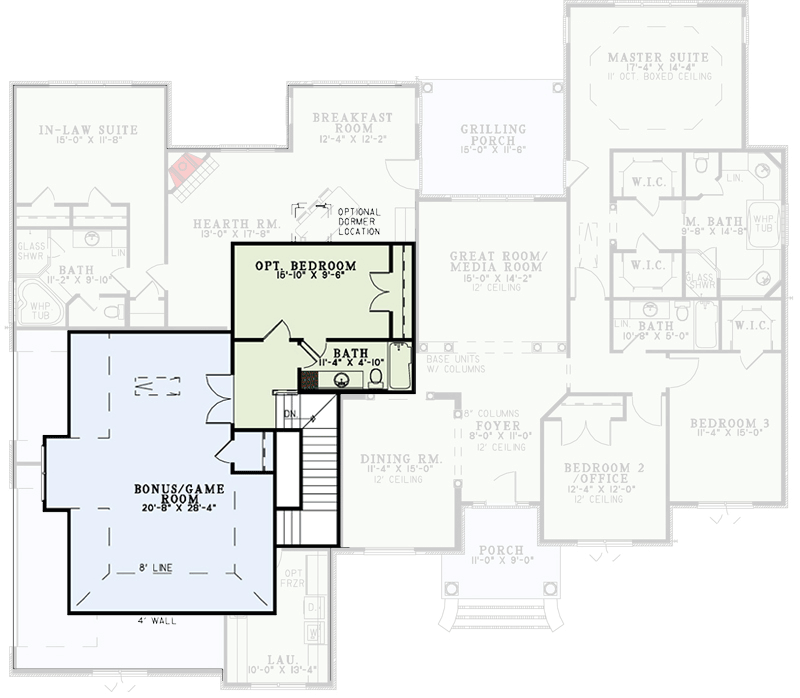

And Room to Expand - 60575ND floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,037 sq. ft.
  • 1st Floor: 3,122 sq. ft.
  • 2nd Floor: 915 sq. ft.
  • Porch, Front: 99 sq. ft.
  • Porch, Rear: 160 sq. ft.
  • Porch, Combined: 259 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 69' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 740 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

And Room to Expand

  • 4,037

    Heated s.f.

  • 3-5

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 4,037 sq. ft.
  • 1st Floor: 3,122 sq. ft.
  • 2nd Floor: 915 sq. ft.

Dimensions

  • Width: 74' 0"
  • Depth: 69' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 740 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
