Plan 62549DJ

Angled 2 Bed European Cottage

Heated S.F.
1,904
Beds
2
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 62549DJ

Main Level
Main Level

Plan 62549DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

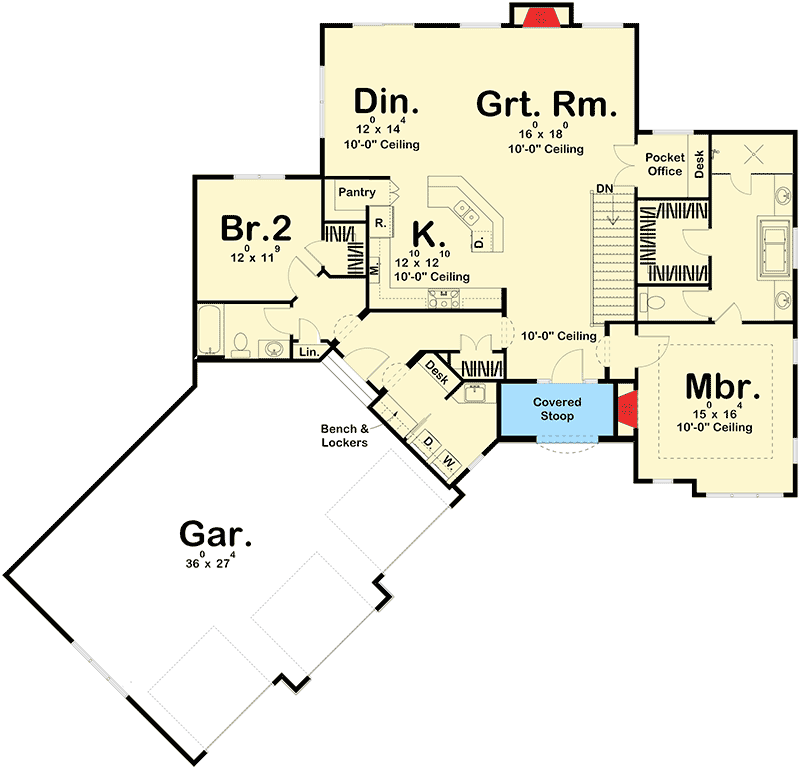

Plan 62549DJ: Angled 2 Bed European Cottage - Floor Plan - Main Level - Cottage, European

Plan Details

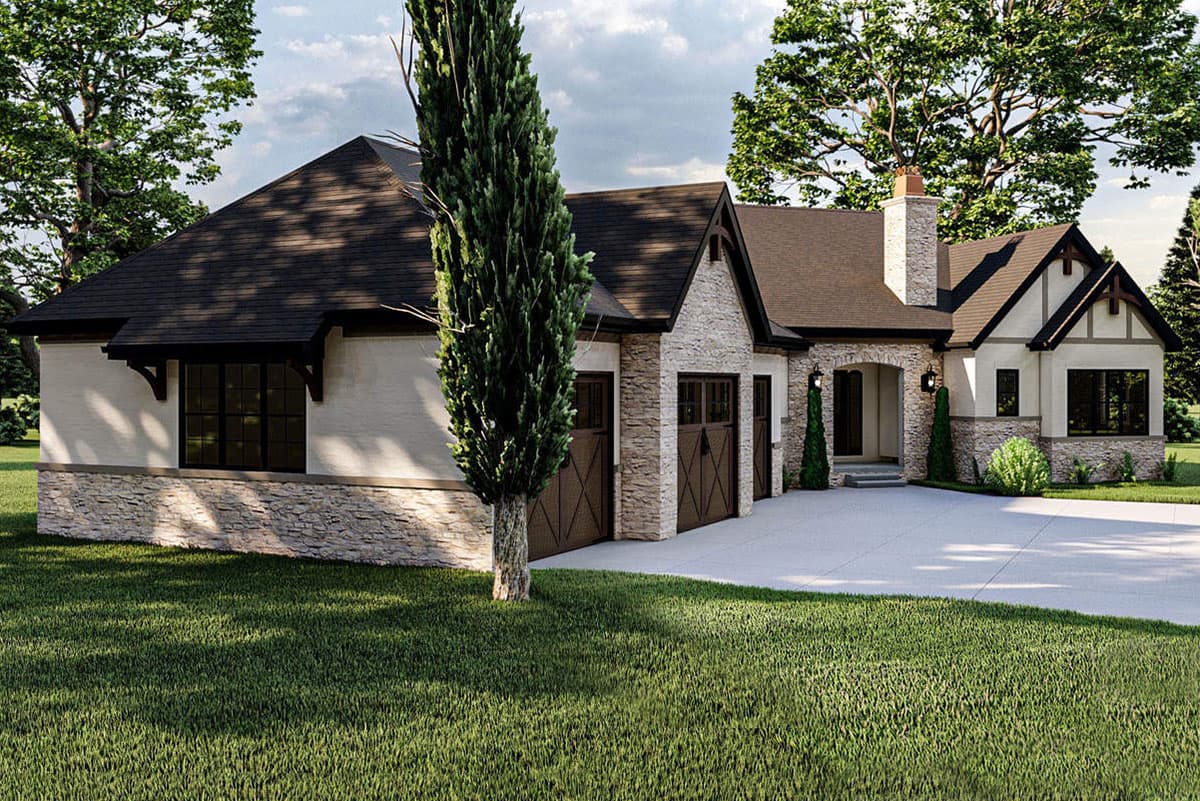

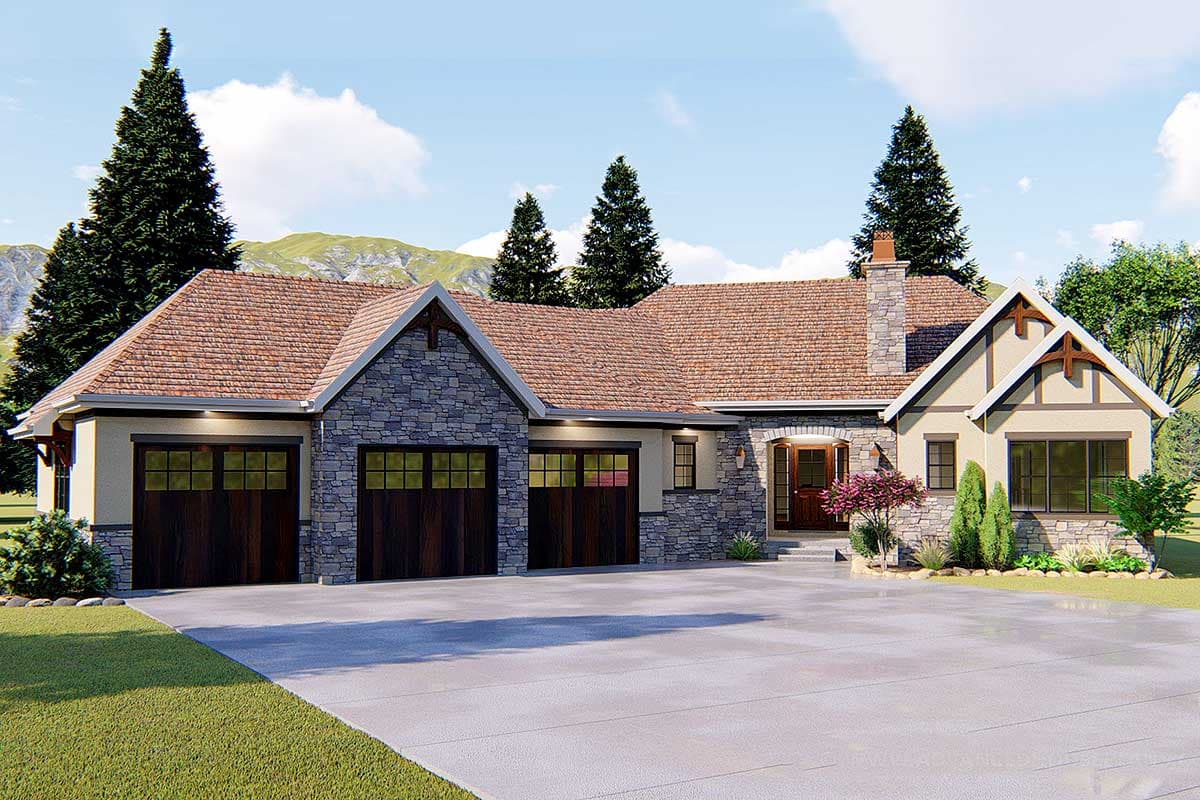

  • With a gorgeous cottage-style front elevation, and a spacious, open floor plan, this house plan will surely please. The exterior is a blend of stucco, stone, and wood create magical appeal. The look is complemented with decorative wood brackets, tudor-style trim, steep roof pitches, and a prominent stone fireplace that brings it all together.

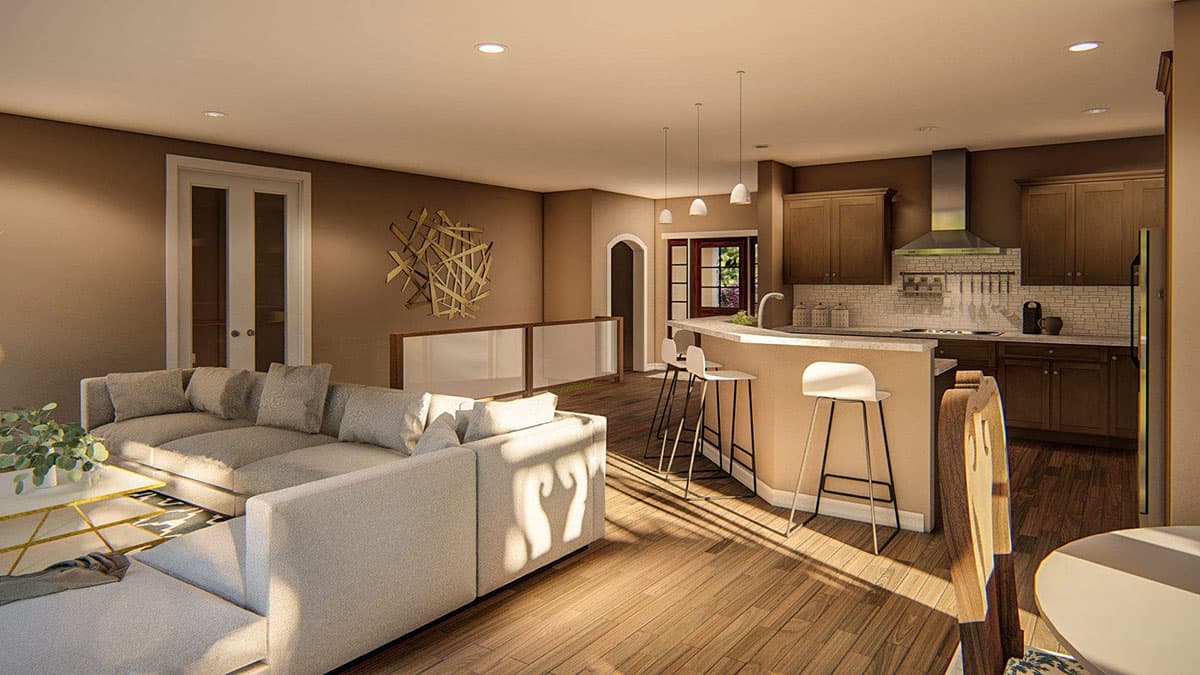

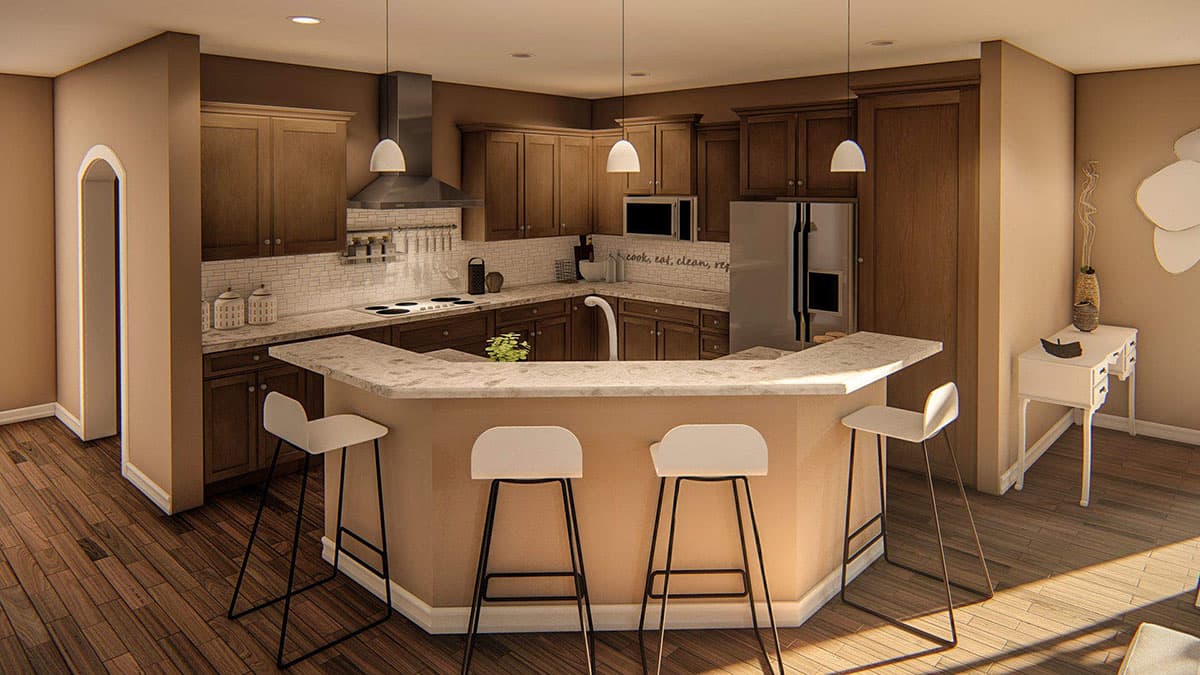

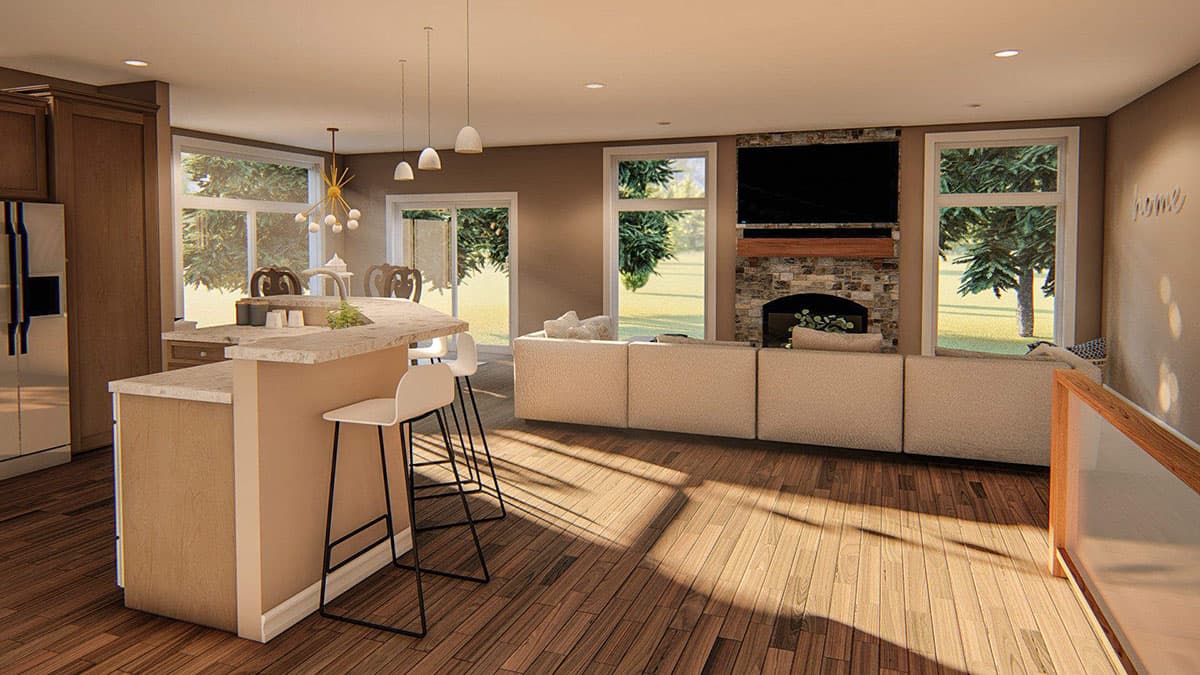

  • The plan features a very open floor plan with the great room open to the dining room and the kitchen. The island in the kitchen is at an angle giving you commanding views of your friends and family.
  • The master has a tray ceiling and enjoys great privacy. A large walk-in and split vanities will be appreciated in the master bath. A second bedroom is located across the home.
  • Laundry is located off the family entrance by the large 3-car garage.
  • The main roof pitch is 8:12 and the secondary pitch is 4:12.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,904 sq. ft.

1st Floor

1,904 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

77' 0"

Depth

74' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

958 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Architectural Style

Cottage

European

Special Features

Angled Garage

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
