Plan 85049MS

Angled Craftsman Home Plan

Pageloader

Angled Craftsman Home Plan

Plan 85049MS

  • 8,247

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 3

    Cars

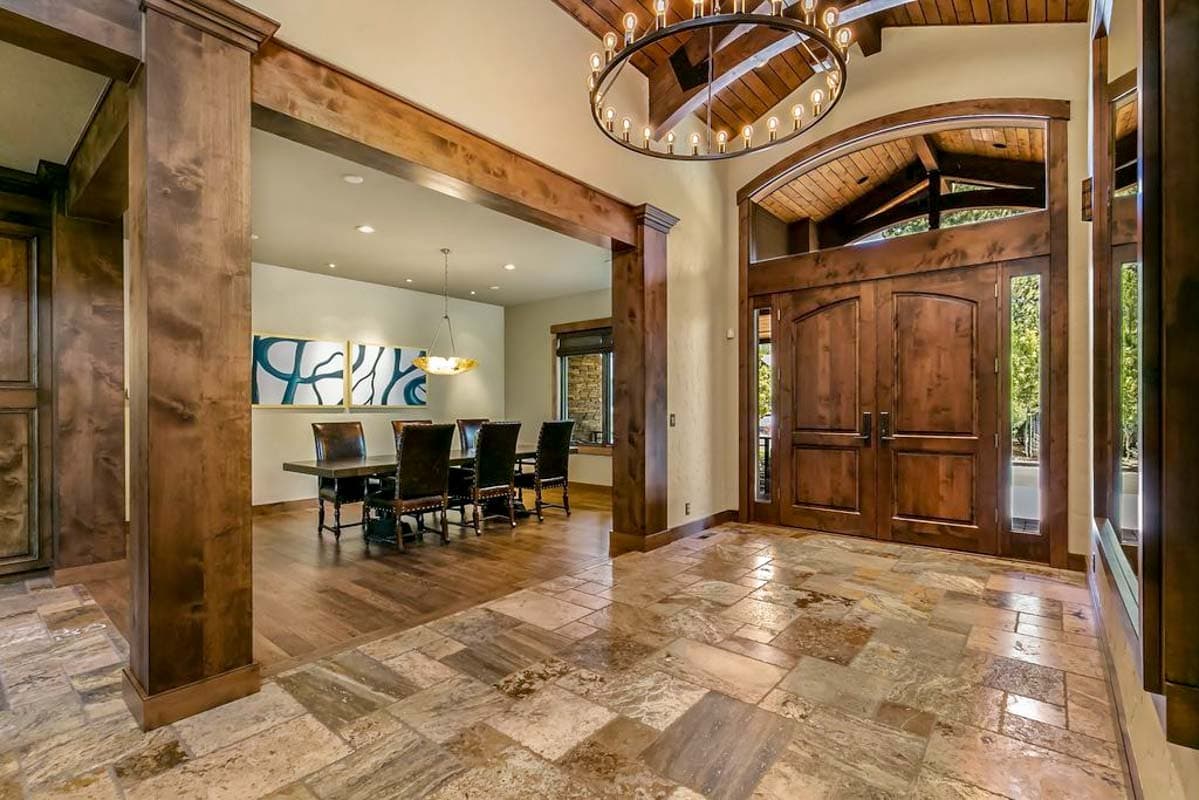

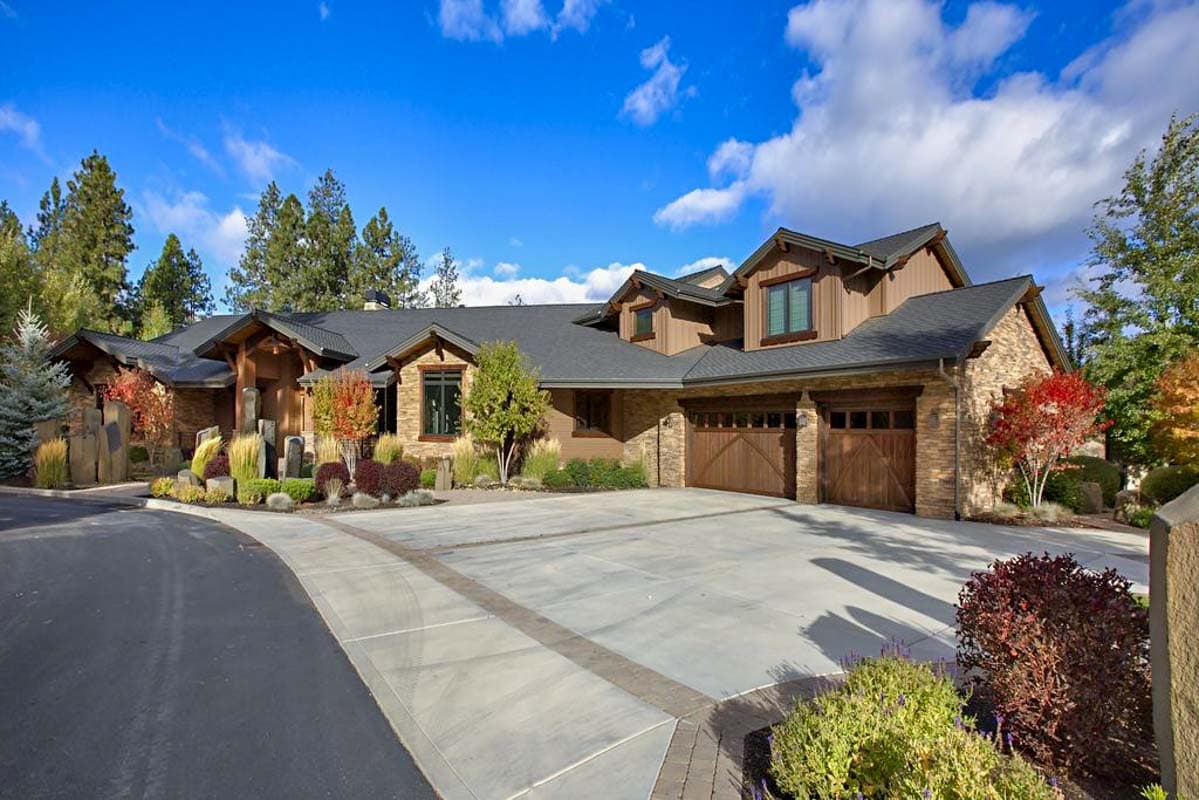

  • An angled wing on the right side of this Craftsman home plan takes it out of the ordinary.
  • This magnificent home gives you beamed and vaulted ceilings, a feature wall at the end of the foyer and lots of outdoor living spaces.
  • The U-shaped island in the kitchen has room to seat six with a second sink to aid in prep work.

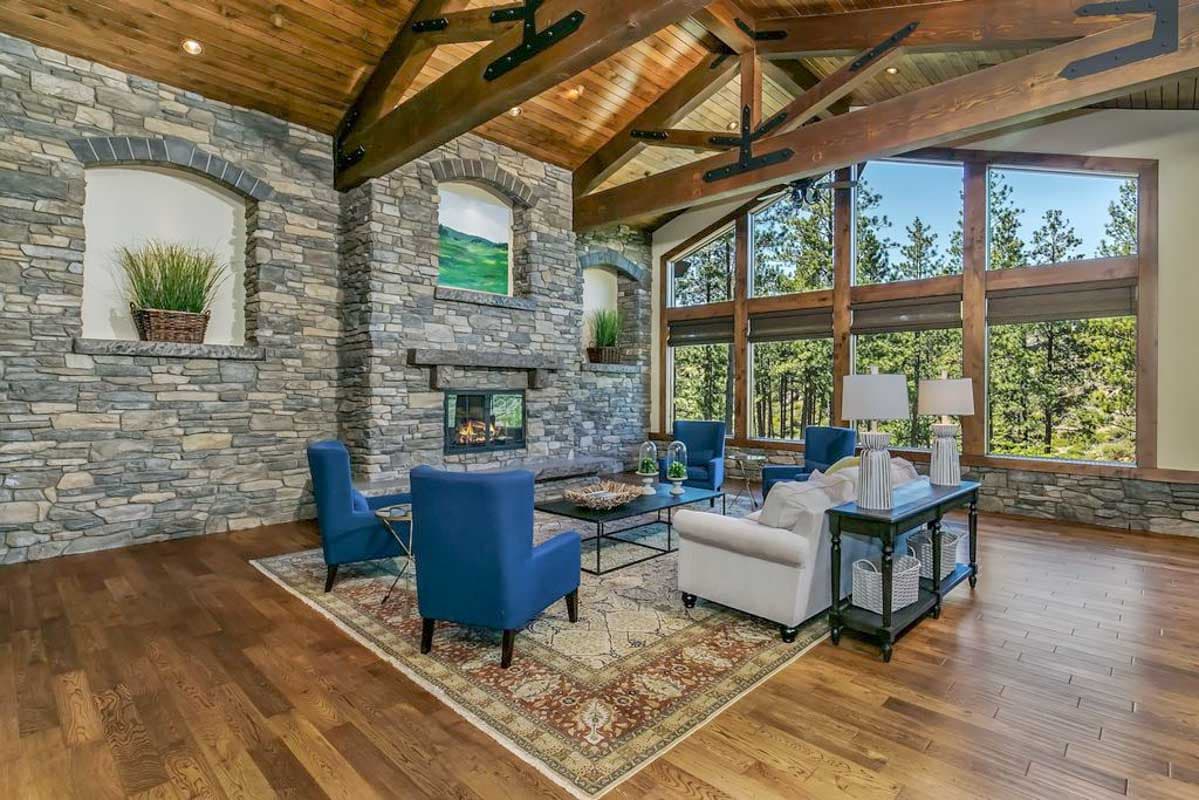

  • From here you can see into the amazing vaulted great room with its huge fireplace.
  • On either side of the fireplace are unusual indoor planters to add some green to the room.

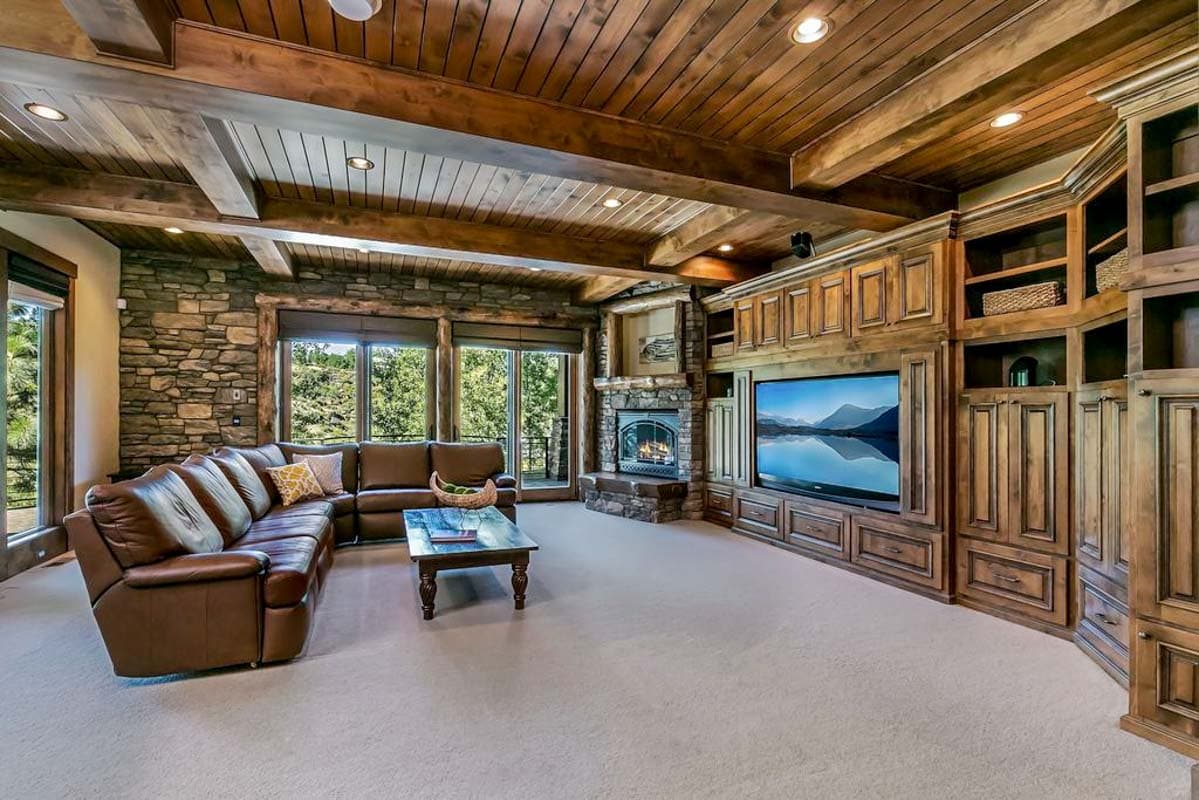

  • Entertain in grand style in the beamed family room with its huge wet bar.

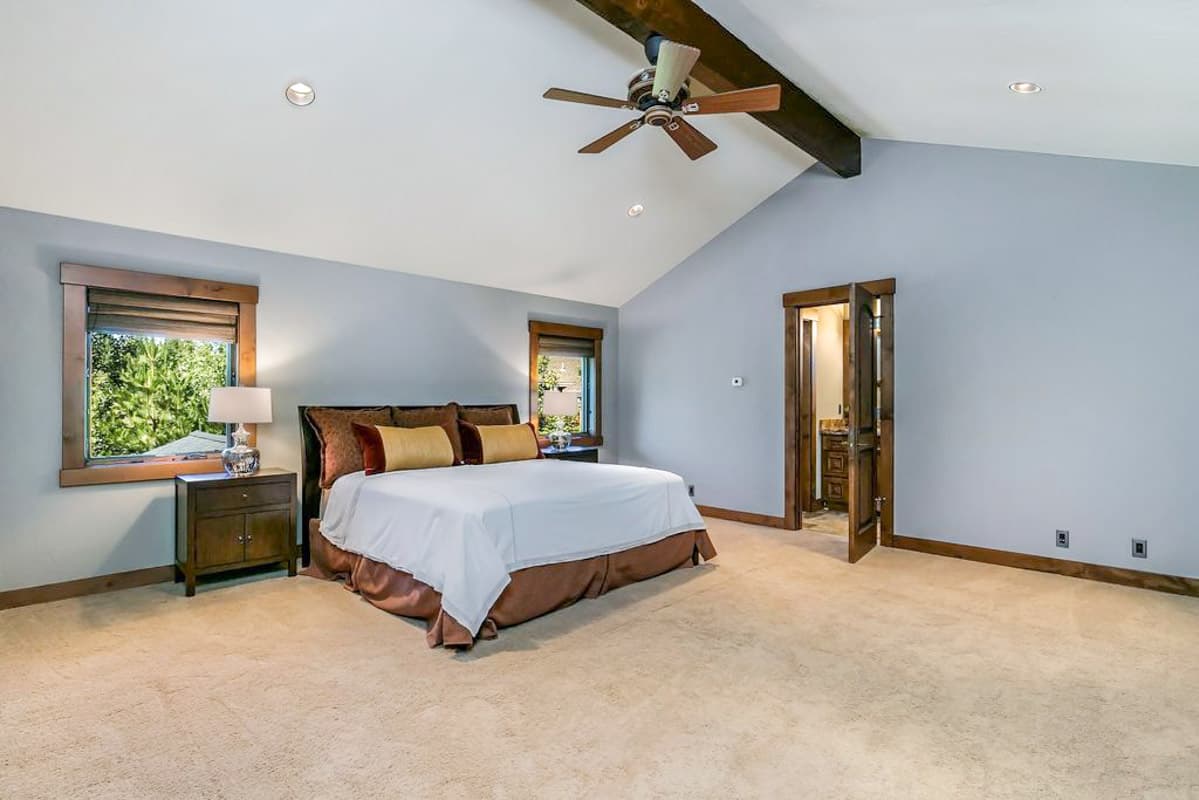

  • The master suite is enormous with a corner fireplace and more vaulted and beamed ceilings.
  • Across the hall from the master suite is a dedicated exercise room with a morning kitchen and half bathroom.
  • Three family bedrooms are up on the second floor and each one has a private bathroom and walk-in closet.
  • The three car garage comes with a boat bay in back complete with a handy sink.

Each plan set is drawn to 1/4" scale and includes the following:

  • Detailed elevations
  • Foundation plan including all structural components
  • Detailed floor plans, including ceiling and floor framing information
  • Detailed roof framing plans
  • Detailed cross sections
  • All framing members called out
  • Details throughout the set of plans as appropriate for construction to current IRC code

Floor Plan

Plan details



Angled Craftsman Home Plan

  • 8,247

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $4,123
  • PDF - multi-use $4,923
  • 6 Sets $5,360
  • CAD $8,247
  • CAD - multi-use $9,047
  • View all purchase option online

About This Plan

  • An angled wing on the right side of this Craftsman home plan takes it out of the ordinary.
  • This magnificent home gives you beamed and vaulted ceilings, a feature wall at the end of the foyer and lots of outdoor living spaces.
  • The U-shaped island in the kitchen has room to seat six with a second sink to aid in prep work.
  • From here you can see into the amazing vaulted great room with its huge fireplace.
  • On either side of the fireplace are unusual indoor planters to add some green to the room.
  • Entertain in grand style in the beamed family room with its huge wet bar.
  • The master suite is enormous with a corner fireplace and more vaulted and beamed ceilings.
  • Across the hall from the master suite is a dedicated exercise room with a morning kitchen and half bathroom.

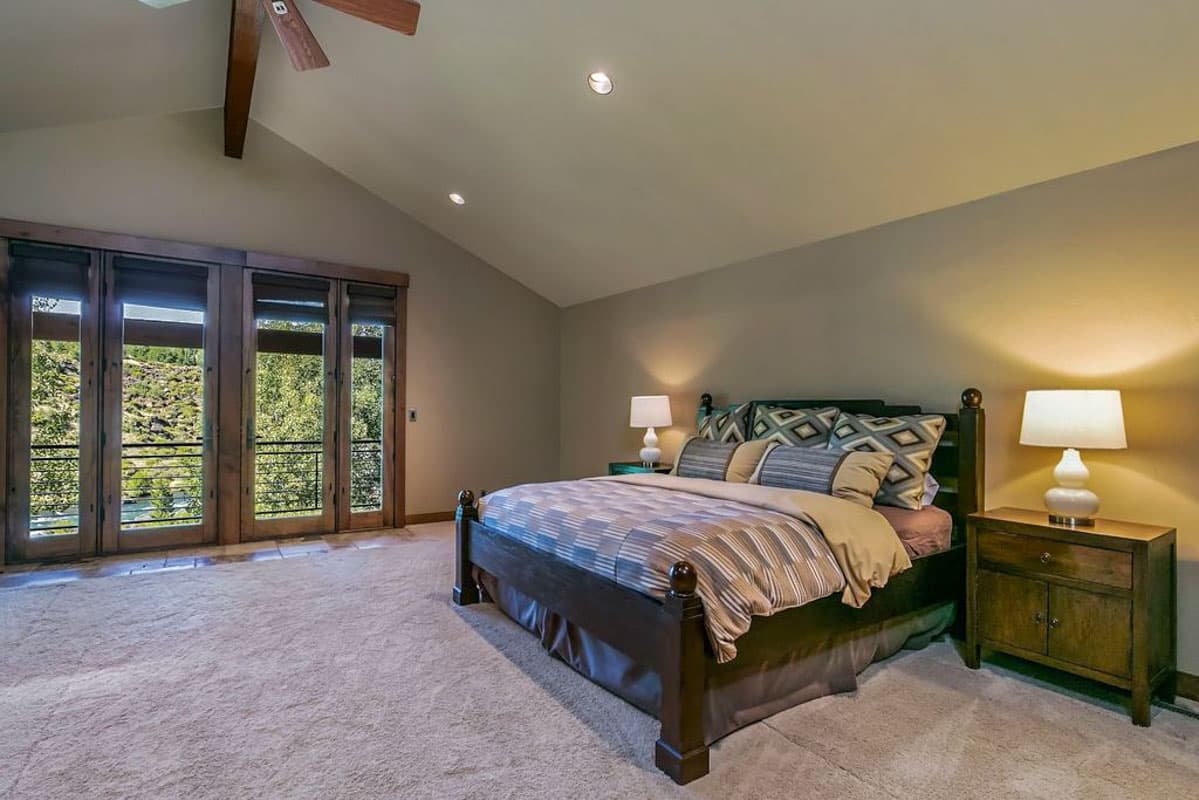

  • Three family bedrooms are up on the second floor and each one has a private bathroom and walk-in closet.
  • The three car garage comes with a boat bay in back complete with a handy sink.

Floor Plans

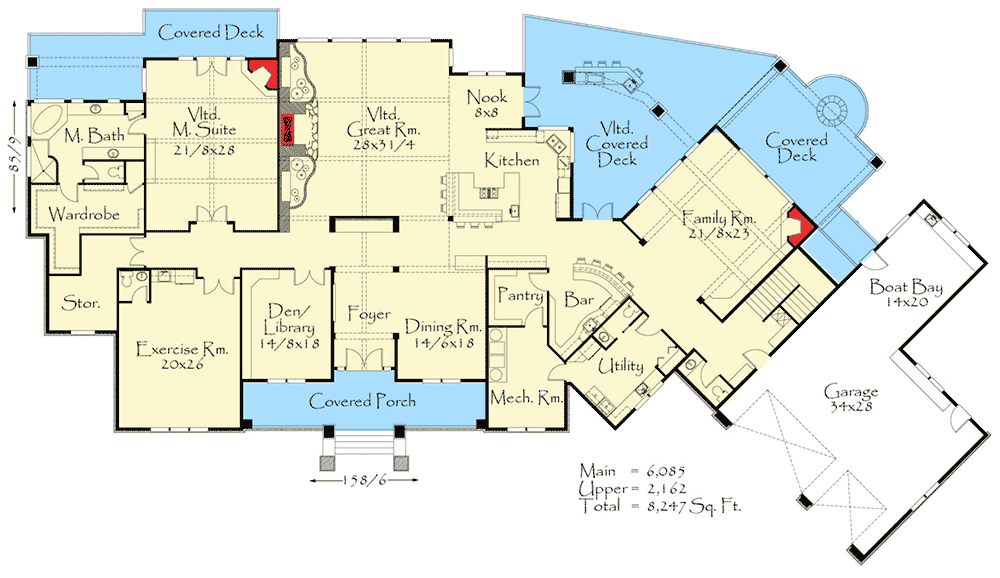

  • Main Level

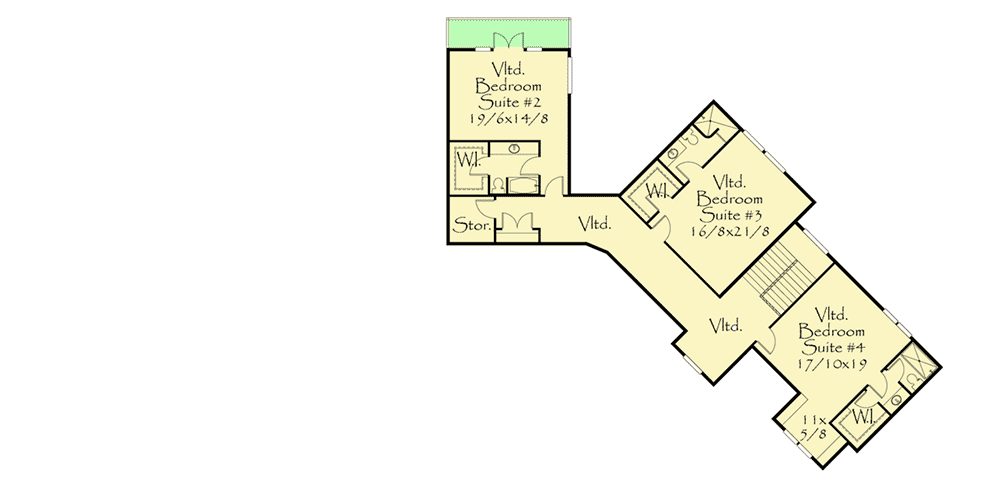

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 8,247 sq. ft.
  • 1st Floor: 6,085 sq. ft.
  • 2nd Floor: 2,162 sq. ft.
  • Deck & Porch: 2,151 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 158' 6"
  • Depth: 85' 9"

Garage

  • Type: Attached
  • Area: 1232 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front
