Plan 89830AH
Angled Garage Home Plan
Heated S.F.
2,811
Beds
3
Baths
2.5
Stories
2
Cars
3
Videos
What's Included
Plan Details
  • This amazing home plan impresses with a gracefully curving roofline, a copper barrel dormer roof, angled garage and wooden pillars.
  • You'll love the unique step ceiling in the formal dining room located to your left as you enter, and you'll be drawn to the great room directly ahead where natural light warms the room through the wall of windows.
  • The adjacent kitchen is defined by columns and features an angled island with extra seating for guests.
  • The main floor master suite is located to the left of the great room and will impress mom with a step ceiling, spacious walk-in closet, and on-suite bath.
  • Two additional bedrooms and a spacious bonus room are found on the second floor.
  • A three-stall garage completes the home plan.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Angled Garage Home Plan

  • 2,811

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

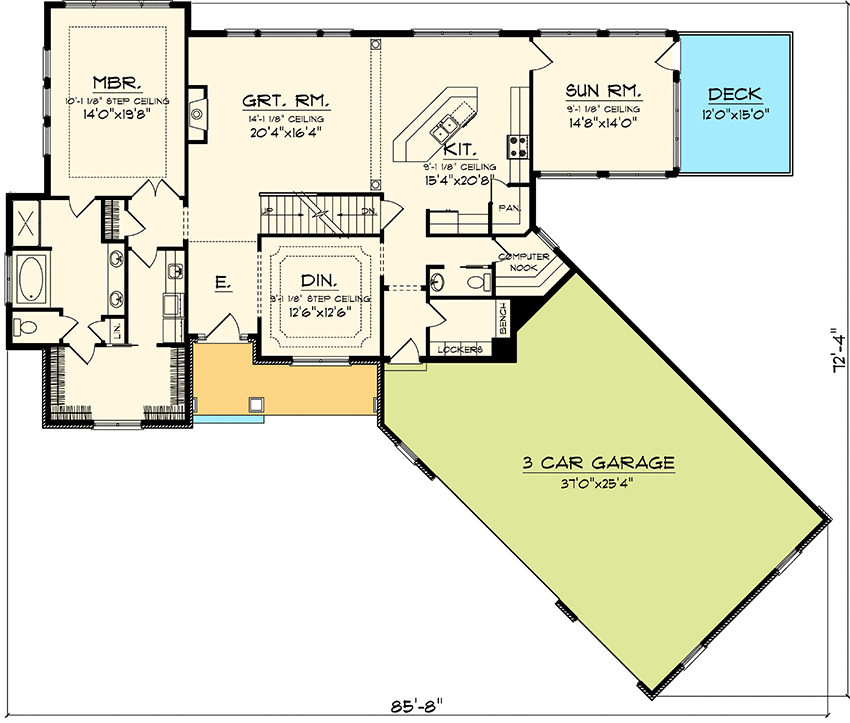

  • Main Level

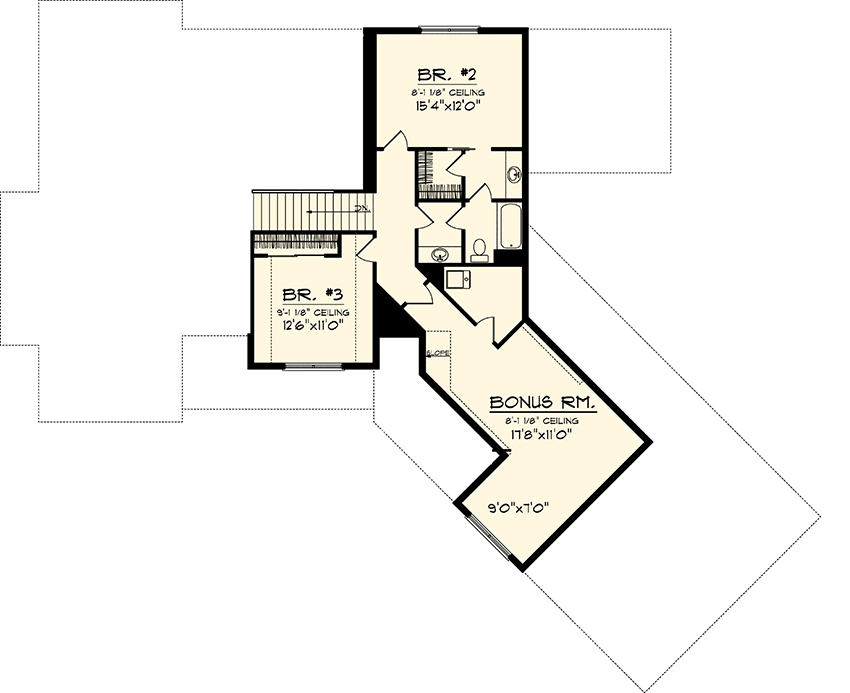

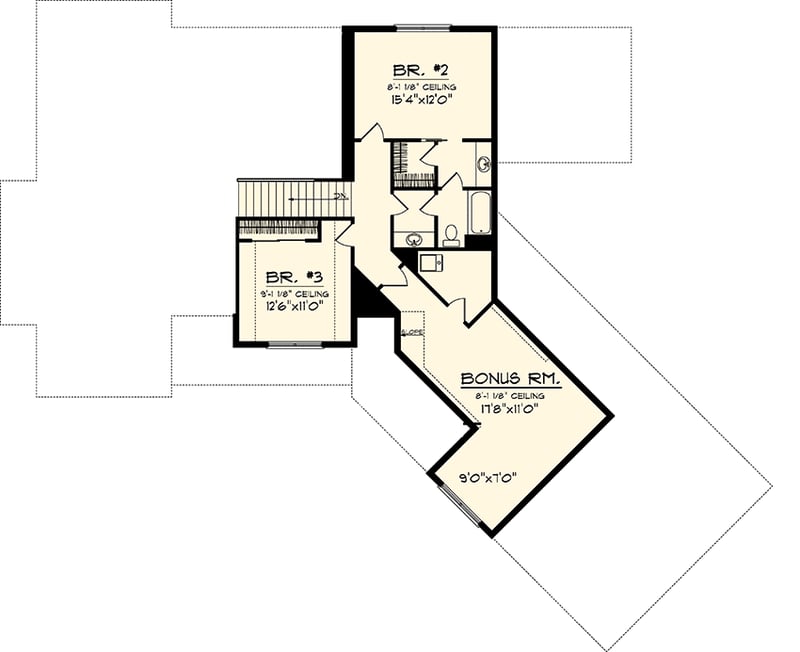

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,811 sq. ft.
  • 1st Floor: 2,180 sq. ft.
  • 2nd Floor: 631 sq. ft.

Dimensions

  • Width: 85' 8"
  • Depth: 72' 4"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1012 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
