Plan 57017HA
Apartment Garage with Atrium
Heated S.F.
891
Beds
1
Baths
1
Stories
2
Cars
2
What's Included
Plan Details
  • Vaulted entry with laundry room leads to a spacious second floor apartment.
  • The large living room features an entry coast closet, L-shaped kitchen with pantry and dining area/balcony overlooking atrium window wall.
  • Roomy bedroom with walk-in closet is convenient to hall bath.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Apartment Garage with Atrium

  • 891

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

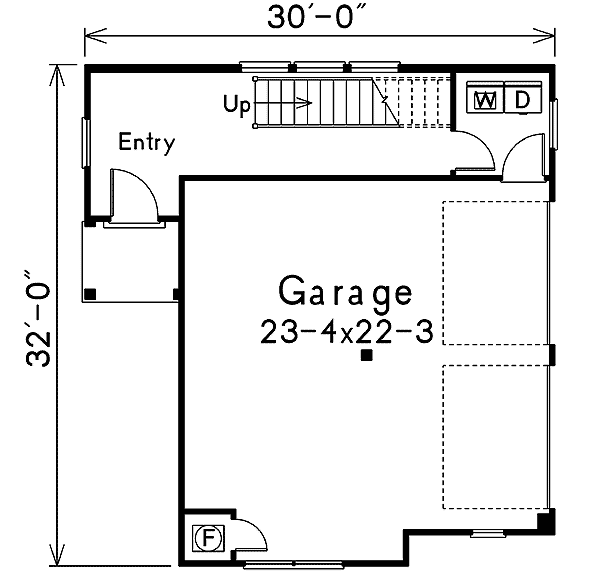

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 891 sq. ft.
  • 1st Floor: 238 sq. ft.
  • 2nd Floor: 653 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 32' 0"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 524 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Apartment Garage with Atrium

  • 891

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Apartment Garage with Atrium

  • 891

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 891 sq. ft.
  • 1st Floor: 238 sq. ft.
  • 2nd Floor: 653 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 32' 0"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 524 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor
