Appealing Country Cottage

Plan 40132WM

  • 2,135

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Accented by gables and an entry porch with sturdy Craftsman-style pillars, this country cottage presents an appealing face.
  • Inside, columns demarcate the dining and sitting rooms on either side of the foyer.
  • In the rest of the open living area, the living room slopes upward from 14' to 18'. An island with a curved eating bar sets the kitchen off from the nook and the living room.
  • Privately situated, the master suite includes a walk-in closet, a corner garden tub and a linen closet.
  • Upstairs, bedrooms two and three share a hall bath, while bedroom four has a private bath and a walk-in closet. Bonus space over the garage would make an inviting playroom or media room.

Each plan includes the following:

  • Cover page:  Features the front elevation and informative reference sections including general notes and design criteria.

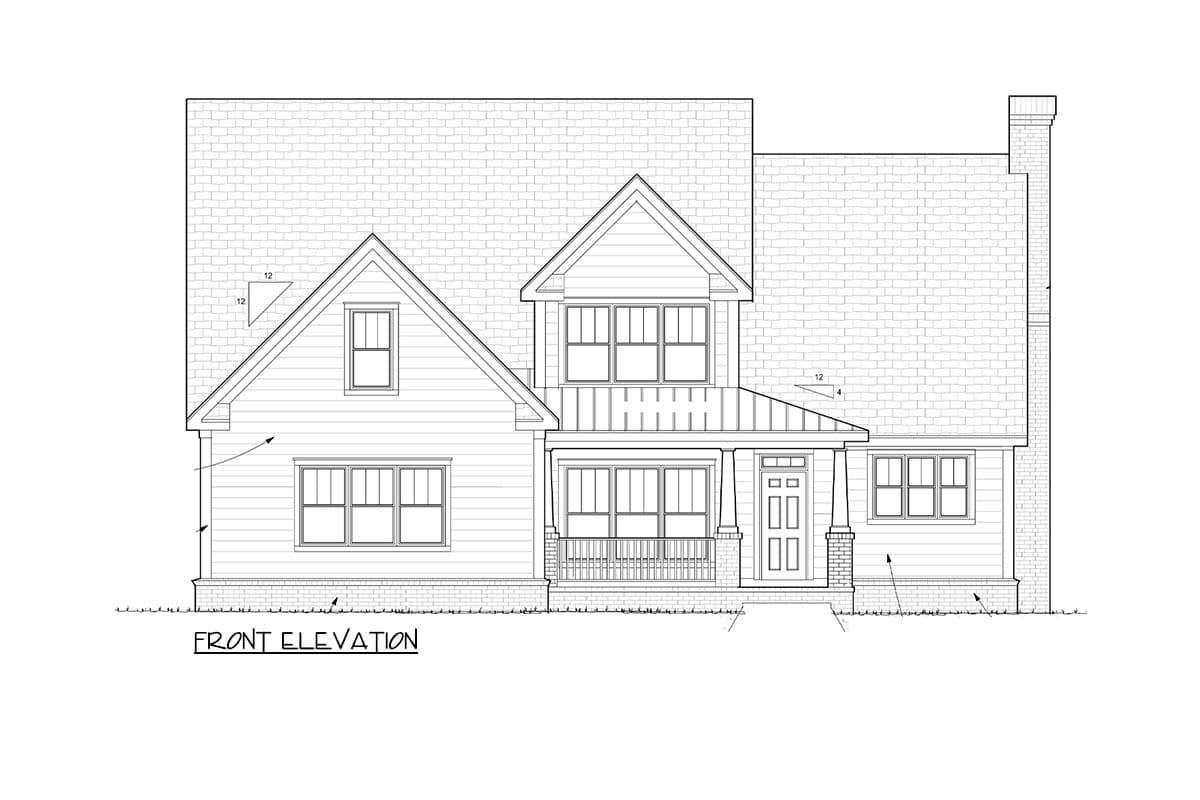

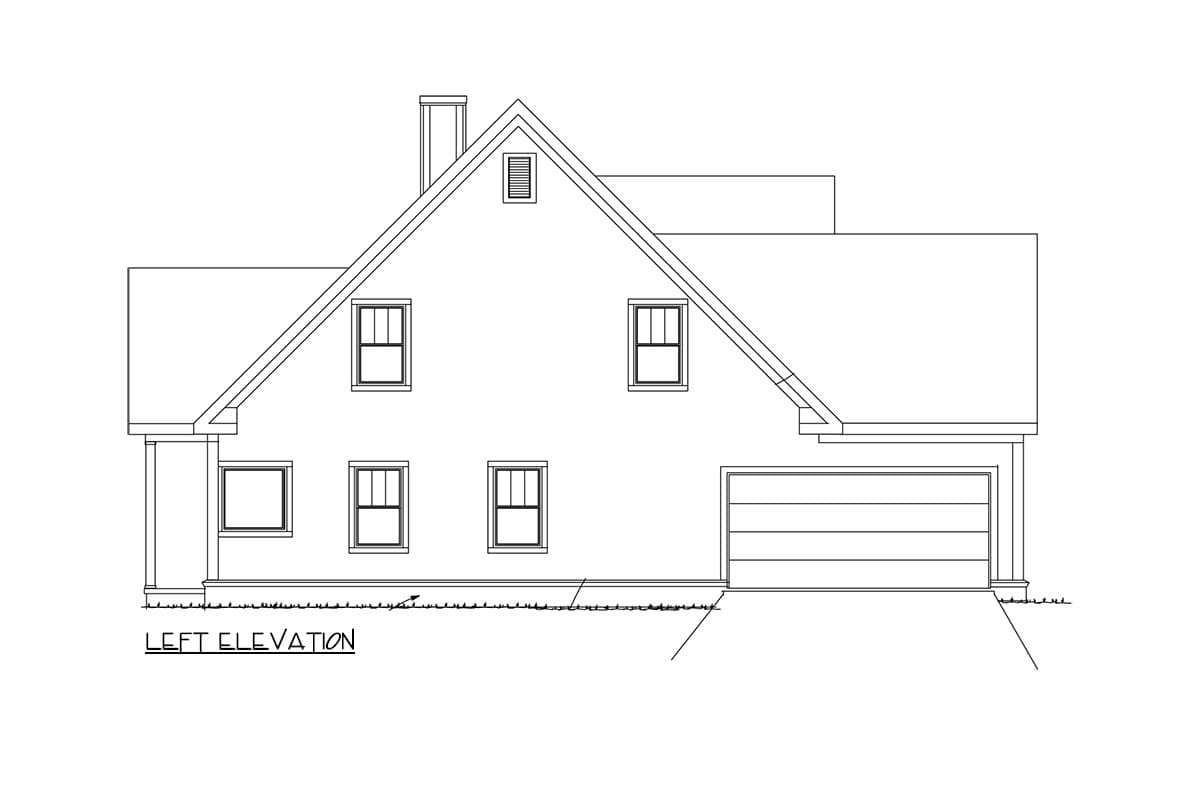

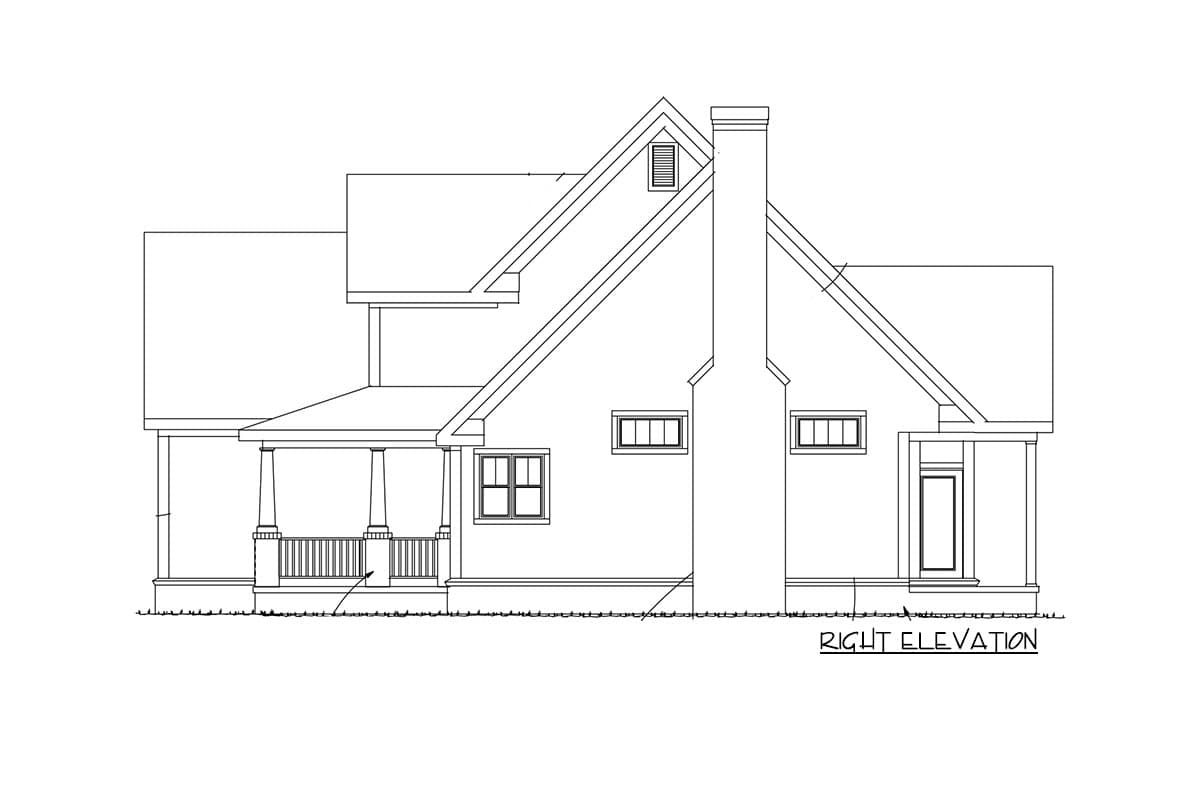

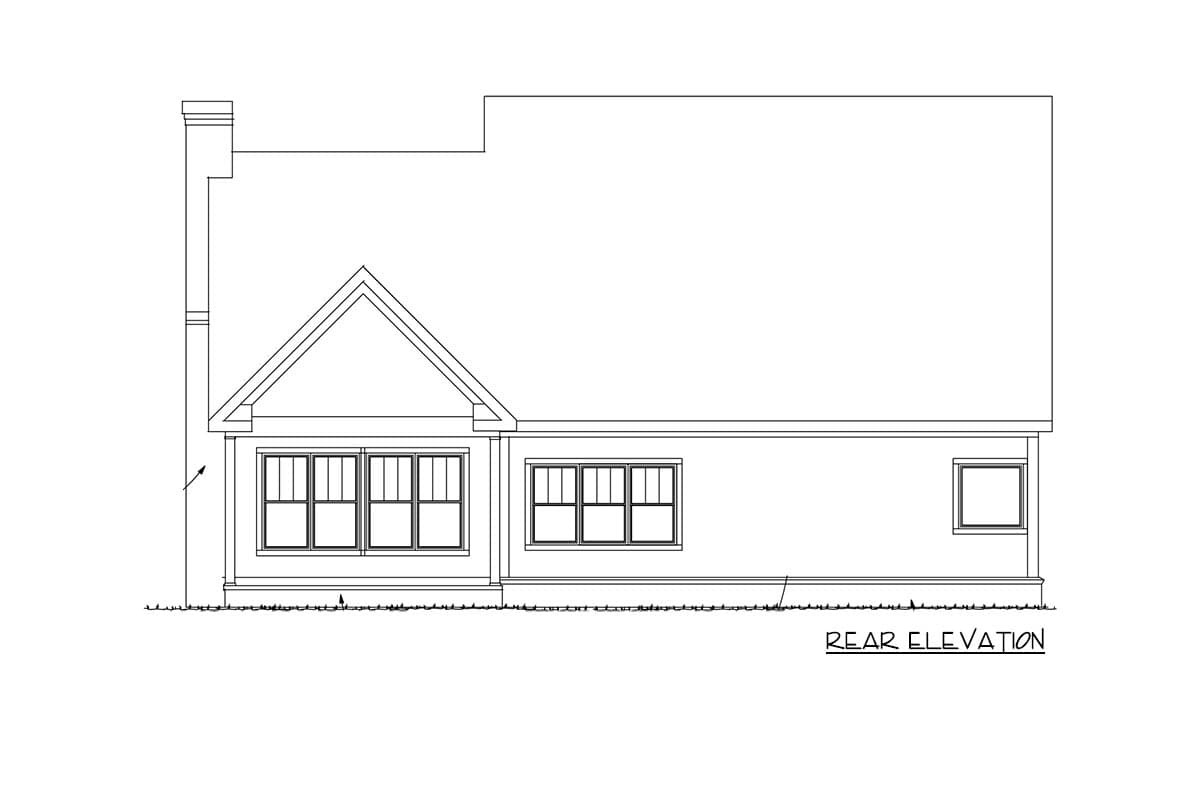

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundation: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

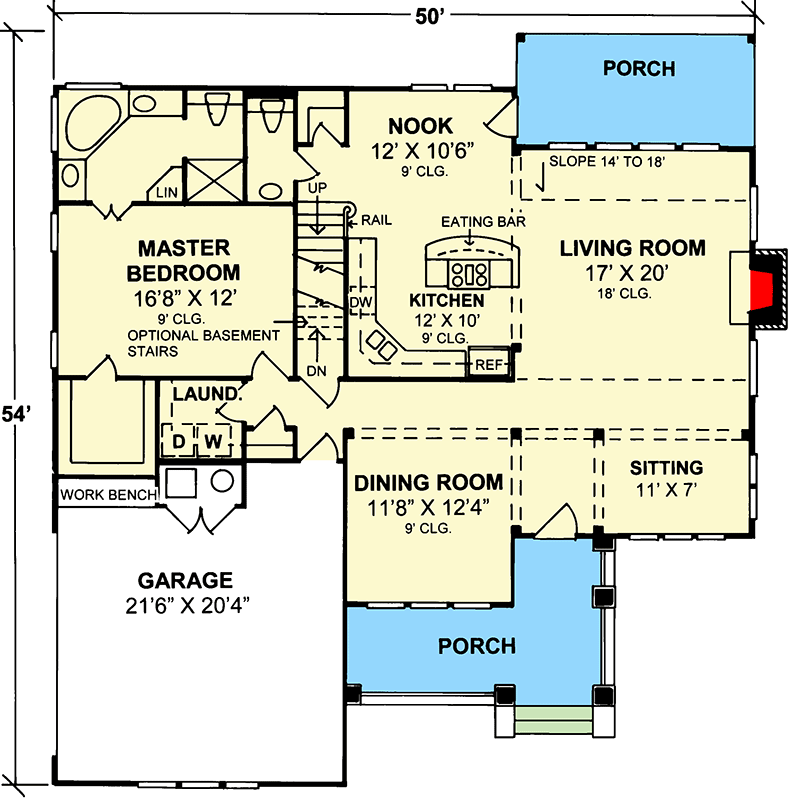

  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments.

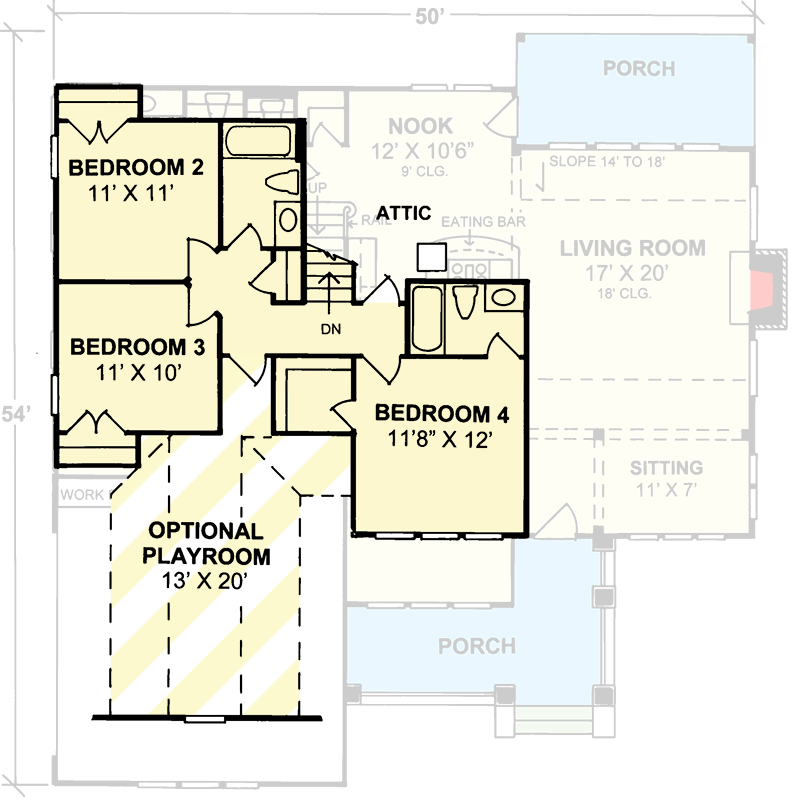

  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
  • Kitchen cabinet elevations


Floor Plan

Plan details



Appealing Country Cottage

  • 2,135

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - multi-use $925
  • CAD - multi-use $1,175
  • View all purchase option online

About This Plan

  • Accented by gables and an entry porch with sturdy Craftsman-style pillars, this country cottage presents an appealing face.
  • Inside, columns demarcate the dining and sitting rooms on either side of the foyer.
  • In the rest of the open living area, the living room slopes upward from 14' to 18'. An island with a curved eating bar sets the kitchen off from the nook and the living room.
  • Privately situated, the master suite includes a walk-in closet, a corner garden tub and a linen closet.
  • Upstairs, bedrooms two and three share a hall bath, while bedroom four has a private bath and a walk-in closet. Bonus space over the garage would make an inviting playroom or media room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,135 sq. ft.
  • 1st Floor: 1,494 sq. ft.
  • 2nd Floor: 641 sq. ft.
  • Porch, Front: 304 sq. ft.
  • Bonus: 260 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 54' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 476 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Stick
