Plan 510038WDY

Appealing Southern House Plan

Heated S.F.
2,453
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 510038WDY

Main Level
Main Level

Plan 510038WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 510038WDY: Appealing Southern House Plan - Floor Plan - Main Level - French Country, Southern, Traditional

Plan Details

  • While the outside of this Southern house plan has a formal appearance, the inside offers casual living with an open floor plan.
  • You still have a formal dining room but you can also eat in the large keeping room.

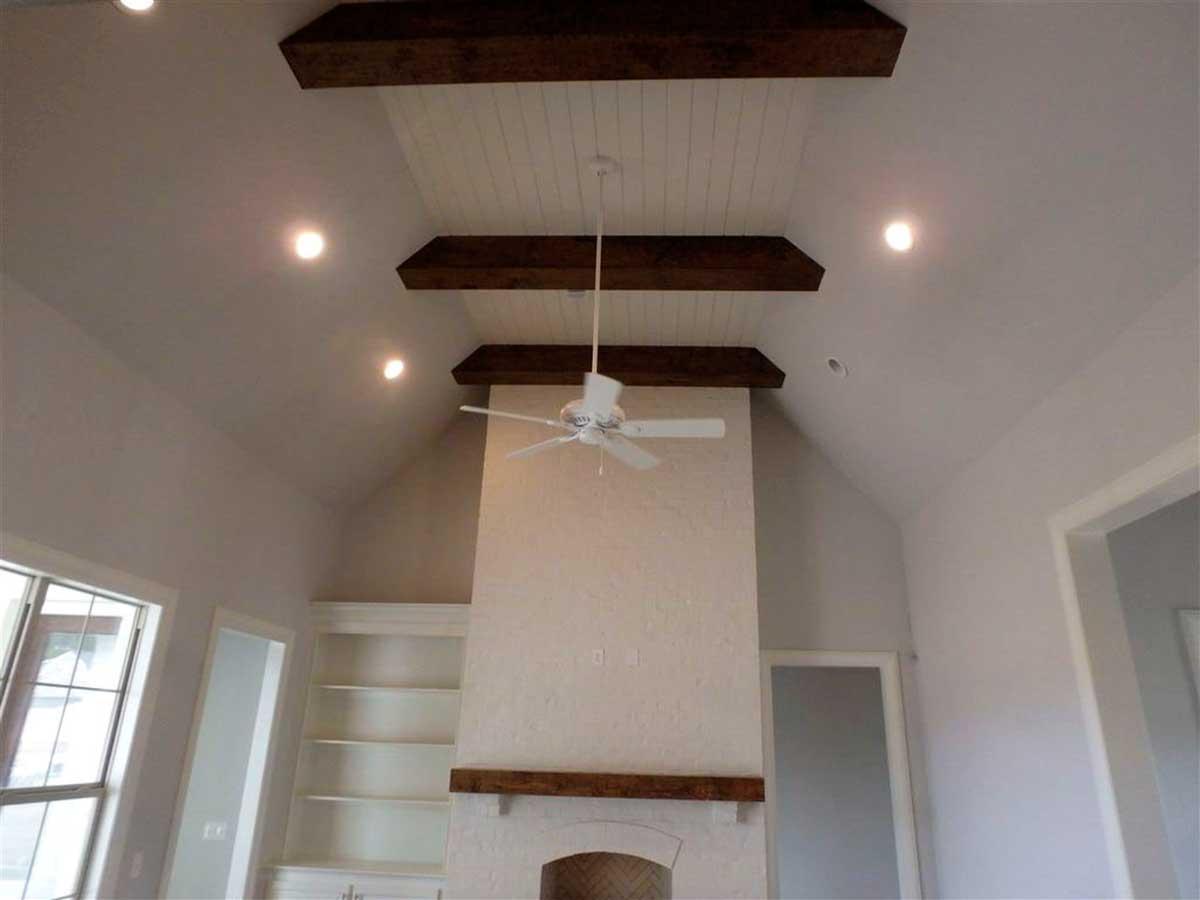

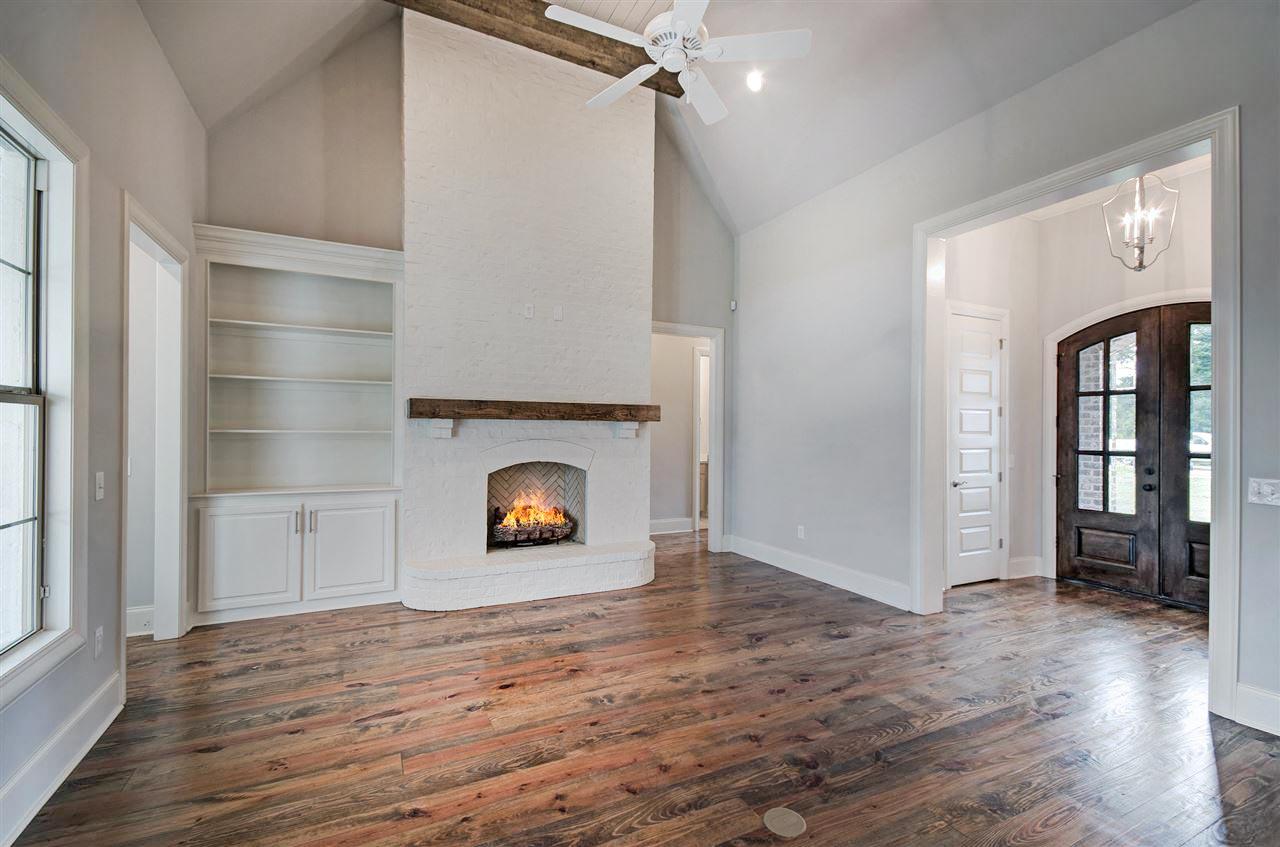

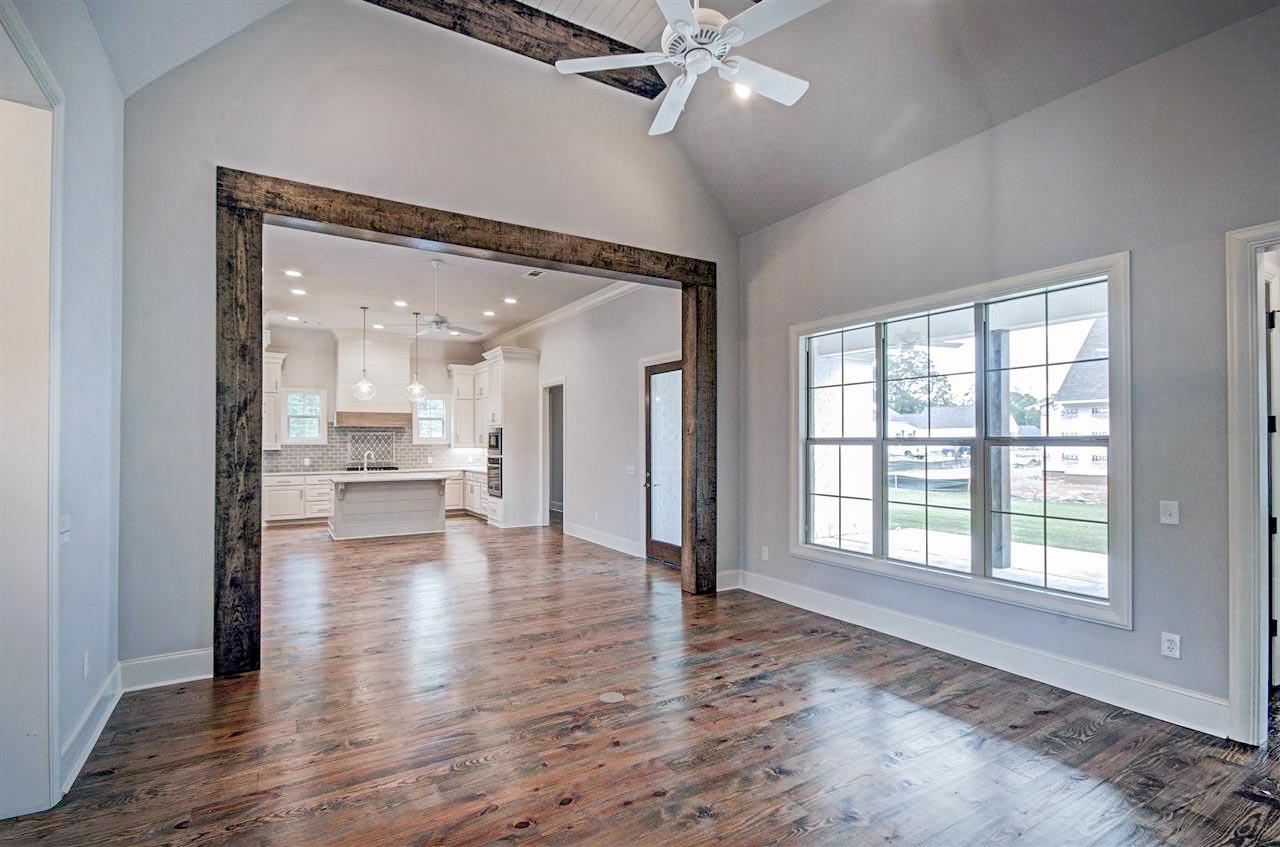

  • A tray ceiling tops the giant living room that has a big fireplace to gather around.

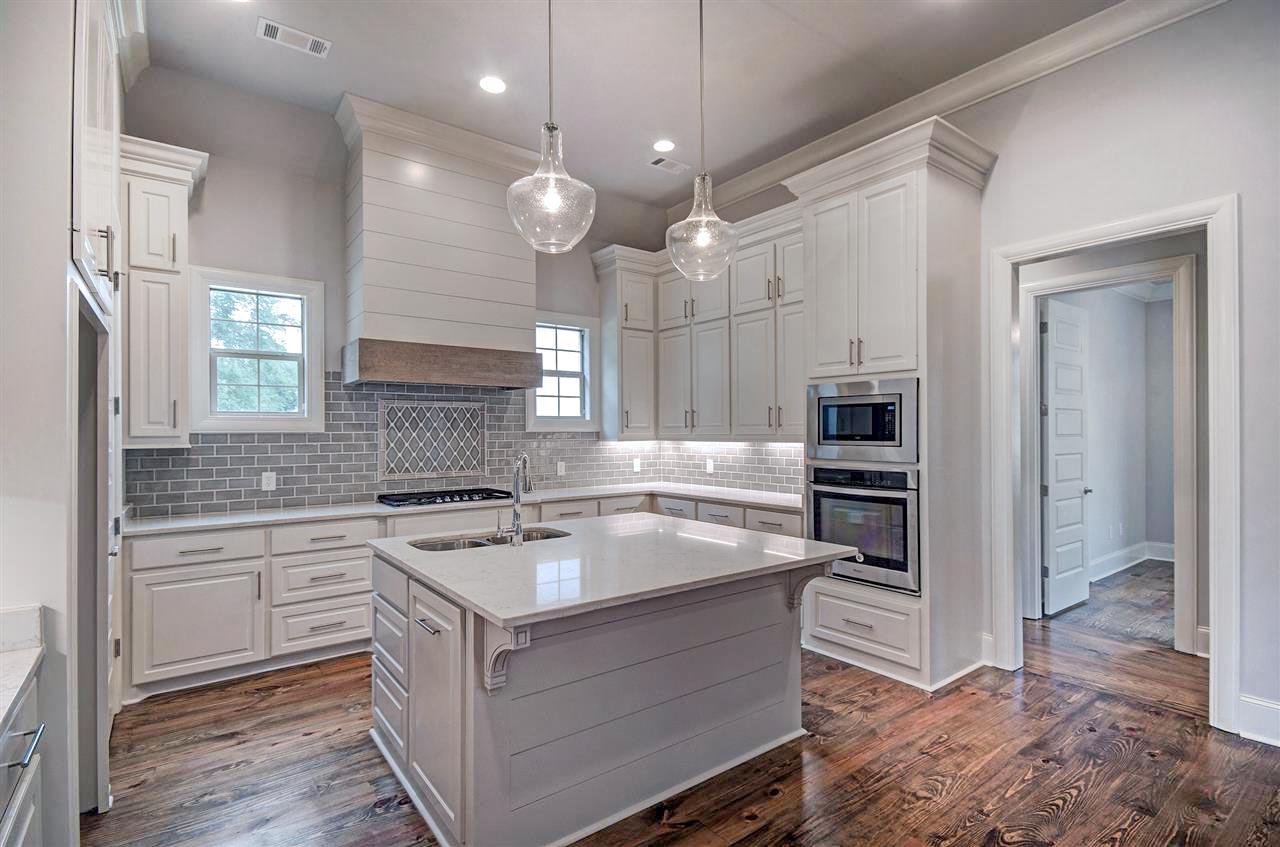

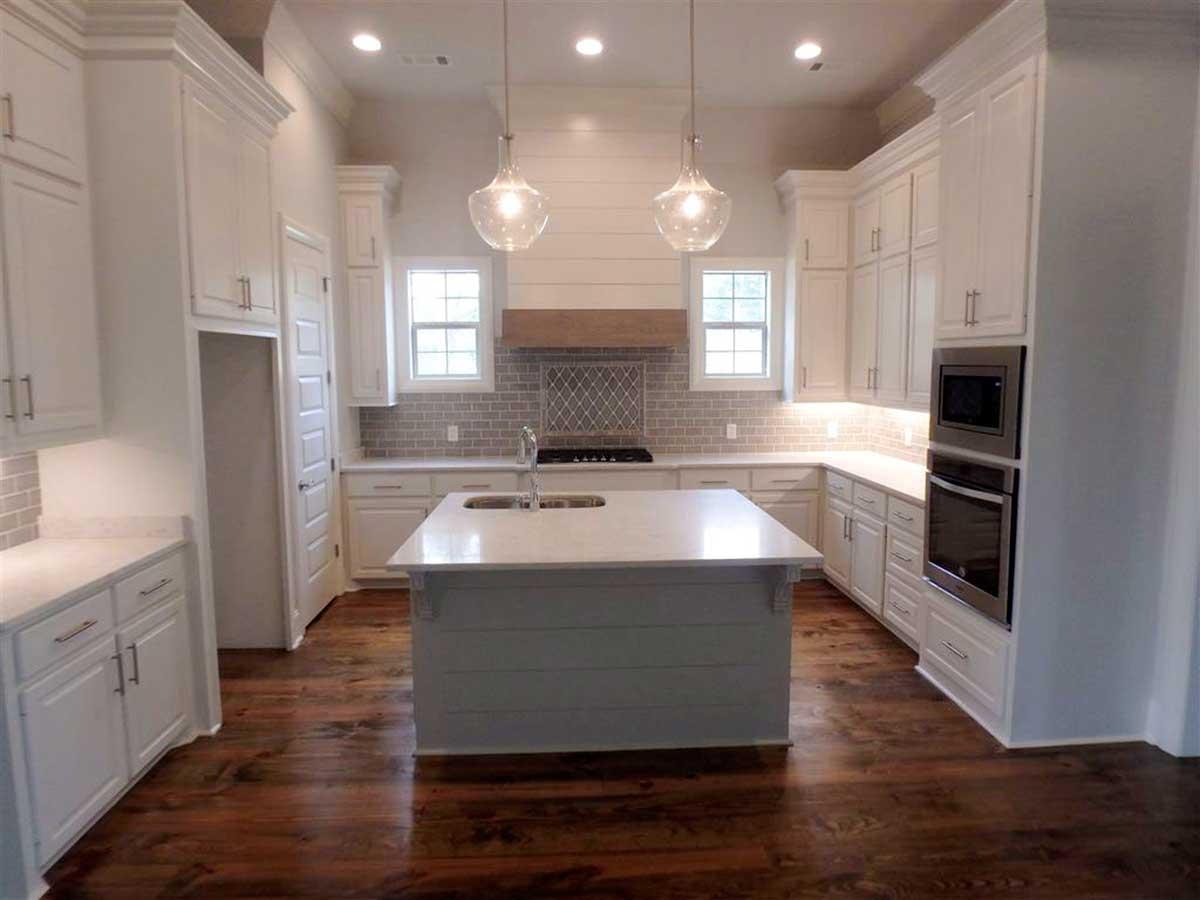

  • There's plenty of room for the whole family to cook in the spacious kitchen with its big island and a walk-in pantry.

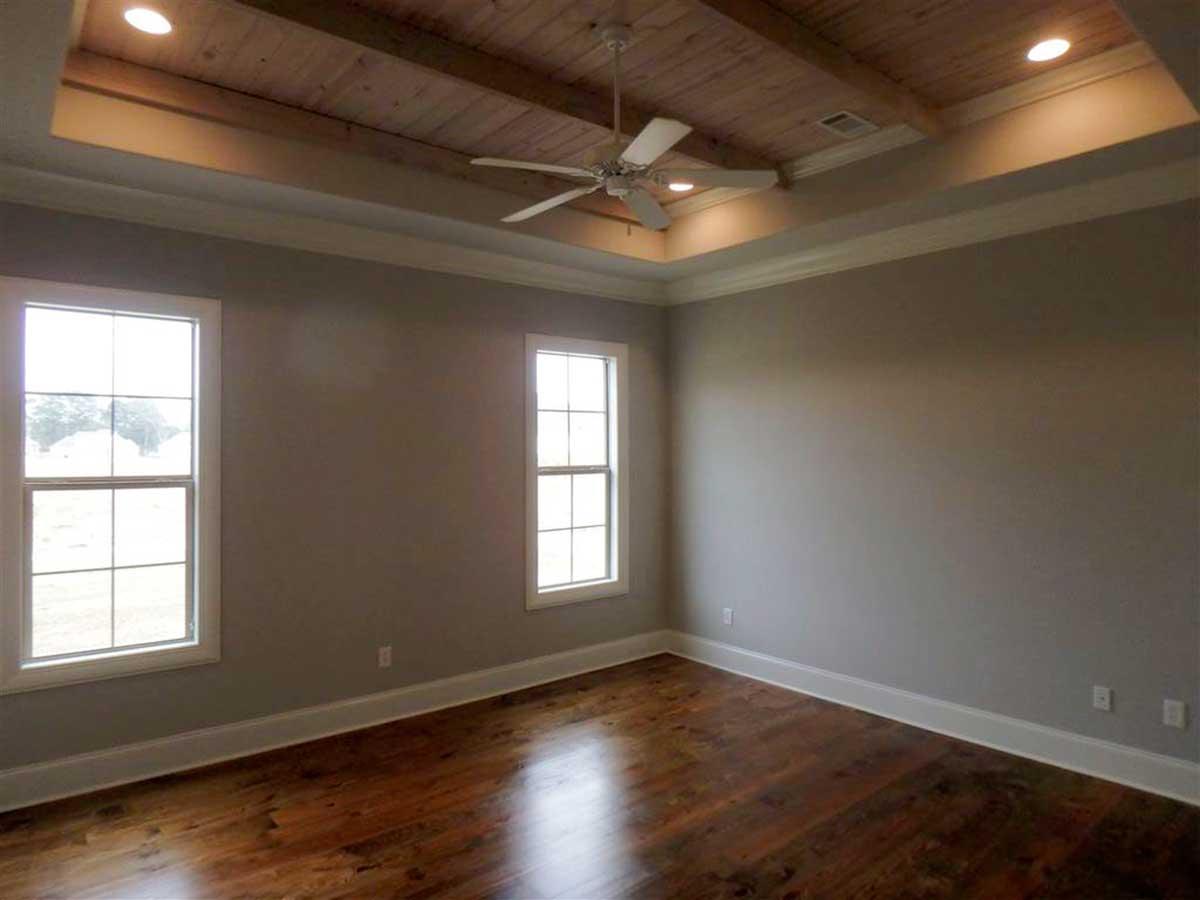

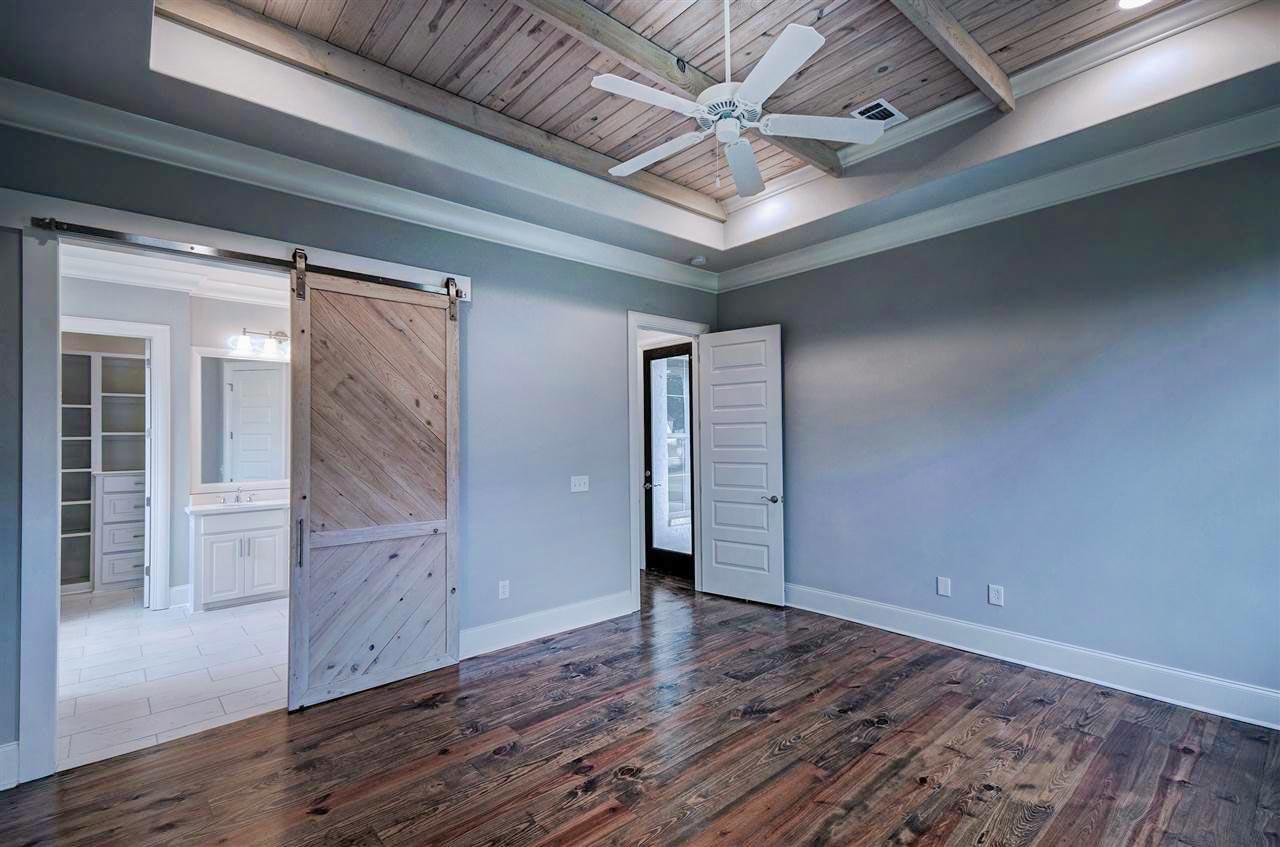

  • Bedrooms are separated with the master suite in back and a guest suite in front.

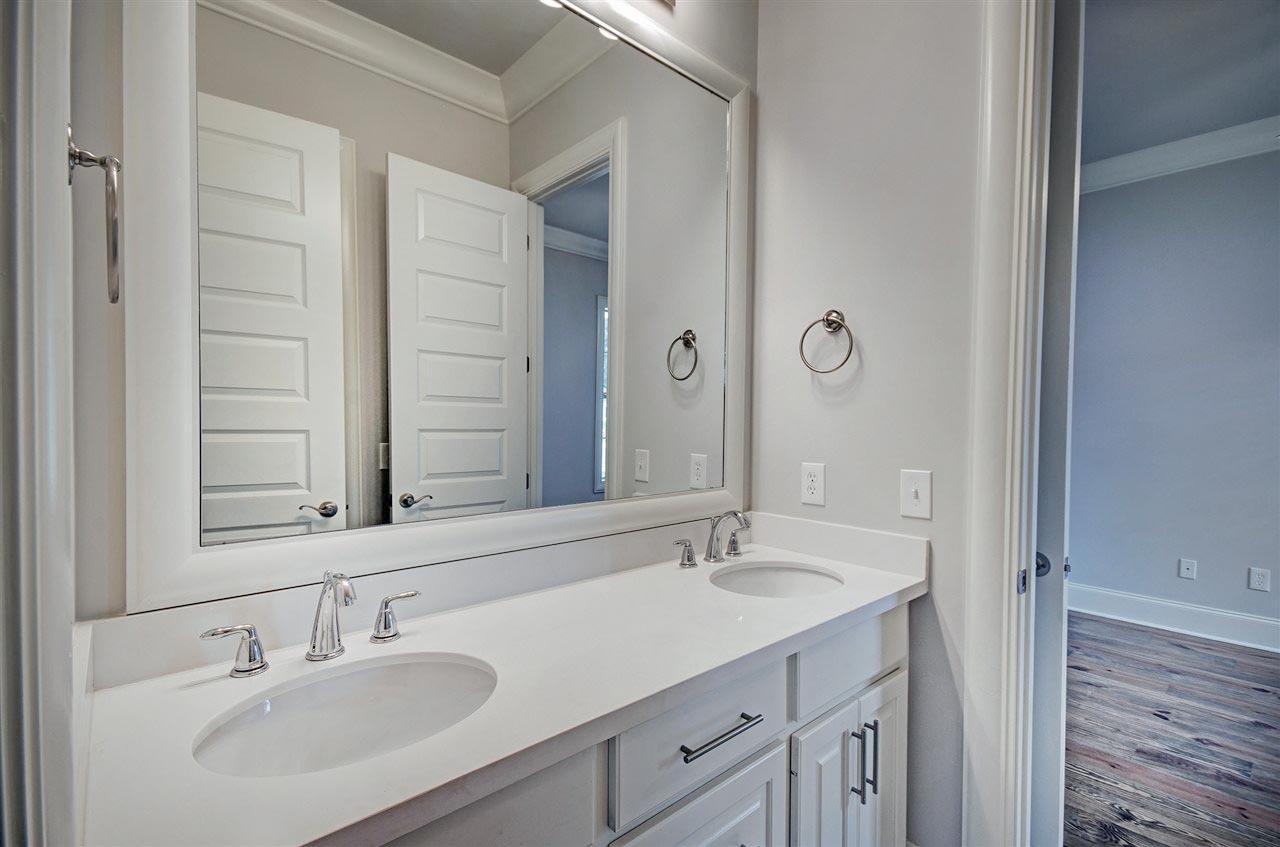

  • Bedrooms 3 and 4 each have a walk-in closet and share a connected bathroom with two sinks.
  • The three car garage has a storage room that can be locked off.

What's Included

This plan has 7 pages as follows:
  1. Coversheet Color Rendering
  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

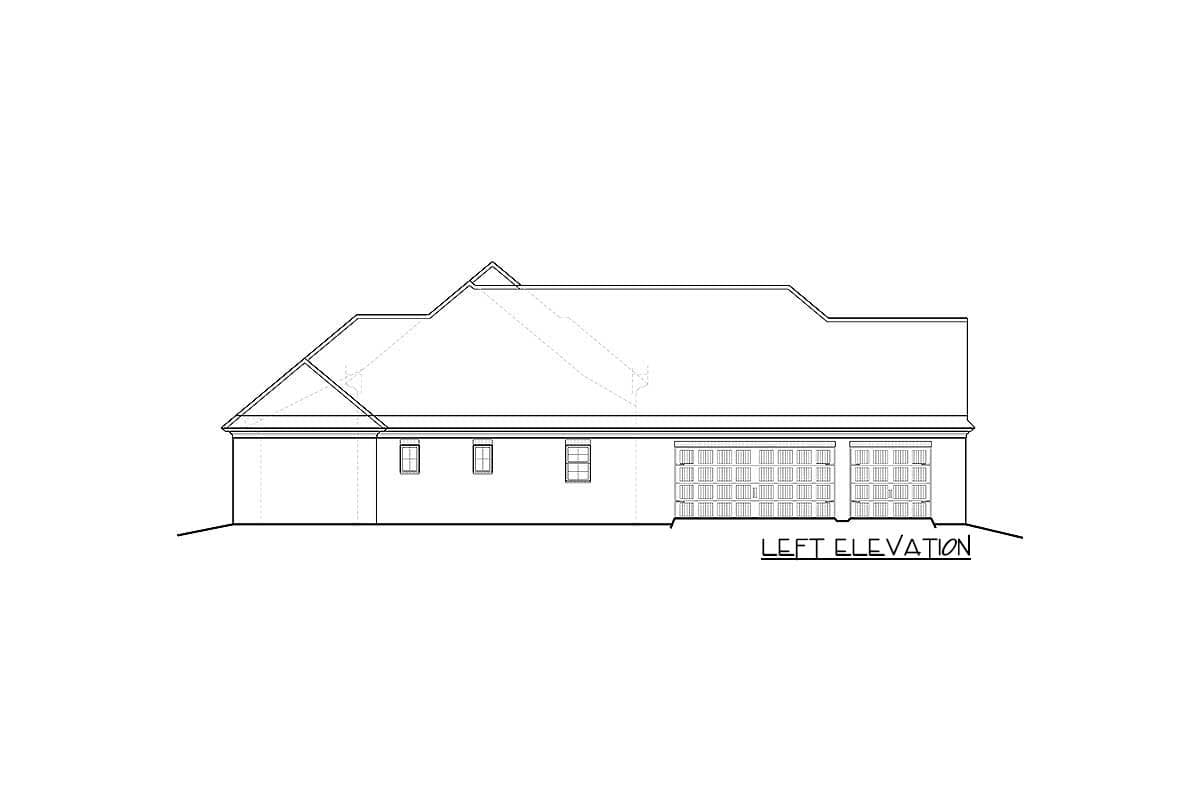

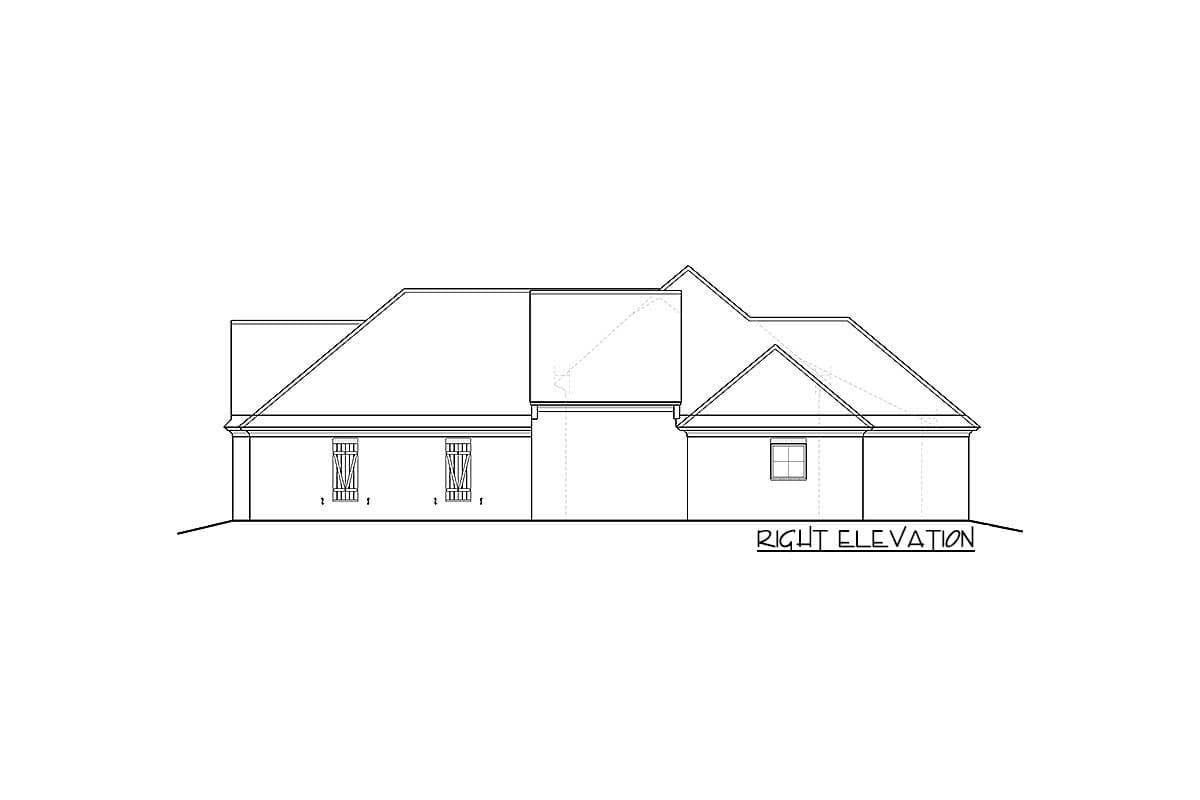

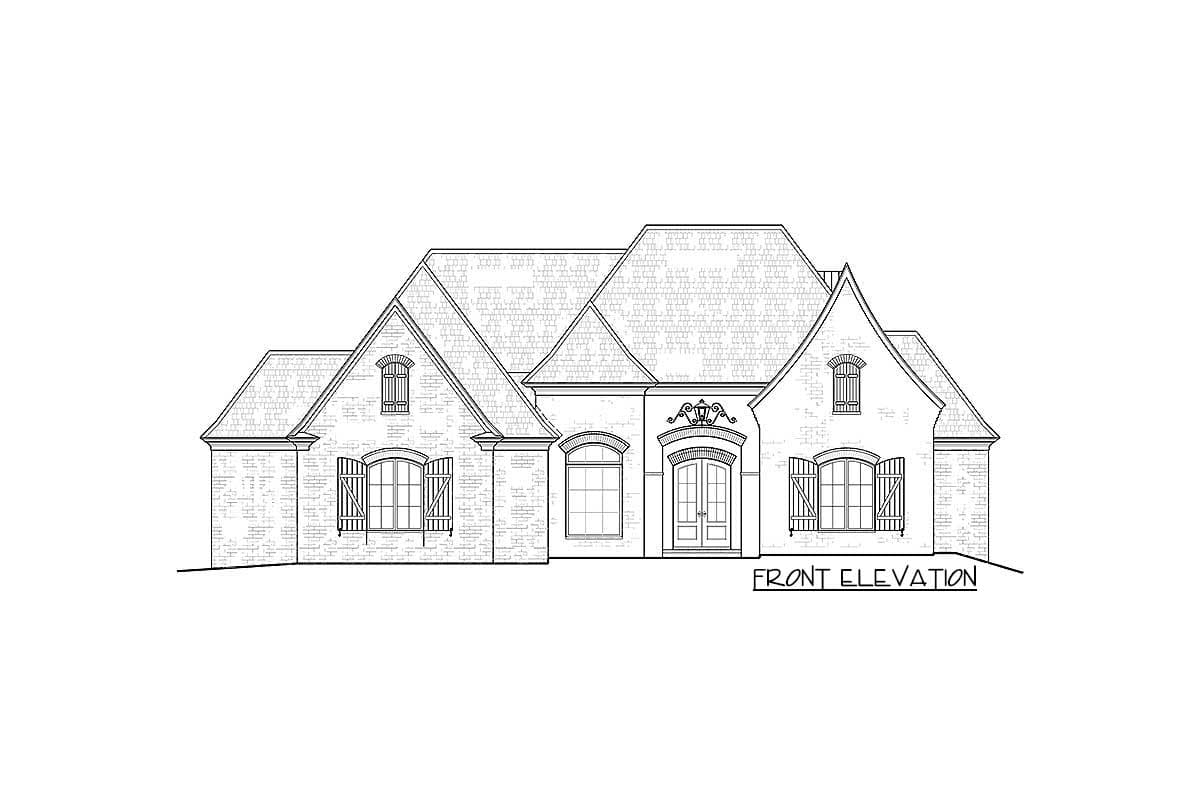

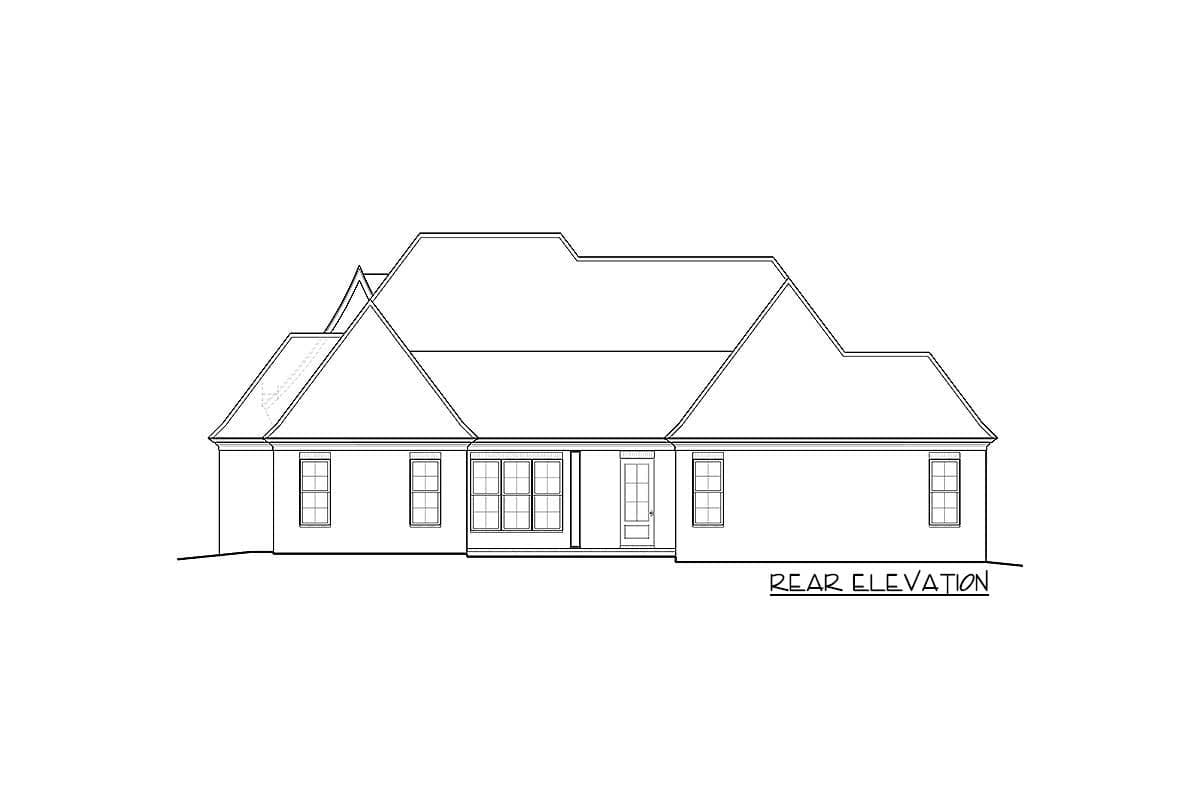

  3. All Four Exterior Elevations, Roof Plan, Flashing Details, Shutter Detail, Jack Arch Detail
  4. Building Section, Cornice Details, Flush Rake Detail, Beam Strap Detail, Shutter Detail, Rafter Span Schedule, Porch Edging Detail, Ridge Vent Detail, Strong Back Detail, Roof Support Brick Detail
  5.  Electrical Plan and Schedules
  6. Slab Foundation
  7. Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,453 sq. ft.

1st Floor

2,453 sq. ft.

Porch, Front

47 sq. ft.

Porch, Rear

229 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 9"

Depth

86' 7"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

858 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

French Country

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,453 sq. ft.

1st Floor

2,453 sq. ft.

Porch, Front

47 sq. ft.

Porch, Rear

229 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 9"

Depth

86' 7"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

858 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

French Country

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Photo Gallery
