Plan 89774AH
Arts and Crafts Design
Heated S.F.
1,509
Beds
3
Baths
2
Stories
1
Cars
2
Videos
What's Included
Plan Details
  • This arts and crafts design appears small from the front but pack all living space into a plan with garage access to the back making it perfect for a "neighborhood" development.
  • Exterior details include corbels, shingle and stone siding and a support column in front.
  • As you enter the home, you'll love the spacious great room with corner fireplace directly in front of you.
  • The kitchen follows and includes a breakfast bar that's large enough to seat four and direct access to the dining room.
  • Access to the garage lies in the laundry room directly behind the dining room.
  • All three bedrooms lie to the left of the home beginning with the master that's equipped with a walk-in closet and private bath.
  • Two more bedrooms follow each with a Jack and Jill's access to the main bath off the hall.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Arts and Crafts Design

  • 1,509

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

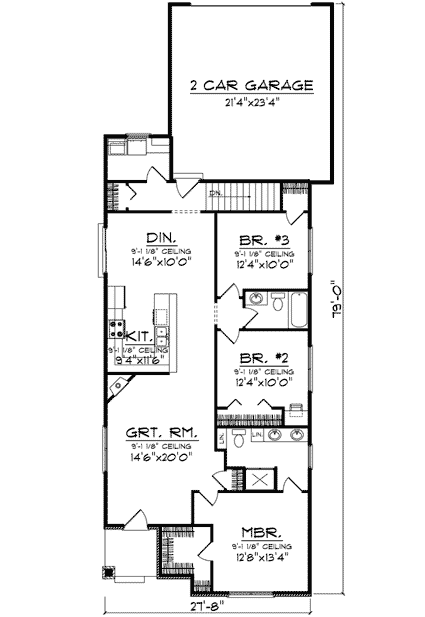

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,509 sq. ft.
  • 1st Floor: 1,509 sq. ft.

Dimensions

  • Width: 27' 8"
  • Depth: 79' 0"
  • Max ridge height: 23' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 519 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
