Arts and Crafts Home Design

Plan 59189ND

  • 1,259

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Greet your family and friends on lovely covered porch of this Arts and Crafts style home plan.
  • The warmth of this split bedroom home design will capture the attention your guests as they enter the foyer.
  • Two bedrooms are gently placed at the front of the home for privacy and possibly used as a study if desired.
  • An attractive great room offers you the perfect place to relax and has an abundance of wall space for treasured antiques.
  • The convenience of the kitchen to dining room will keep dinnertime less hectic and more enjoyable.
  • As evening falls find seclusion in the master suite complete with spacious walk-in closet and private bathroom.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

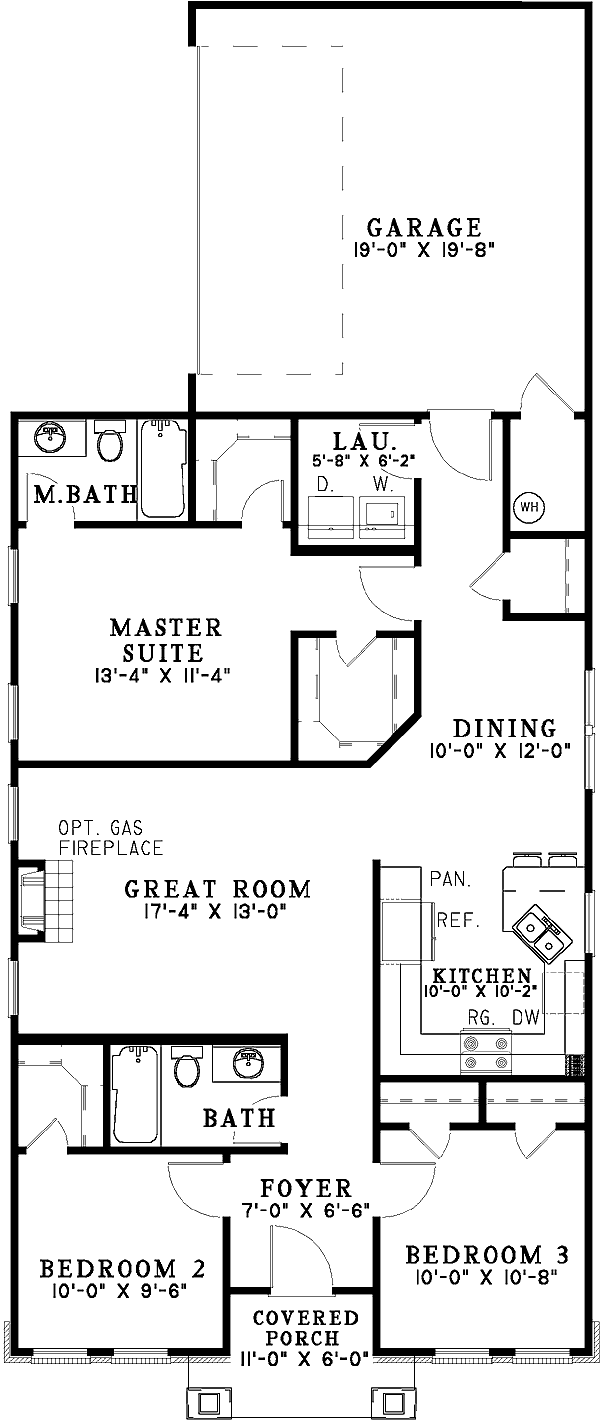

Arts and Crafts Home Design - 59189ND floor plan - Main Level

Plan details

Arts and Crafts Home Design

  • 1,259

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $700
  • 5 Sets $800
  • 5 Sets + PDF $1,050
  • CAD + PDF - Single Build $1,400
  • View all purchase option online

About This Plan

  • Greet your family and friends on lovely covered porch of this Arts and Crafts style home plan.
  • The warmth of this split bedroom home design will capture the attention your guests as they enter the foyer.
  • Two bedrooms are gently placed at the front of the home for privacy and possibly used as a study if desired.
  • An attractive great room offers you the perfect place to relax and has an abundance of wall space for treasured antiques.
  • The convenience of the kitchen to dining room will keep dinnertime less hectic and more enjoyable.
  • As evening falls find seclusion in the master suite complete with spacious walk-in closet and private bathroom.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,259 sq. ft.
  • 1st Floor: 1,259 sq. ft.
  • Entry: 53 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 4"
  • Depth: 69' 0"
  • Max ridge height: 21' 6"

Garage

  • Type: Attached
  • Area: 417 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4.5 on 12
  • Framing Type: Stick
