Plan 33210ZRX

Arts & Crafts Cottage House Plan with Rear Lanai

Heated S.F.
1,699
Beds
3
Baths
2
Stories
1
Cars
2
Client Photos

Floor Plan

Plan 33210ZRX

Main Level
Main Level

Plan 33210ZRX

M-F 9am-5pm EST |

1-203-761-8500

Main Level

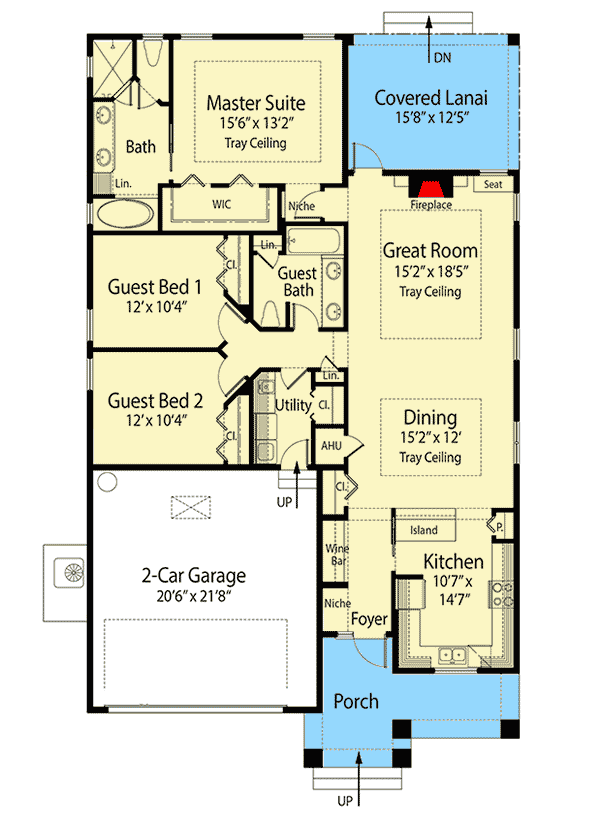

Plan 33210ZRX: Arts & Crafts Cottage House Plan with Rear Lanai - Floor Plan - Main Level - Cottage, Craftsman, Southern

Plan Details

  • An attractive covered entry establishes great curb appeal, along with the attention to detail in its tapered columns, and elegant brackets that frame the gabled roofline. The raised entry pops out from the front porch and adds prominence to the front façade. Stacked-stone accents along the bottom adds to the visual appeal.
  • This Arts & Crafts-style cottage lives large for a home of 1,699 sq. ft. great for a footprint conscious homeowner. The home is filled with upgrades such as 10-foot ceilings, generous guest bedrooms, a fireplace and a kitchen complete with a snack-bar island and convenient pantry.
  • Additional features include a large covered lanai which opens to the great room. Tray ceilings define the dining area from the great room, while windows allow lots of natural light.
  • A secluded master bedroom with it’s own private entry and lighted niche has a walk-in-closet, an opulent master bath and double-door access to the covered lanai.
  • The utility room offers access to the garage while providing a closet and a sink.
  • Related Plans: Get more room house plans 33173ZR (2,378 sq. ft.) and 33172ZR (2,583 sq. ft.).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Net Zero Ready House Plan 33210ZR comes to life in Alabama

Net Zero Ready House Plan 33210ZR comes to life in Alabama

26

Photos

What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,699 sq. ft.

1st Floor

1,699 sq. ft.

Porch, Front

158 sq. ft.

Lanai

194 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 6"

Depth

67' 0"

Max Ridge Height

23' 6"

Garage

Type

Attached

Area

468 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,699 sq. ft.

1st Floor

1,699 sq. ft.

Porch, Front

158 sq. ft.

Lanai

194 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 6"

Depth

67' 0"

Max Ridge Height

23' 6"

Garage

Type

Attached

Area

468 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
