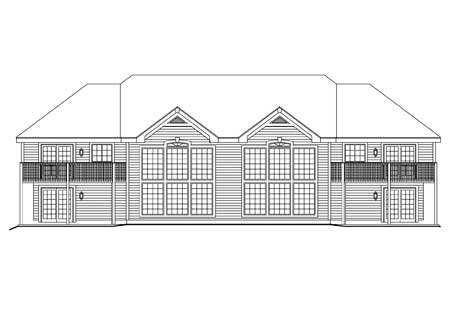

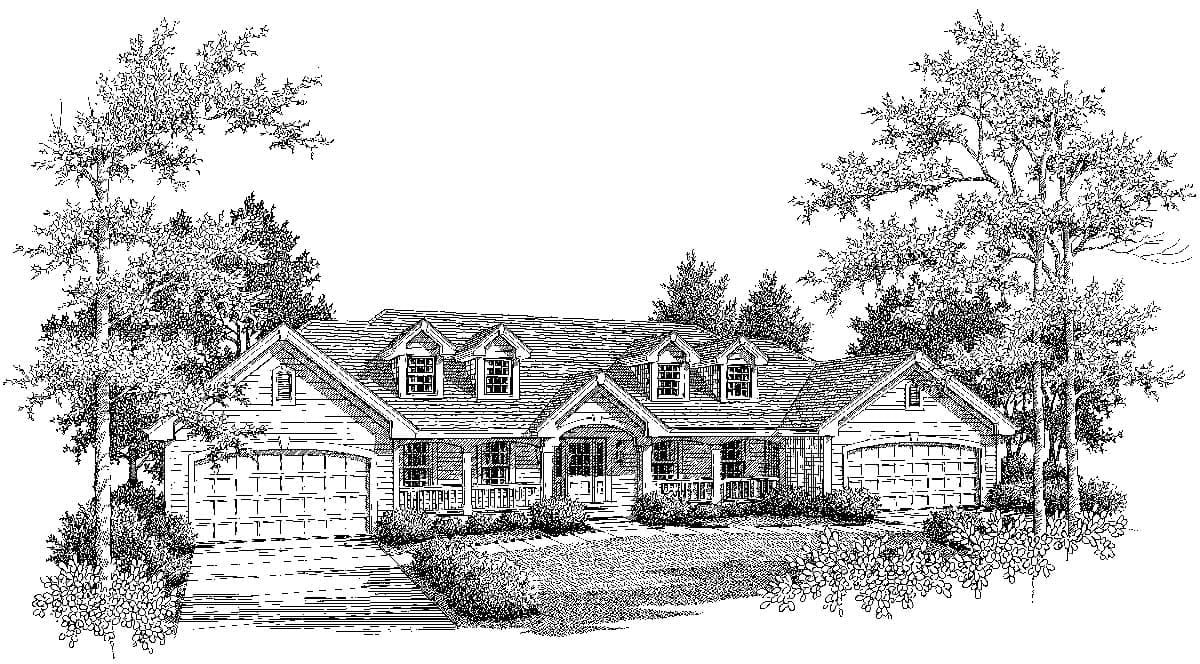

Plan 57225HA

Atrium Duplex with Room to Grow

Heated S.F.
3,484
Units
2
Width
Depth

Floor Plan

Plan 57225HA

Basement
Basement
Main Level
Main Level

Plan 57225HA

M-F 9am-5pm EST |

1-203-761-8500

Basement

Plan 57225HA: Atrium Duplex with Room to Grow - Floor Plan - Basement

Main Level

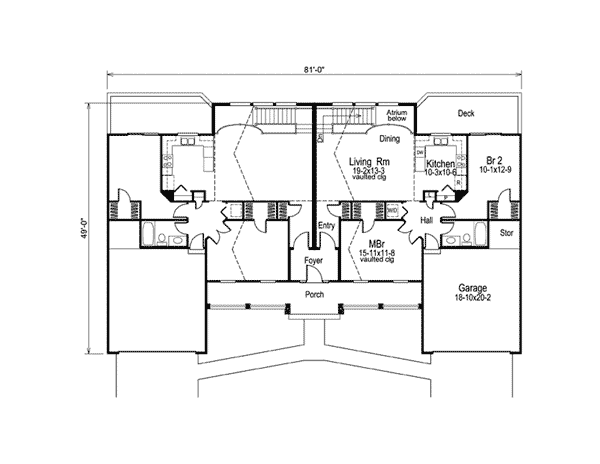

Plan 57225HA: Atrium Duplex with Room to Grow - Floor Plan - Main Level

Plan Details

  • Each unit in this spacious duplex home plan has room on two levels, the main floor and an atrium lower level.
  • Both the master bedroom and the living room boast beautiful vaulted ceilings.
  • Each of the three bedrooms has its own walk-in closet for wonderful storage.
  • On the lower level, spend time in the huge family room complete with wet bar.
  • The third bedroom and a full bath is on this level.
Unit A
Heated Area
1,742Sq. Ft.
638 Sq. Ft. LL
1104 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
430 Sq. Ft.
Dimensions
40' 6"width
49'depth
21'height
Unfinished Areas
430 Sq. Ft. Garage
Unit B
Heated Area
1,742Sq. Ft.
638 Sq. Ft. LL
1104 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
430 Sq. Ft.
Dimensions
40' 6"width
49'depth
21'height
Unfinished Areas
430 Sq. Ft. Garage

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,484 sq. ft.

Lower Level

1,276 sq. ft.

1st Floor

2,208 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

81' 0"

Depth

49' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

860 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Wet Bar

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,484 sq. ft.

Lower Level

1,276 sq. ft.

1st Floor

2,208 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

81' 0"

Depth

49' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

860 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Wet Bar

Plan Collections

Sloping Lot
