Plan 36394TX

Attention to Detail

Heated S.F.

3,035

Beds

5

Baths

4

Stories

2

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

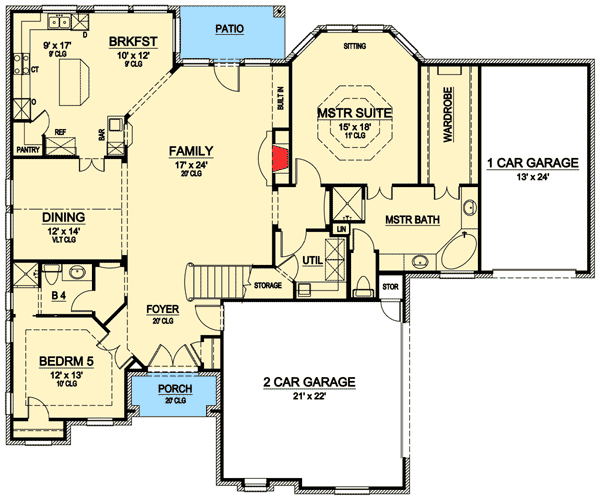

Attention to Detail - 36394TX floor plan - Main Level

2nd Floor

Reverse Floor Plan

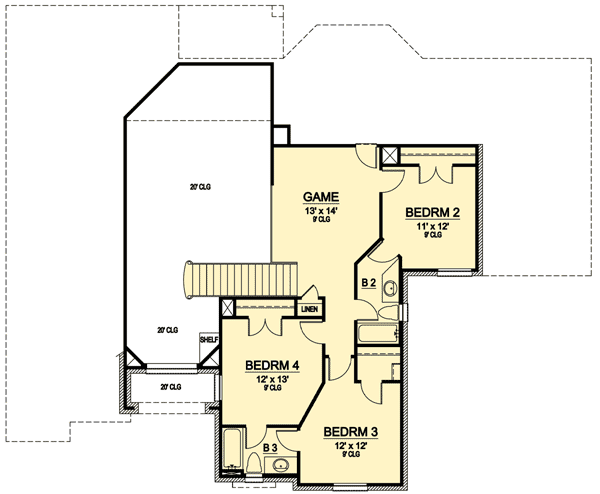

Attention to Detail - 36394TX floor plan - 2nd Floor

Plan Details

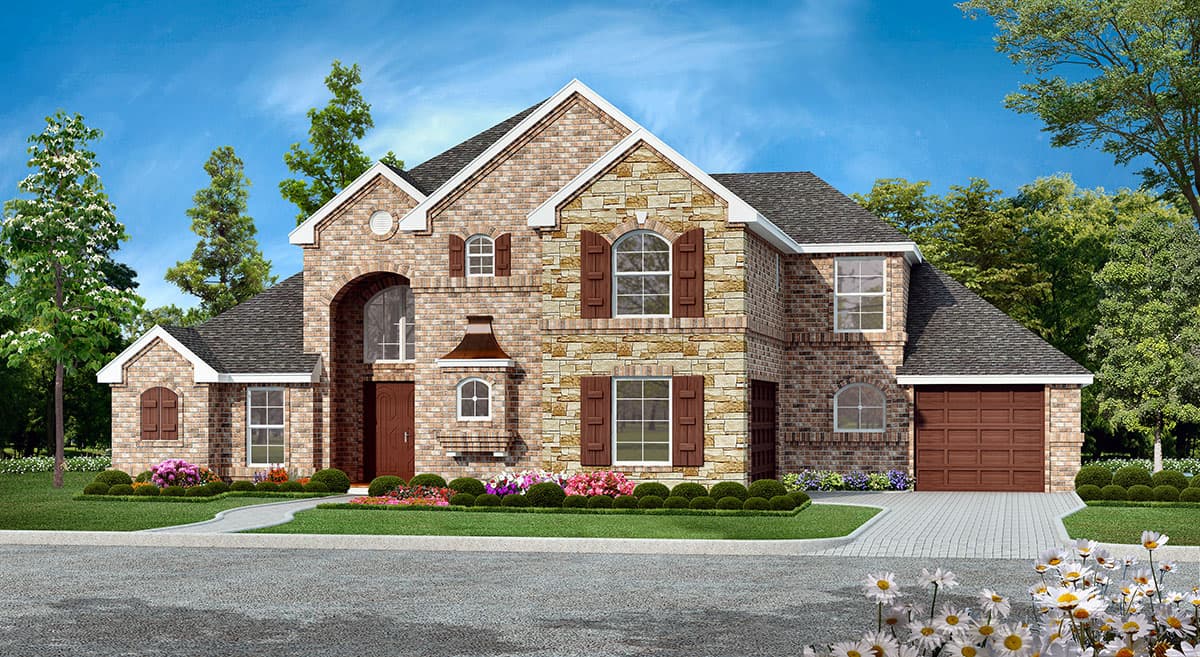

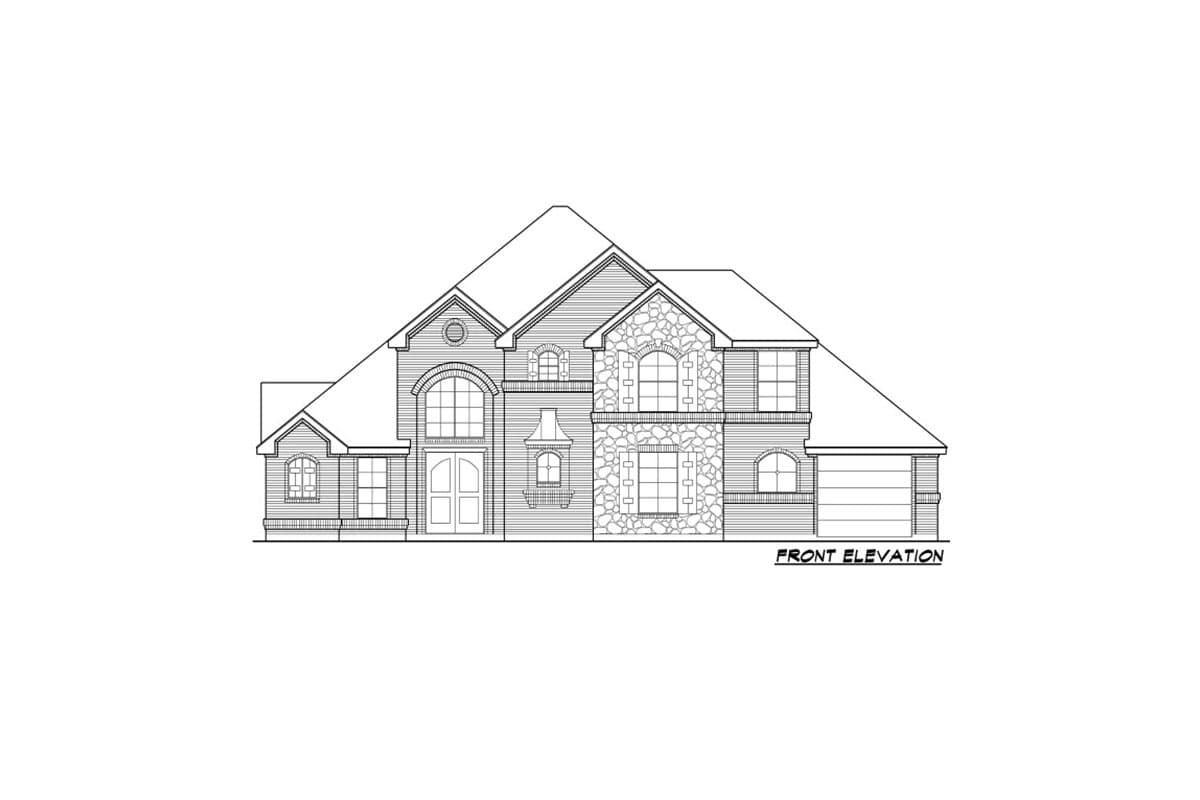

Stonework, brick and decorative shutters, combined with an impressive arched entry, show this architect's attention to detail.

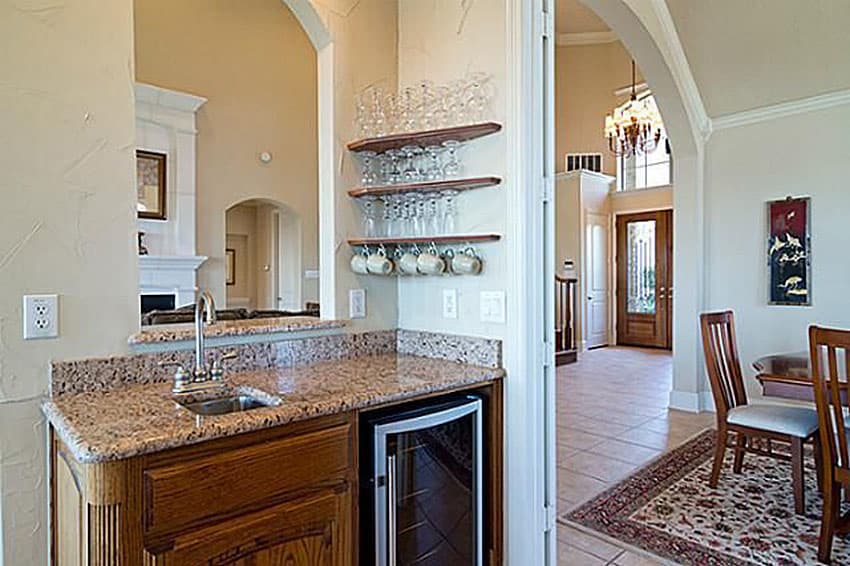

The attention to details continues on the inside as well, with tray ceiling, built-ins and a wet bar to aid in entertaining.

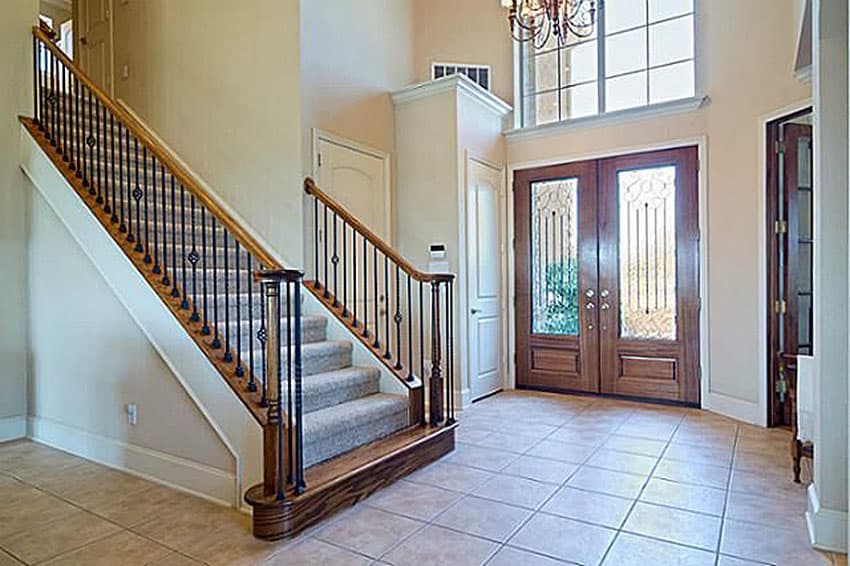

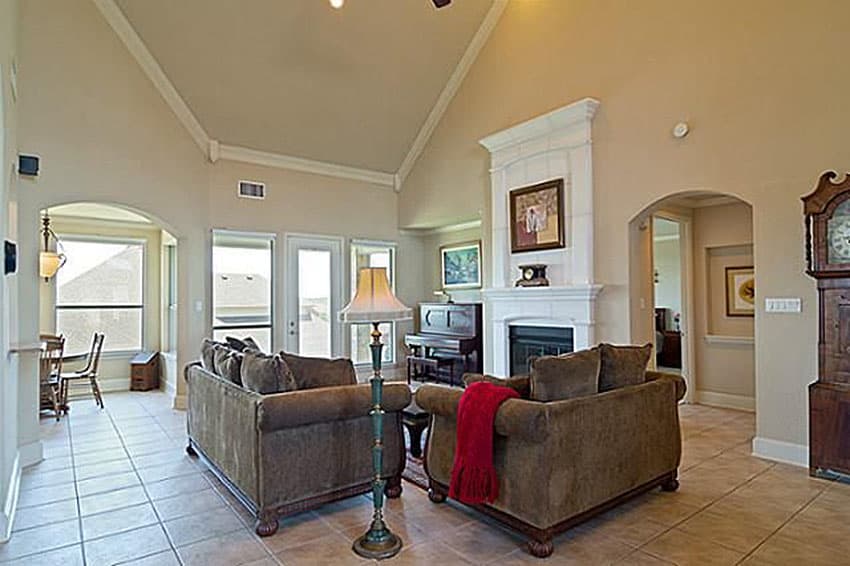

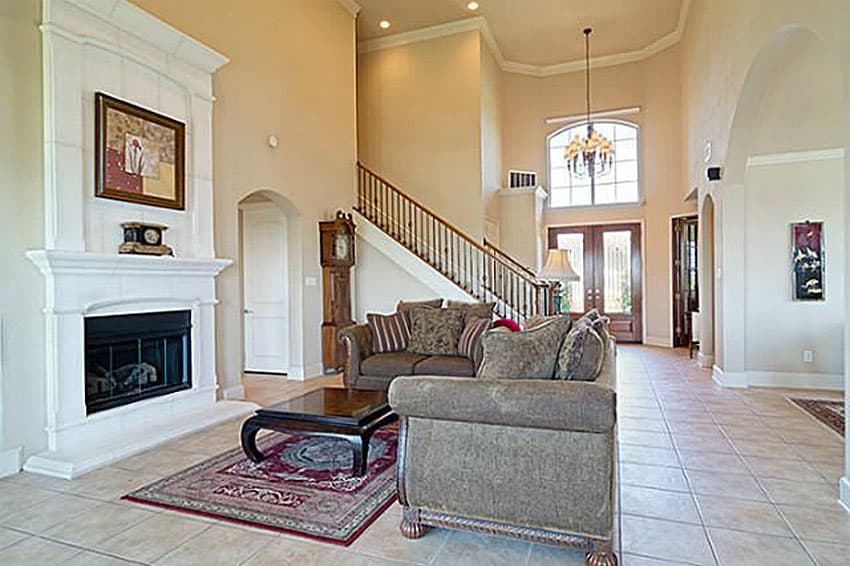

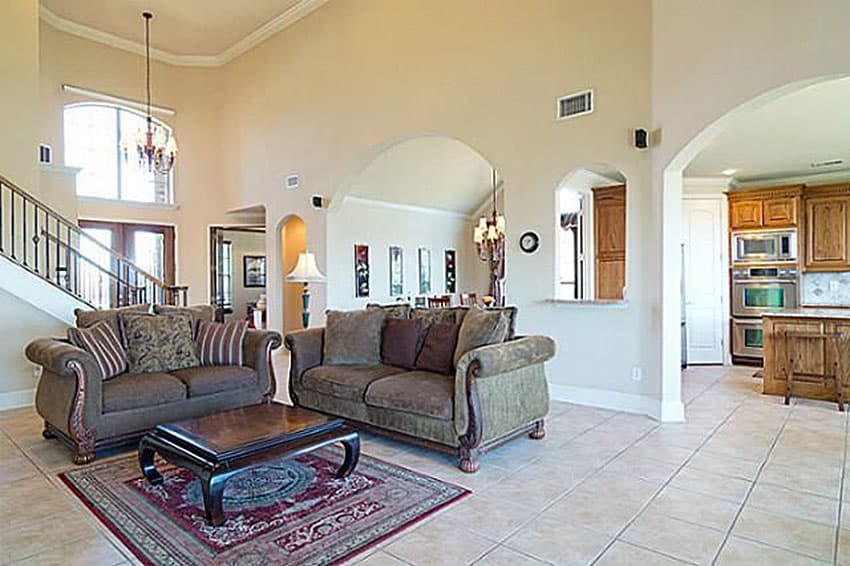

Both the foyer and the living room ceilings soar up to 20' high for a dramatic impression.

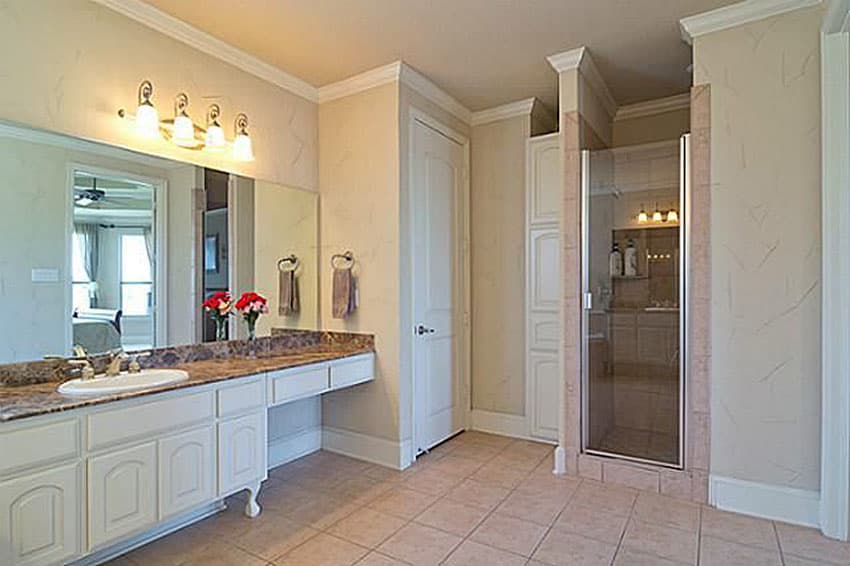

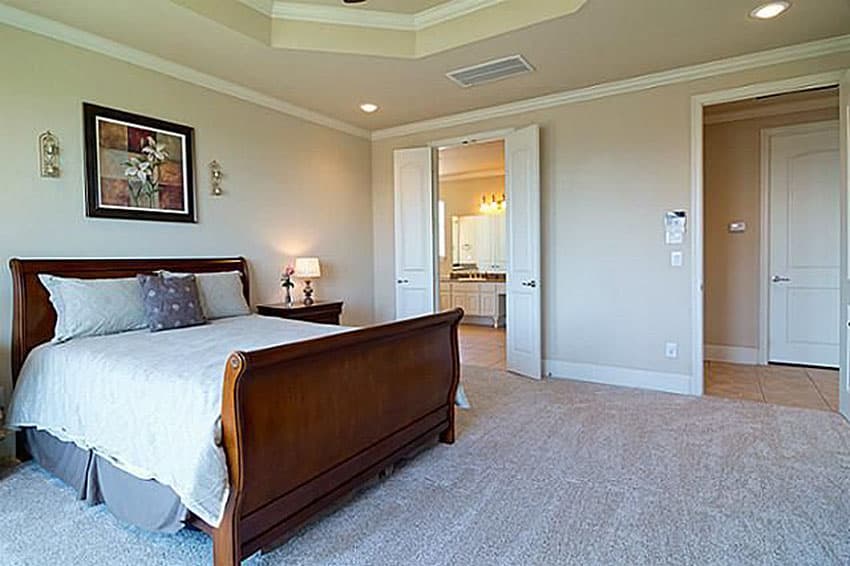

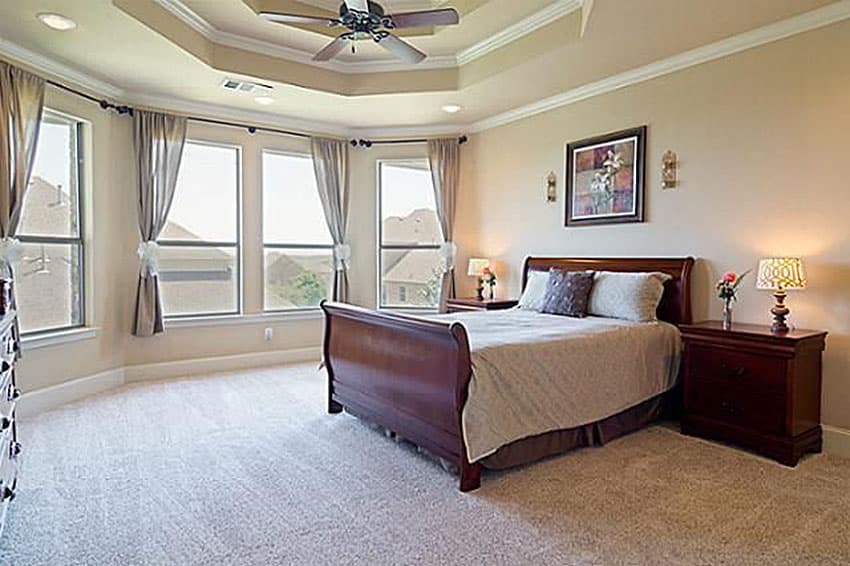

The first floor master suite has a bayed sitting area, tray ceiling and extra-large walk-in closet to appeal to homeowners.

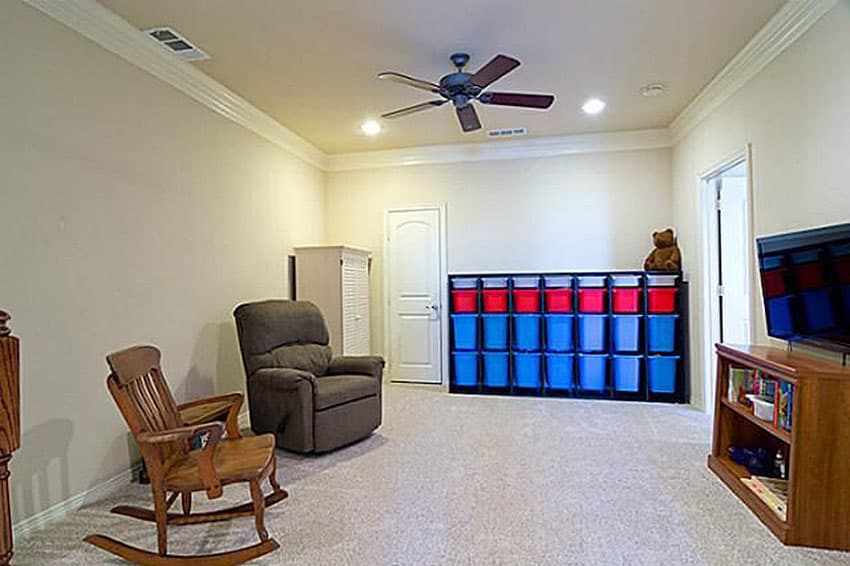

Send the kids to play in the second floor game room or make it a retreat for grown-ups.

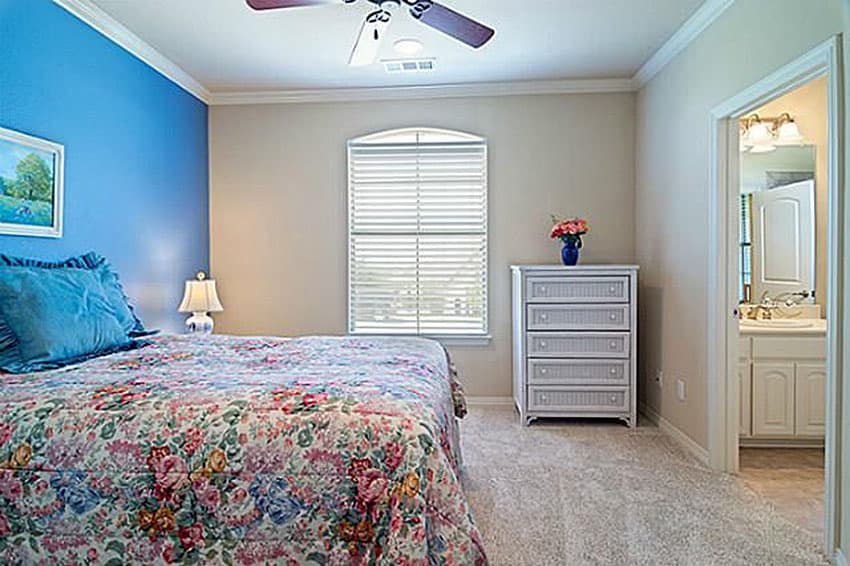

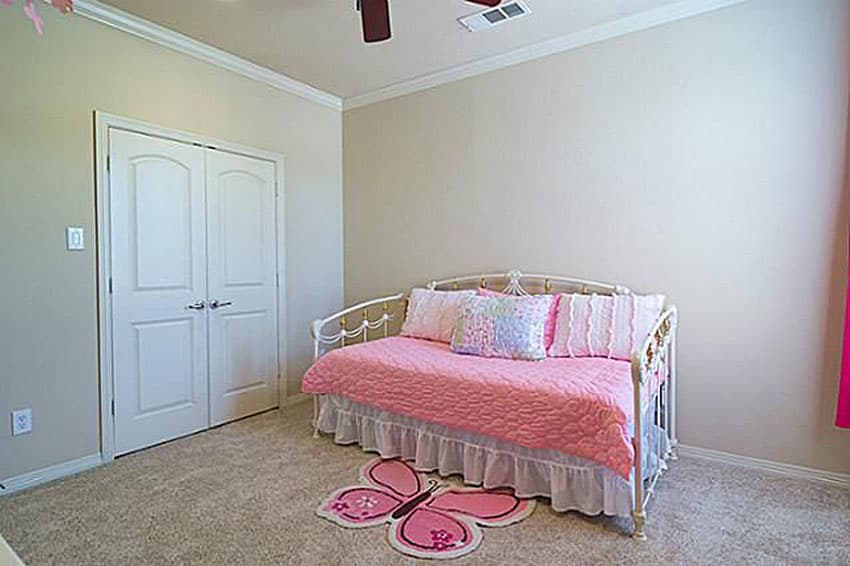

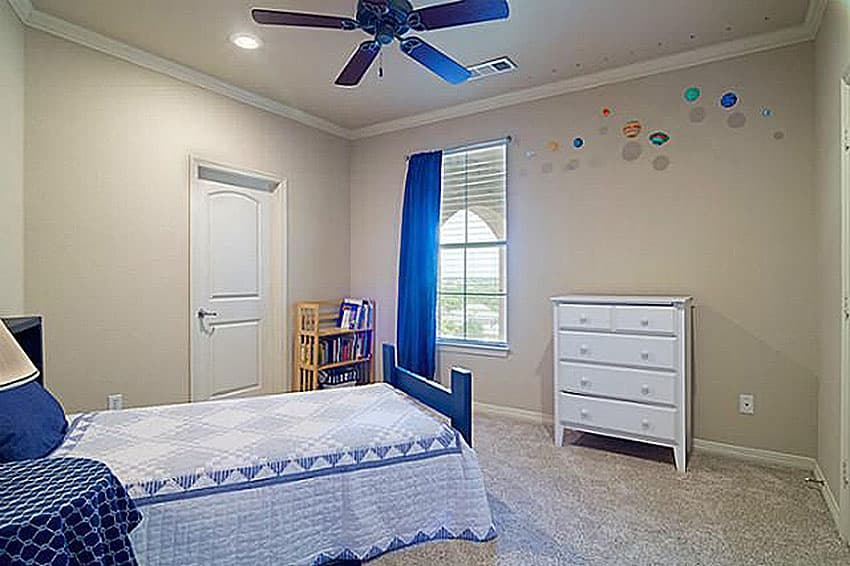

Each of the three bedrooms on this level are a great size and the fifth bedroom is off by itself on the first floor.

What's Included

Plan set includes the following:

1. Cover sheet

2. Foundation Plan

3. First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4. Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5. First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6. Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7. Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

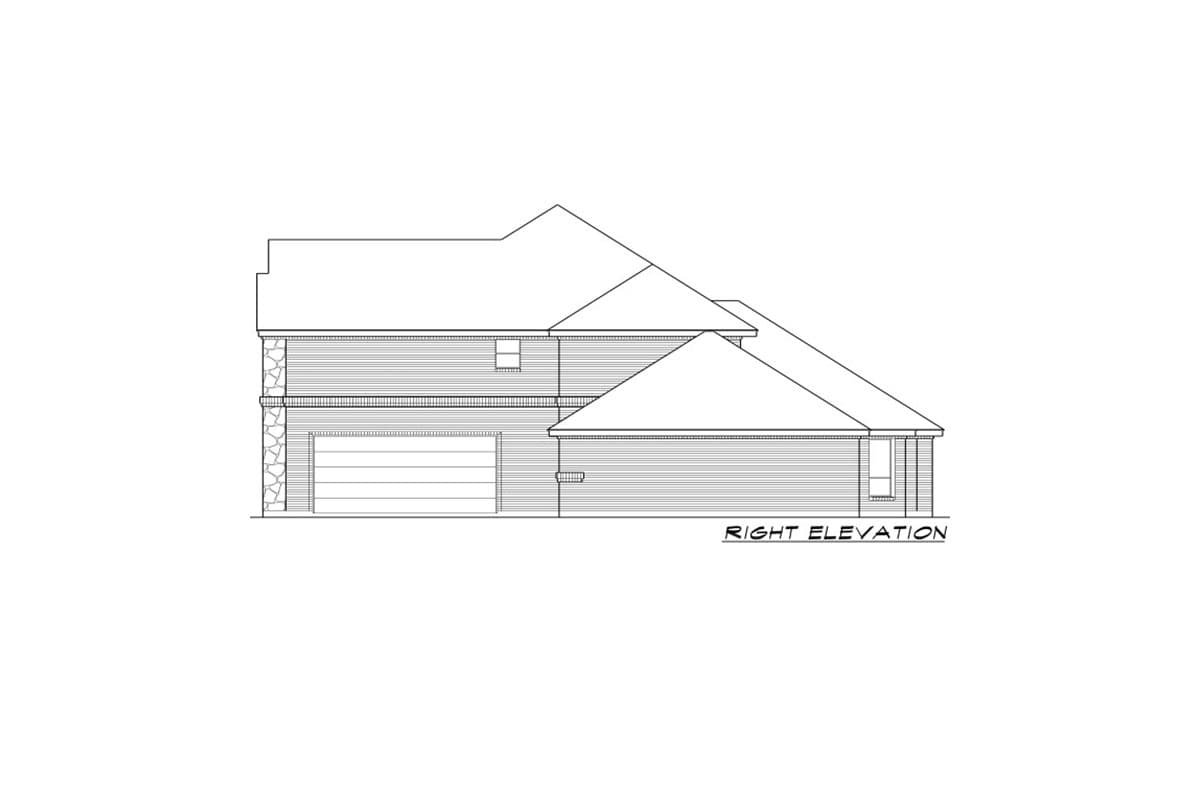

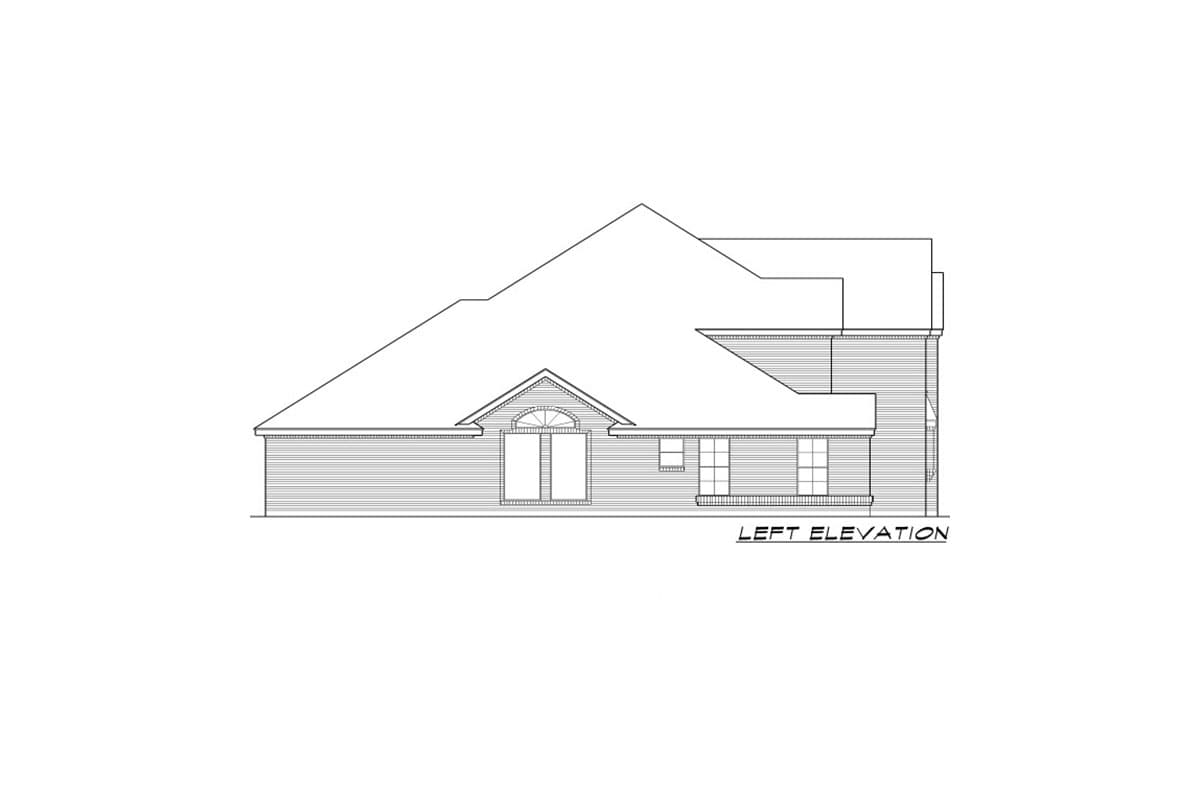

8. Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9. Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10. Sections page

11. Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

3,035 sq. ft.

1st Floor:

2,107 sq. ft.

2nd Floor:

928 sq. ft.

Beds/Baths

Bedrooms:

5

Full bathrooms:

4

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

70' 0"

Depth:

58' 0"

Max Ridge Height:

33' 0"

Garage

Type:

Attached

Area:

875 sq. ft.

Count:

3 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

First Floor / 9' 0" Second Floor / 9' 0"

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area
