Attention to Detail

Plan 48086FM

  • 2,908

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

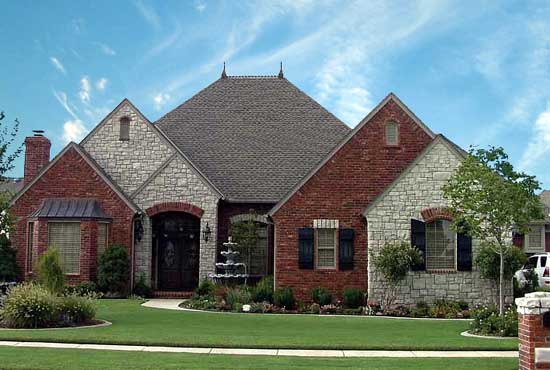

  • You'll appreciate the attention to detail in this attractive French country house plan. Covered patios front and rear and a large three-car garage complement the tasteful interior.
  • The great room features a cathedral ceiling and opens to the covered rear patio. A fireplace with bookcases to the side is an attractive sight.
  • The kitchen features a central island and the breakfast room is steps away. Take your formal meals in the dining room off the gallery. Nearby, the living room features built in bookcases and a tasteful bumpout. A private study has french doors.
  • The master suite has a raised ceiling (9'-10') and offers a seating area and patio access. His-and-her walk-in closets are a plus. Three more bedrooms are located across the home.`
  • Need more room? Expand above the garage where you'll gain 461 sq. ft. and an extra half bath if desired.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

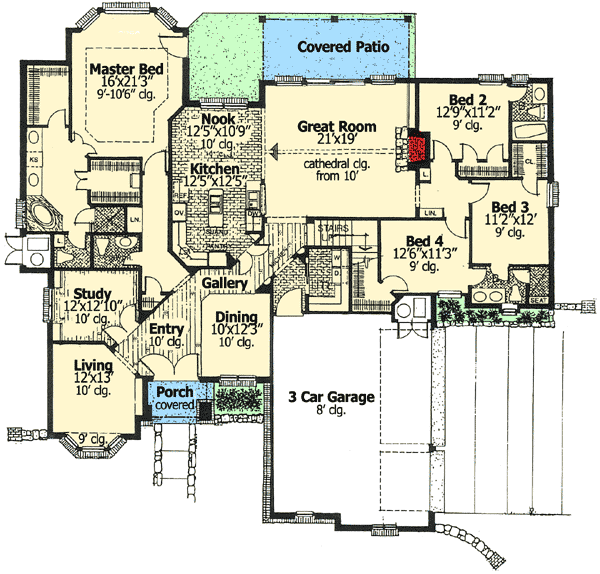

Attention to Detail - 48086FM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Attention to Detail - 48086FM floor plan - Bonus

Plan details

Attention to Detail

  • 2,908

    Heated s.f.

  • 4

    Beds

  • 4 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,195
  • 8 Sets $1,335
  • PDF - Single-Build $1,485
  • View all purchase option online

About This Plan

  • You'll appreciate the attention to detail in this attractive French country house plan. Covered patios front and rear and a large three-car garage complement the tasteful interior.
  • The great room features a cathedral ceiling and opens to the covered rear patio. A fireplace with bookcases to the side is an attractive sight.
  • The kitchen features a central island and the breakfast room is steps away. Take your formal meals in the dining room off the gallery. Nearby, the living room features built in bookcases and a tasteful bumpout. A private study has french doors.
  • The master suite has a raised ceiling (9'-10') and offers a seating area and patio access. His-and-her walk-in closets are a plus. Three more bedrooms are located across the home.`
  • Need more room? Expand above the garage where you'll gain 461 sq. ft. and an extra half bath if desired.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,908 sq. ft.
  • 1st Floor: 2,908 sq. ft.
  • Bonus: 461 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 73' 0"
  • Depth: 73' 7"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 650 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
