Attractive 3-Bed House Plan with Cathedral Ceilings in the Great Room and Master Suite

Plan 444322GDN

  • 1,844

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This attractive home plan has a conservative footprint and a charming exterior highlighted by decorative brackets and a metal roof over the 26'8" wide and 6'4" deep front porch.
  • The welcoming two story (14'6"-high) foyer includes a bench and dual coat closets for convenience.
  • The cozy great room is surrounded by windows and a soaring 16'2" cathedral ceiling adds volume.
  • The kitchen's efficient design puts all of the appliances within easy reach. A single space for dining ensures no space is wasted in this floor plan.
  • The master bedroom has a large arched window and a 13'6" cathedral ceiling to create an airy feel in this home plan.
  • Upstairs are two more bedrooms, a bath and a large 436 square foot bonus room await expansion.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

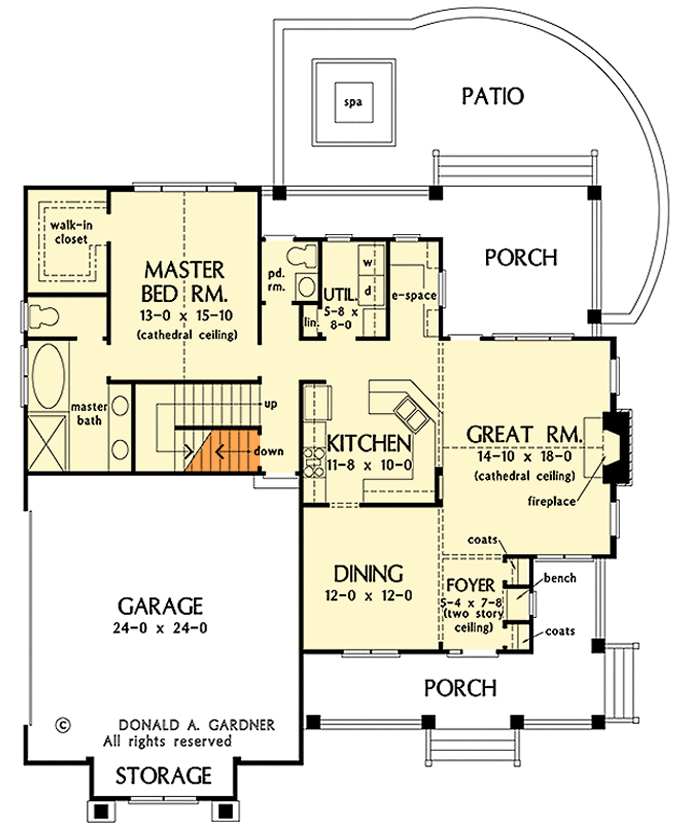

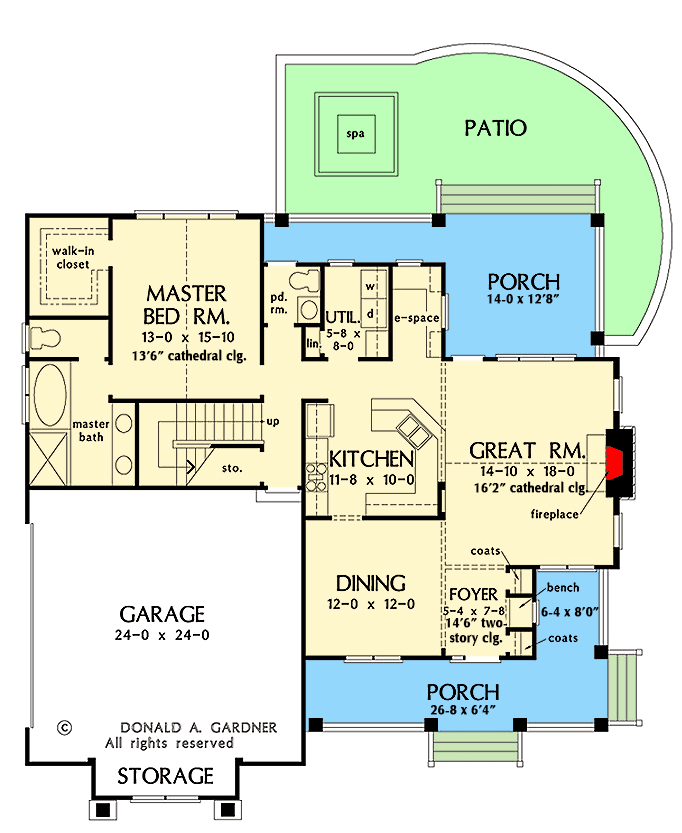

Attractive 3-Bed House Plan with Cathedral Ceilings in the Great Room and Master Suite - 444322GDN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

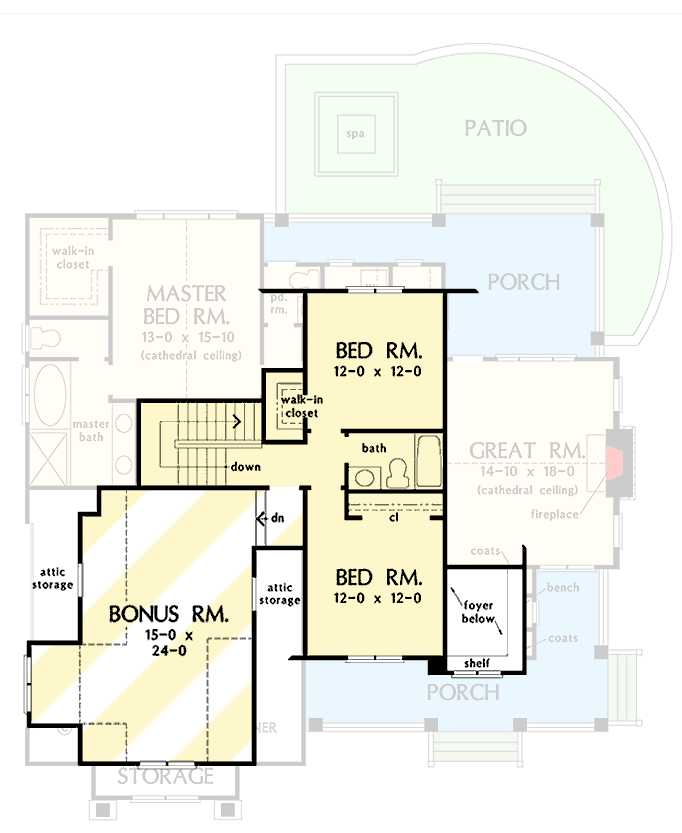

Attractive 3-Bed House Plan with Cathedral Ceilings in the Great Room and Master Suite - 444322GDN floor plan - 2nd Floor

Main Level - Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Attractive 3-Bed House Plan with Cathedral Ceilings in the Great Room and Master Suite - 444322GDN floor plan - Main Level - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,844 sq. ft.
  • 1st Floor: 1,378 sq. ft.
  • 2nd Floor: 466 sq. ft.
  • Covered Patio: 507 sq. ft.
  • Porch, Combined: 467 sq. ft.
  • Bonus: 436 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 53' 6"
  • Depth: 53' 4"
  • Max ridge height: 25' 11"

Garage

  • Type: Attached
  • Area: 634 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Attractive 3-Bed House Plan with Cathedral Ceilings in the Great Room and Master Suite

  • 1,844

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $955
  • PDF - Single-Build $1,155
  • 5 Sets + PDF $1,355
  • CAD Unlimited + PDF $2,310
  • View all purchase option online
