Attractive Craftsman Home Plan with Family Studio and Flex Bedroom or Study

Plan 444045GDN

  • 2,613

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 2

    Cars

  • This attractive one-story Craftsman house plan has a charming stone and cedar shake exterior accented with cupolas and a shed dormer. Inside, the foyer leads to a dining room defined by columns and tray ceiling and a spacious great room with 18' cathedral ceiling.
  • The gourmet kitchen opens to a comfy keeping room and breakfast room with abundant windows.
  • Nestled at the rear of the home for ultimate privacy, the master suite offers a cathedral ceiling, dual walk-in closets and a well-appointed master bath with dual vanities. Across the home, two bedrooms and two full baths are located off the keeping room, while a bedroom/study with bath enjoys privacy on the other side of the house.
  • Outdoor living space is plentiful -- the rear of the home plan includes an enormous screened porch with fireplace, and a second porch can be accessed from the great room and master suite.
  • The family studio provides generous space for household chores and hobbies, and also serves as a mud room with direct access to and from the garage.
  • A large bonus space over the garage gives you expansion space.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

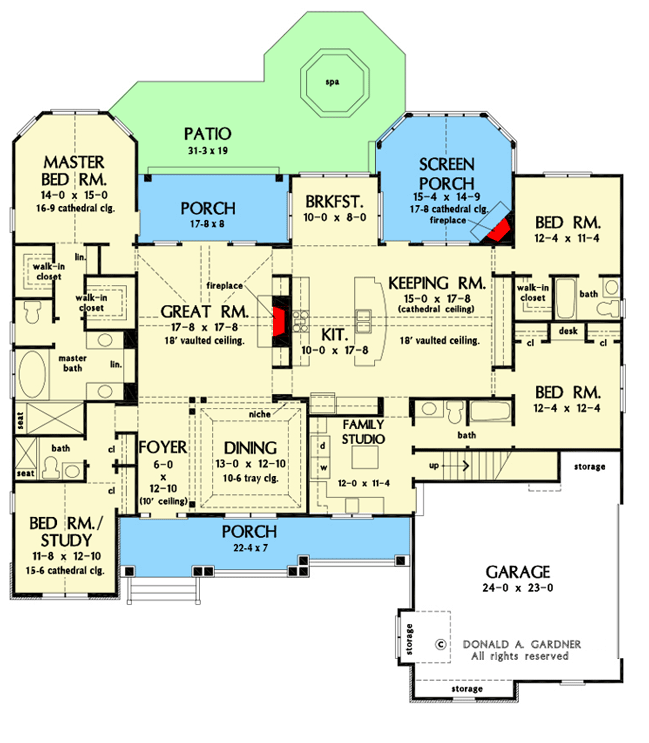

Attractive Craftsman Home Plan with Family Studio and Flex Bedroom or Study - 444045GDN floor plan - Main Level

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

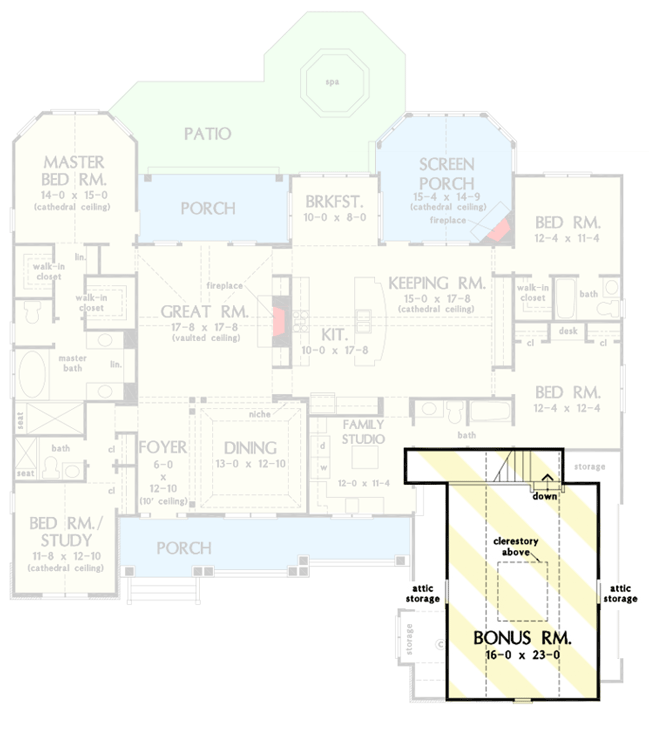

Attractive Craftsman Home Plan with Family Studio and Flex Bedroom or Study - 444045GDN floor plan - Bonus Room

Basement Option

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

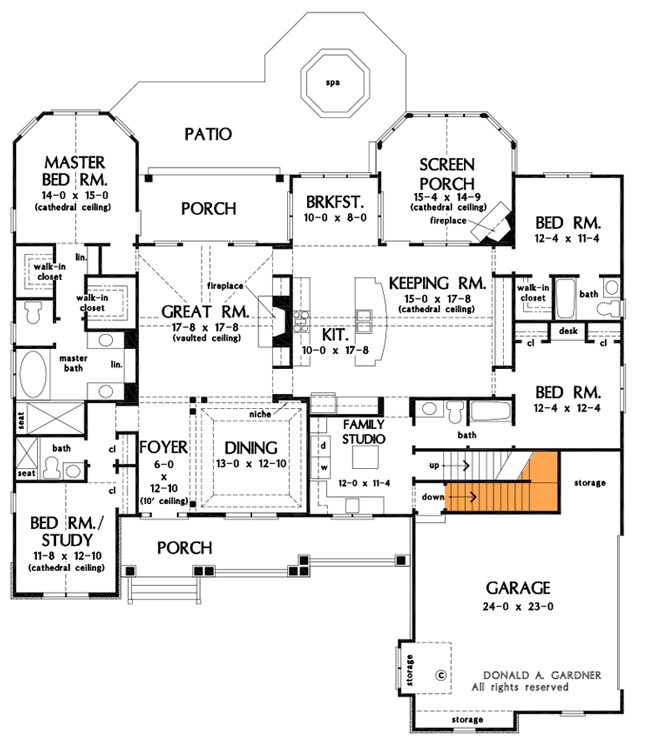

Attractive Craftsman Home Plan with Family Studio and Flex Bedroom or Study - 444045GDN floor plan - Basement Option
